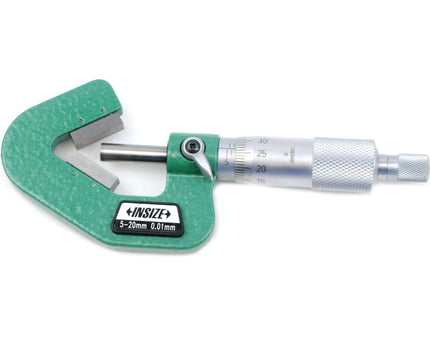

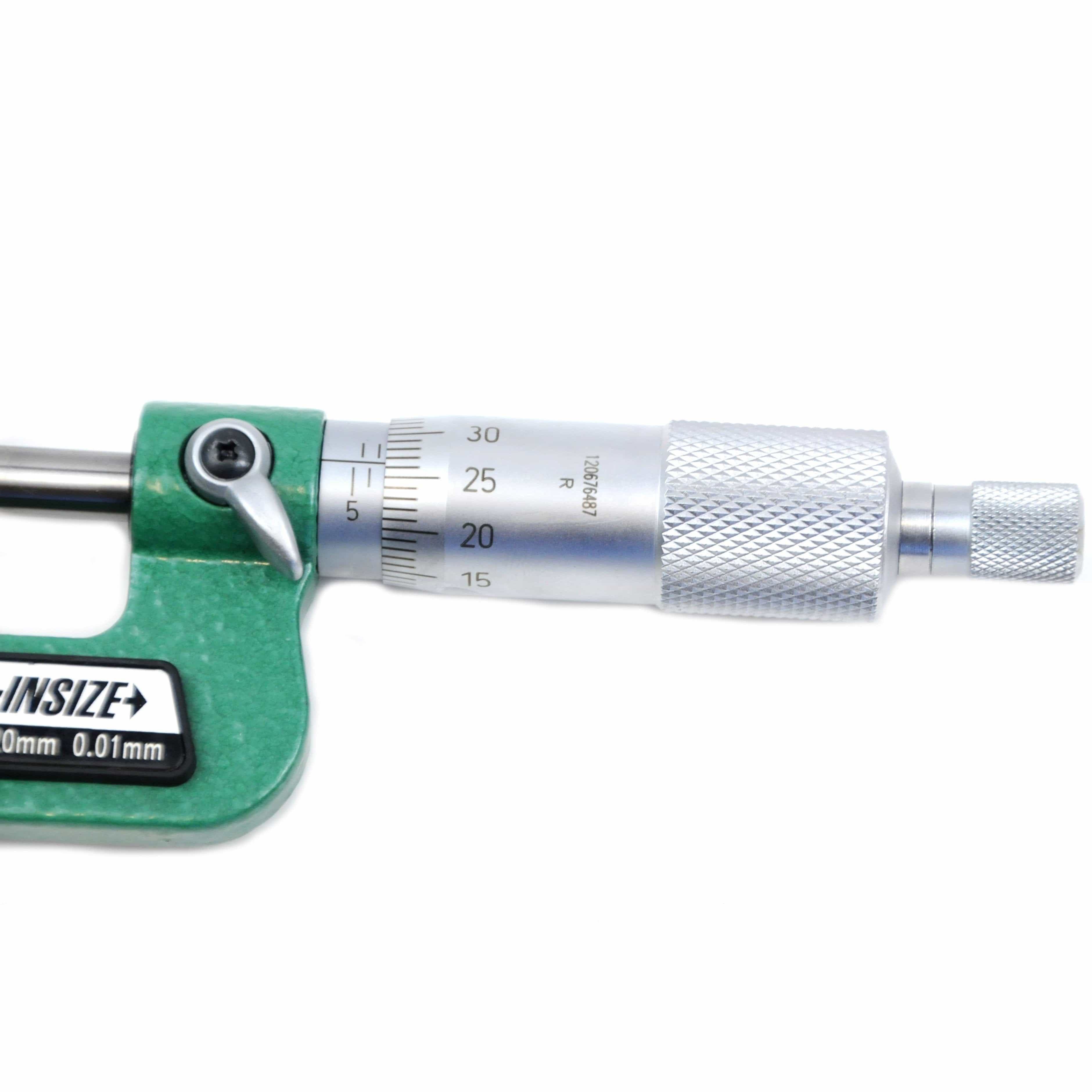

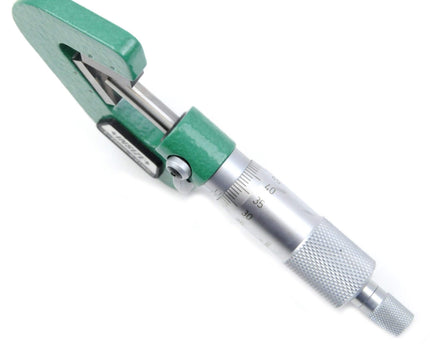

Insize 5–20mm V Shape Anvil Micrometer

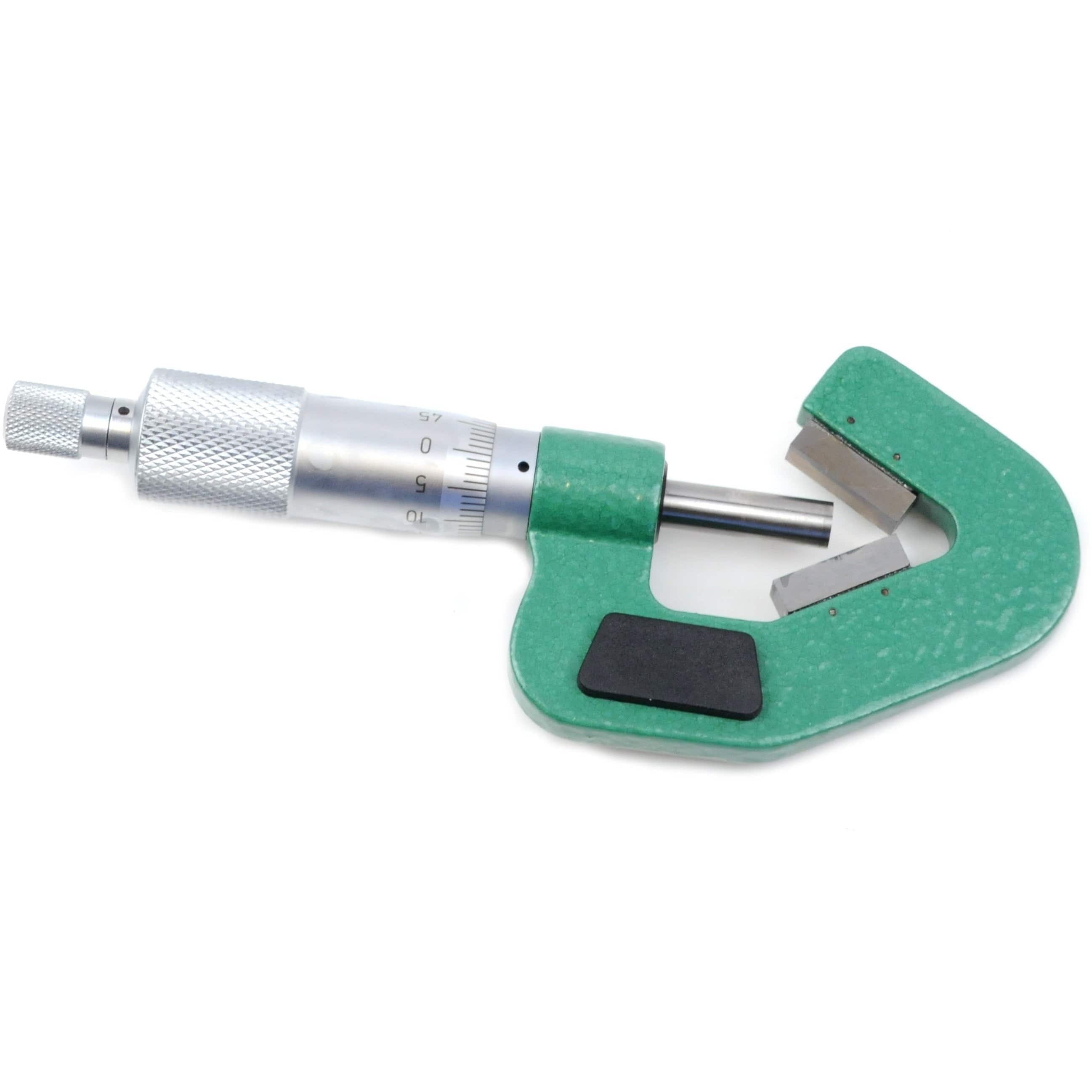

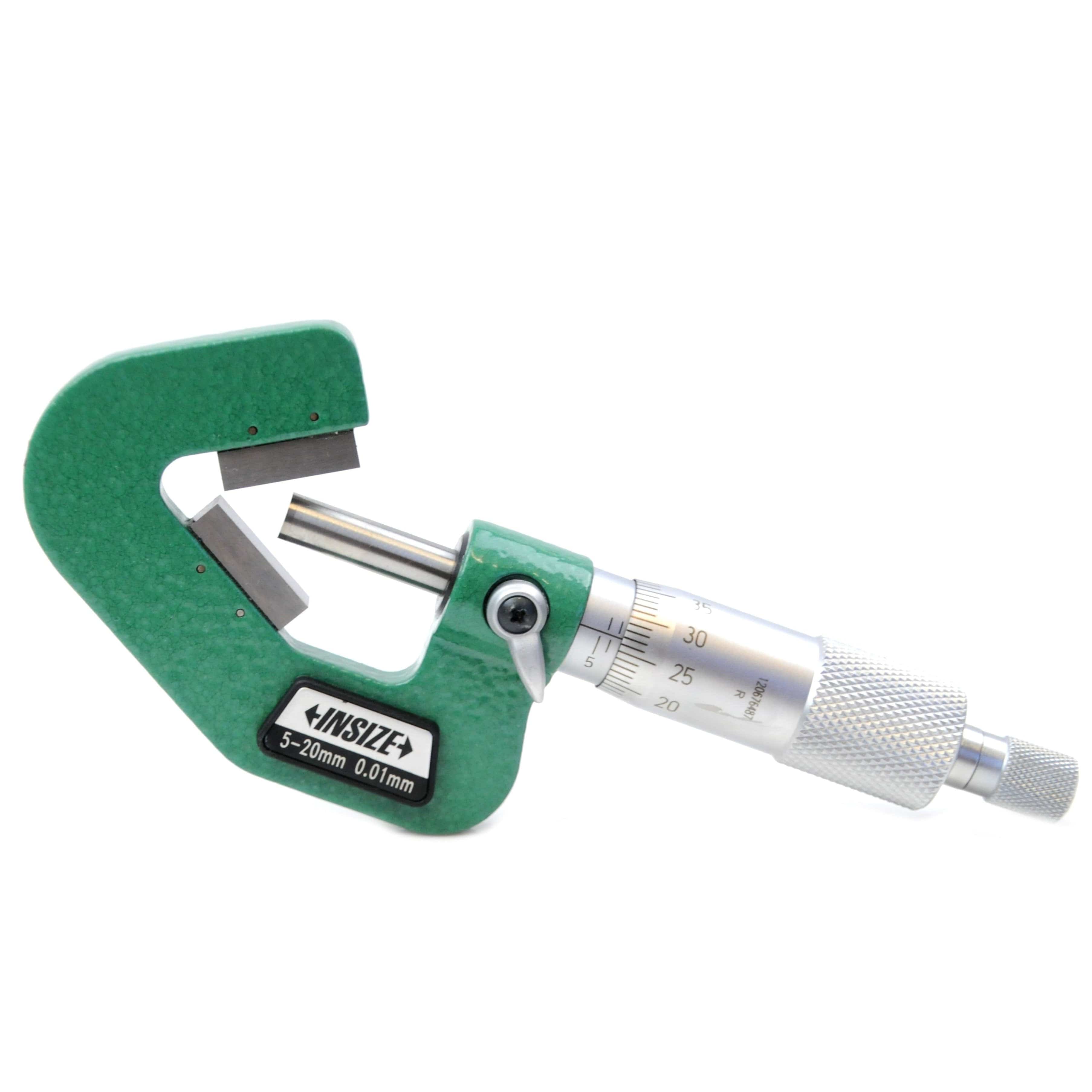

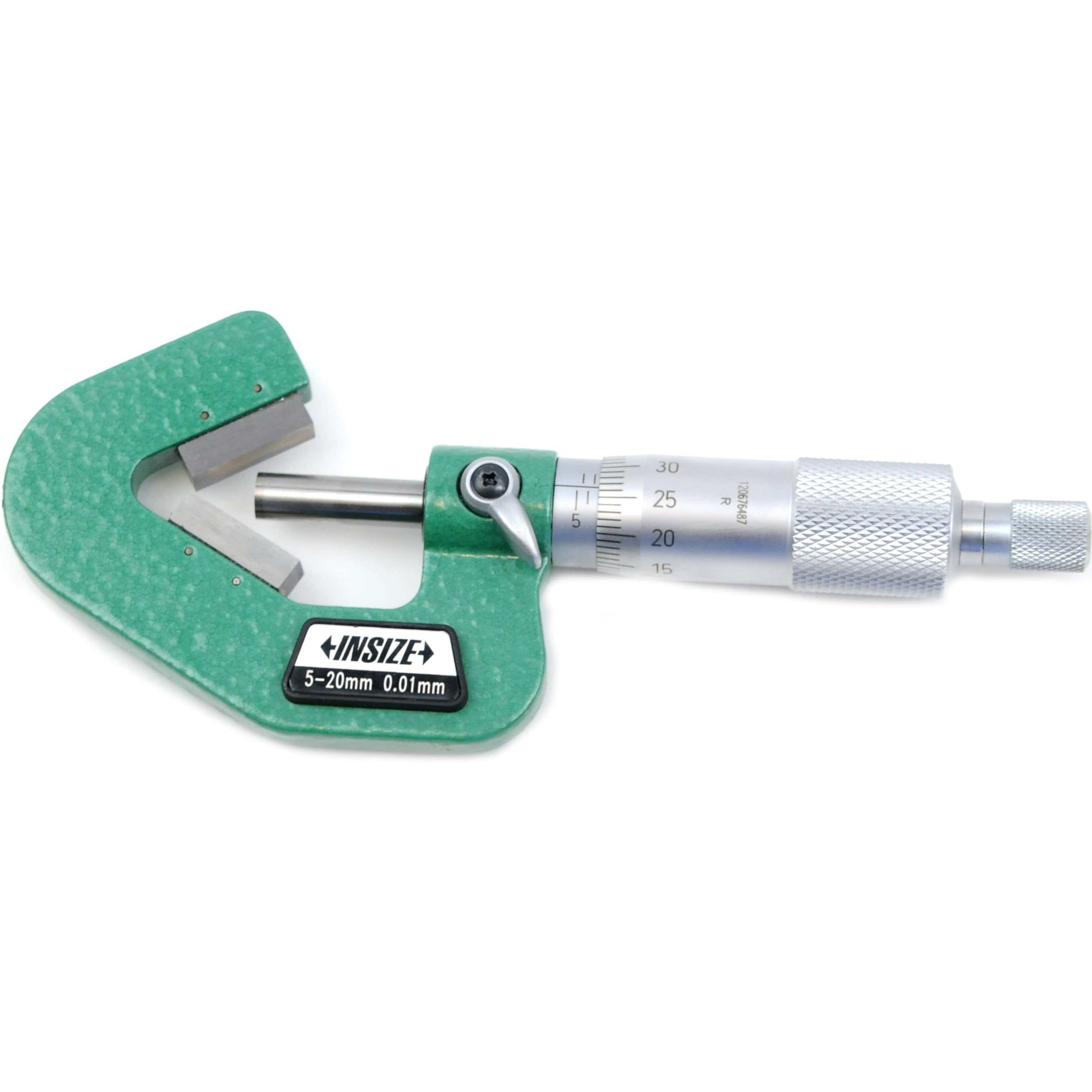

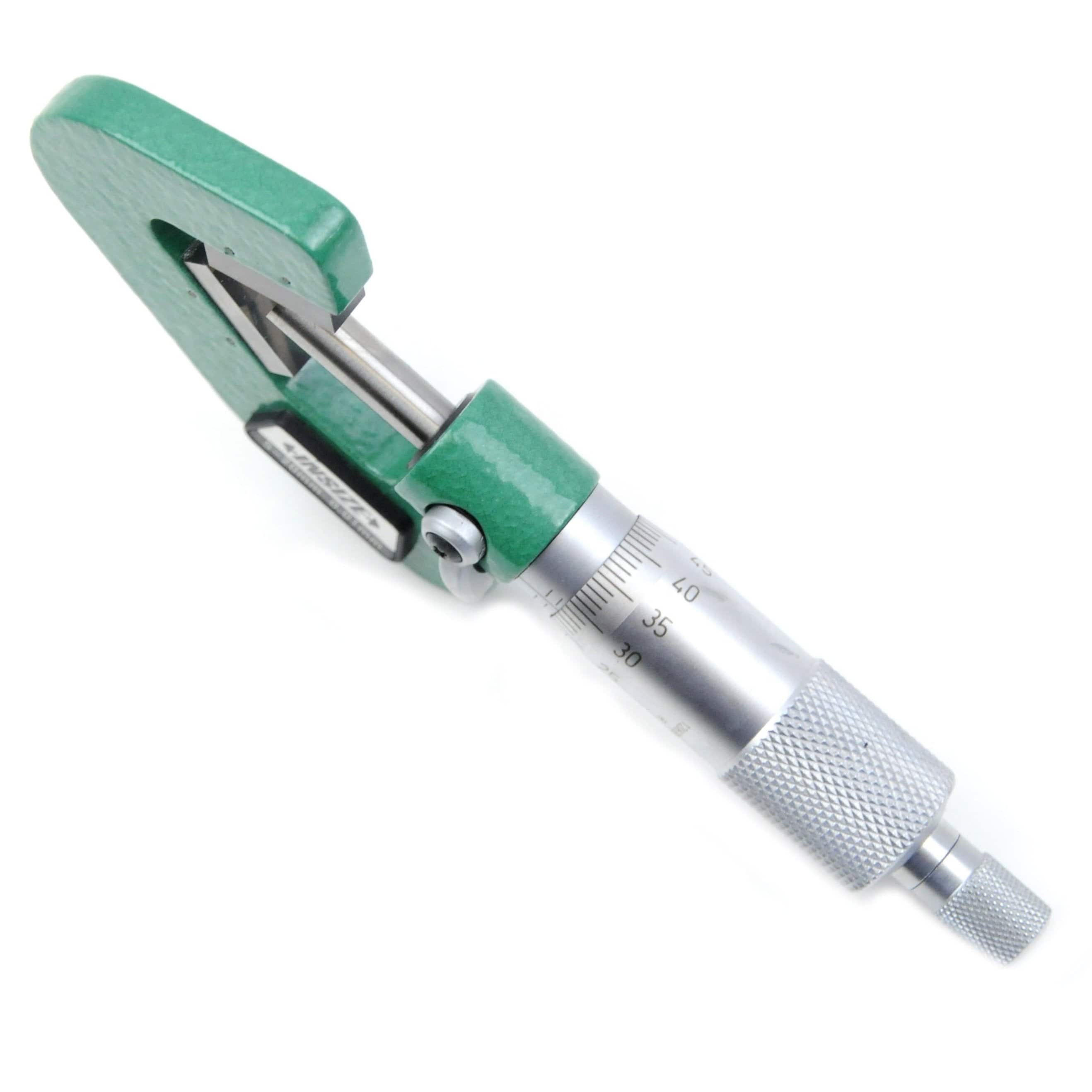

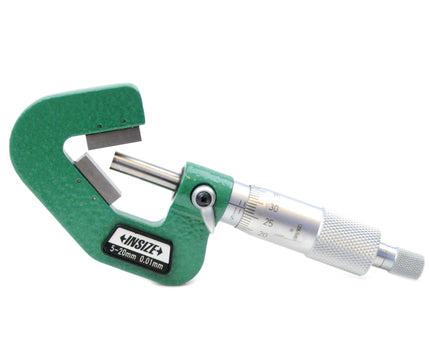

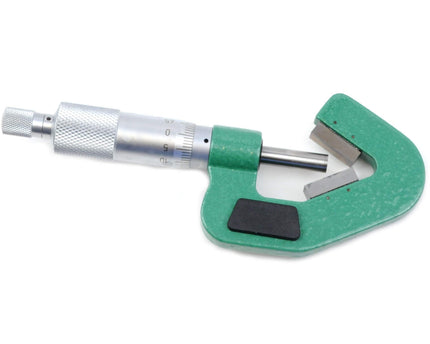

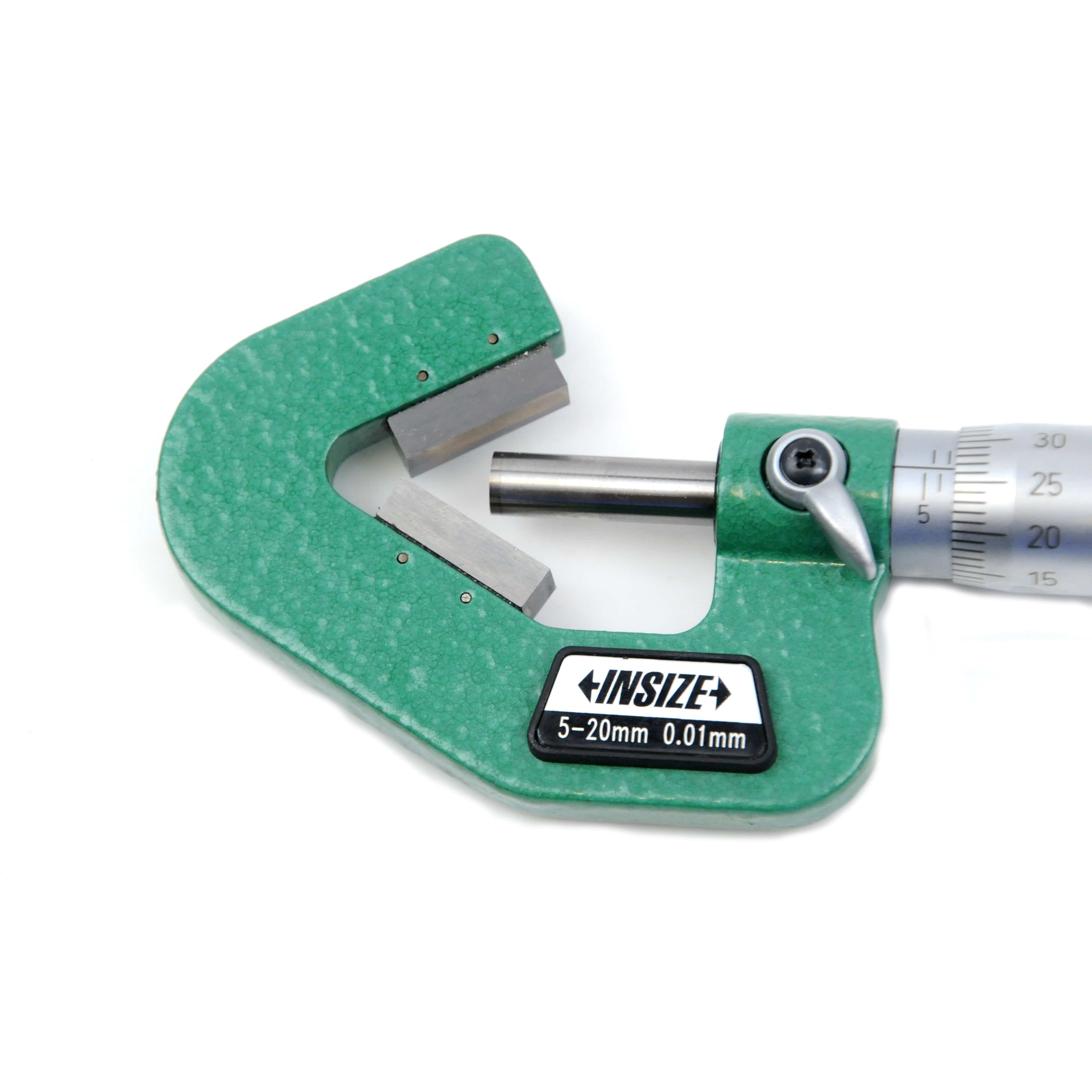

The Insize 5–20mm V Shape Anvil Micrometer is designed for precise outside diameter measurement of multi-fluted cutting tools such as taps, reamers, and end mills. Featuring a precision-ground 60° V-shaped anvil, it provides stable and repeatable contact on tool flutes, delivering accurate results where conventional flat anvil micrometers are unsuitable.

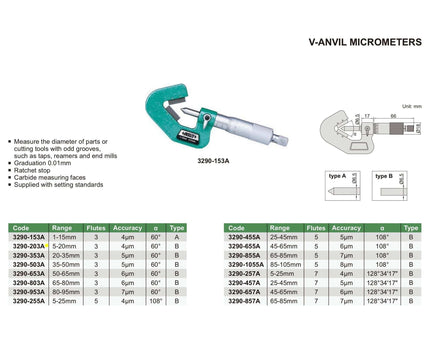

Key Features:
-

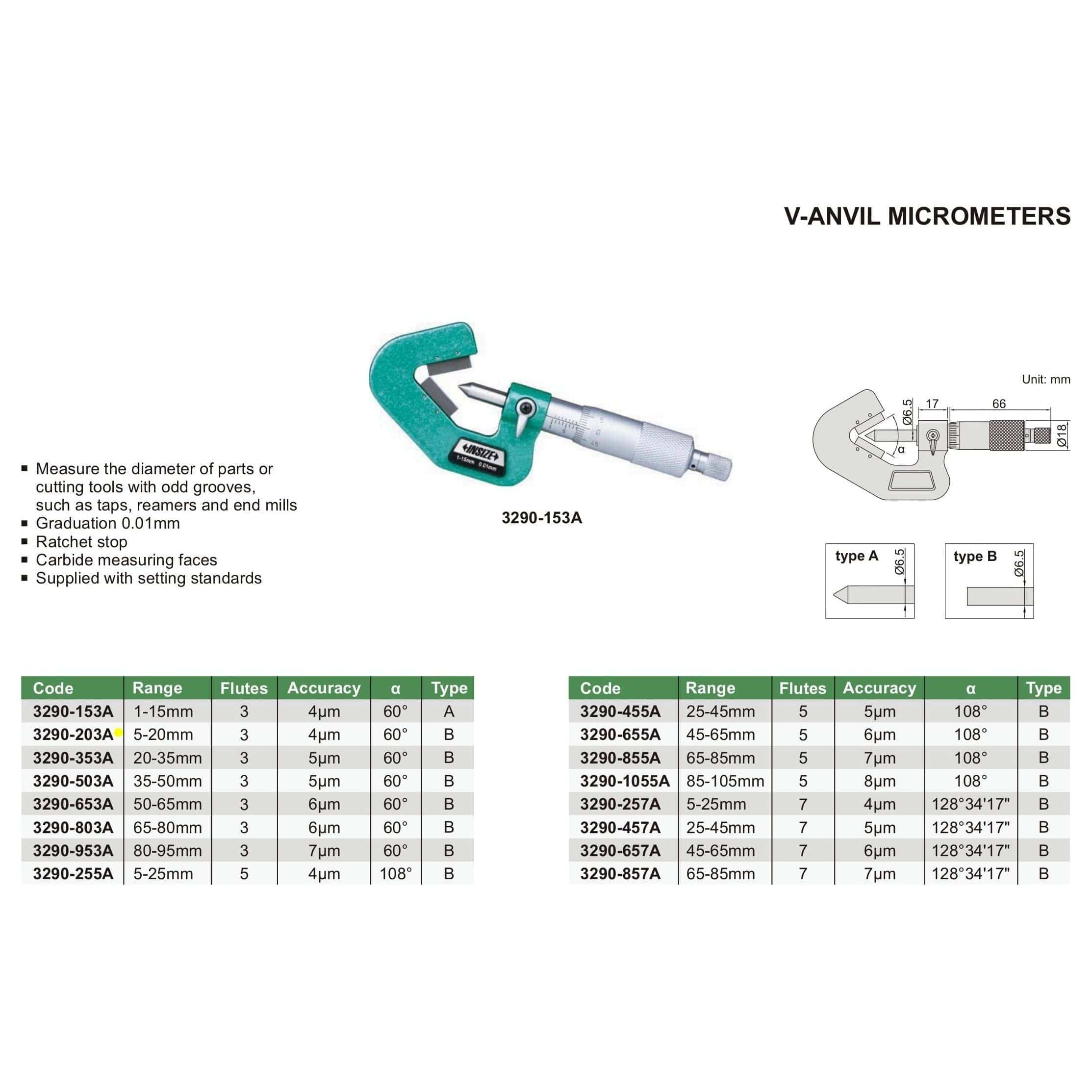

Part Number: 3290-203A
-
Measurement Range: 5–20mm
-
Graduation: 0.01mm
-

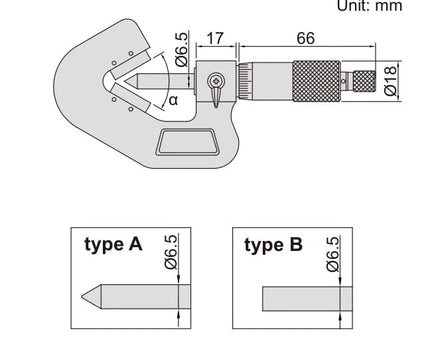

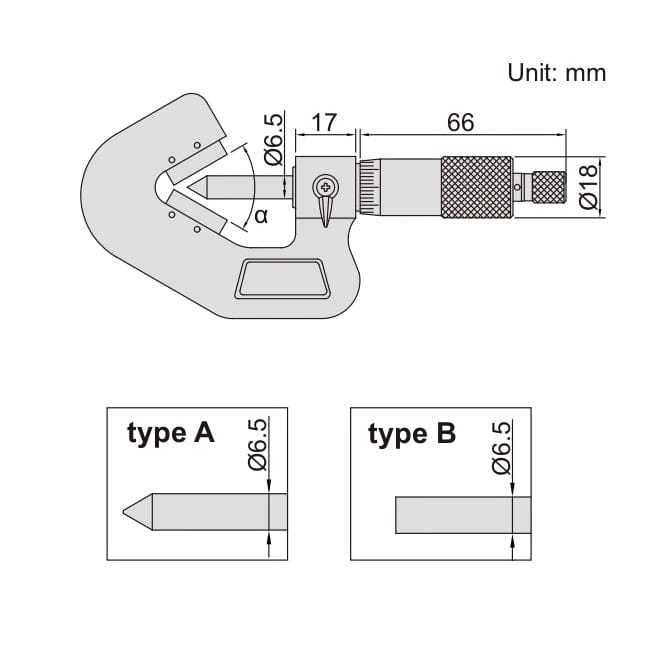

Anvil Angle (ɑ): 60°
-
Flutes: 3 or 5
-
Type: B
-
Carbide Measuring Faces: Provide durability, wear resistance, and long service life
-

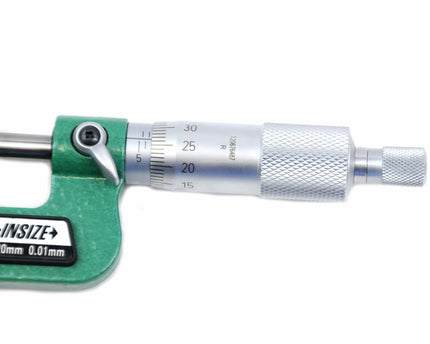

Ratchet Stop: Ensures consistent measuring pressure for accurate, repeatable results
-

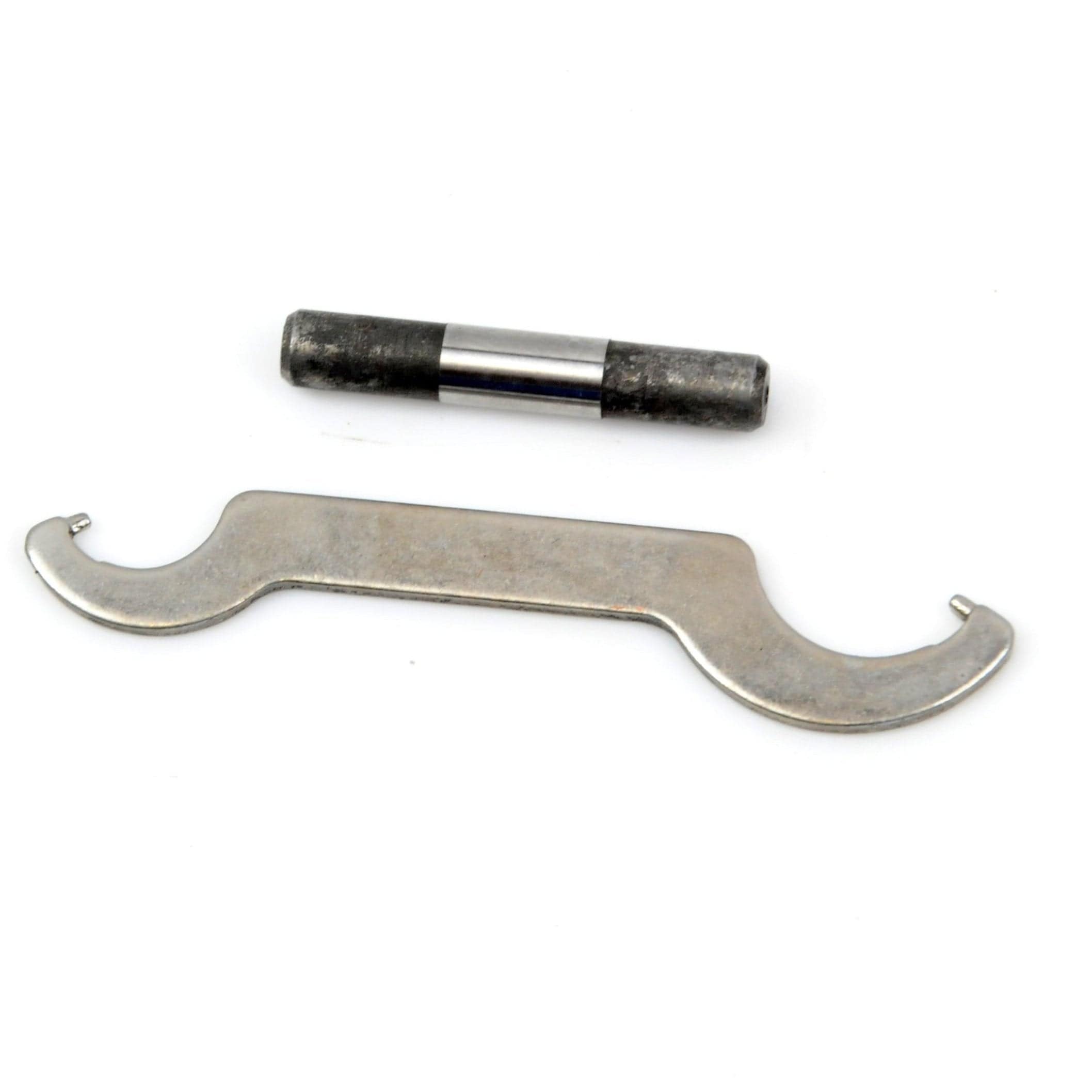

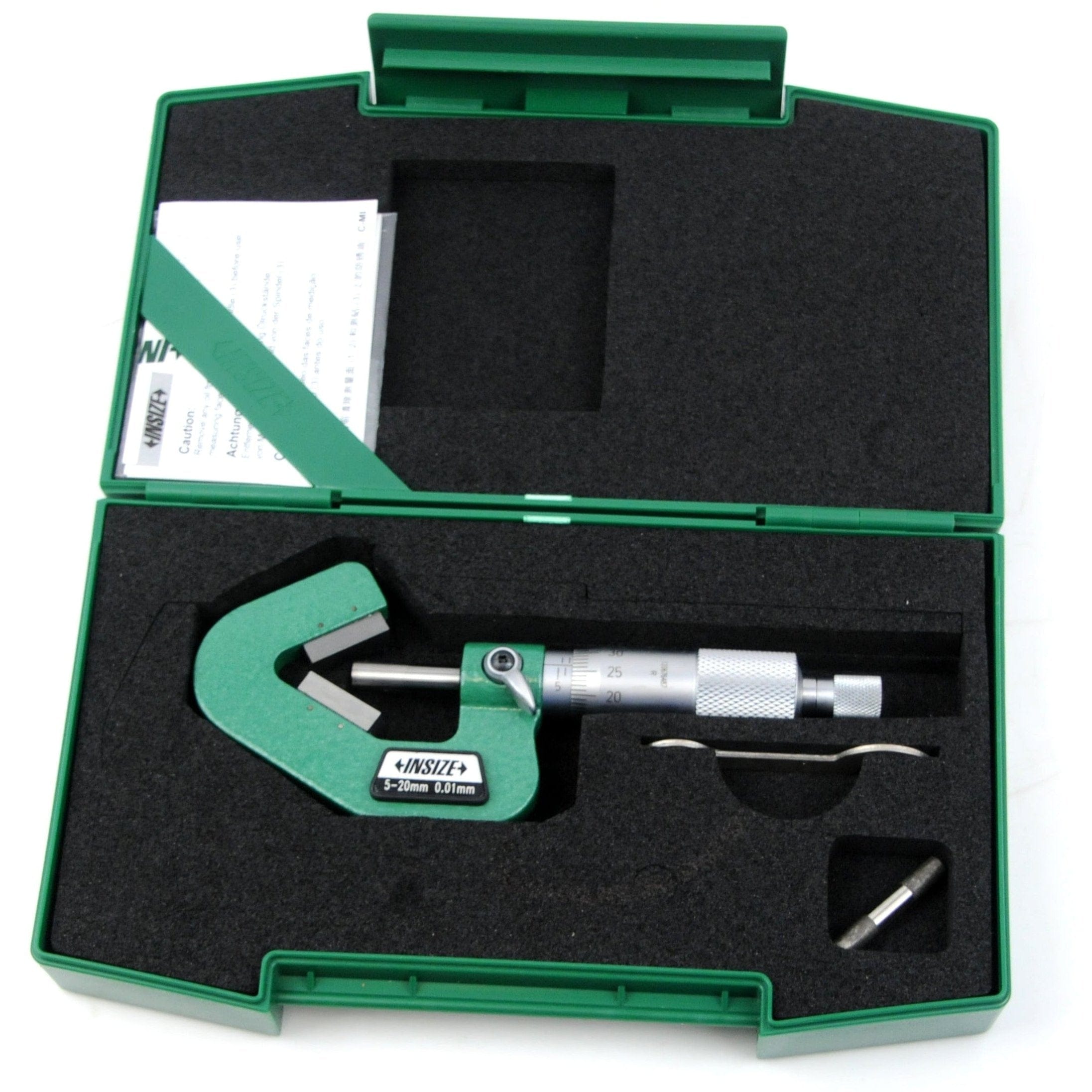

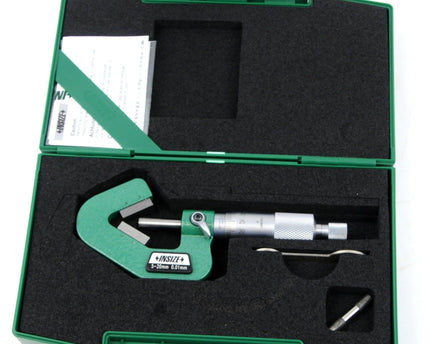

Setting Standard: Supplied for calibration and accuracy verification
-
Application: Suitable for taps, reamers, and end mills with 3 or 5 flutes
Well designed and built for durability, the Insize 3290-203A V Shape Anvil Micrometer is ideal for toolrooms, inspection departments, and machining environments requiring reliable measurement of cutting tool diameters. Insize micrometers are recognised for their precision, consistency, and ease of use.
