Description
Insize Vernier Caliper
The Insize Vernier Caliper 1211-40 is a precision measuring instrument designed for large-scale measurements up to 40 inches. Built from stainless steel with a satin-chrome plated reading surface, it ensures durability, smooth operation, and high accuracy for industrial and mechanical applications.

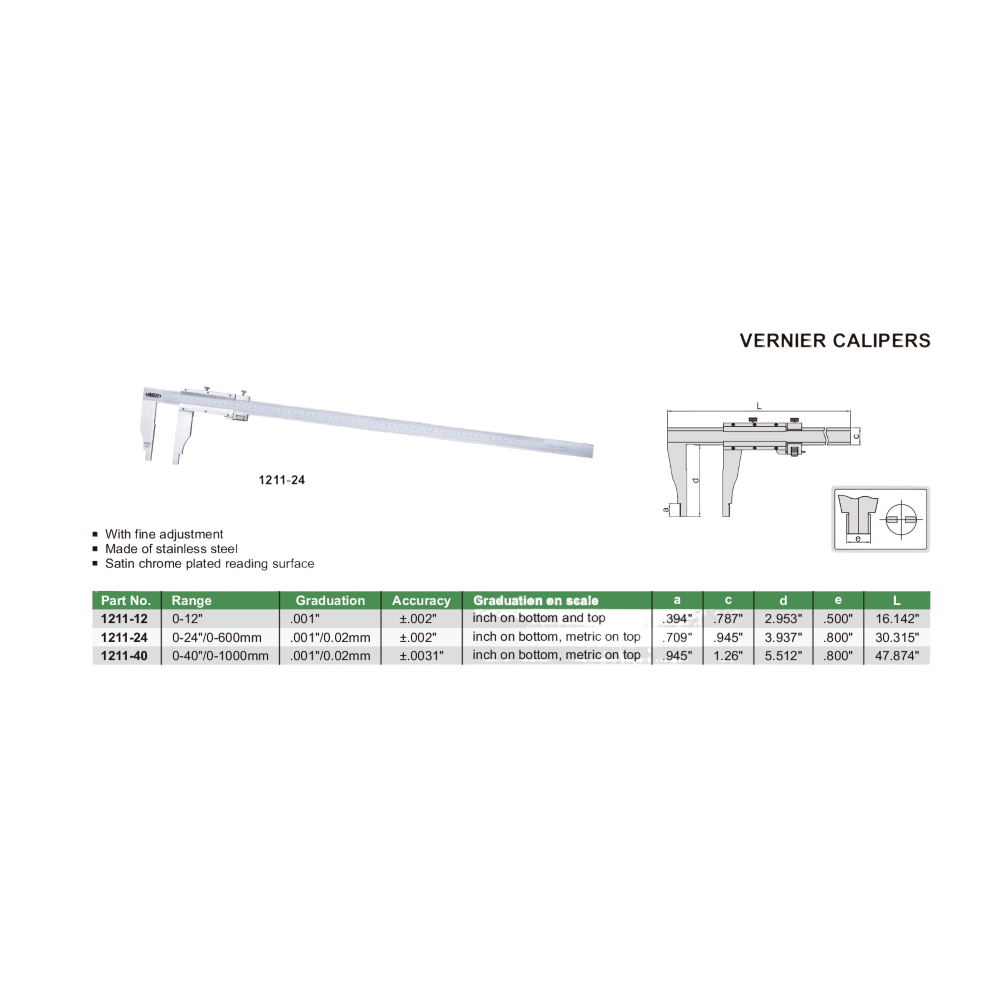

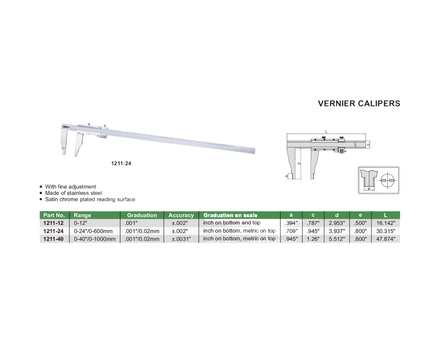

Specifications :
-
Part No: 1211-40
-
Measuring Range: 0–40" / 0–1000 mm
-
Graduation: 0.001 " / 0.02 mm
-
Accuracy: ±0.0031"
-
Material: Stainless steel with satin-chrome plated reading surface
-
Graduation on Scale: Inch on bottom, metric on top
-
Fine Adjustment: Included
-
Jaw Depth (a): 0.945"
-
Jaw Height (c): 1.26"
-
Length of Measuring Jaws (d): 5.512"
-
Depth Bar Width (e): 0.800"
-
Overall Length (L): 47.874"
-
Product Features: Fine adjustment mechanism, large capacity, durable construction
-
Included Accessories: Supplied in protective case
Well-designed, durable, high-precision tool suitable for large workpieces. The INSIZE 1211-40 Vernier Caliper is the perfect instrument for dimensional inspection in heavy engineering and fabrication industries.
