Description

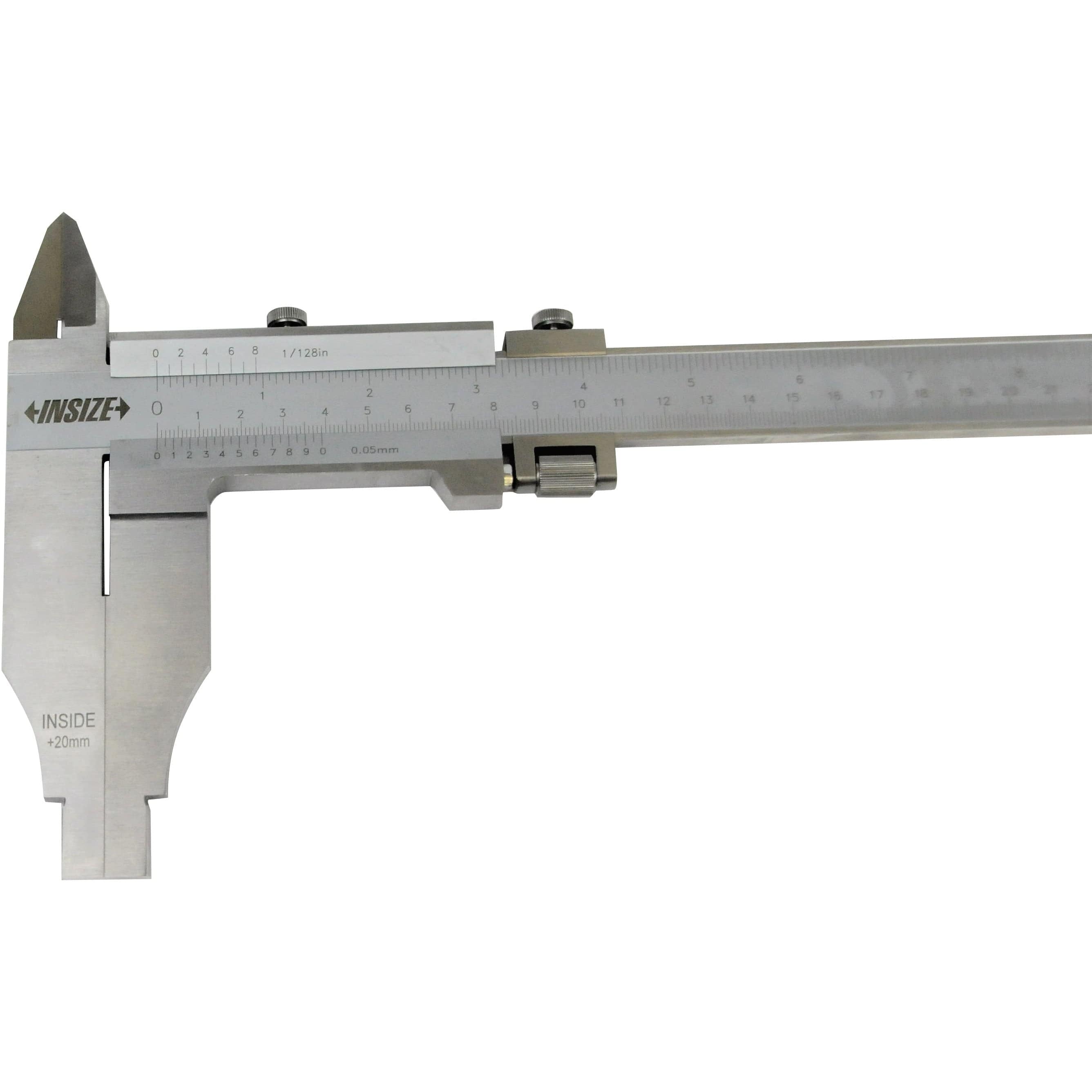

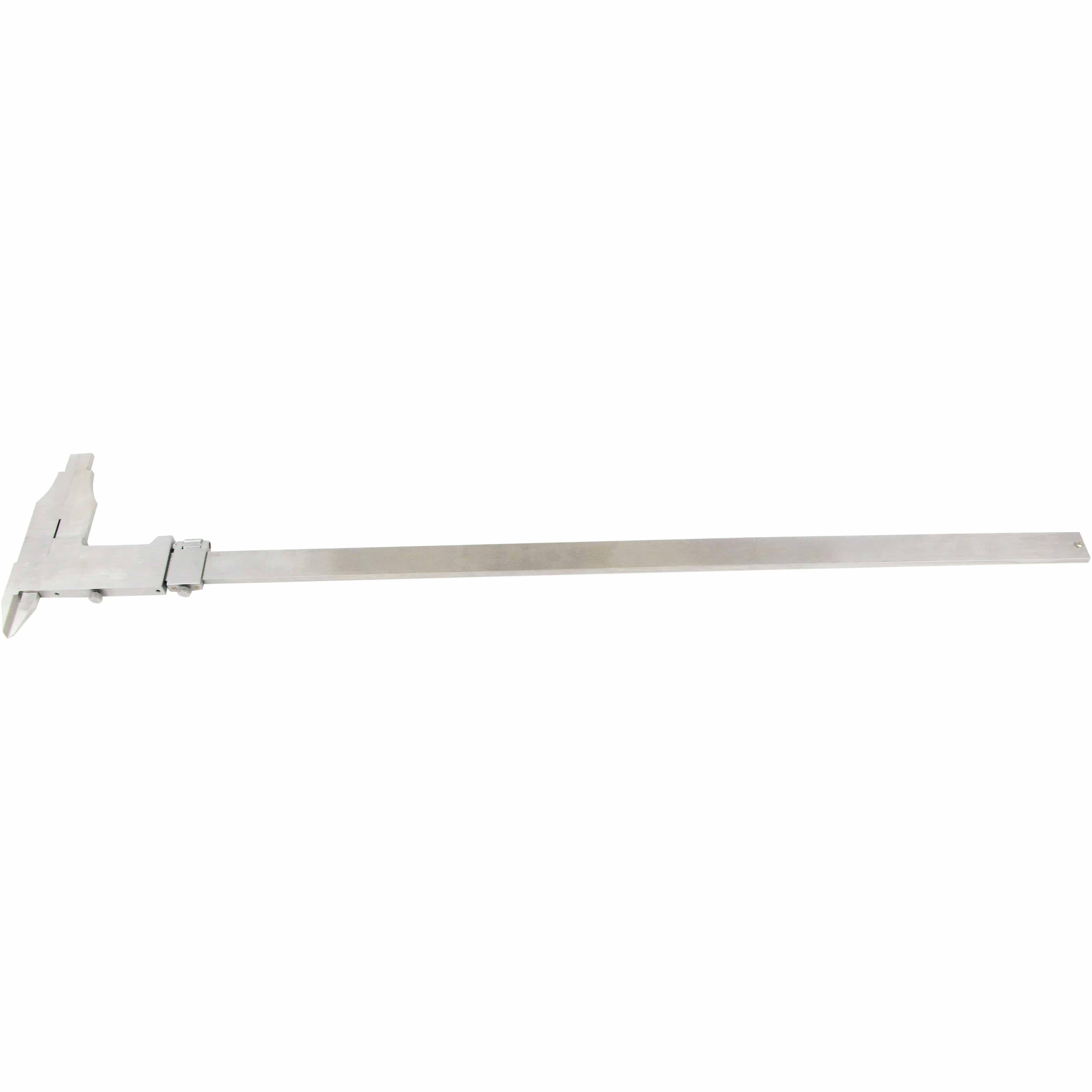

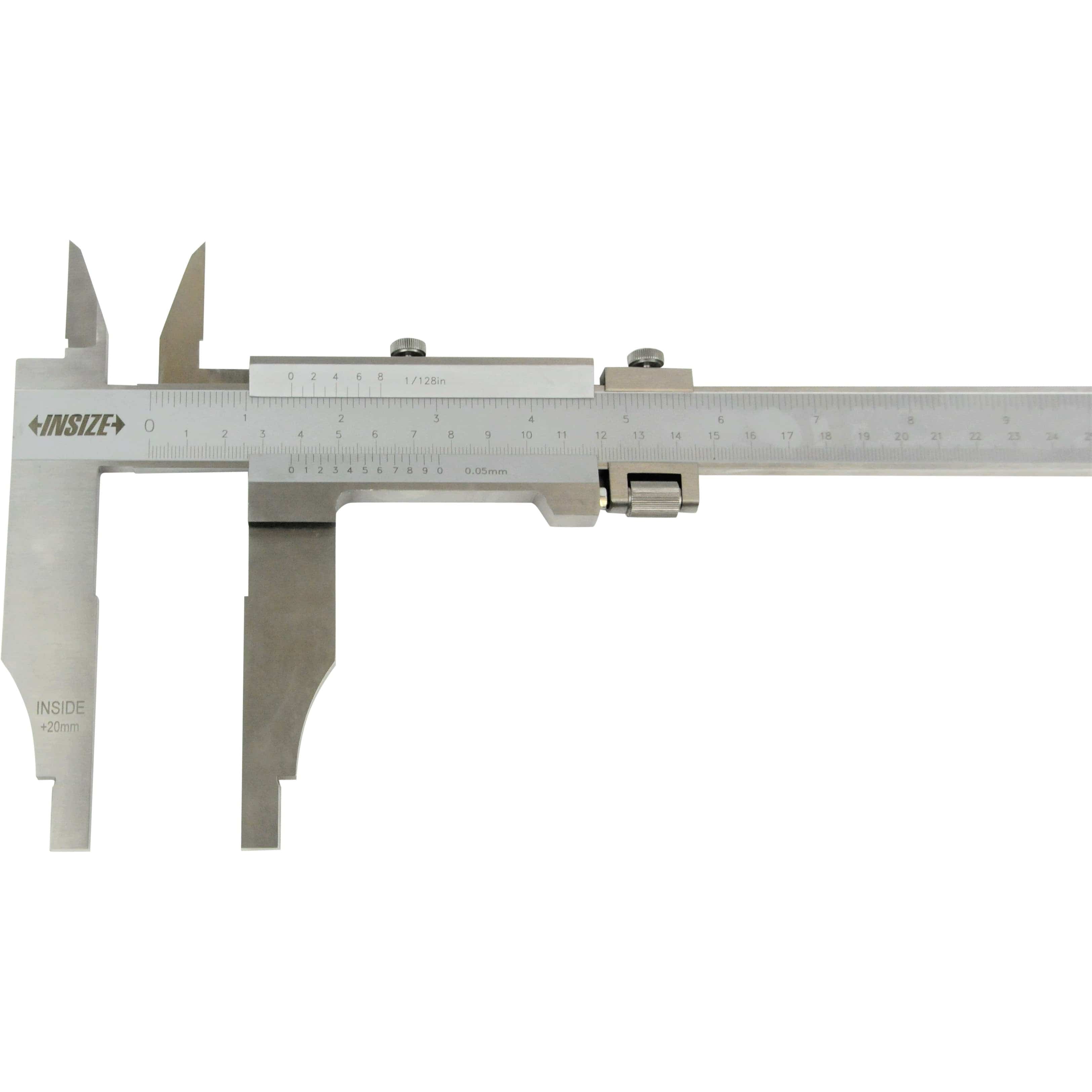

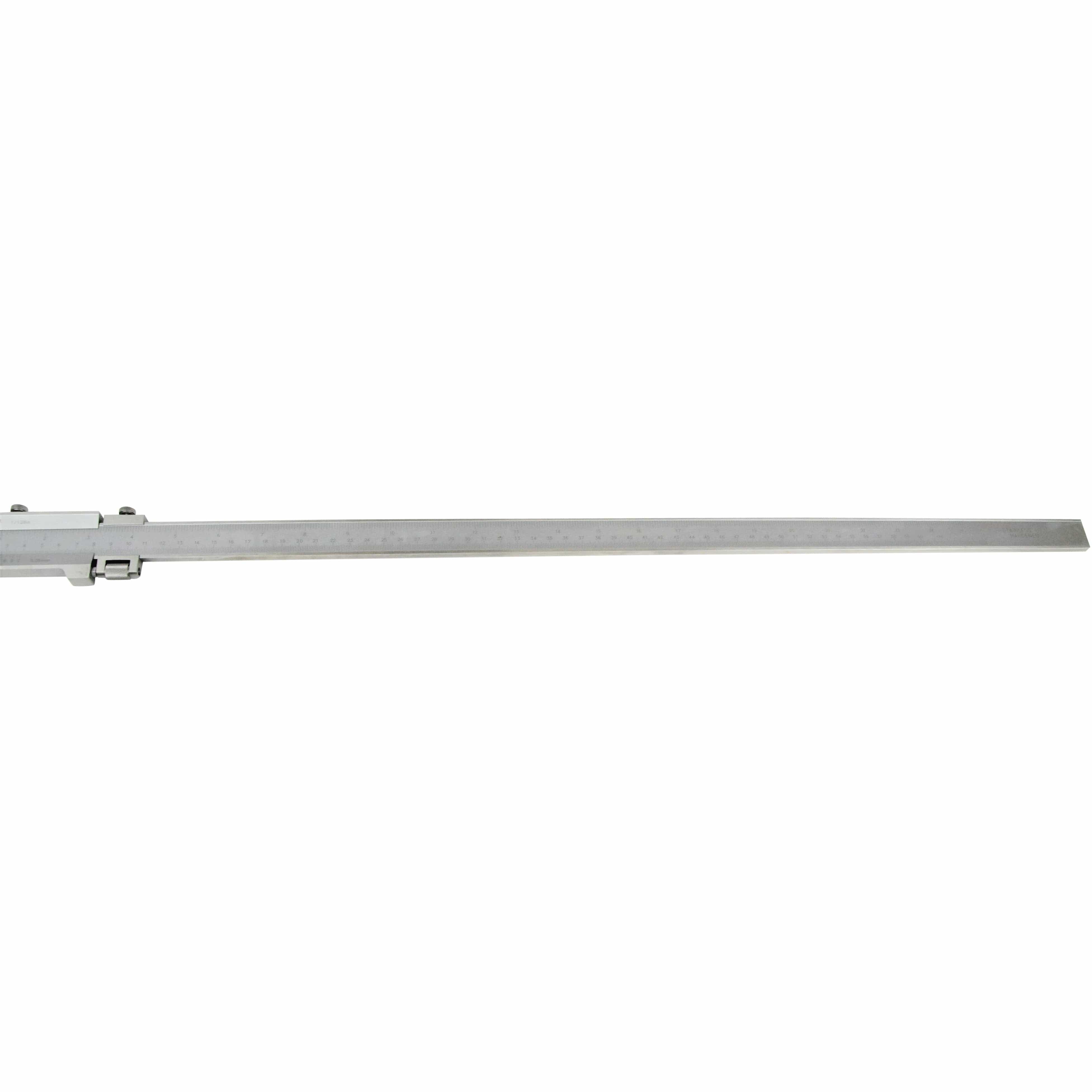

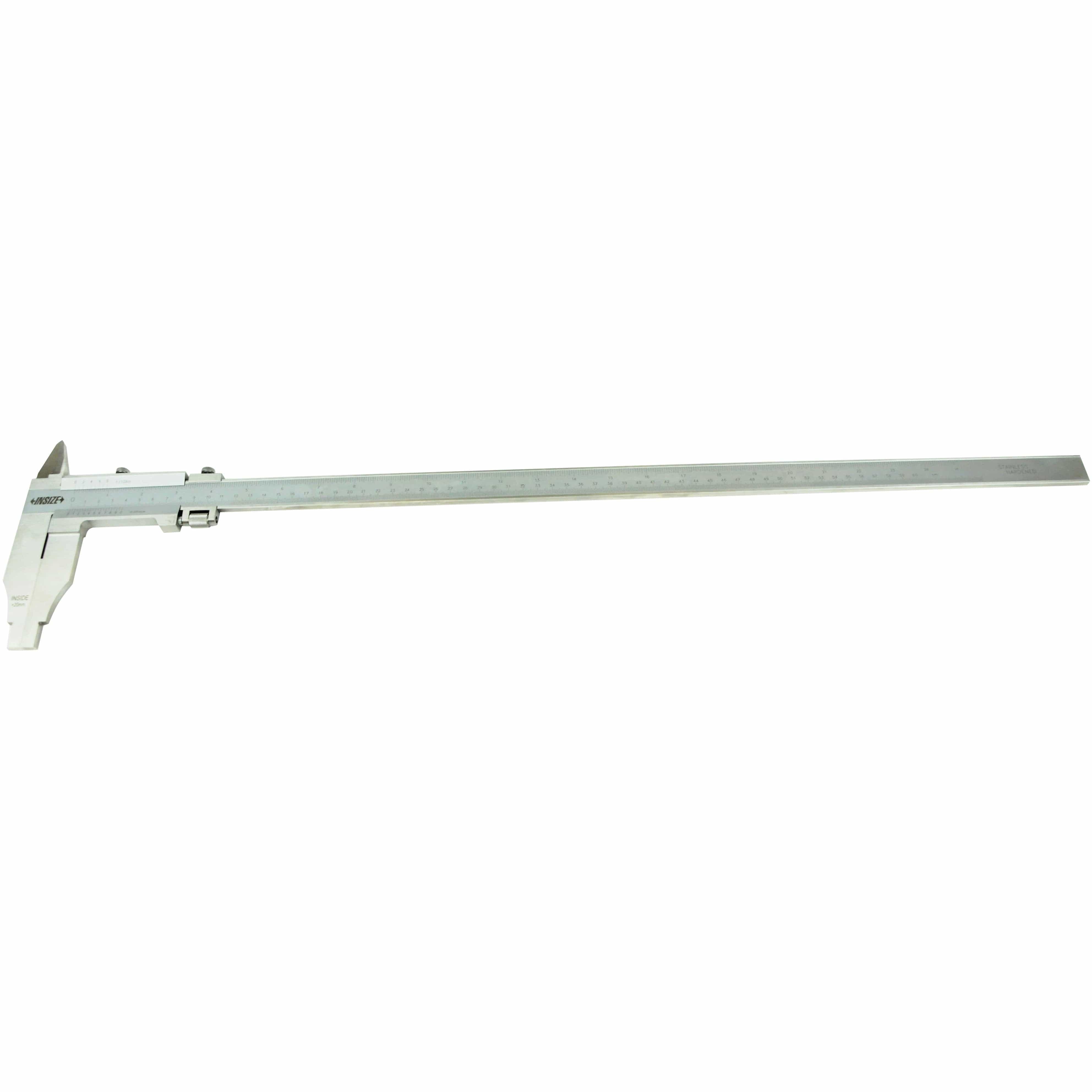

Insize Vernier Caliper
The Insize Vernier Caliper is a precision measuring instrument designed for accurate internal, external, step, and depth measurements in machining, inspection, and workshop environments. Manufactured from stainless steel with a satin chrome reading surface, this caliper provides smooth operation, clear readability, and reliable performance over extended measuring ranges.

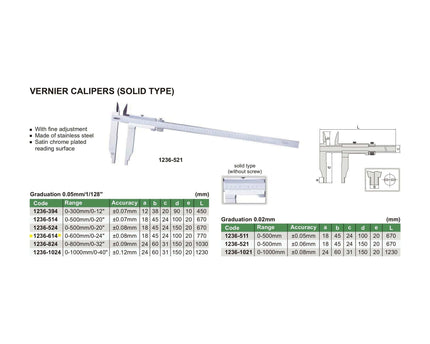

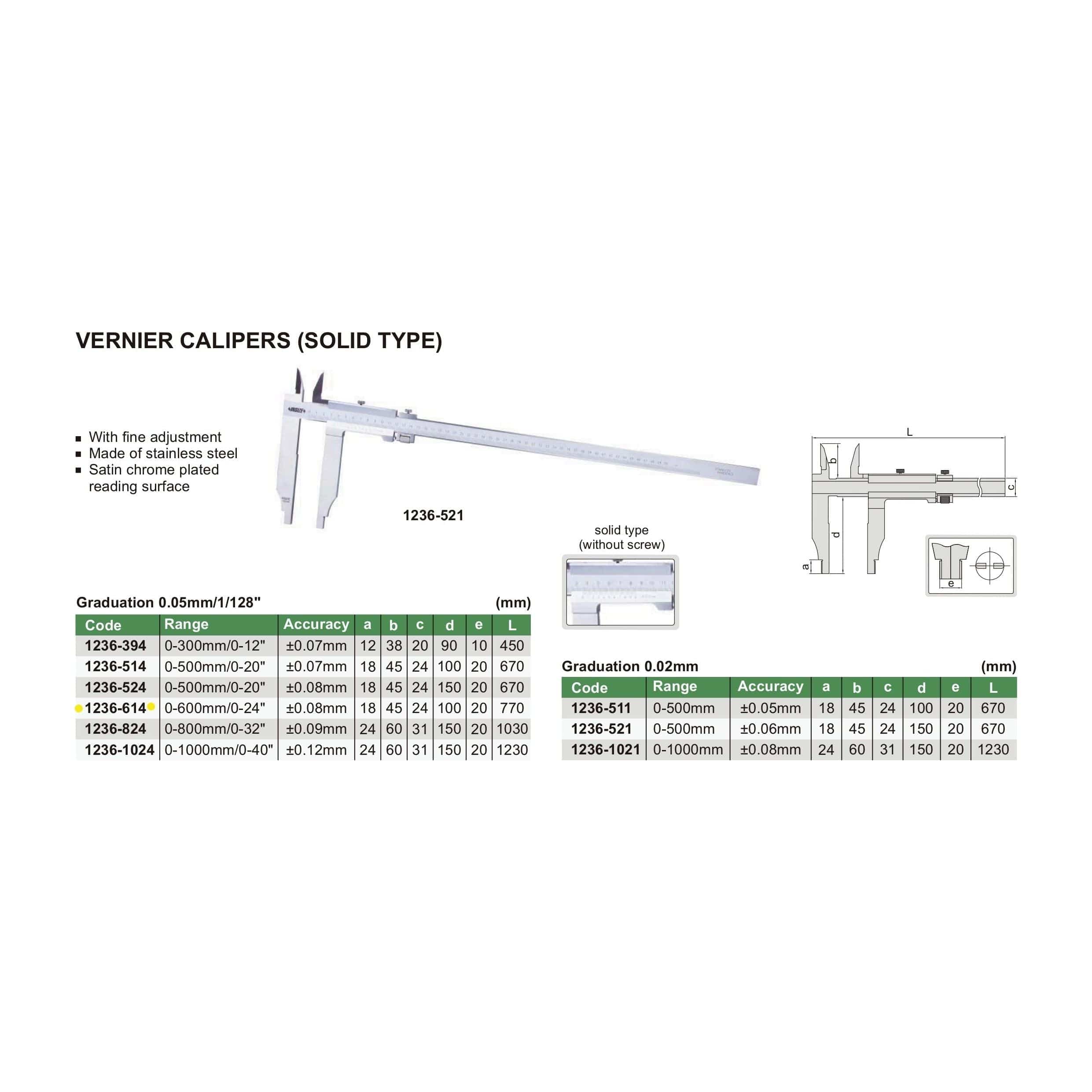

Specifications :
- Part No: 1236-614
- Measuring Range: 0–600 mm / 0–24"
- Graduation: 0.05 mm / 1⁄128"
- Accuracy: ±0.08 mm

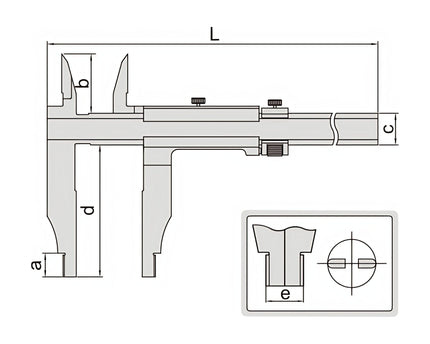

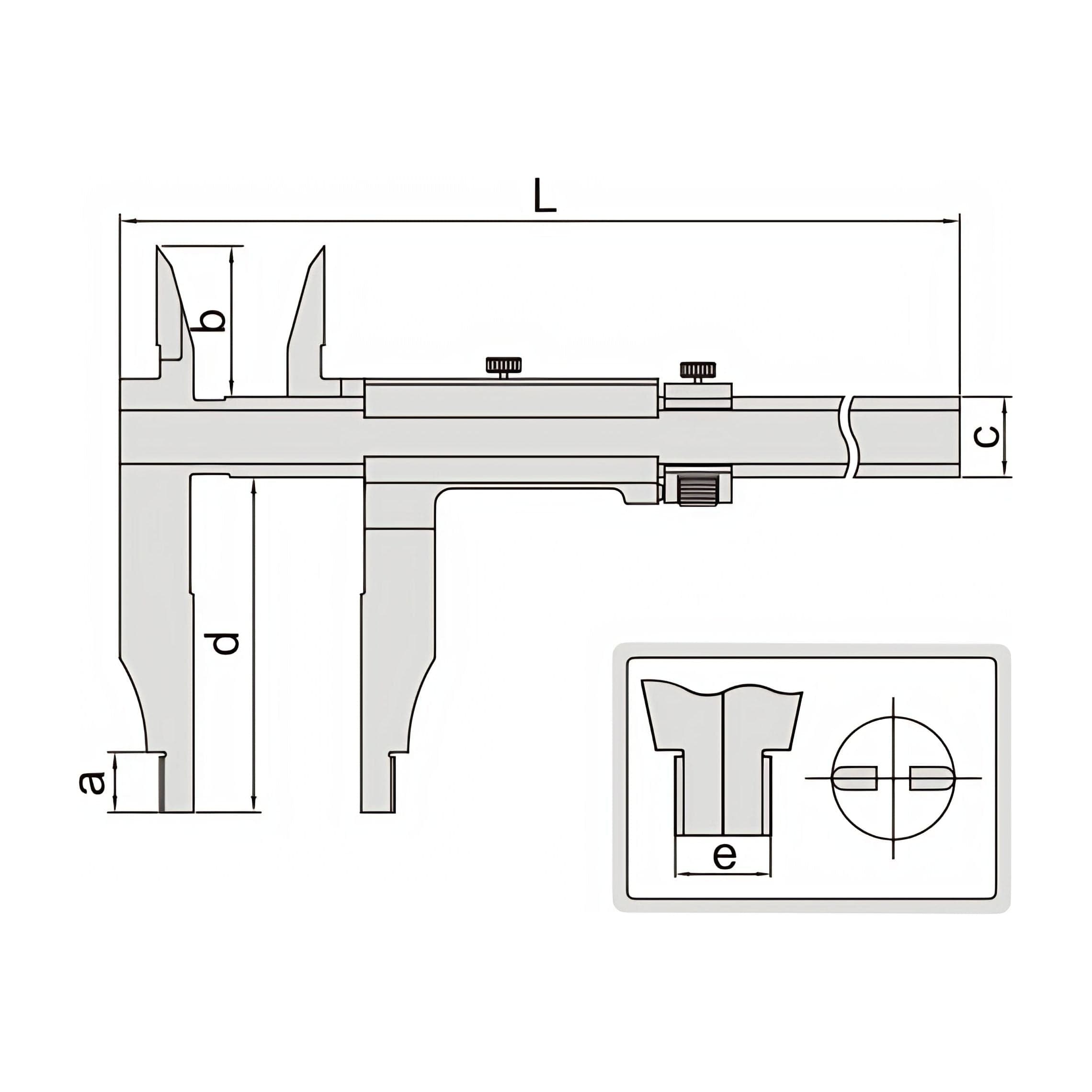

- Overall Length (L): 770 mm
- Dimension A: 18 mm
- Dimension B: 45 mm
- Dimension C: 24 mm
- Dimension D: 100 mm
- Dimension E: 20 mm

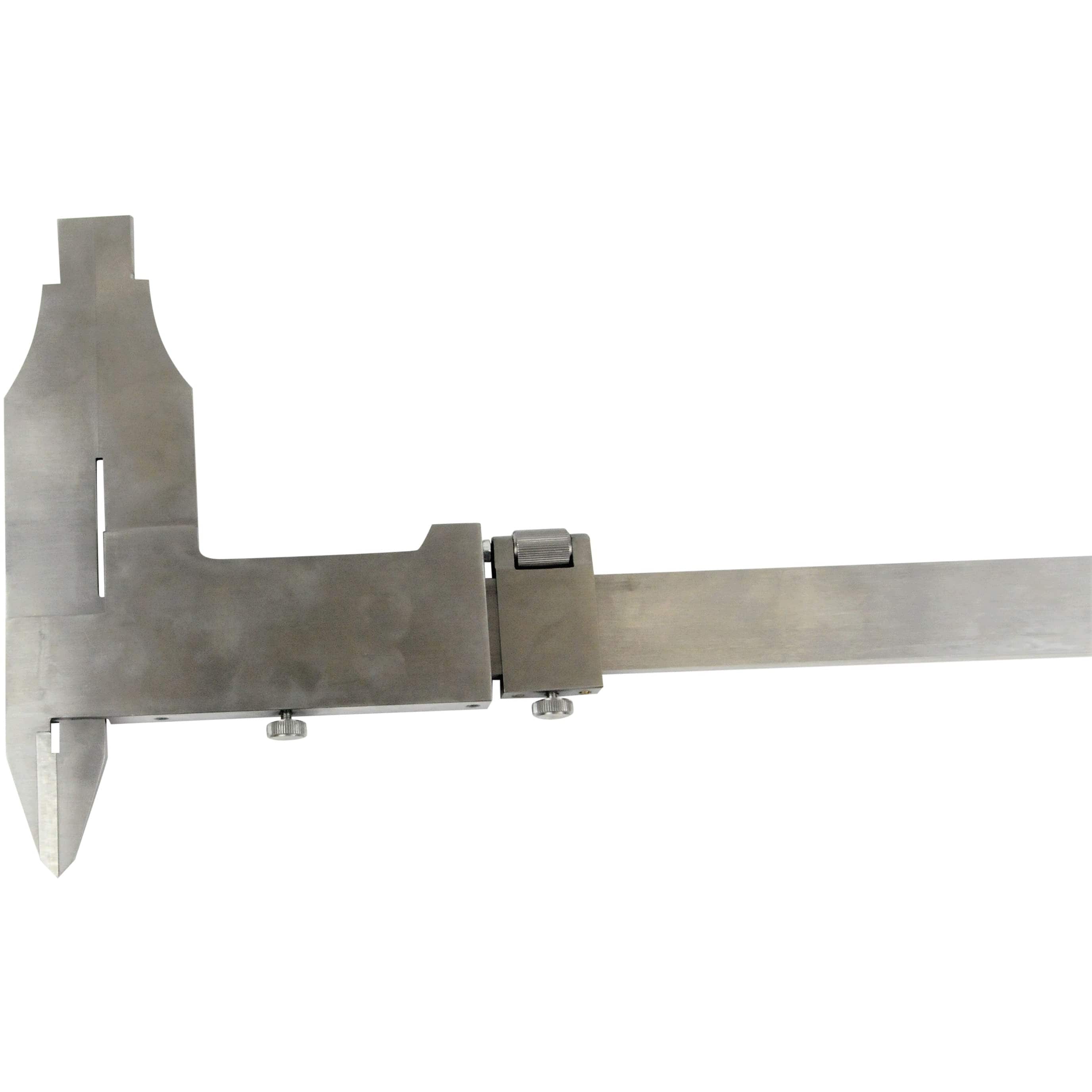

- With fine adjustment.
- Manufactured from stainless steel.
- Satin chrome plated reading surface for clear visibility.
Well-designed, durable, and high-precision measuring tools suitable for a wide range of applications. Insize vernier calipers provide dependable accuracy and ease of use for measuring internal and external dimensions, step measurements, and depths across various components.
