Description

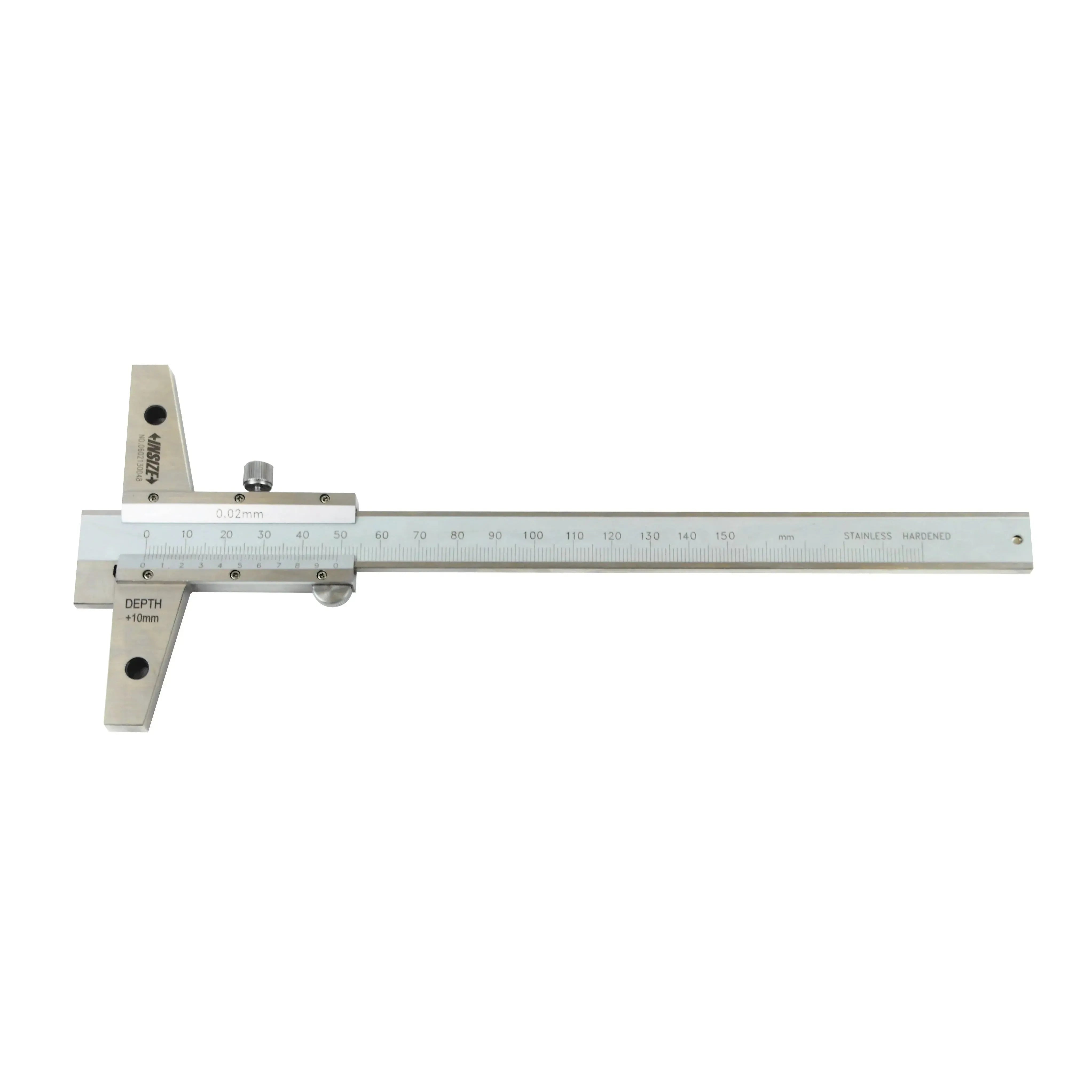

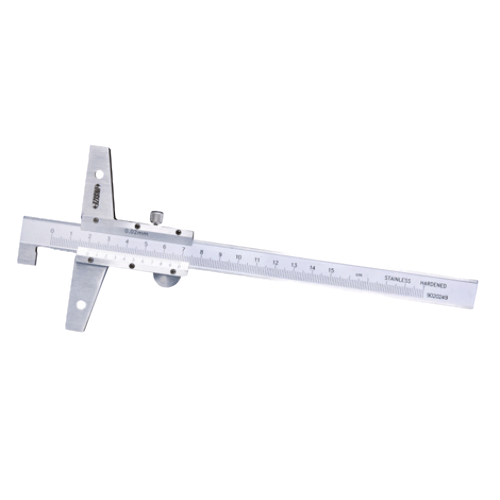

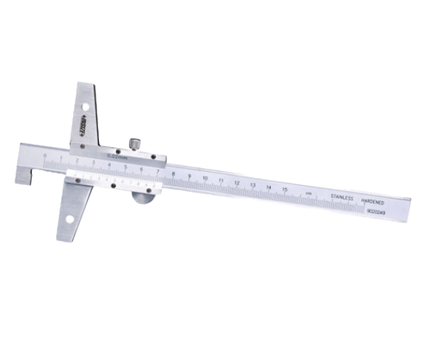

Insize Vernier Hook Depth Gage
The INSIZE 1248-1501 Vernier Hook Depth Gage is a precision instrument designed for accurate depth and step measurements in machining and inspection applications. Made of stainless steel with a satin chrome-plated reading surface, it provides long-lasting durability and clear, easy-to-read graduations. For extended measuring capability, it can be used with the optional extension base (Code 6141).

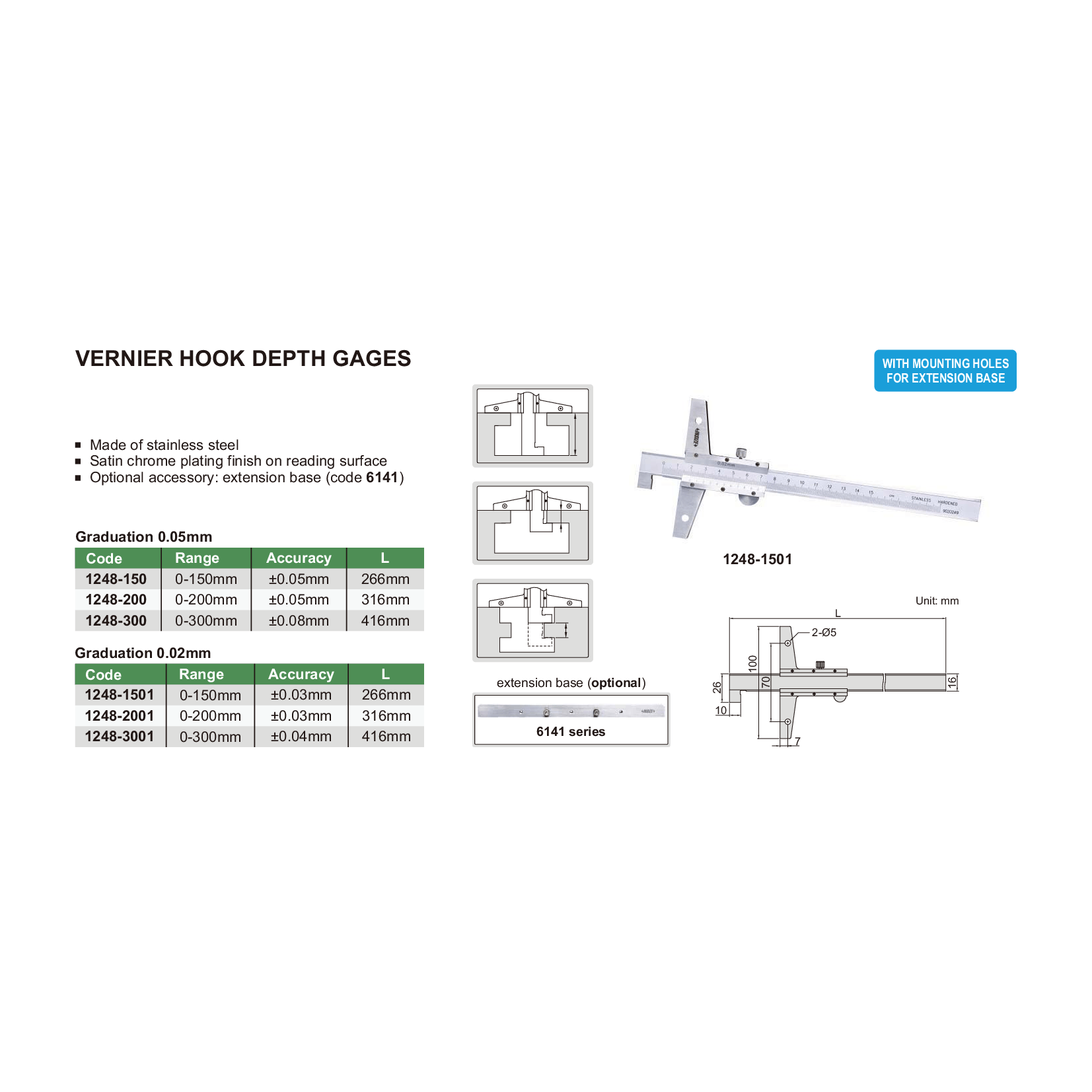

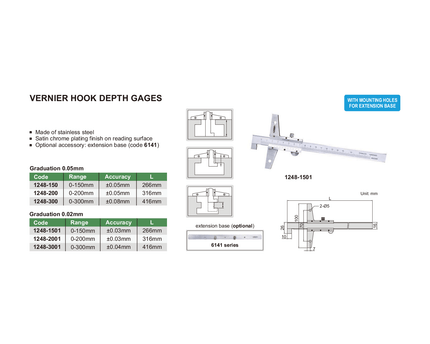

Specifications :
-
Part No: 1248-1501
-
Range: 0–150 mm
-
Graduation: 0.02 mm
-
Accuracy: ±0.03 mm
-
L: 266 mm
-
Material: Stainless steel
-
Finish: Satin chrome plating
-
Optional Accessory: Extension base (Code 6141)
-
Application: Precision depth and step measurement
The INSIZE 1248-1501 Vernier Hook Depth Gage delivers dependable accuracy for inspection and machining tasks, making it an essential tool for quality control and workshop applications.
