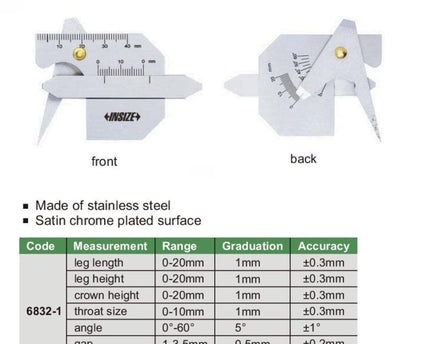

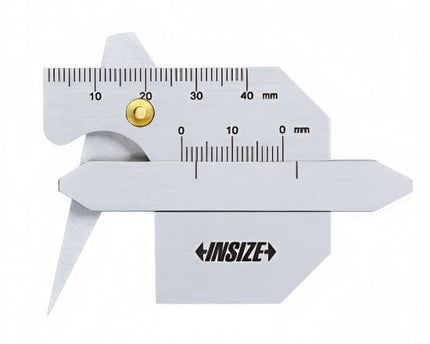

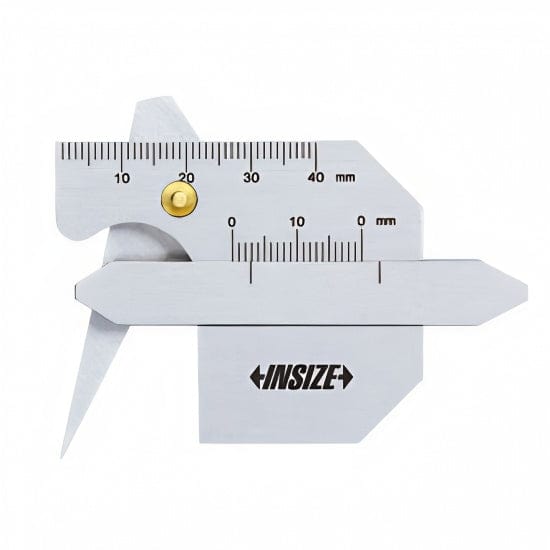

Insize Welding Gauge
This welding gauge is designed to measure the alignment and dimensions of welds with high accuracy. Manufactured from durable stainless steel, it provides a reliable and precise tool for a range of measuring applications.
Key Features:
-
Part Number: 6832-1
-
Material: Made of stainless steel
-
Surface: Satin chrome plated

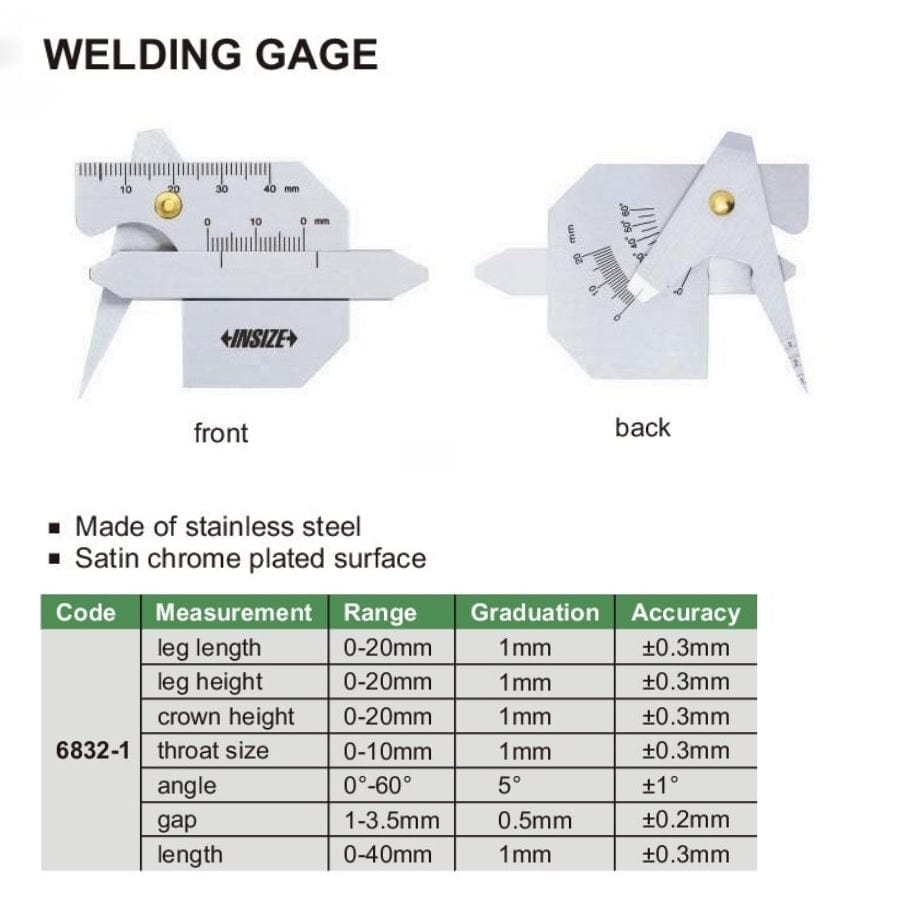

| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 6832-1 |

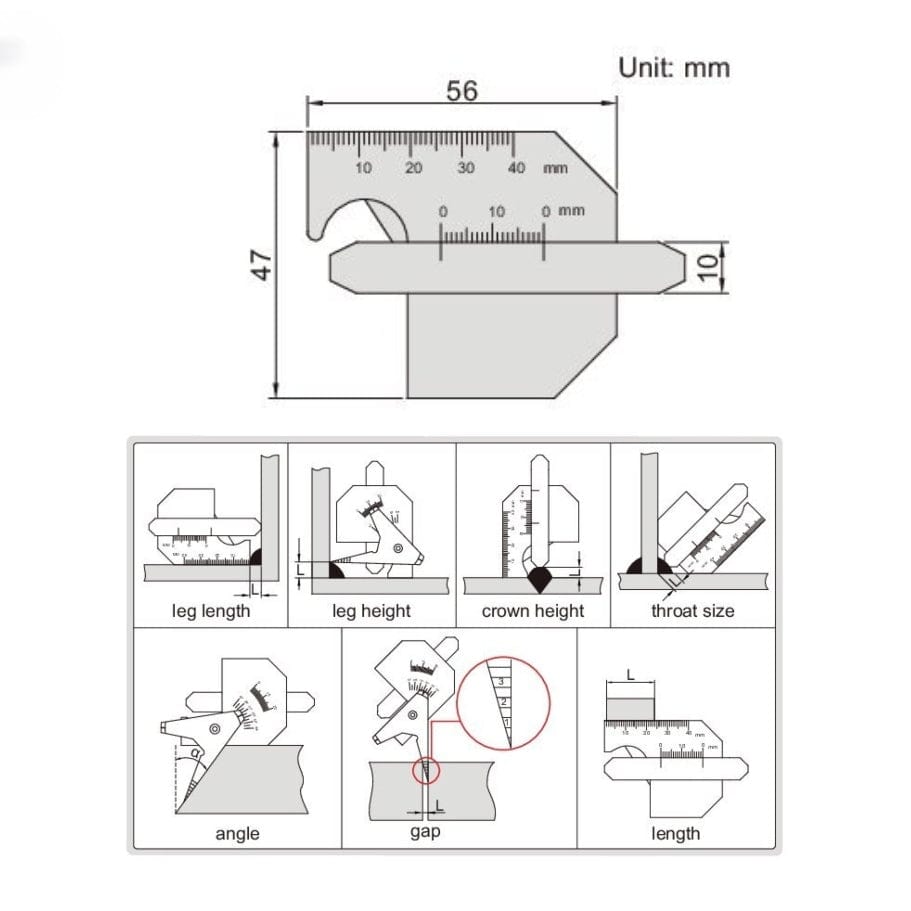

Leg Length |
0-20mm |
1mm |
±0.3mm |
| Leg Height |
0-20mm |
1mm |
±0.3mm |
| Crown Height |
0-20mm |
1mm |
±0.3mm |
| Throat Size |
0-10mm |
1mm |
±0.3mm |
| Angle |
0°-60° |
5° |
±1° |
| Gap |
1-3.5mm |
0.5mm |
±0.2mm |
| Length |
0-40mm |
1mm |
±0.3mm |
Well designed for precision, the INSIZE welding gauge provides easy measurement of weld alignment and dimensions. It is an ideal tool for ensuring accurate measurements in various industrial applications.
