Insize Welding Gauge

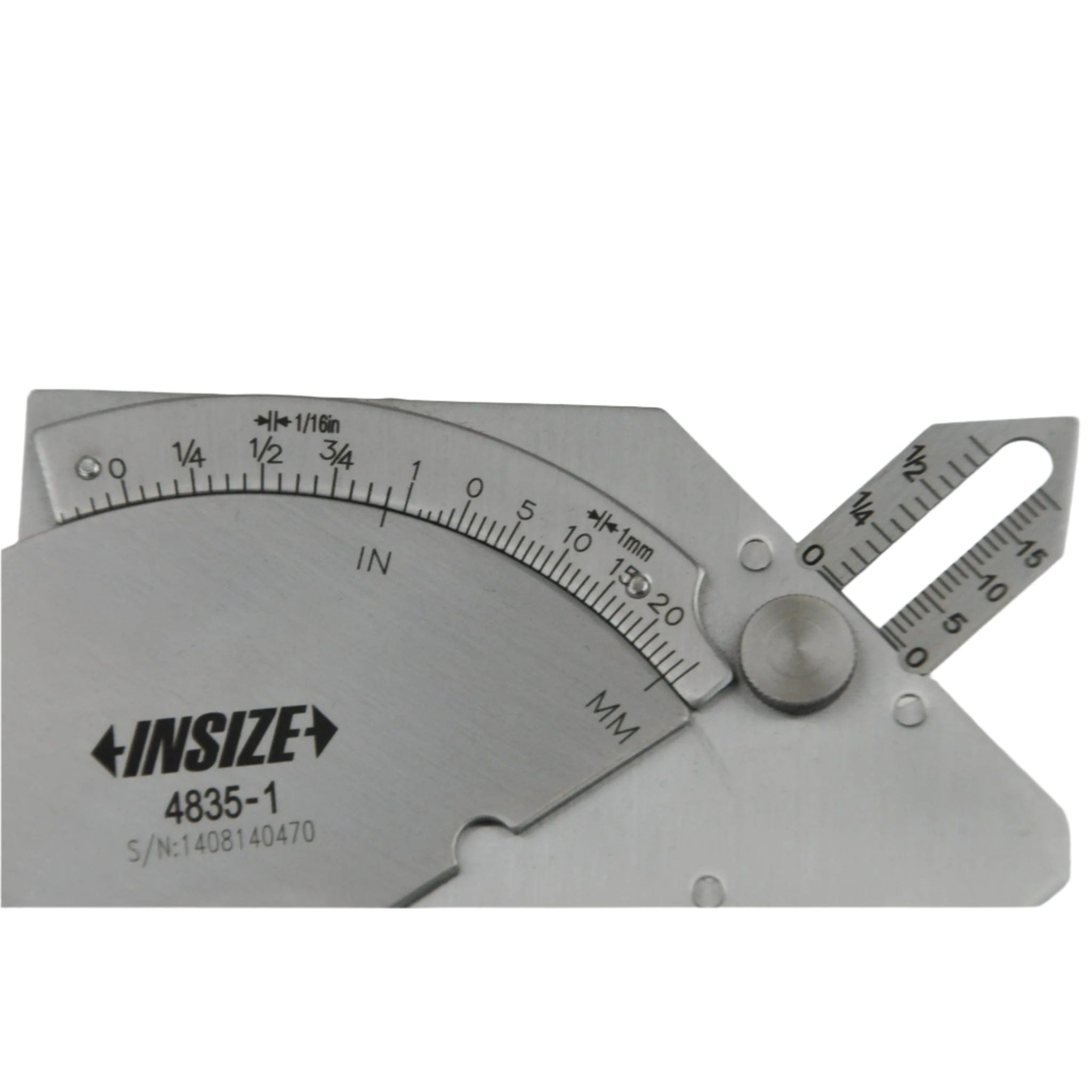

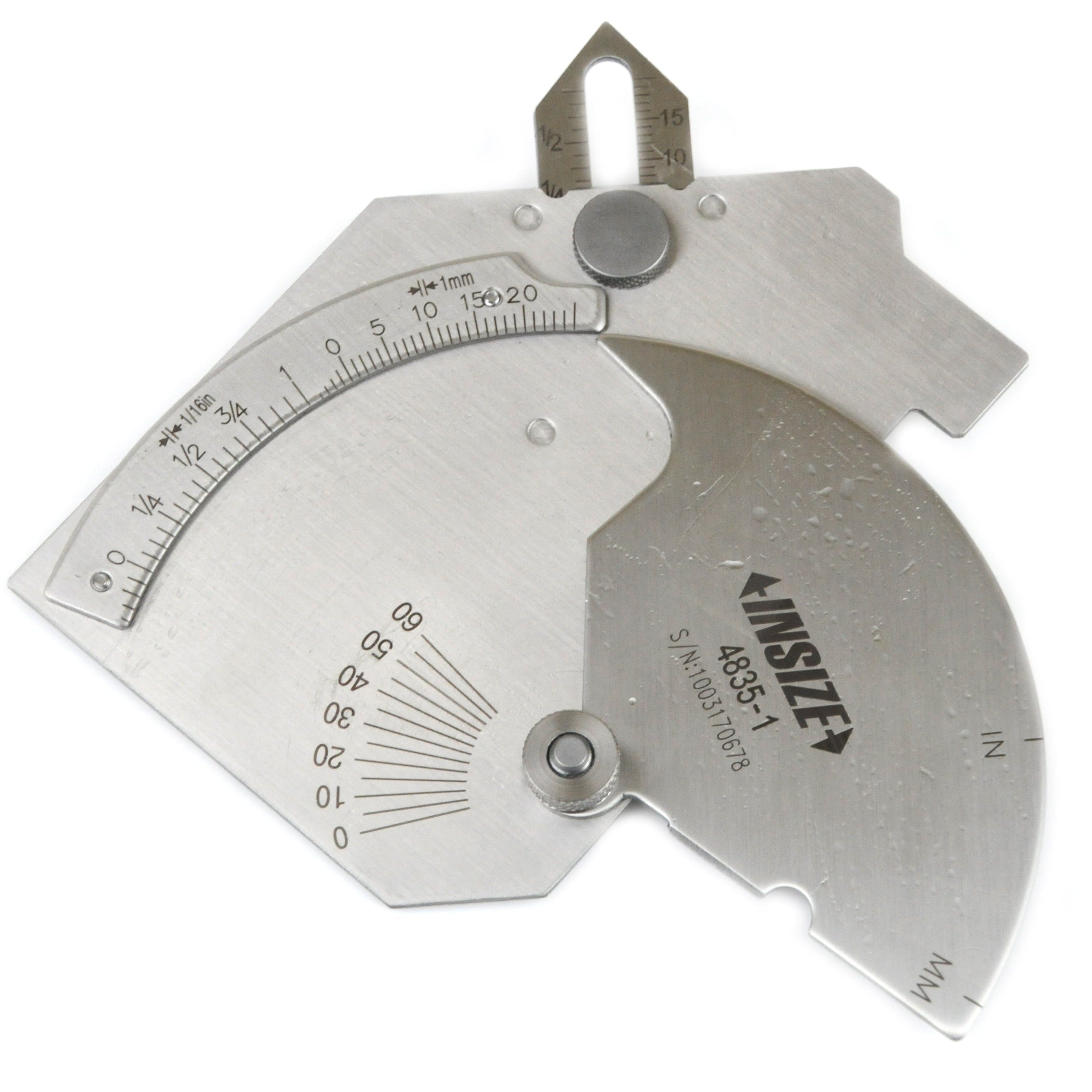

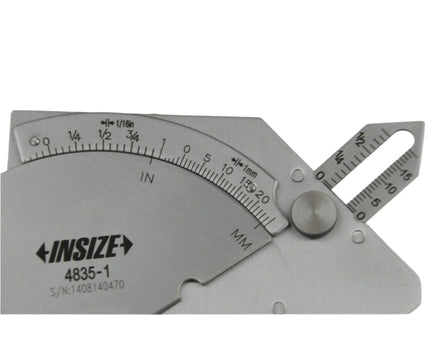

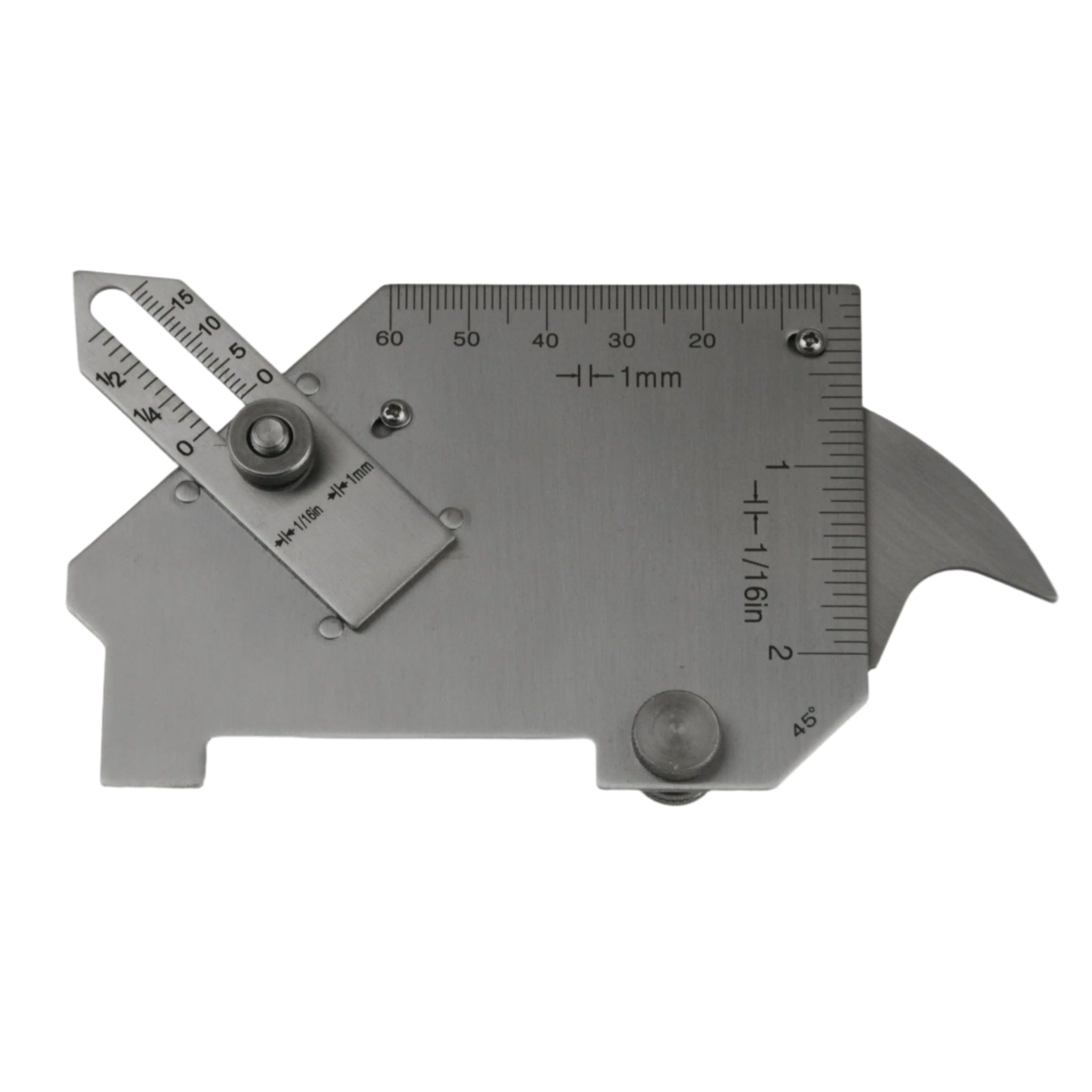

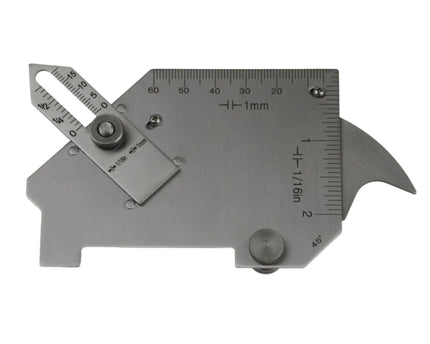

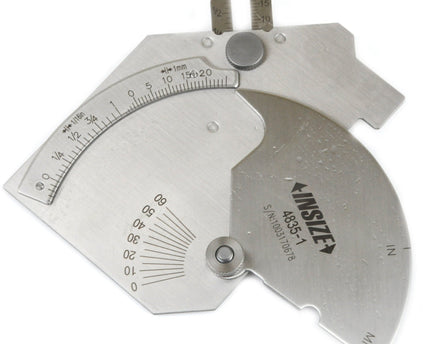

The Insize Welding Gauge is a versatile, precision inspection tool designed for accurate measurement of weld geometry and alignment. Featuring an adjustable scale to compensate for pointer wear, this gauge ensures long-term accuracy and reliability. Manufactured from durable stainless steel, it is ideal for workshop, fabrication, and welding inspection applications.
Key Features:
- Part Number: 4835-1
-
Adjustable Scale: Compensates for pointer wear to maintain accuracy
-
Material: Stainless steel

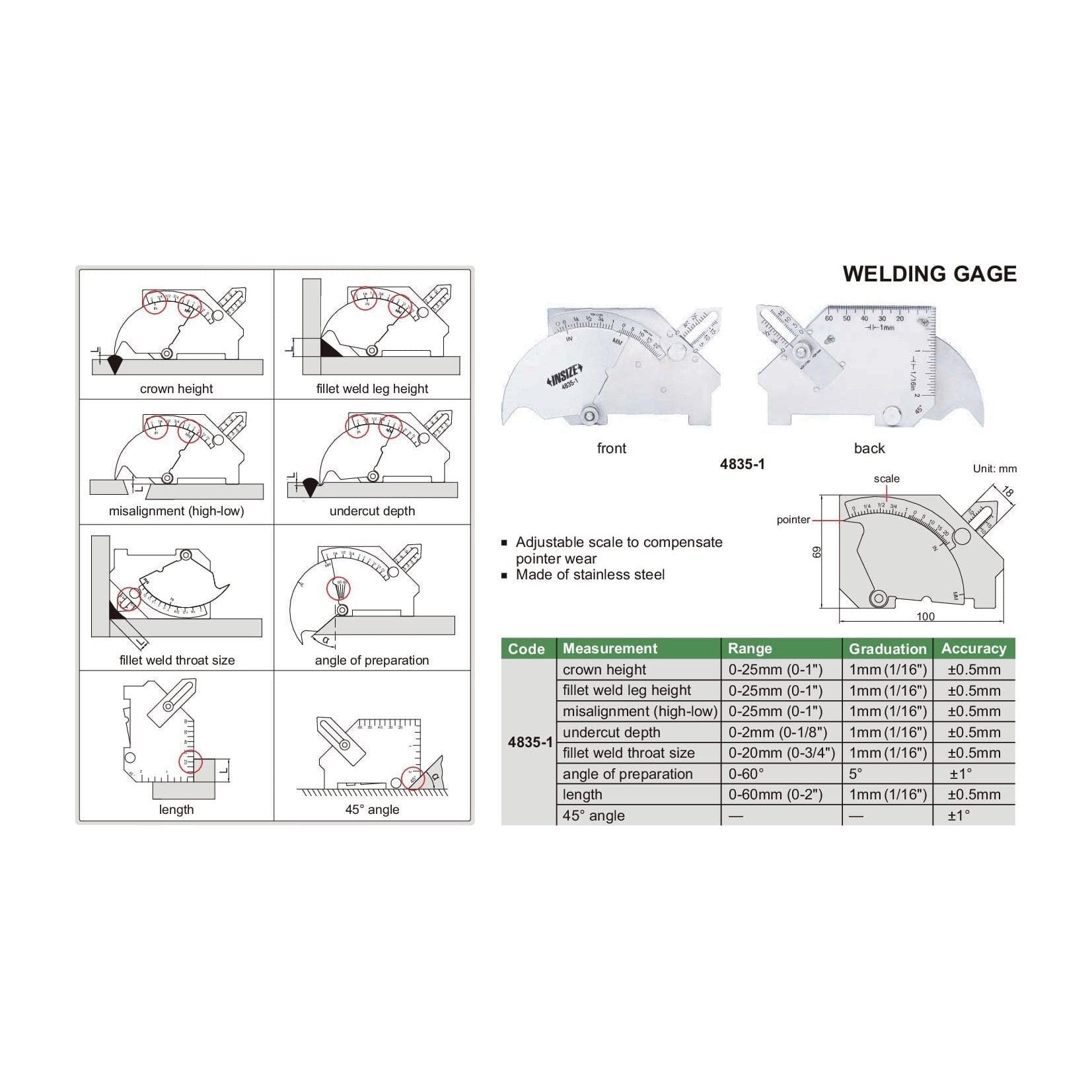

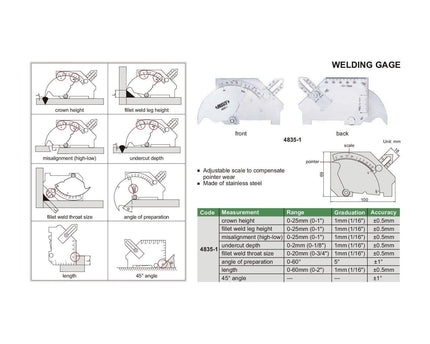

Measurement Capabilities:
| Measurement |
Range |
Graduation |
Accuracy |
| Crown height |
0–25 mm (0–1") |
1 mm (1/16") |
±0.5 mm |
| Fillet weld leg height |
0–25 mm (0–1") |
1 mm (1/16") |
±0.5 mm |
| Misalignment (high–low) |
0–25 mm (0–1") |
1 mm (1/16") |
±0.5 mm |
| Undercut depth |
0–2 mm (0–1/8") |
1 mm (1/16") |
±0.5 mm |
| Fillet weld throat size |
0–20 mm (0–3/4") |
1 mm (1/16") |
±0.5 mm |
| Angle of preparation |
0–60° |
5° |
±1° |
| Length |
0–60 mm (0–2") |
1 mm (1/16") |
±0.5 mm |
| 45° angle |
— |
— |
±1° |
Designed for durability and precision, the INSIZE Welding Gauge provides dependable measurement of weld dimensions and alignment, making it an essential inspection tool for welding, fabrication, and quality control environments.
