Description

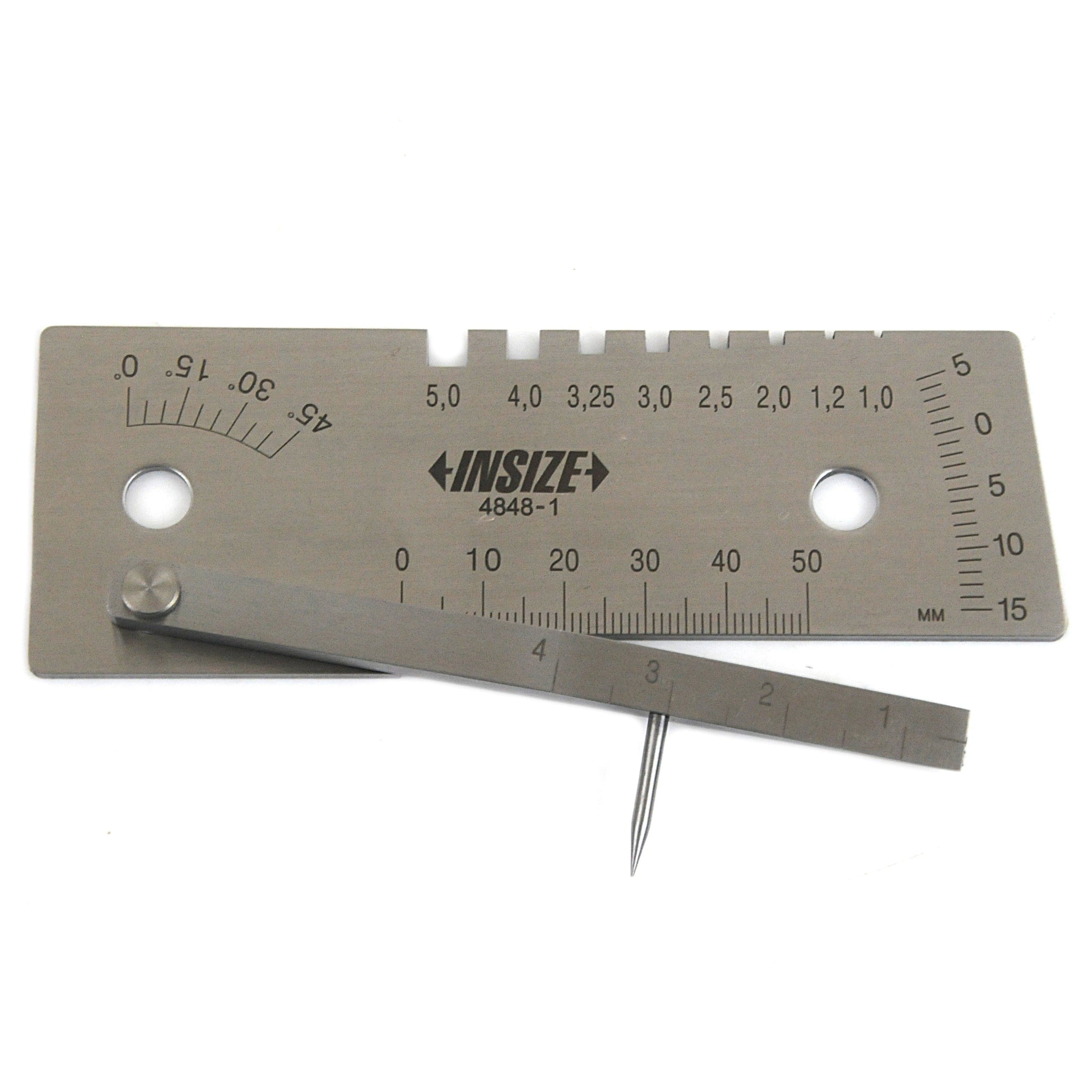

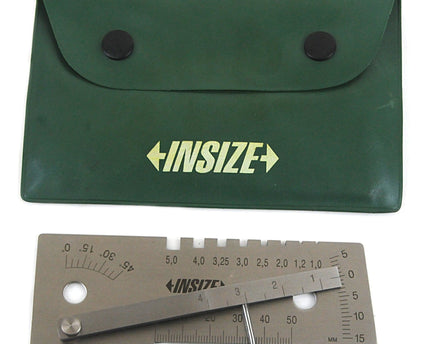

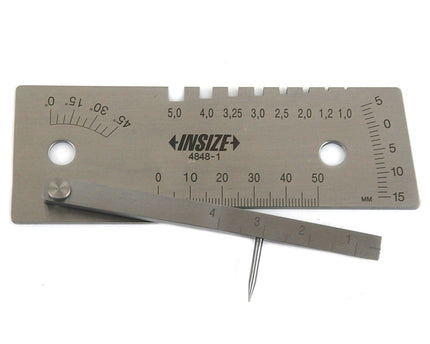

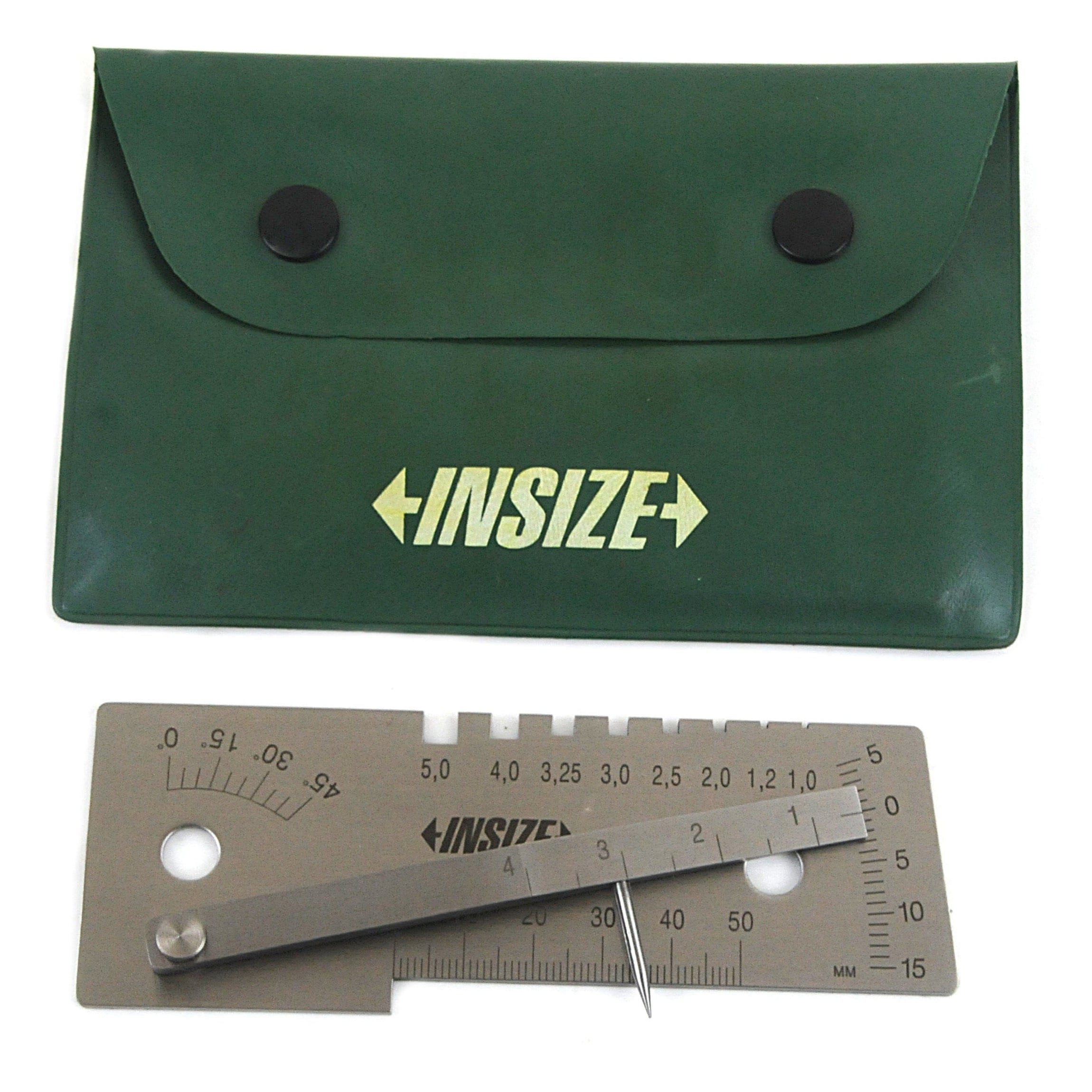

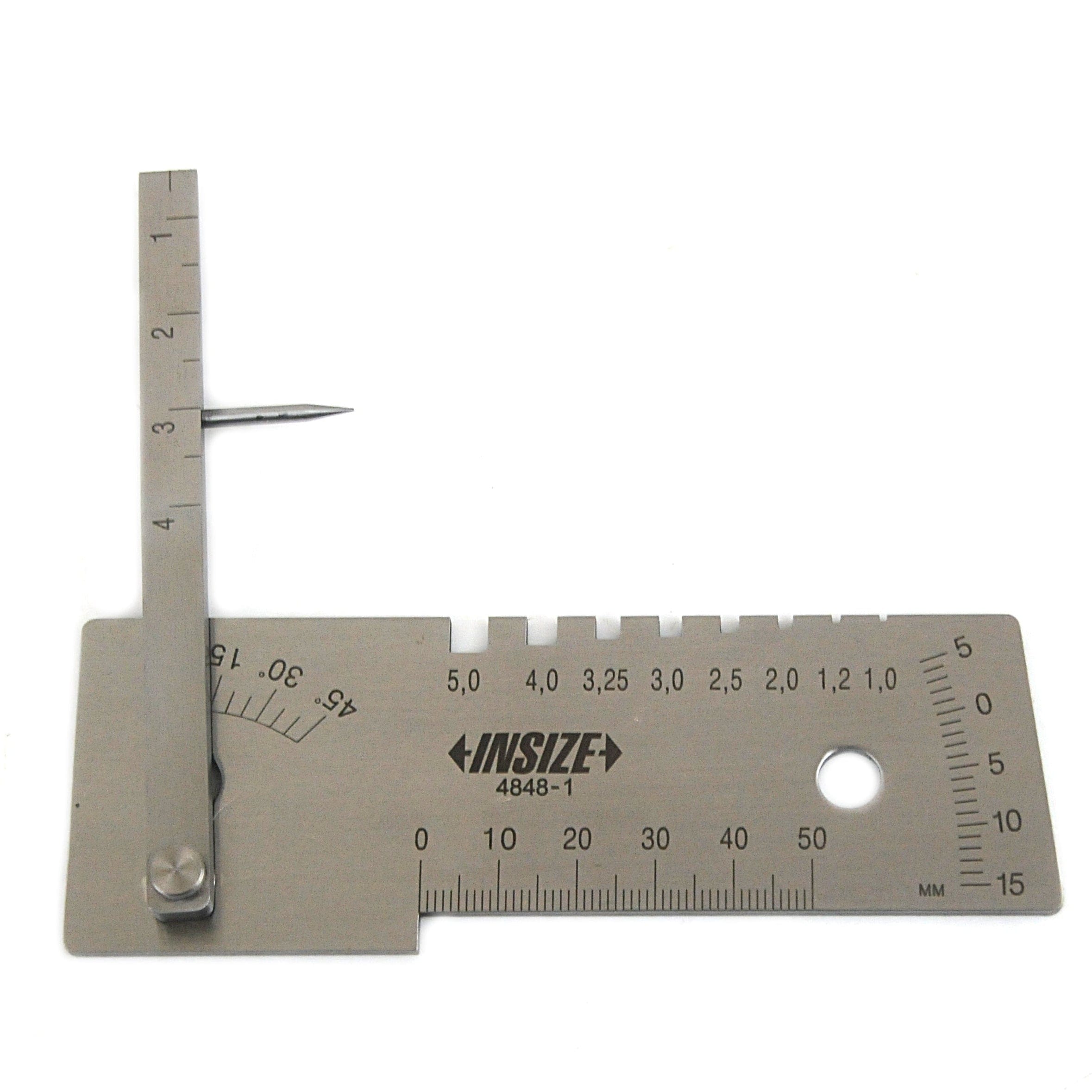

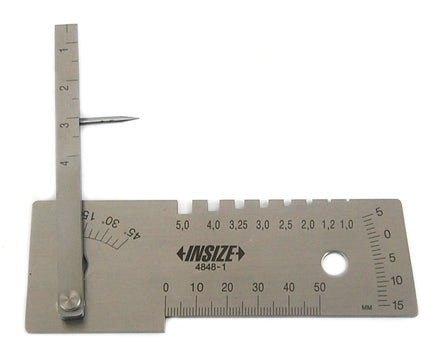

Insize Welding Gauge
This welding gauge is designed for precise measurement of weld alignment and dimensions. Made of high-quality stainless steel, it ensures durability and accuracy for various welding applications.
Key Features:
-
Material: Made of stainless steel

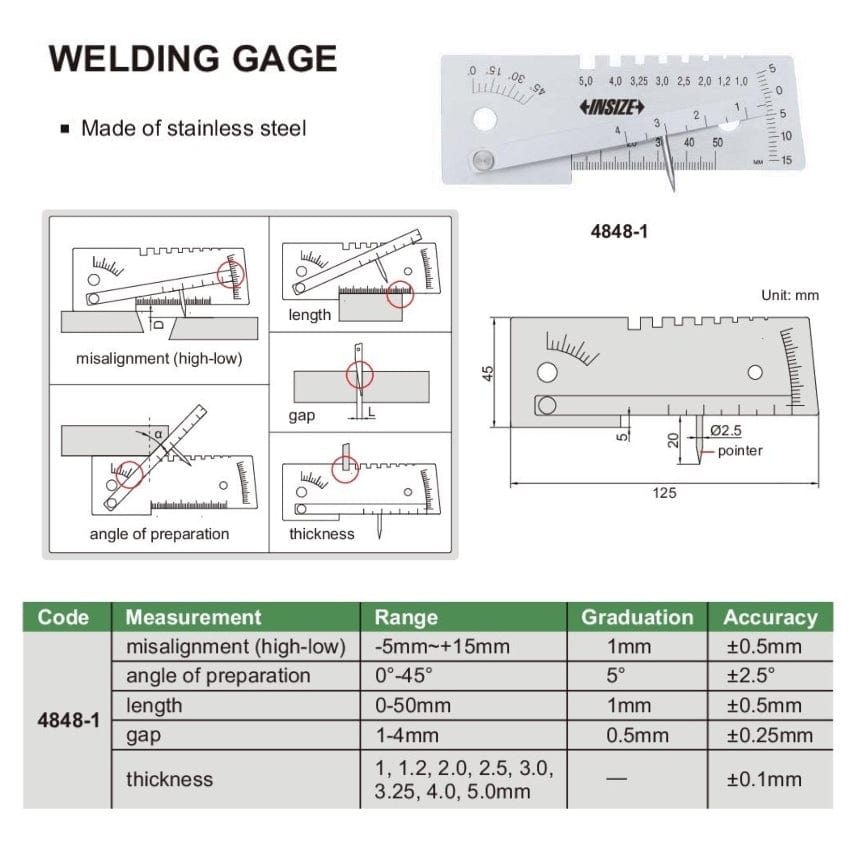

| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 4848-1 |
Misalignment (high-low) |
-5mm ~ +15mm |
1mm |
±0.5mm |
| Angle of preparation |
0°-45° |
5° |
±2.5° |
| Length |
0-50mm |
1mm |
±0.5mm |
| Gap |
1-4mm |
0.5mm |
±0.25mm |
| Thickness |
1, 1.2, 2.0, 2.5, 3.0, 3.25, 4.0, 5.0mm |
- |
±0.1mm |
Well designed for precision, the INSIZE welding gauge is the perfect tool for accurately checking weld dimensions and alignment, making it an essential instrument for welding professionals.
