Insize Welding Gauge 62x77mm Range Series 4838-1

INSIZE

Description

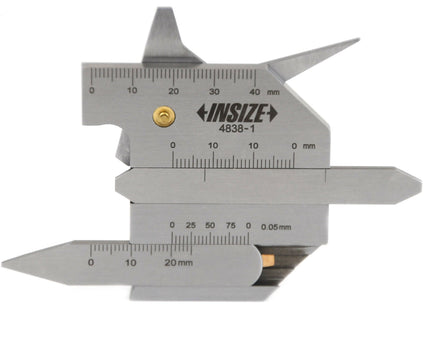

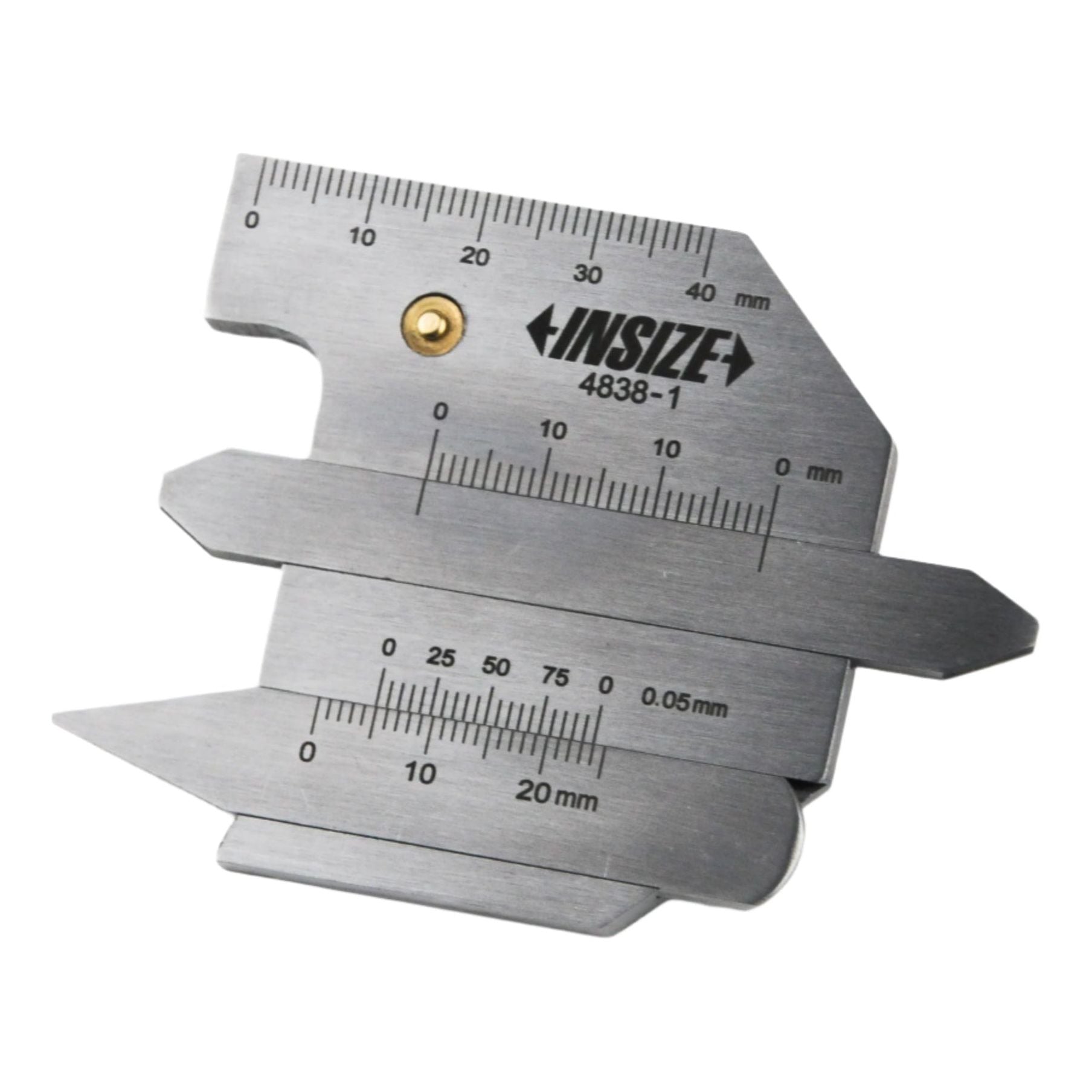

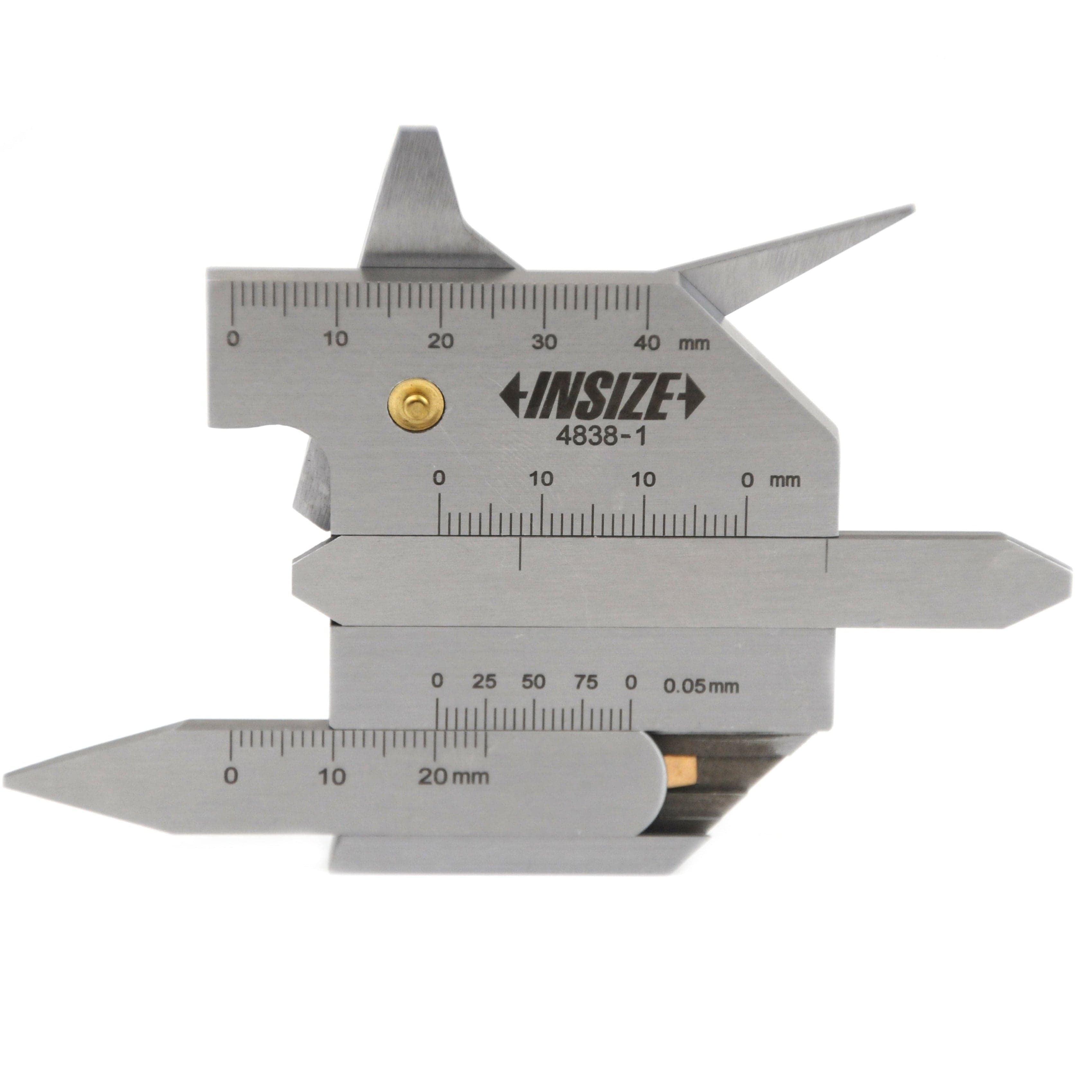

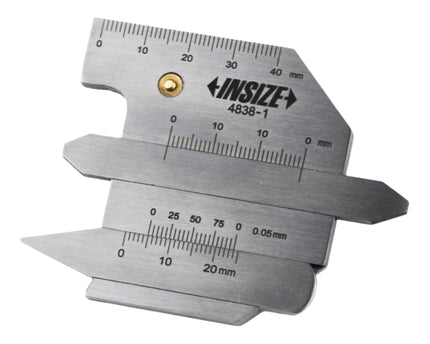

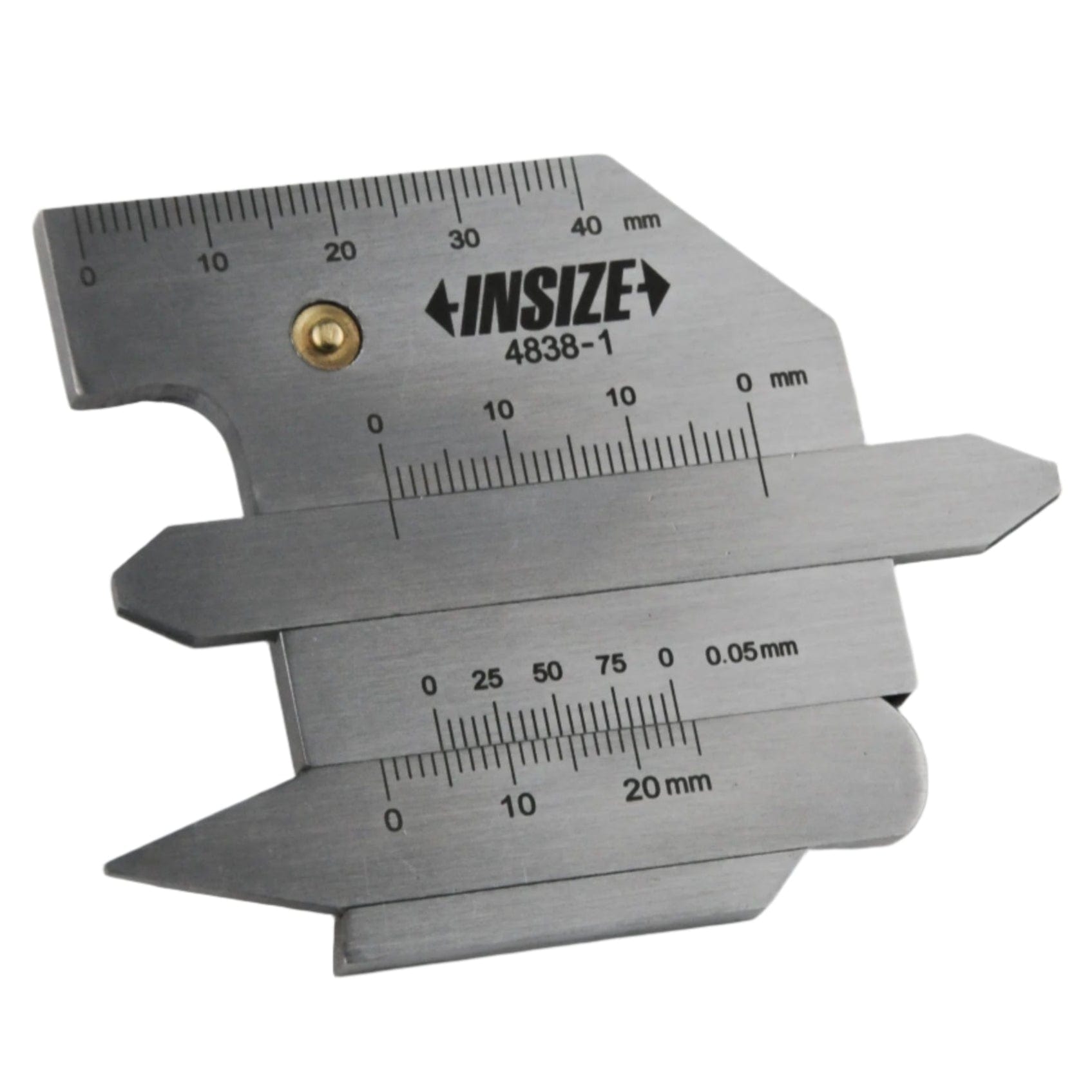

Insize Welding Gauge

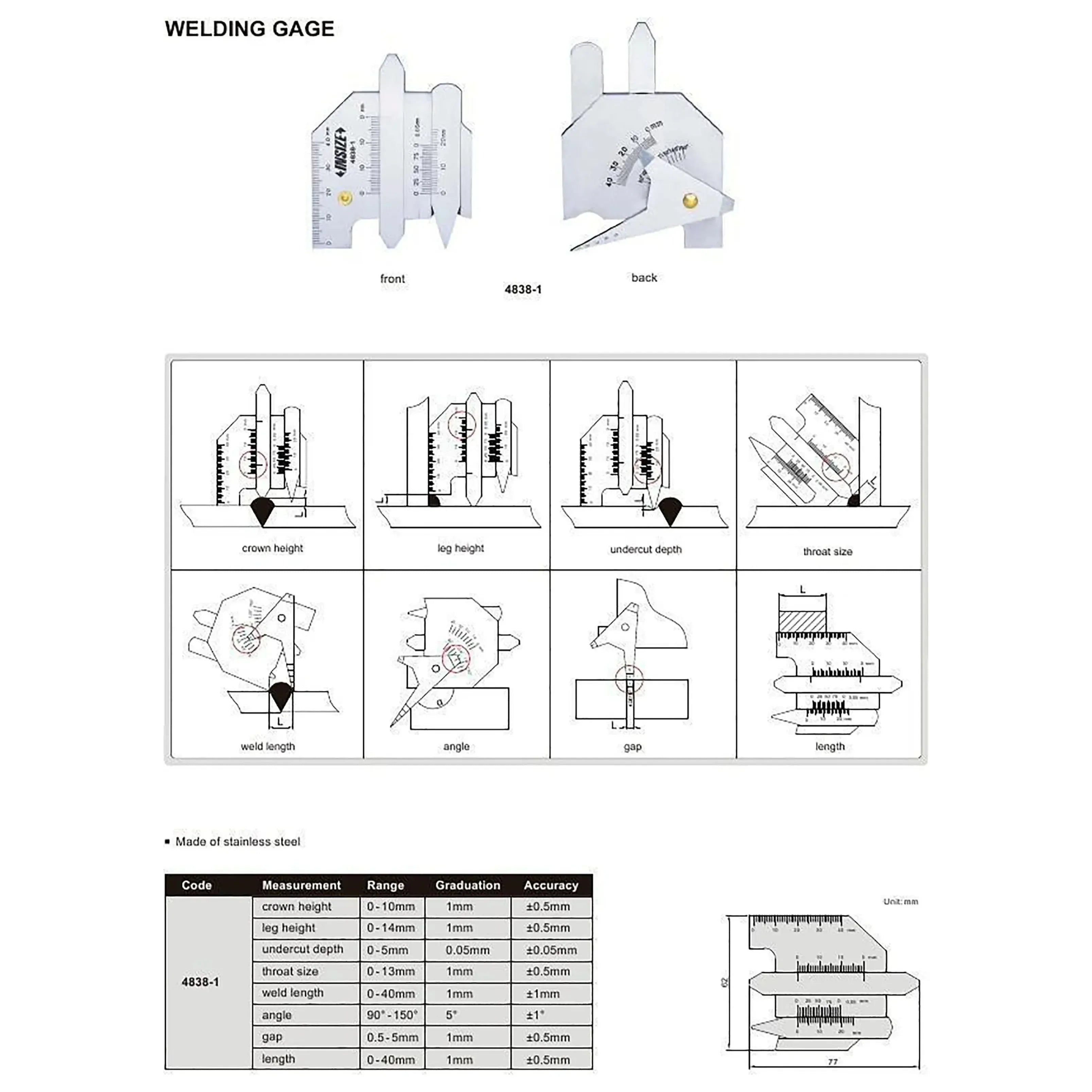

Insize Welding Gauge is a precision inspection tool designed for accurate measurement of weld dimensions, including crown height, leg height, undercut depth, throat size, weld length, angle, and gap. Manufactured from durable stainless steel, it delivers reliable accuracy for workshop, fabrication, and quality inspection applications.

Key Features & Specifications:

Part Numbers: 4838-1

	Code: 4838-1			Code: 4838-2

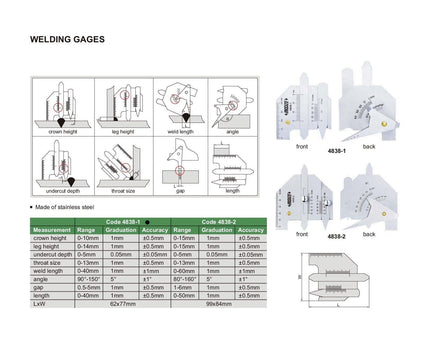

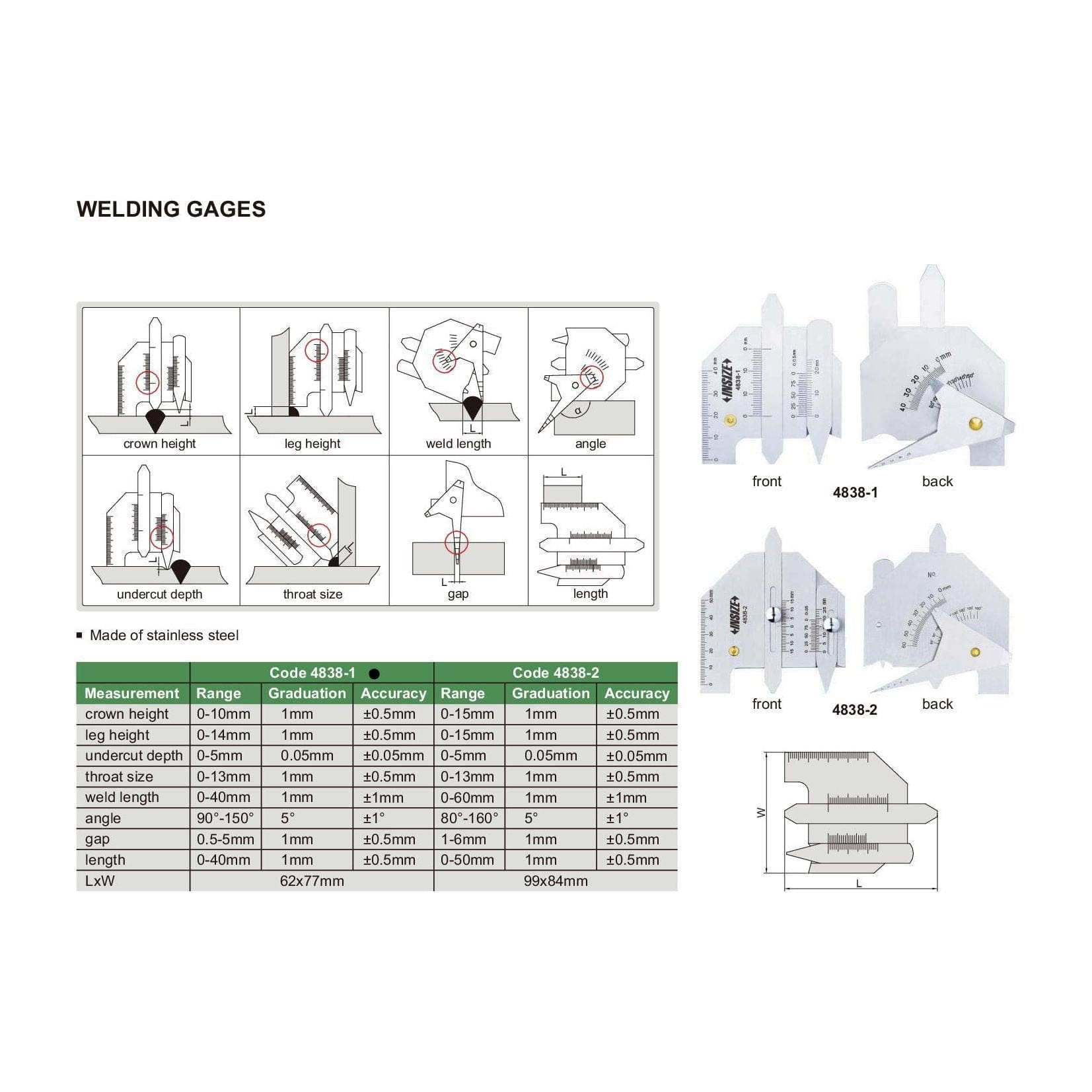

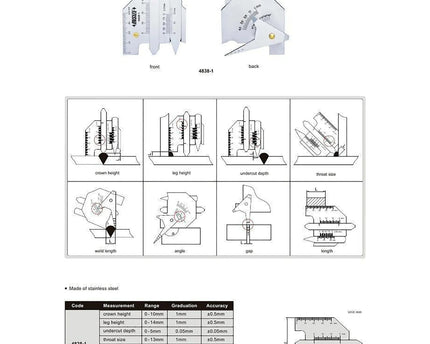

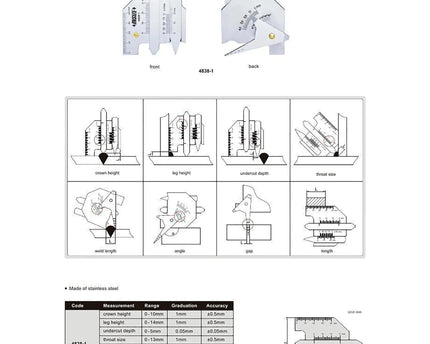

Measurement	Range	Graduation	Accuracy	Range	Graduation	Accuracy
Crown height	0–10 mm	1 mm	±0.5 mm	0–15 mm	1 mm	±0.5 mm
Leg height	0–14 mm	1 mm	±0.5 mm	0–15 mm	1 mm	±0.5 mm
Undercut depth	0–5 mm	0.05 mm	±0.05 mm	0–5 mm	0.05 mm	±0.05 mm
Throat size	0–13 mm	1 mm	±0.5 mm	0–13 mm	1 mm	±0.5 mm
Weld length	0–40 mm	1 mm	±1 mm	0–60 mm	1 mm	±1 mm
Angle	90°–150°	5°	±1°	80°–160°	5°	±1°
Gap	0.5–5 mm	1 mm	±0.5 mm	1–6 mm	1 mm	±0.5 mm
Length	0–40 mm	1 mm	±0.5 mm	0–50 mm	1 mm	±0.5 mm
Overall Size (L × W)	62 × 77 mm			99 × 84 mm

Designed for durability and accuracy, the INSIZE Welding Gauge provides dependable measurement of weld geometry and alignment, making it an essential inspection tool for fabrication shops, welders, and quality control environments.
