Insize Welding Gauge

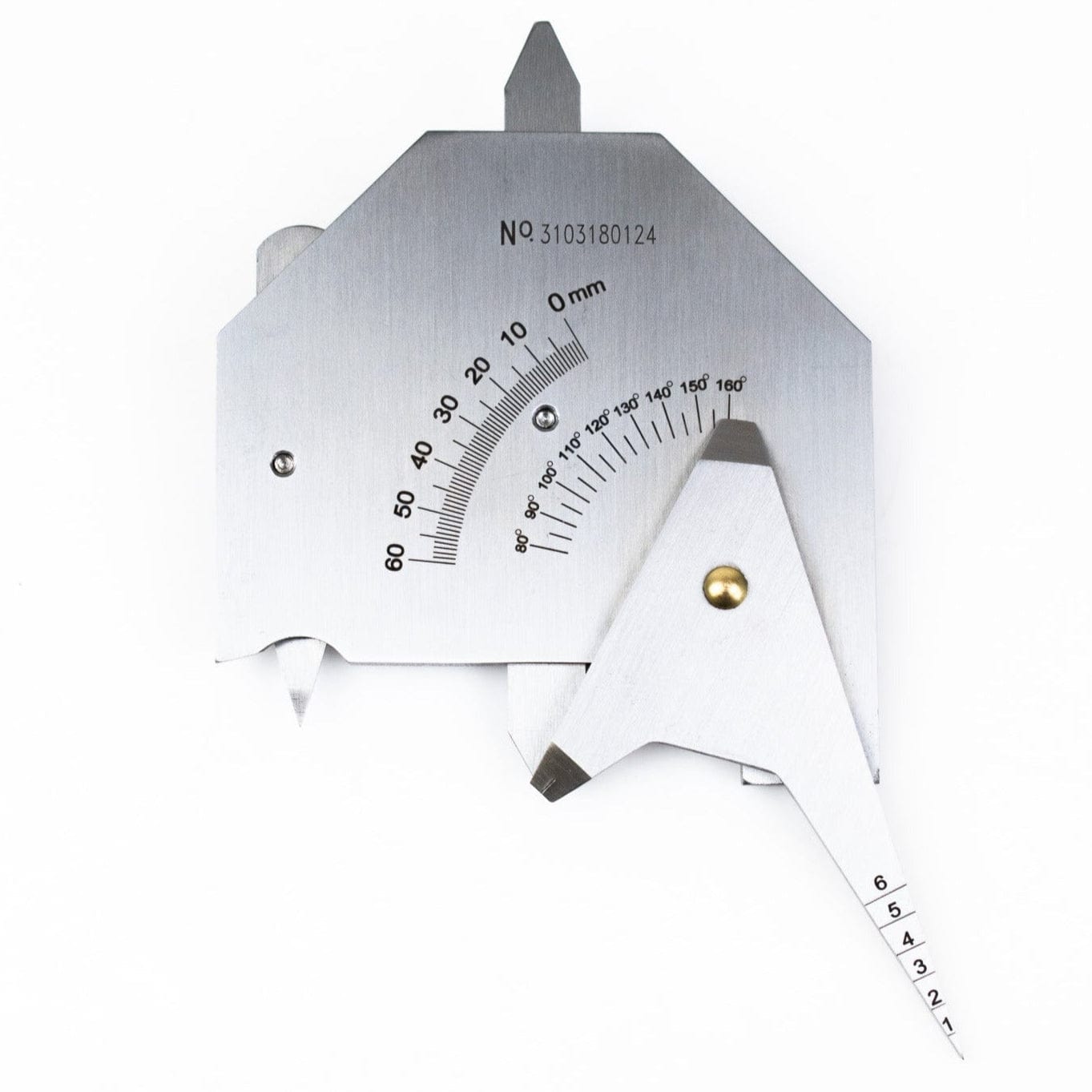

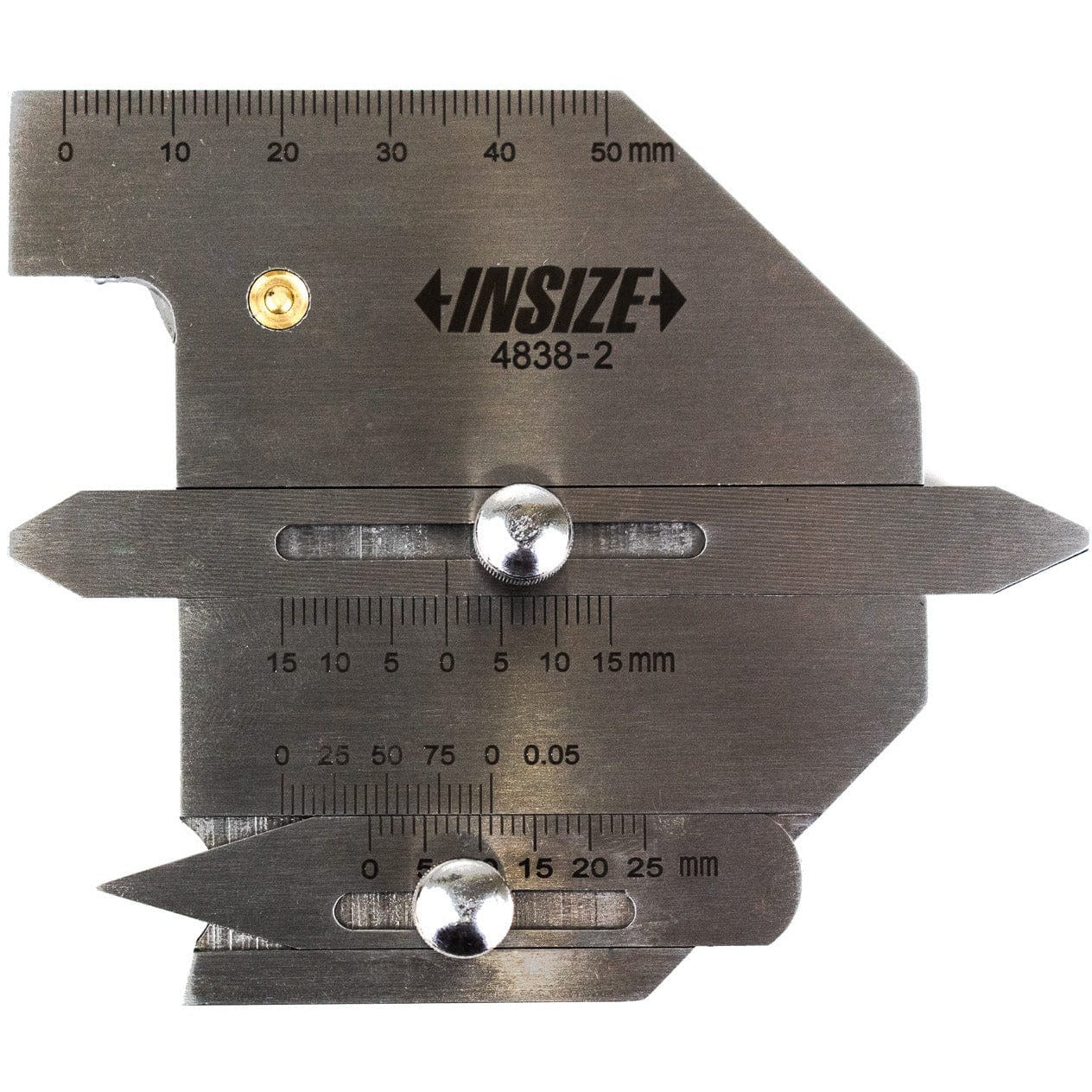

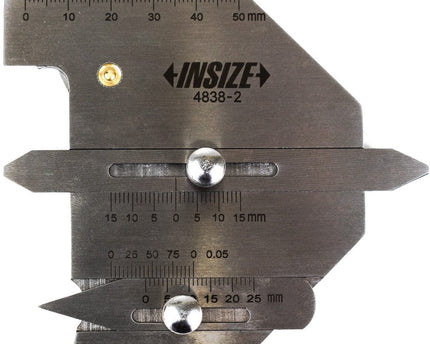

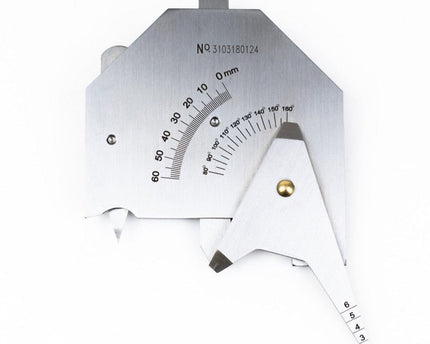

Insize Welding Gauge is a precision measuring tool designed for accurate inspection of weld dimensions including crown height, leg height, undercut depth, throat size, weld length, angle, and gap. Manufactured from durable stainless steel, it provides reliable and repeatable measurements for fabrication, inspection, and quality control applications.

Key Features:

Part Numbers: 4838-2

	Code: 4838-1			Code: 4838-2

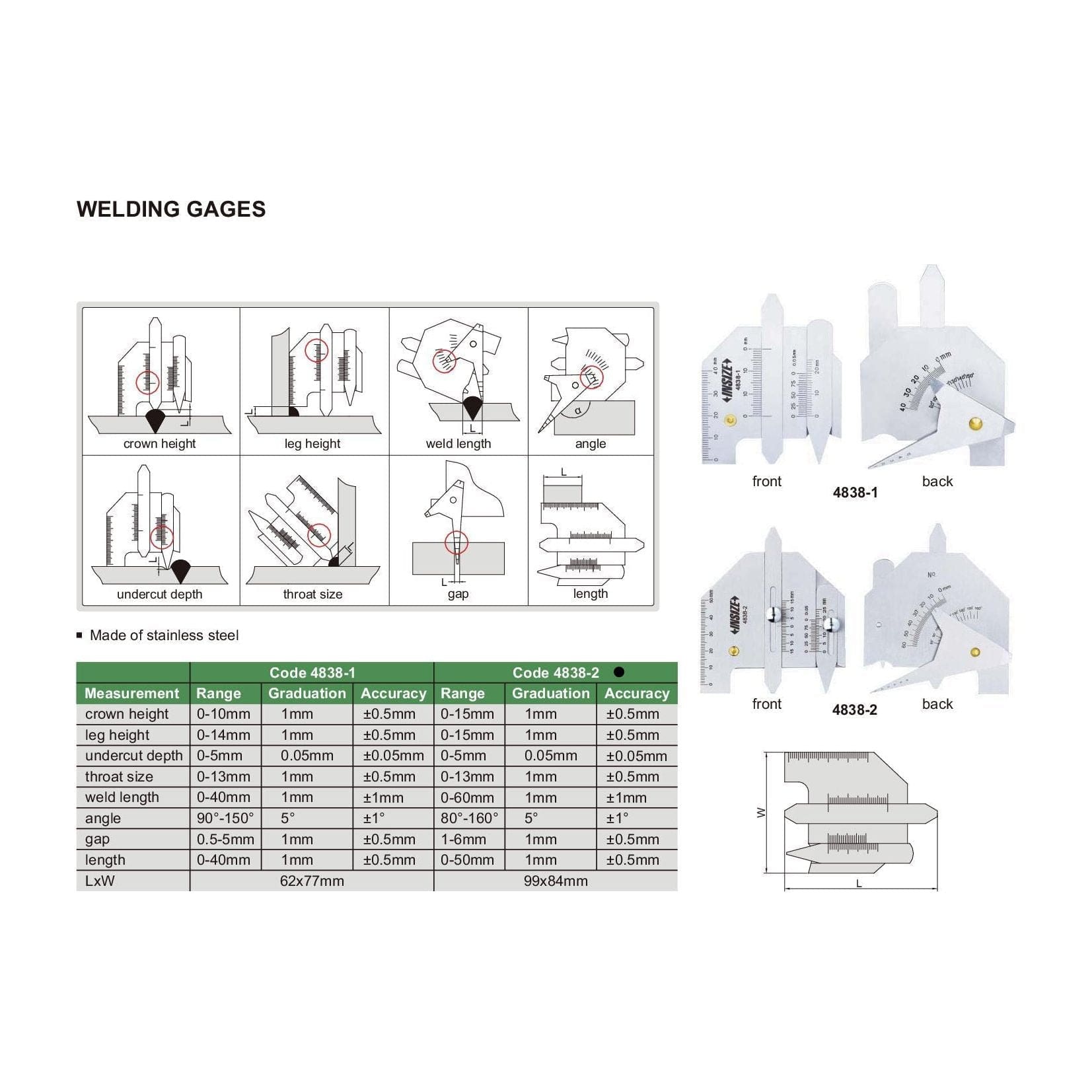

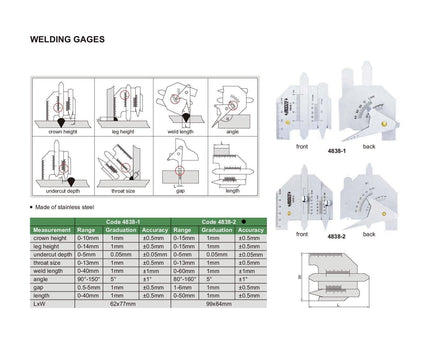

Measurement	Range	Graduation	Accuracy	Range	Graduation	Accuracy
Crown height	0–10 mm	1 mm	±0.5 mm	0–15 mm	1 mm	±0.5 mm
Leg height	0–14 mm	1 mm	±0.5 mm	0–15 mm	1 mm	±0.5 mm
Undercut depth	0–5 mm	0.05 mm	±0.05 mm	0–5 mm	0.05 mm	±0.05 mm
Throat size	0–13 mm	1 mm	±0.5 mm	0–13 mm	1 mm	±0.5 mm
Weld length	0–40 mm	1 mm	±1 mm	0–60 mm	1 mm	±1 mm
Angle	90°–150°	5°	±1°	80°–160°	5°	±1°
Gap	0.5–5 mm	1 mm	±0.5 mm	1–6 mm	1 mm	±0.5 mm
Length	0–40 mm	1 mm	±0.5 mm	0–50 mm	1 mm	±0.5 mm
Overall Size (L × W)	62 × 77 mm			99 × 84 mm

Designed for precision and durability, the INSIZE welding gauge is an essential inspection tool for accurate assessment of weld geometry and alignment in industrial welding applications.
