Description

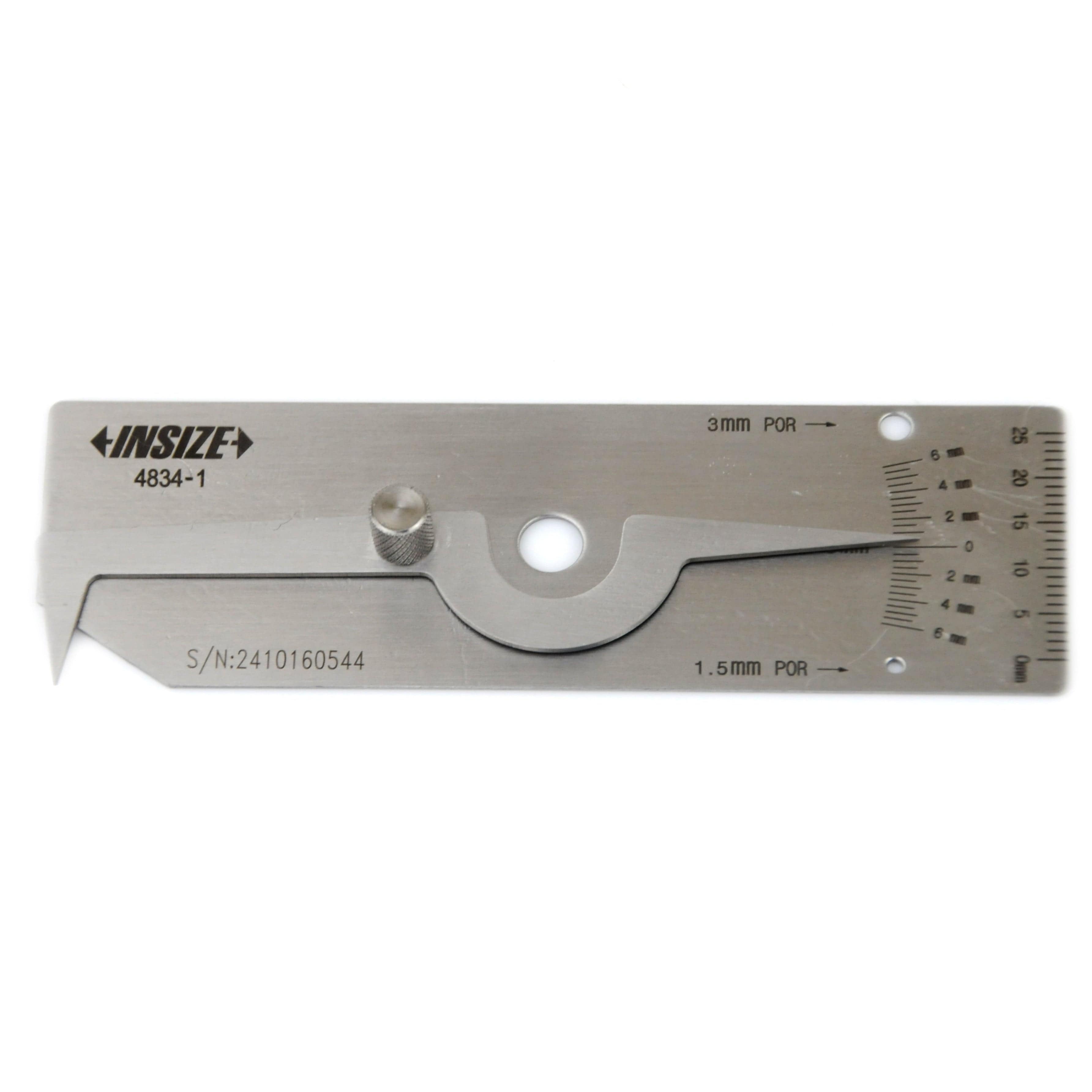

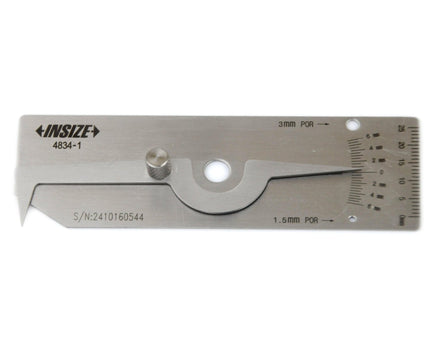

Insize Welding Gauge
The Insize Welding Gauge is a versatile inspection tool designed for accurate measurement of weld characteristics such as undercut depth, crown height, and porosity. Manufactured from durable stainless steel, it features a lockable pointer that allows readings to be retained for later reference, improving accuracy and ease of inspection in welding applications.
Key Features:
-
Part Number: 4834-1
-
Pointer: Lockable for retaining measurement reference
-
Material: Stainless steel

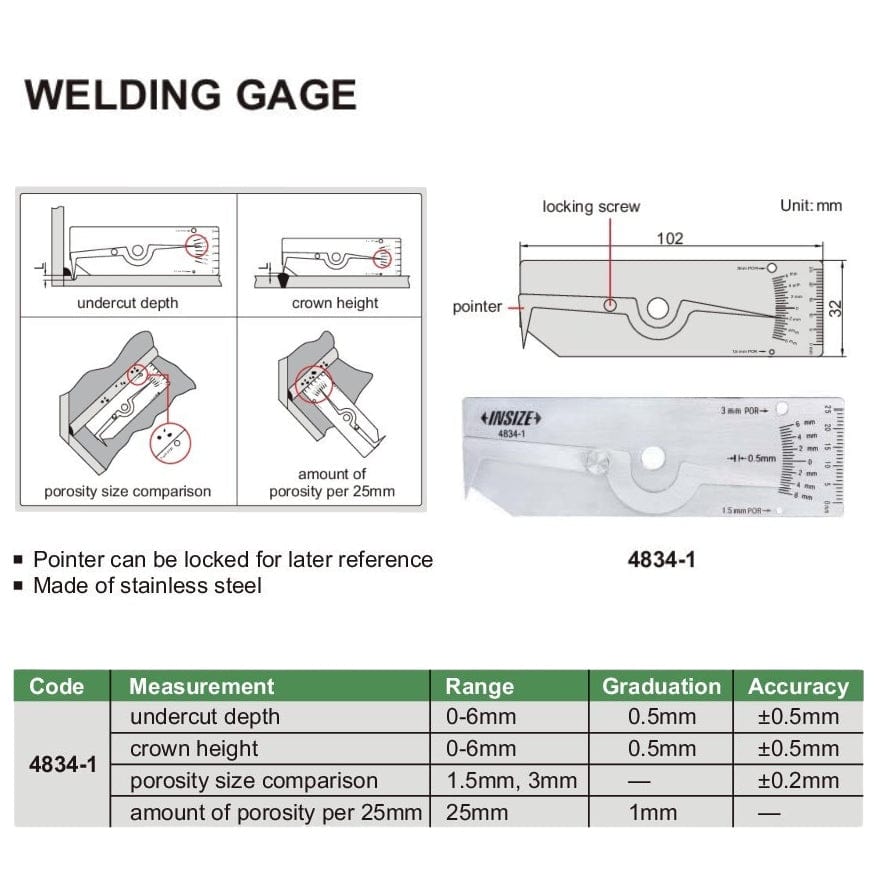

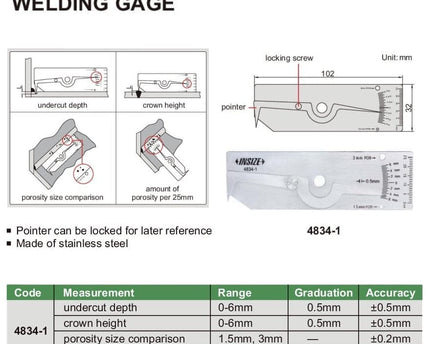

Measurement Capabilities:
| Measurement |
Range |
Graduation |
Accuracy |
| Undercut depth |
0–6 mm |
0.5 mm |
±0.5 mm |
| Crown height |
0–6 mm |
0.5 mm |
±0.5 mm |
| Porosity size comparison |
1.5 mm, 3 mm |
– |
±0.2 mm |
| Porosity per 25 mm |
25 mm |
1 mm |
– |
Designed for durability and precision, the INSIZE welding gauge provides reliable inspection of weld quality and geometry, making it an essential tool for welding inspection, fabrication, and quality control environments.
