Description

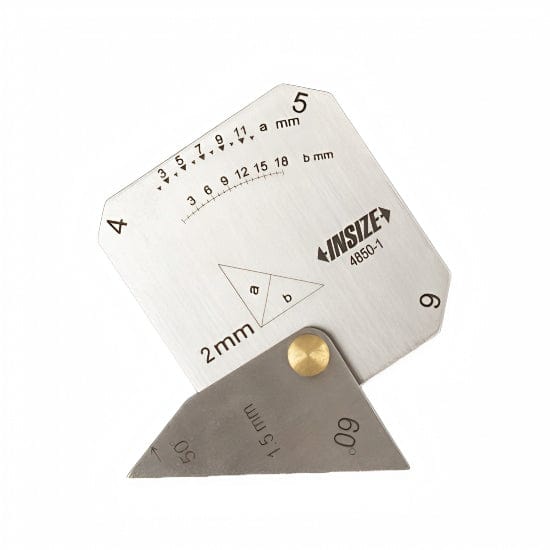

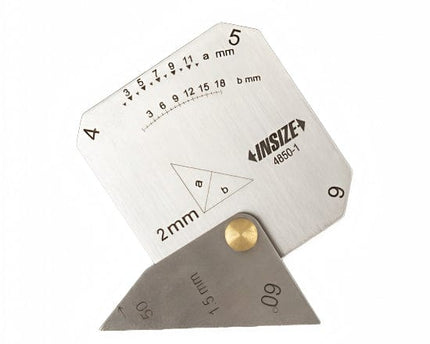

Insize Welding Gauge
Insize Welding Gauge is designed for accurate measurement of weld sizes, alignment, and preparation geometry in fabrication and inspection applications. Manufactured from durable stainless steel, it provides consistent and reliable measurement performance in workshop and industrial environments.

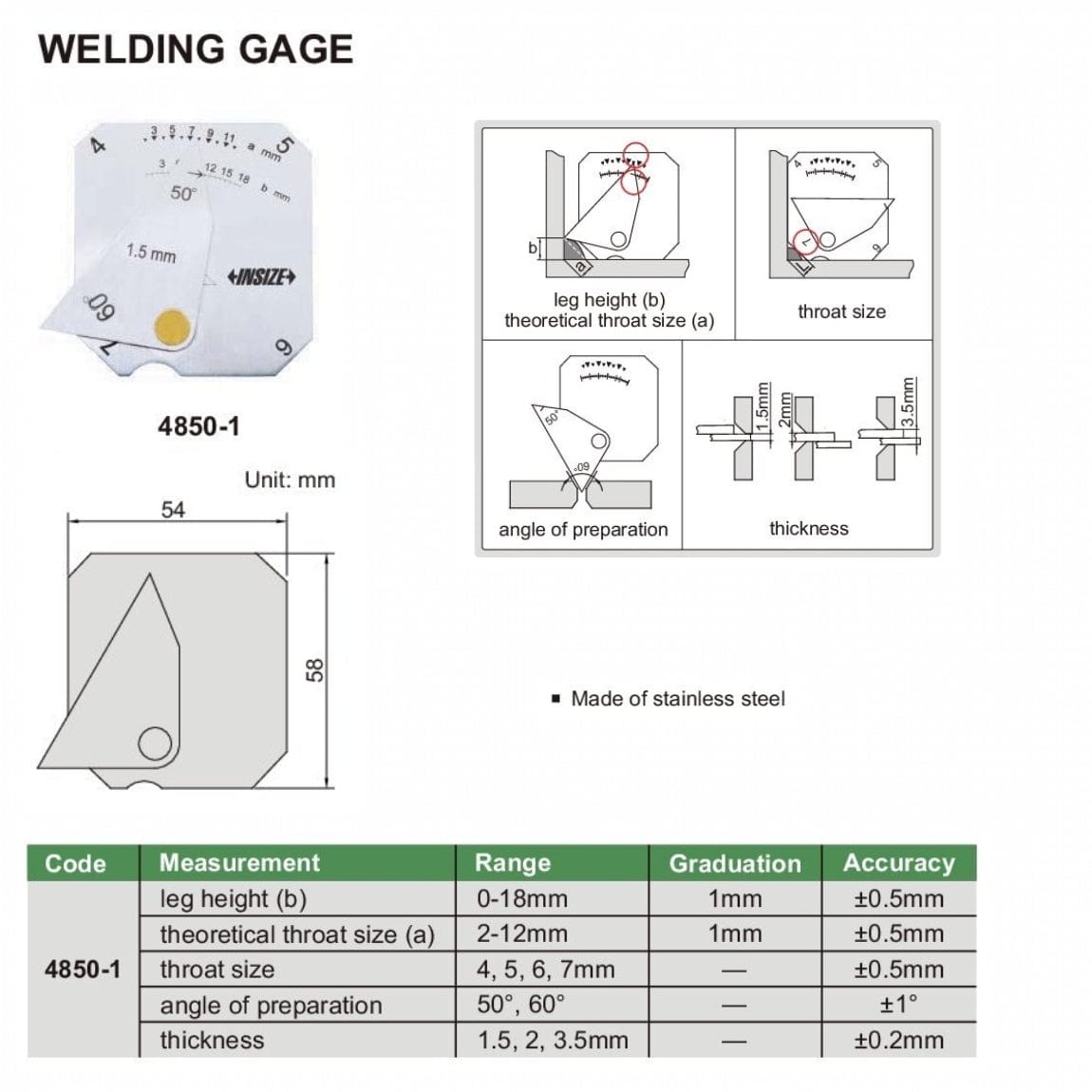

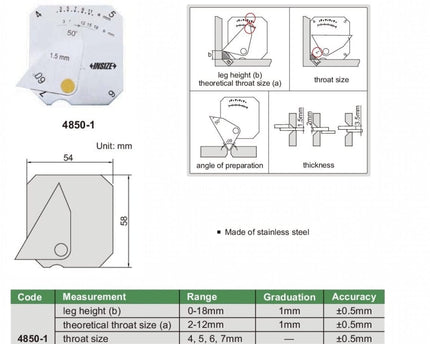

Specifications:
-
Part Number: 4850-1
-
Material: Stainless steel
| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 4850-1 |
Leg Height (b) |
0–18 mm |
1 mm |
±0.5 mm |
| Theoretical Throat Size (a) |
2–12 mm |
1 mm |
±0.5 mm |
| Throat Size |
4, 5, 6, 7 mm |
– |
±0.5 mm |
| Angle of Preparation |
50°, 60° |
– |
±1° |
| Thickness |
1.5, 2, 3.5 mm |
– |
±0.5 mm |
Designed for precision and ease of use, this welding gauge allows quick verification of weld geometry and preparation dimensions, making it suitable for fabrication, inspection, and quality control tasks.
