Description

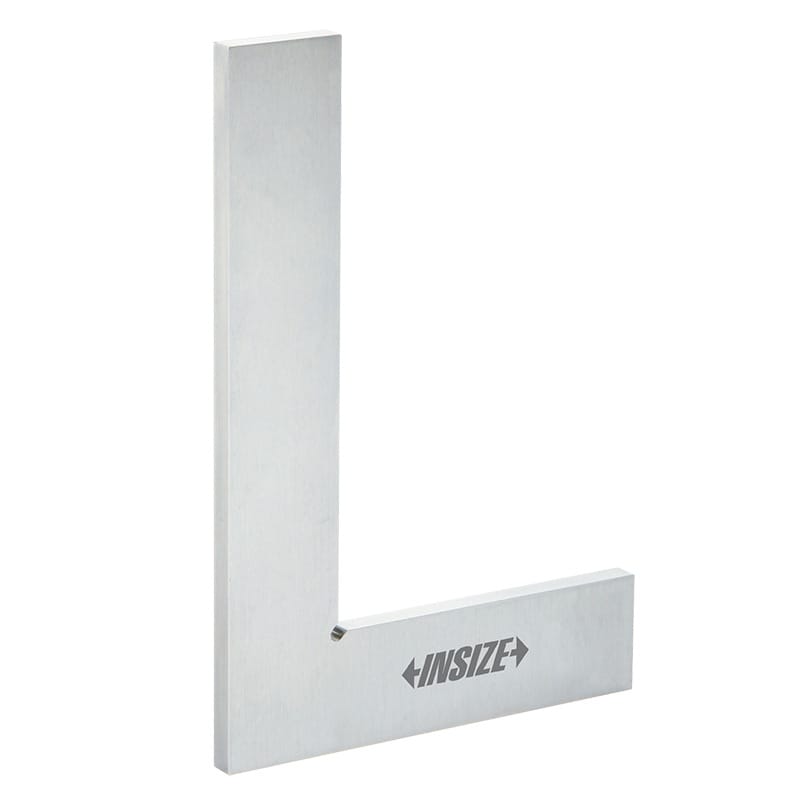

The Insize 4796-350 Machinist Square is a precision inspection and layout tool designed for checking 90° angles, squareness, and alignment in machining, fabrication, and workshop applications. Manufactured to DIN875 Grade 2 standards, this economic-type machinist square delivers reliable measuring accuracy for general engineering and metalworking tasks.
Constructed from durable carbon steel, the square features a 350 x 200mm blade and stock configuration suitable for workshop inspection, machine setup, and layout marking. Its precision-ground measuring surfaces help ensure accurate inside and outside squareness checking across a wide range of industrial applications.
Key Features & Benefits
- Precision machinist square for angle inspection and layout work
- DIN875 Grade 2 accuracy standard
- Economic type design for general workshop applications
- Manufactured from durable carbon steel
- Suitable for checking inside and outside squareness
- Precision ground measuring surfaces
- Ideal for machining, fabrication, and engineering tasks
- Reliable for setup and inspection applications
- Simple and durable workshop measuring tool
- Large 350 x 200mm measuring size
Technical Specifications
- Part Number: 4796-350
- Product Type: Machinist Square (Economic Type)
- Standard: DIN875 Grade 2
- Material: Carbon Steel
- Size (L x W): 350 x 200mm
- Squareness Inside (α): 51µm
- Squareness Outside (β): 55µm
- Dimension C: 38mm
- Dimension D: 38mm
- Dimension H: 6mm
- Surface Treatment: No anti-rust treatment
- Hardening: Not hardened
Applications
- Machining and engineering inspection
- Checking 90° squareness
- Workshop layout and marking
- Machine setup and alignment
- Metal fabrication inspection
- General industrial measurement tasks
- Toolroom and maintenance applications
Insize precision measuring tools are trusted worldwide for their dependable accuracy, practical workshop performance, and reliable inspection quality across industrial and engineering environments.
The Insize 4796-350 Machinist Square provides accurate and reliable 90° inspection capability for workshop, fabrication, and machining applications requiring dependable squareness verification.
