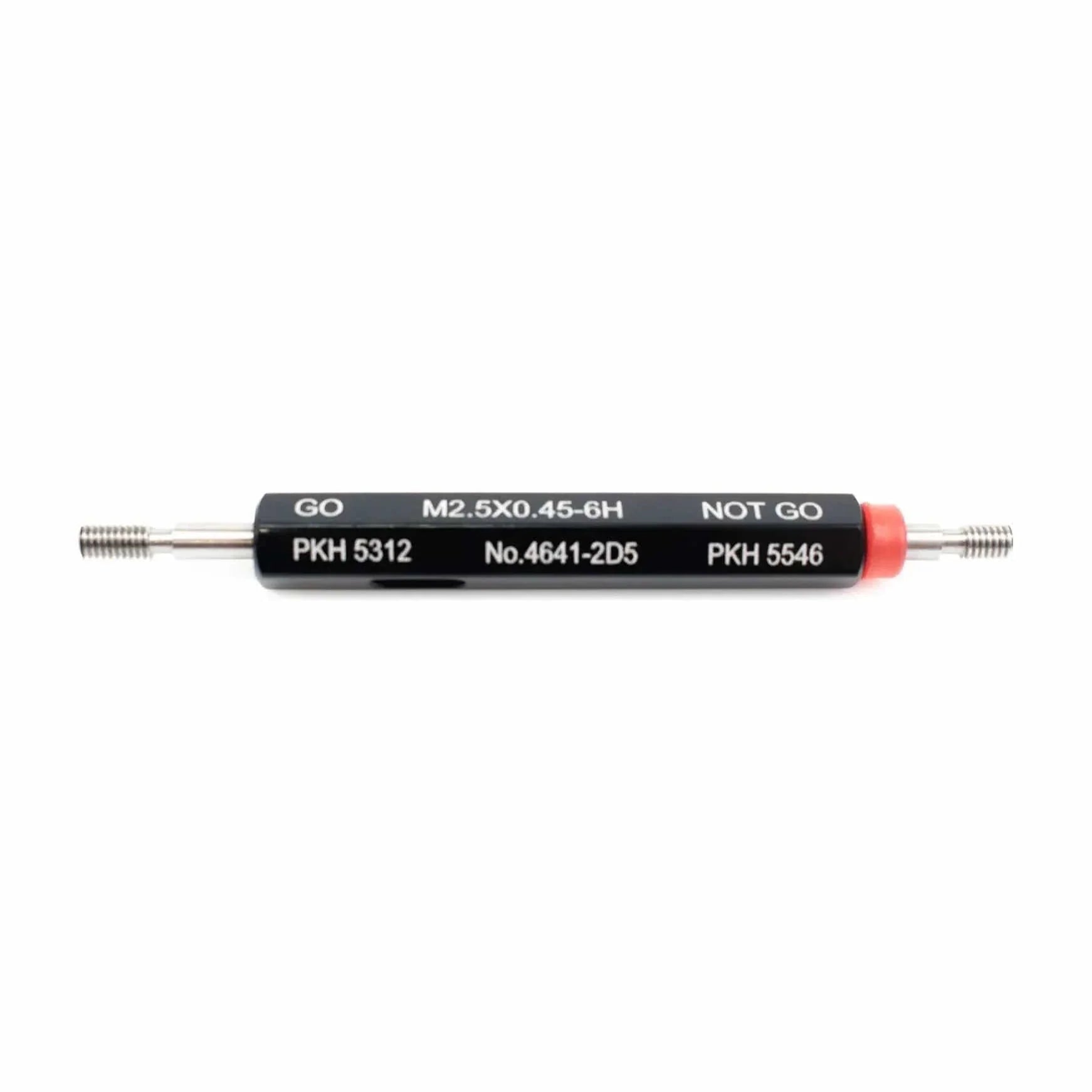

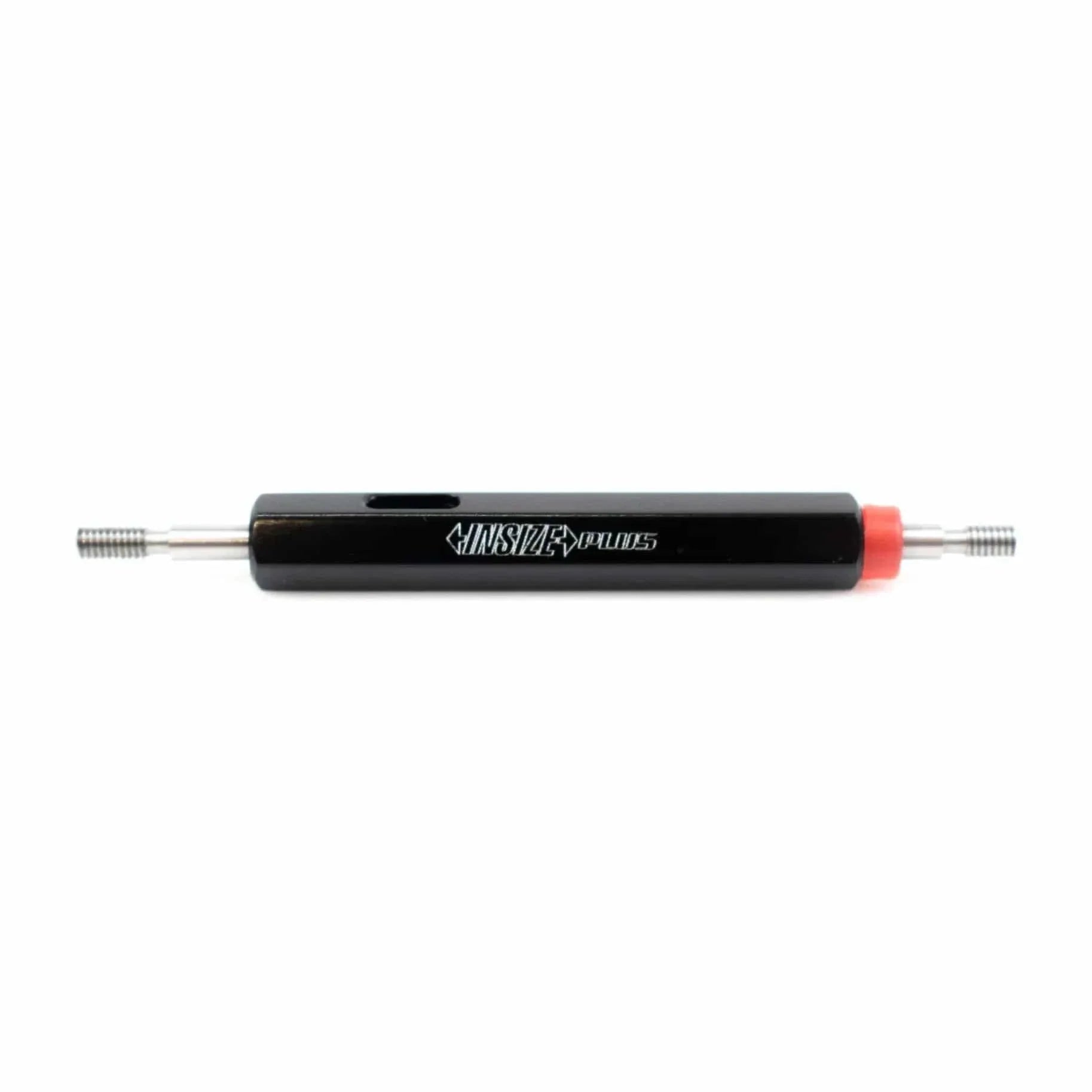

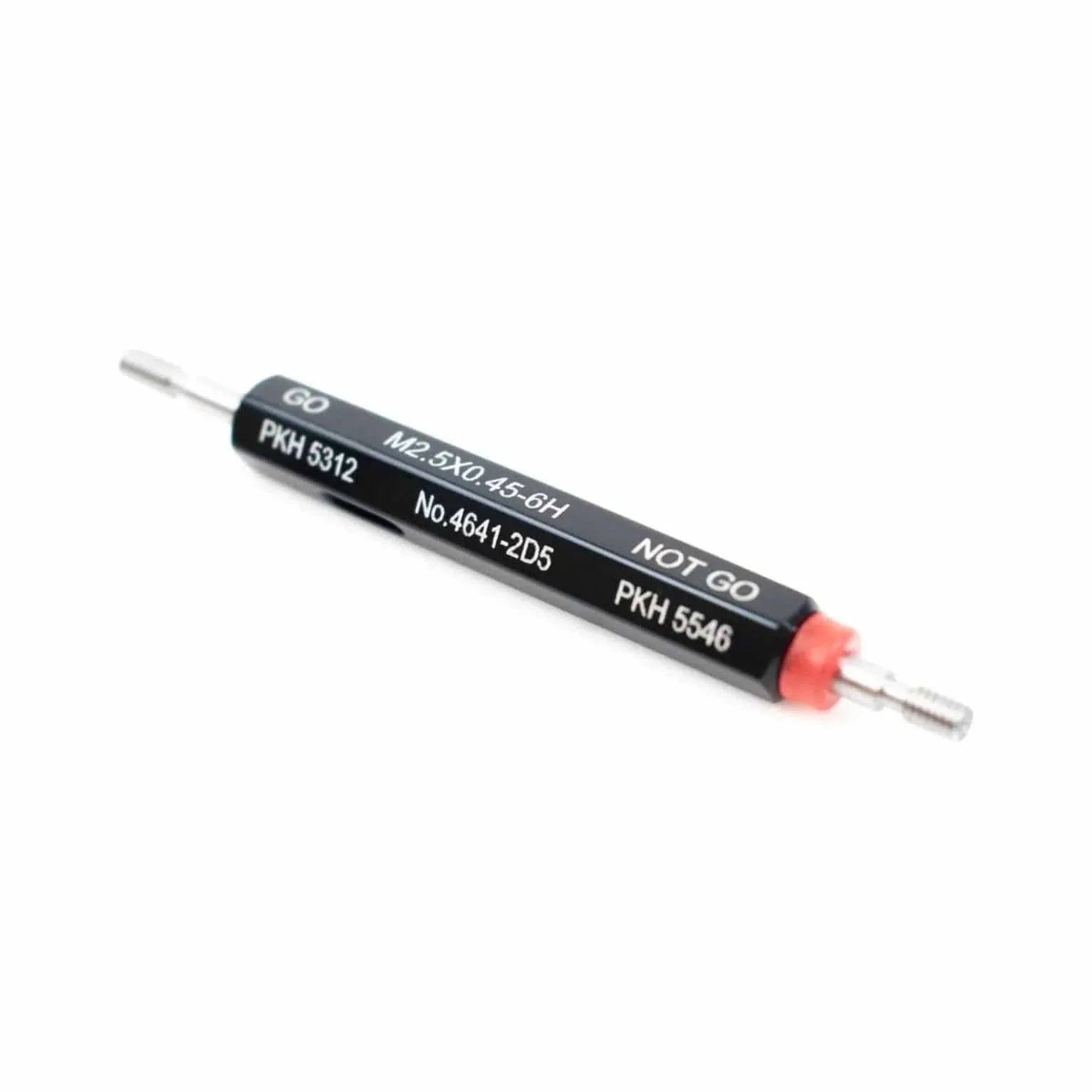

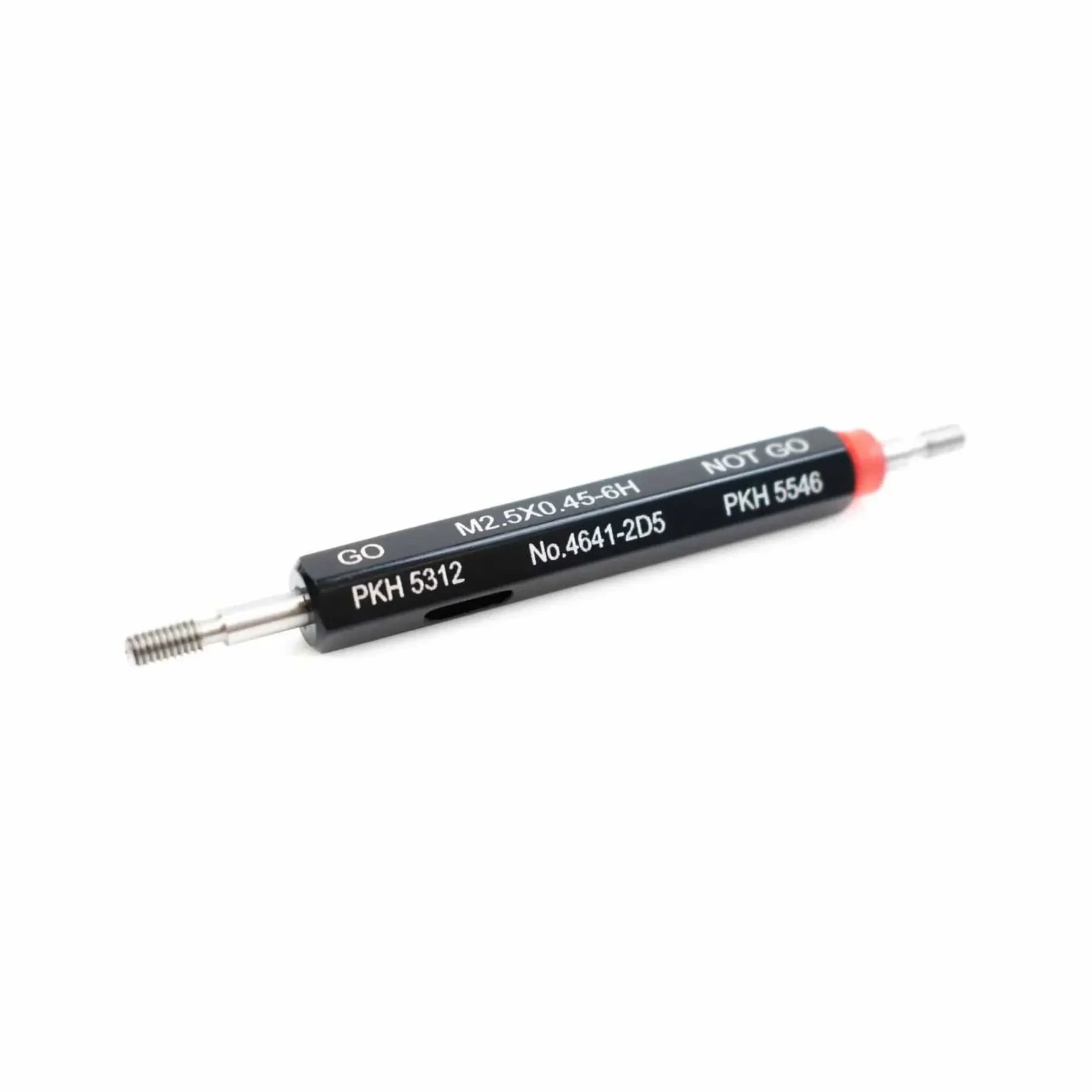

Insize Plus M2.5 x 0.45 Thread Plug Gauge
The Insize Plus Thread Plug Gauge is a high-precision tool designed for checking internal thread sizes to ensure accurate fit and tolerance. Supplied with both Go and No-Go ends, it is ideal for use in machining, manufacturing, and quality control applications.
Specifications :
-
Part No: 4641-2D5
-
Thread Size: M2.5 x 0.45mm
-
Class: 6H – No Allowance
-
Included: Go and No-Go gauges
-
Standard: ISO1502
-
Material: OHNS (Oil Hardened Non-shrinking Steel)
-
Properties: Stable dimension and wear resistance
-
Hardness: HRC60–62
-
Certification: Supplied with manufacturer inspection certificate
Well designed, durable high precision tools that are suitable for various measuring ranges. INSIZE thread plug gauges are the perfect instrument for determining the pitch diameter of a wide range of components. Easy to use thread plug gauges to measure pitch diameter and check tolerance of mating parts.
