Description

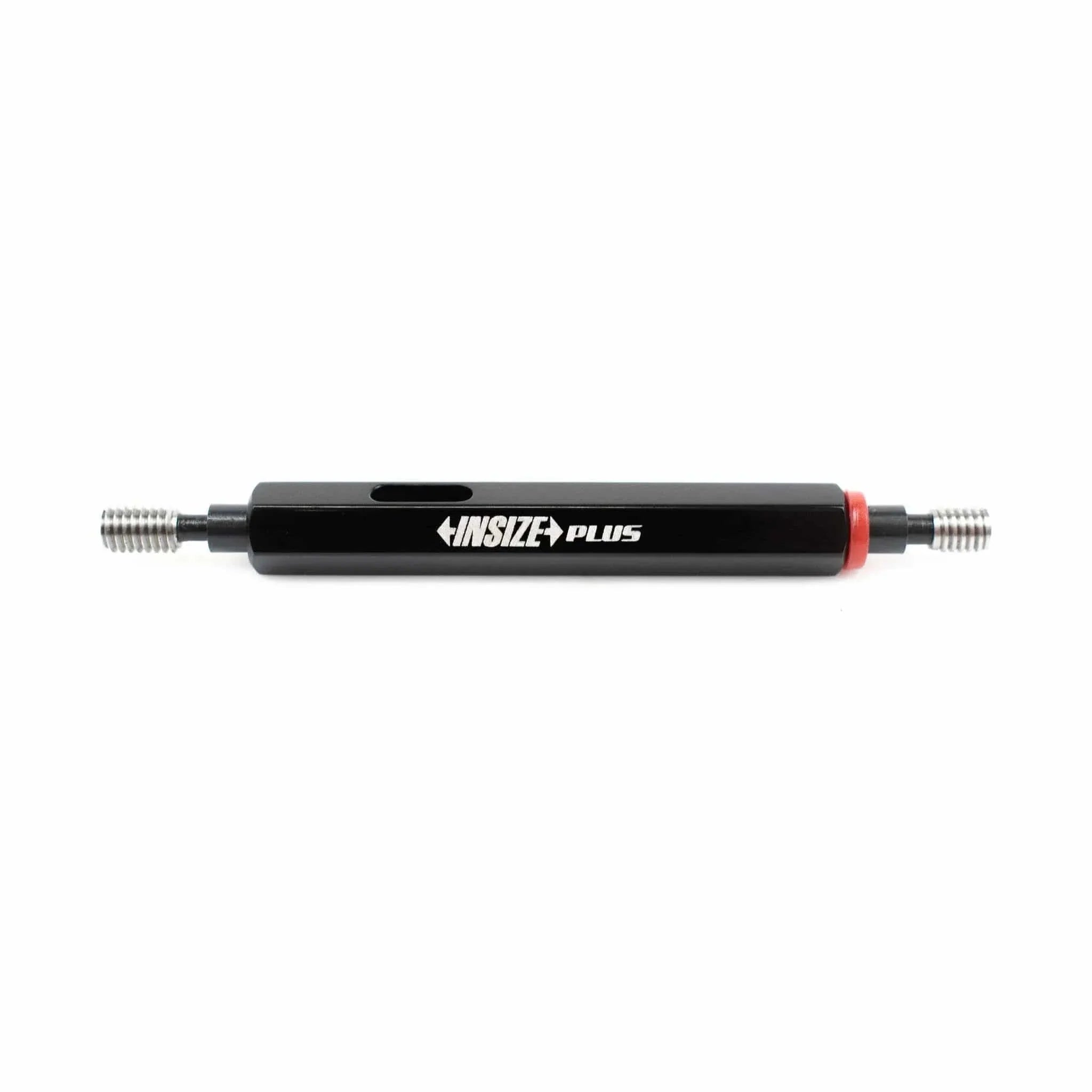

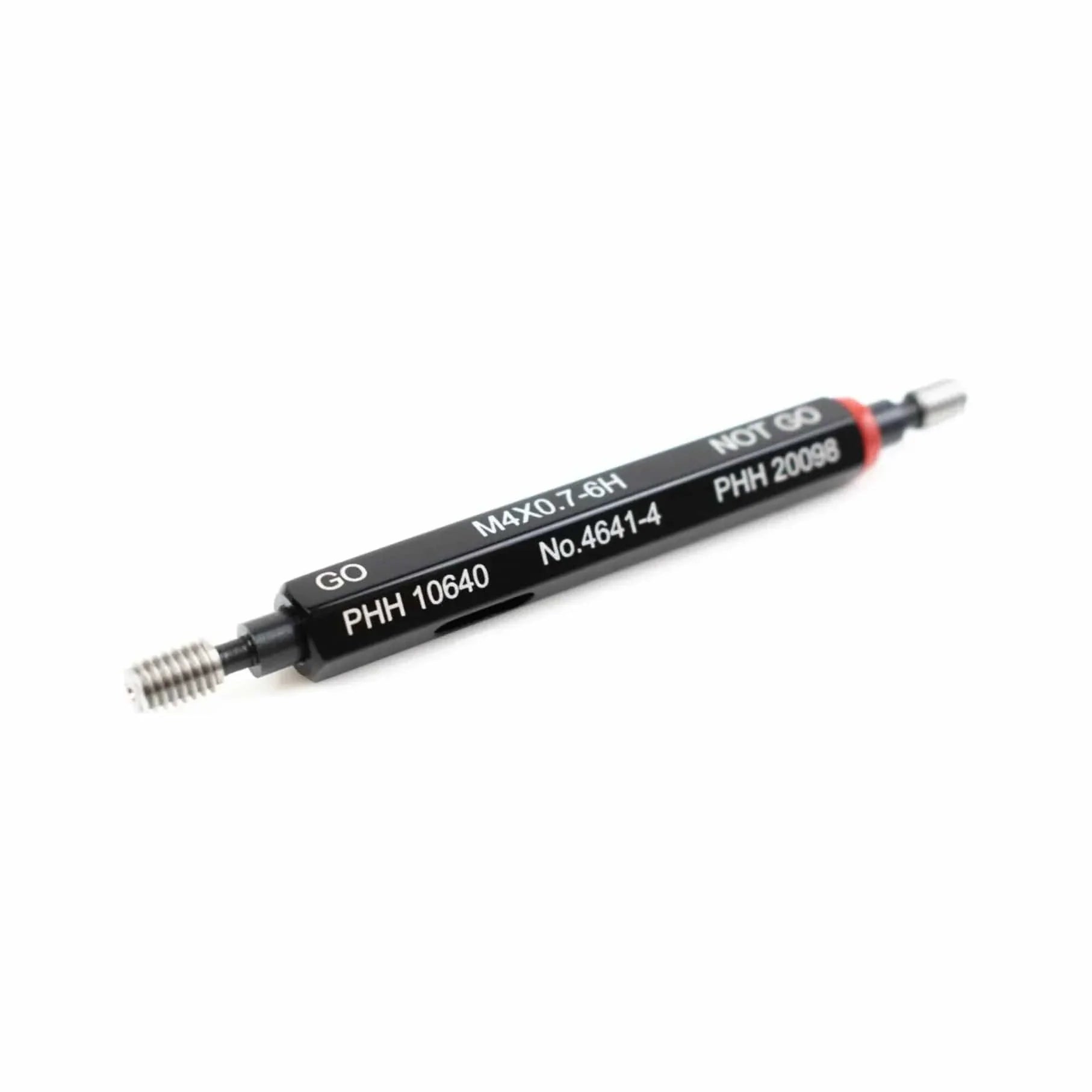

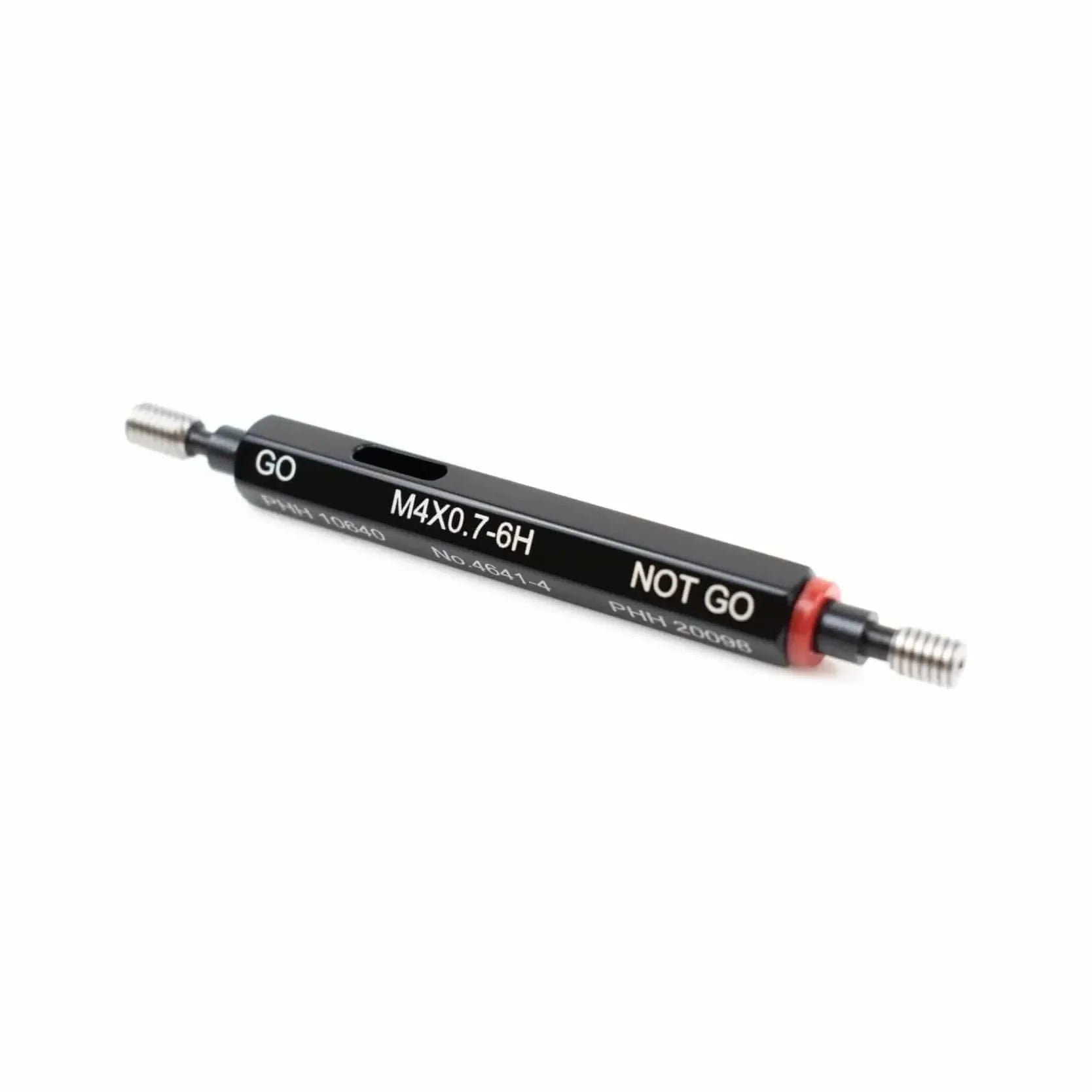

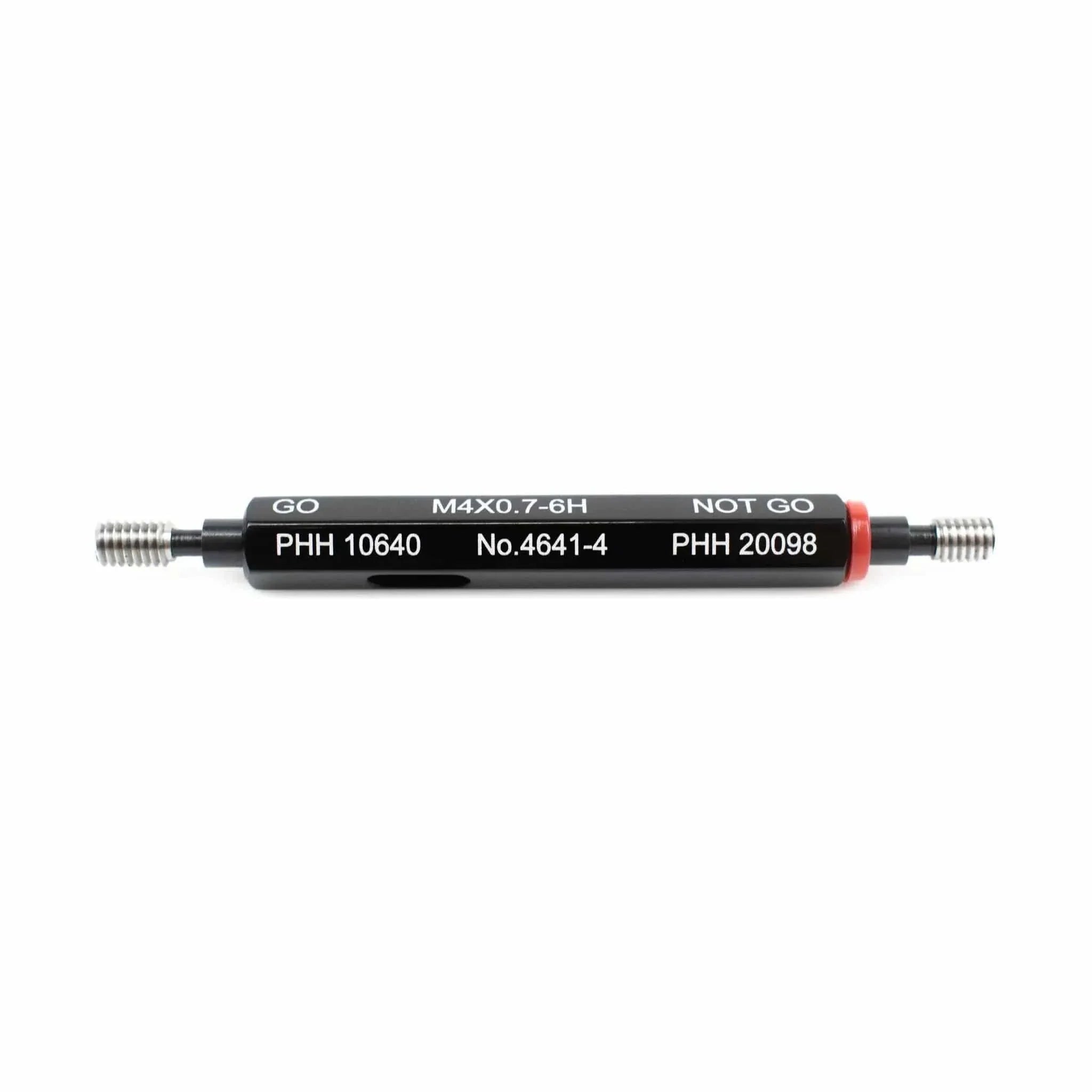

Insize Plus M4 x 0.7 Thread Plug Gauge
The Insize Plus M4 x 0.7 Thread Plug Gauge is a precision-engineered tool used to check internal thread sizes for accuracy and compliance. Featuring both Go and No-Go ends, it ensures quick and reliable thread tolerance verification, making it ideal for machining, manufacturing, and quality control processes.
Specifications :
-
Part No: 4641-4
-
Thread Size: M4 x 0.7mm
-
Class: 6H – No Allowance
-
Included: Go and No-Go gauges
-
Standard: ISO1502
-
Material: OHNS (Oil Hardened Non-shrinking Steel)
-
Properties: Stable dimension and wear resistance
-
Hardness: HRC60–62
-
Certification: Supplied with manufacturer inspection certificate
Well designed, durable high precision tools that are suitable for various measuring ranges. INSIZE thread plug gauges are the perfect instrument for determining the pitch diameter of a wide range of components. Easy to use thread plug gauges to measure pitch diameter and check tolerance of mating parts.
