Description

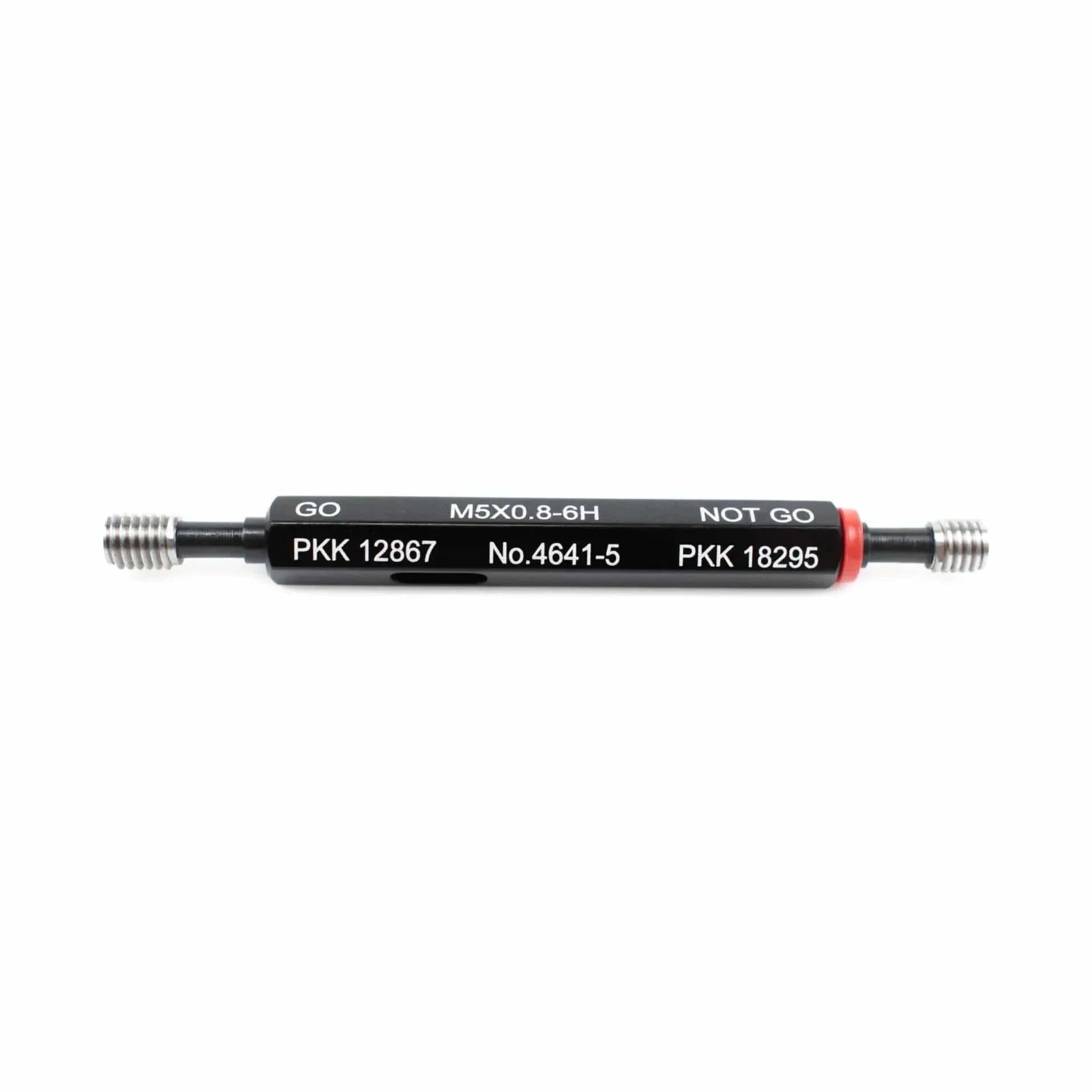

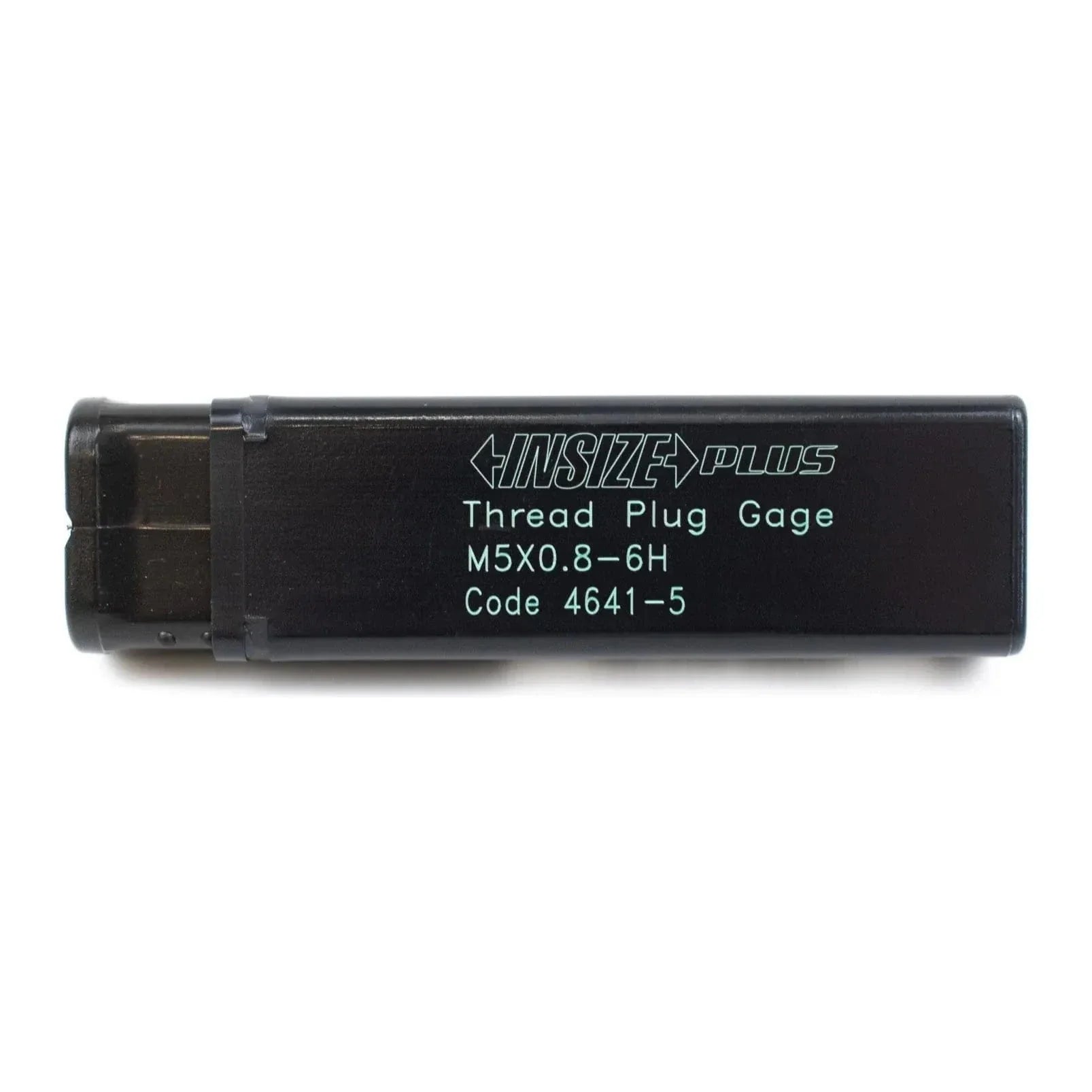

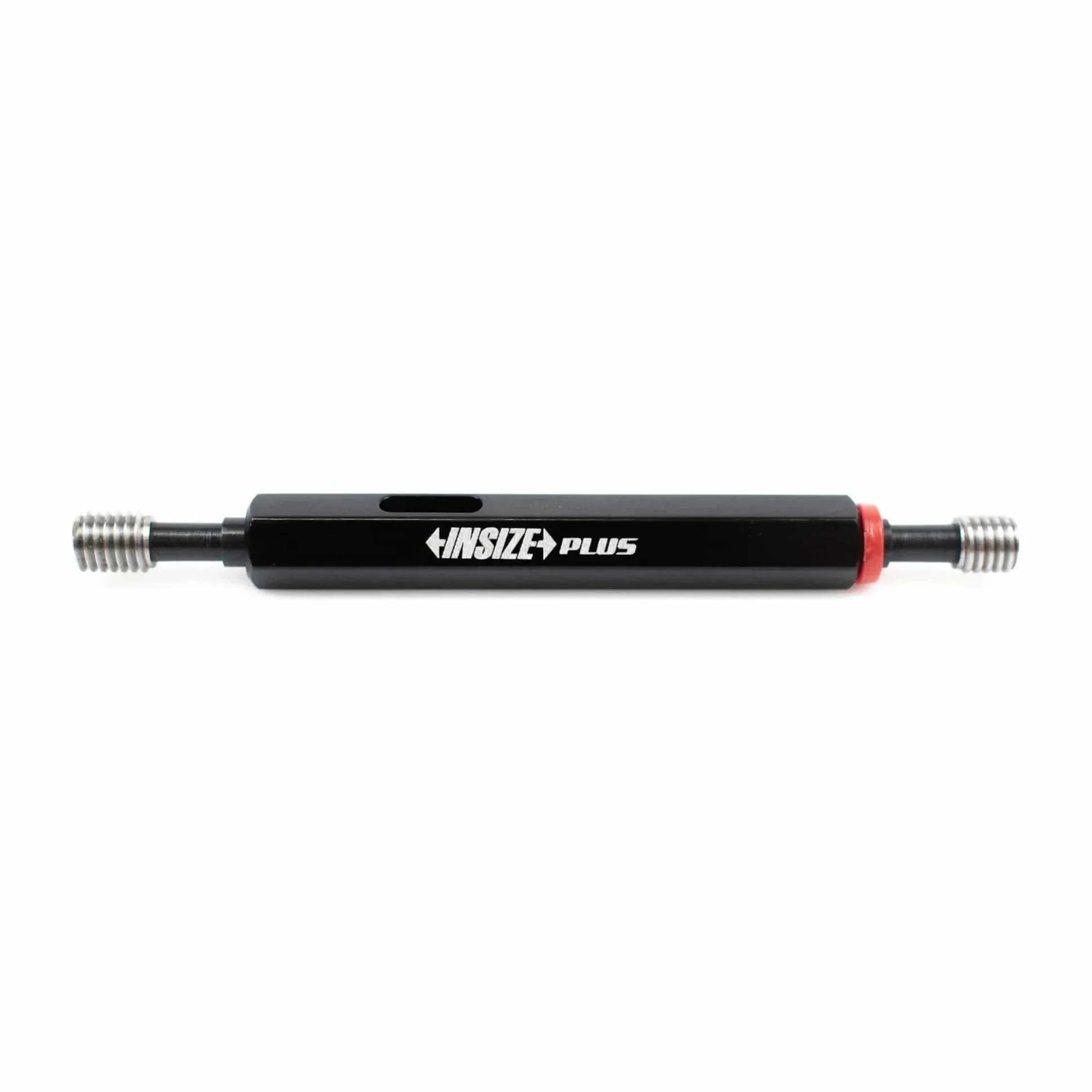

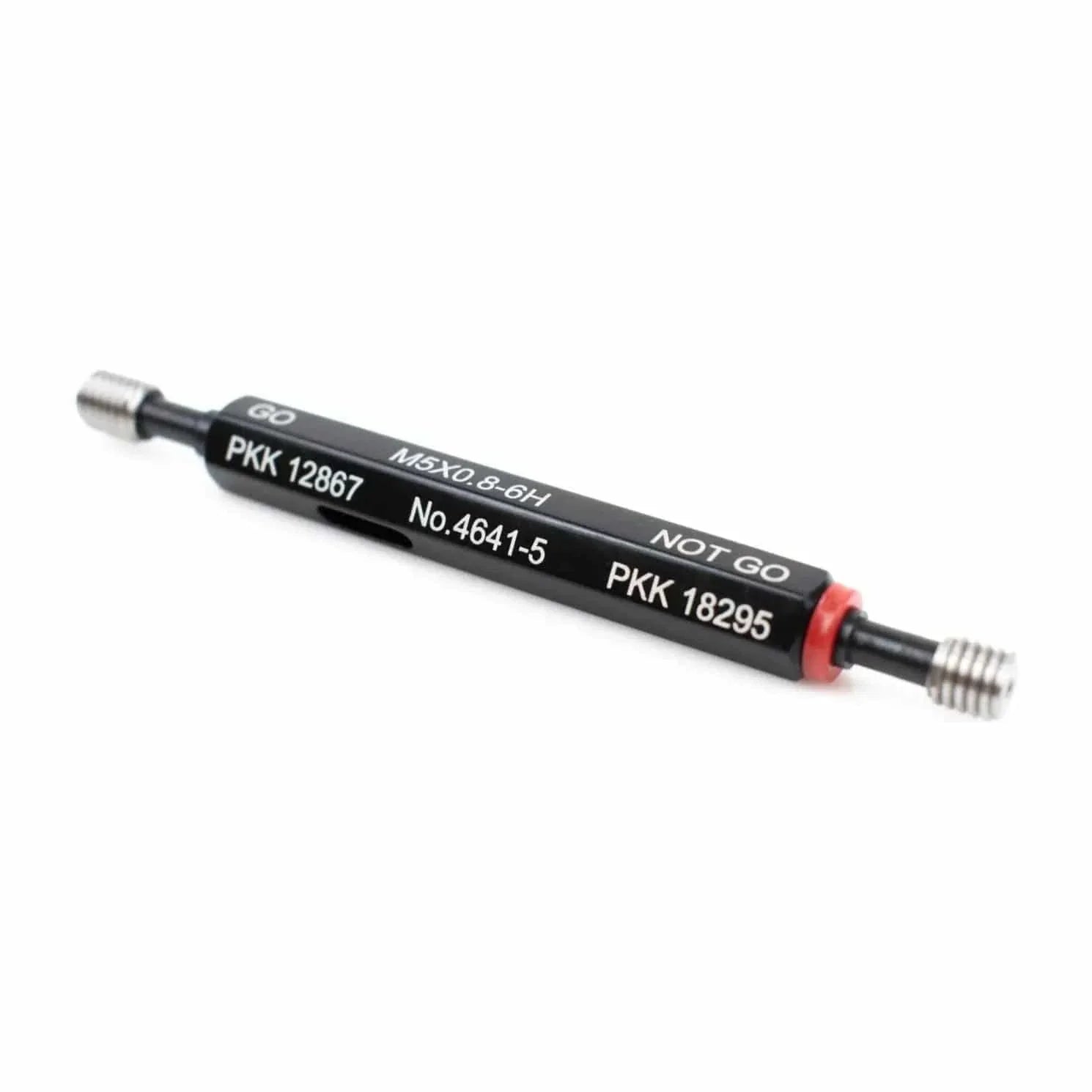

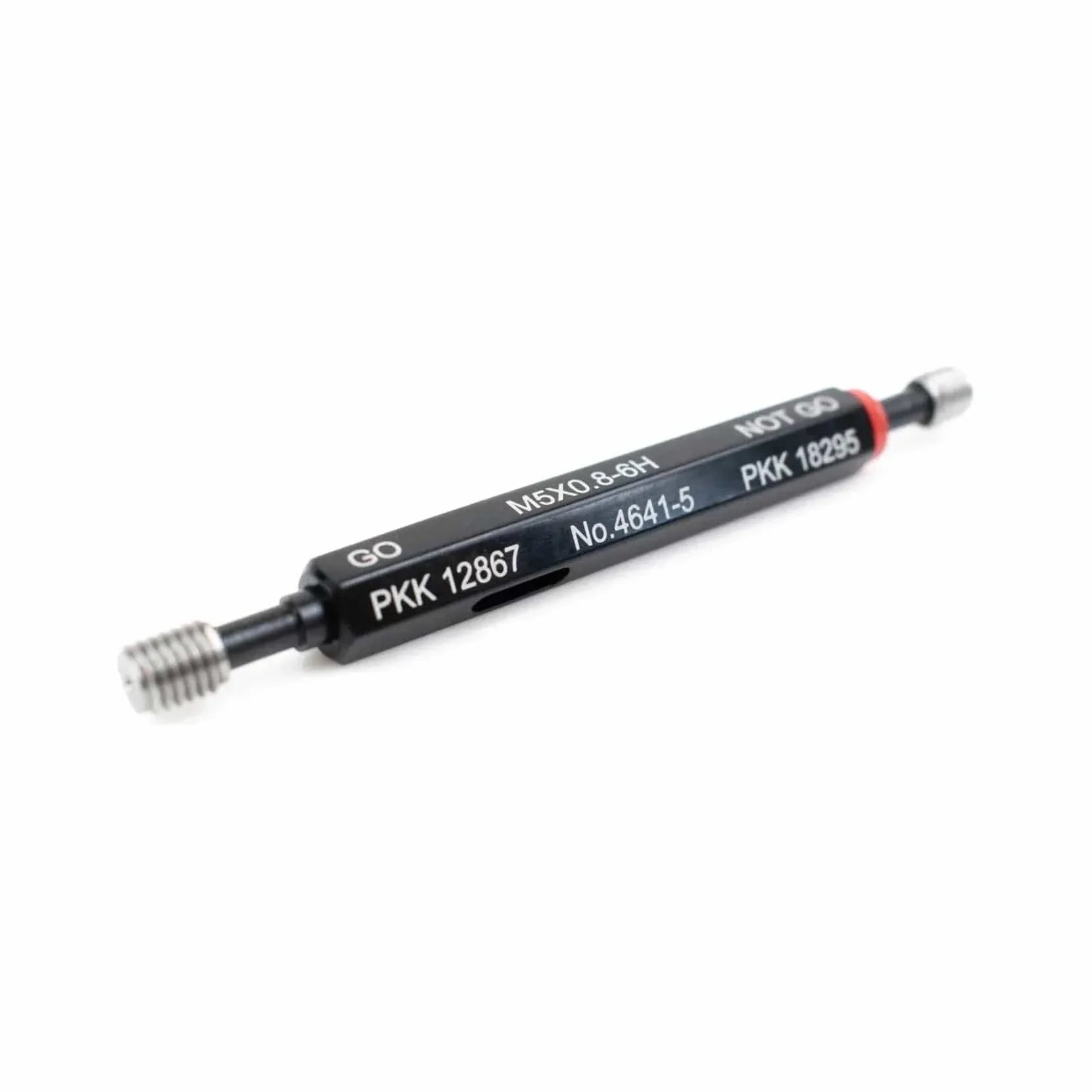

Insize Plus M5 x 0.8 Thread Plug Gauge
The Insize Plus M5 x 0.8 Thread Plug Gauge is a precision tool designed for accurately checking internal thread sizes. Supplied with both Go and No-Go gauges, it ensures fast and reliable verification of thread tolerance and fit. Built from durable, wear-resistant steel, this gauge is ideal for quality control in machining, manufacturing, and assembly environments.

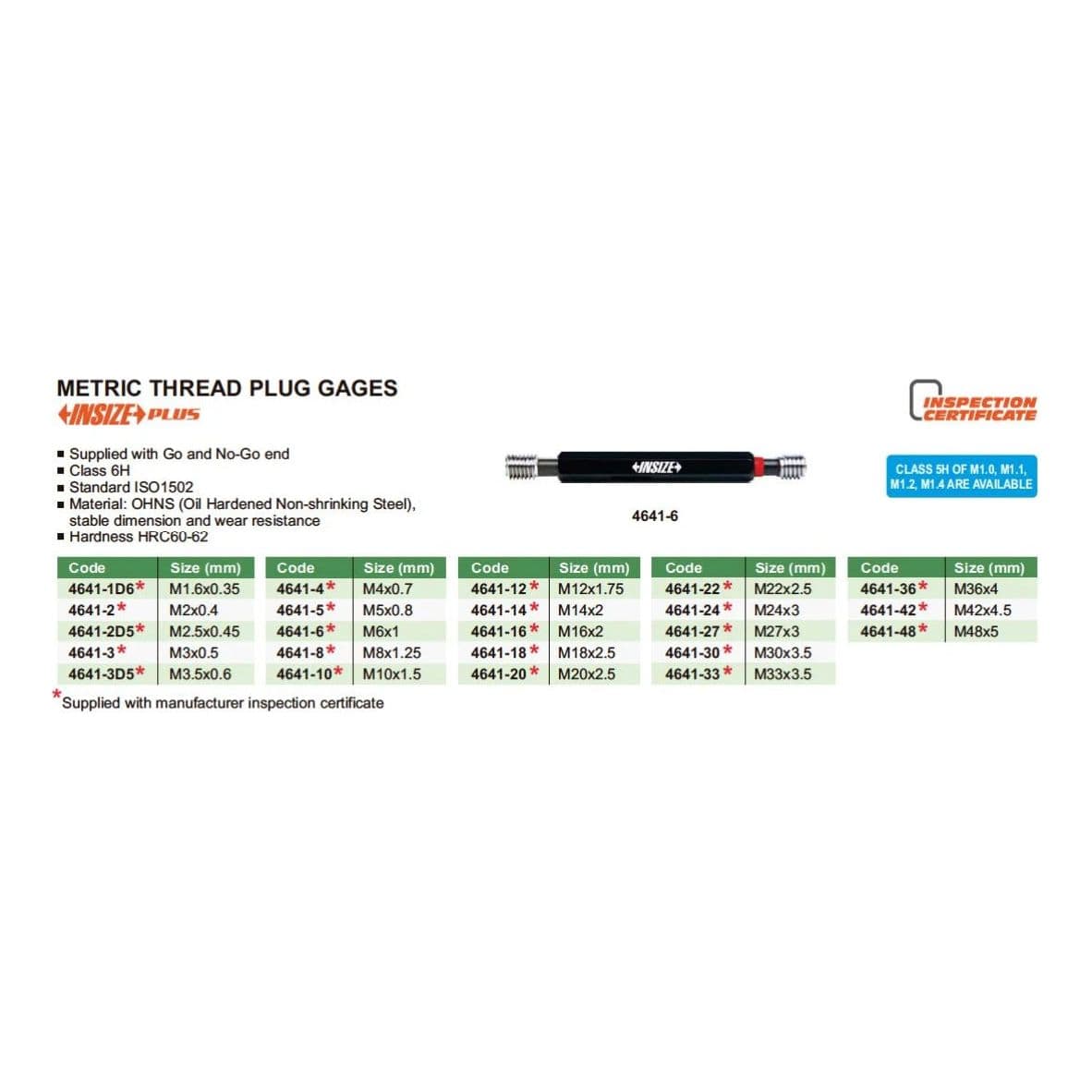

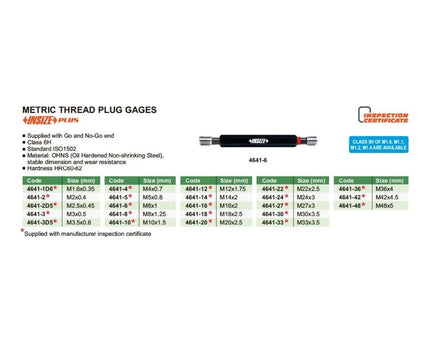

Specifications :
-
Part No: 4641-5
-
Thread Size: M5 x 0.8mm
-
Class: 6H – No Allowance
-
Included: Go and No-Go gauges
-
Standard: ISO1502
-
Material: OHNS (Oil Hardened Non-shrinking Steel)
-
Properties: Stable dimension and wear resistance
-
Hardness: HRC60–62
-
Certification: Supplied with manufacturer inspection certificate
Well designed, durable high precision tools that are suitable for various measuring ranges. INSIZE thread plug gauges are the perfect instrument for determining the pitch diameter of a wide range of components. Easy to use thread plug gauges to measure pitch diameter and check tolerance of mating parts.
