Description

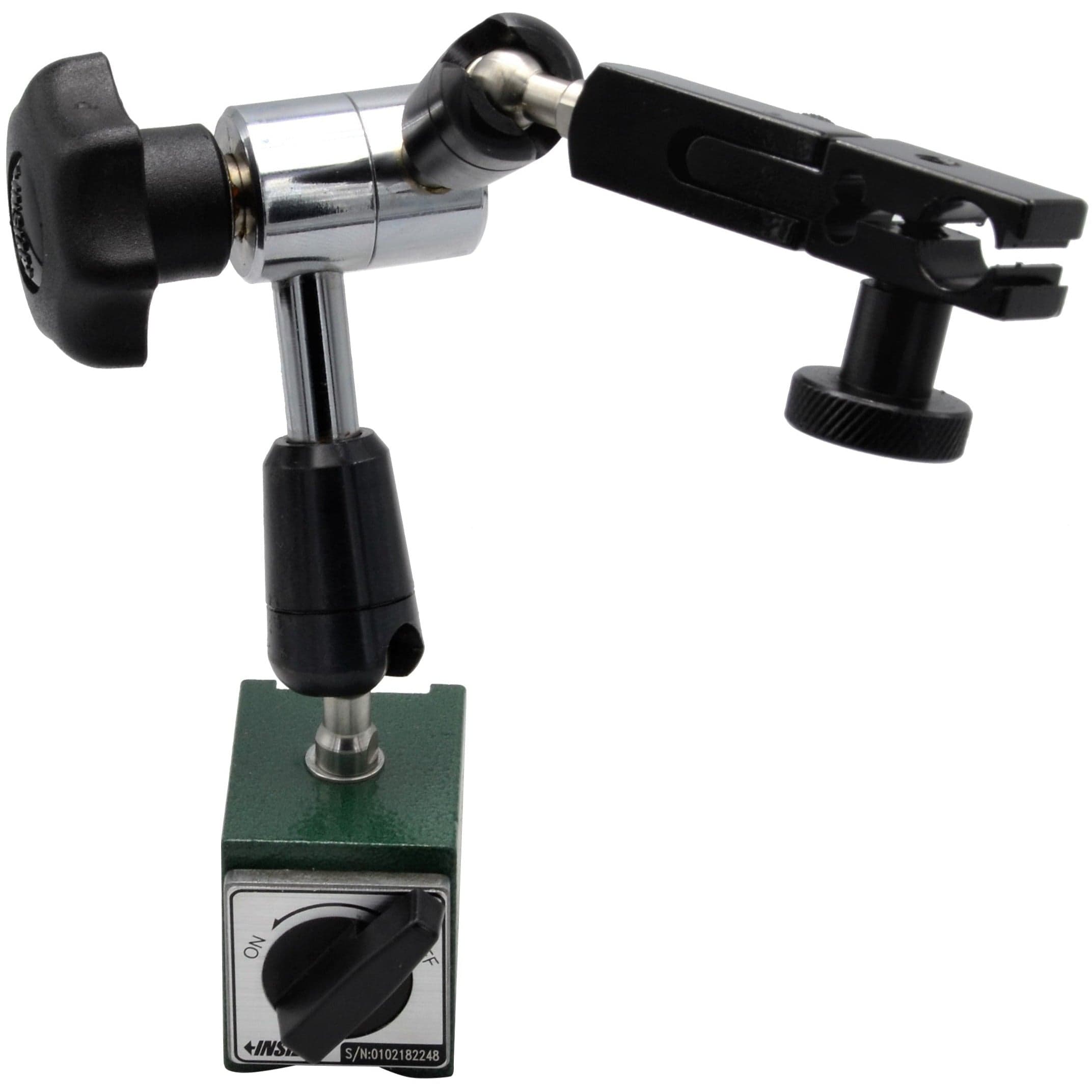

Insize Mechanical Lock Magnetic Stand

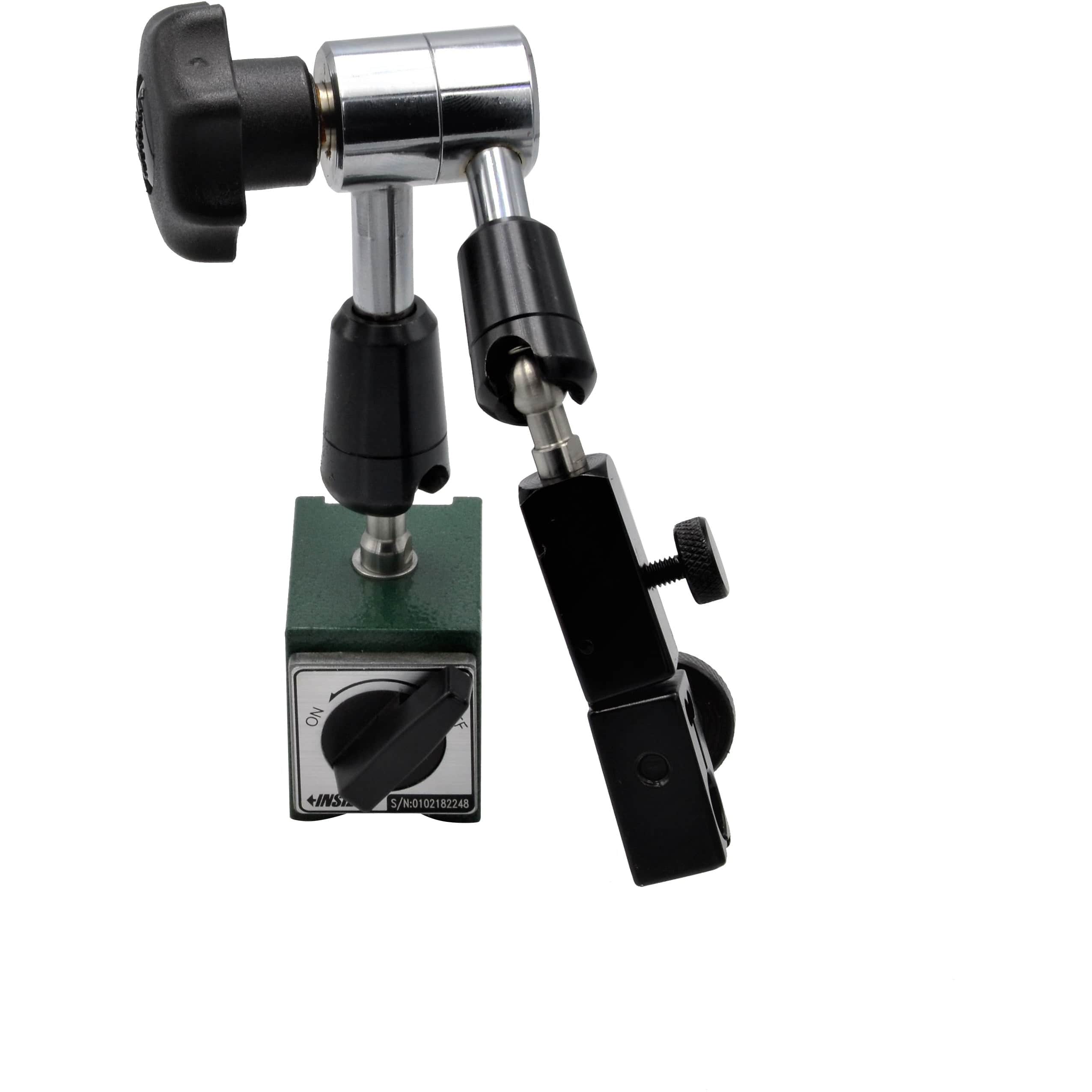

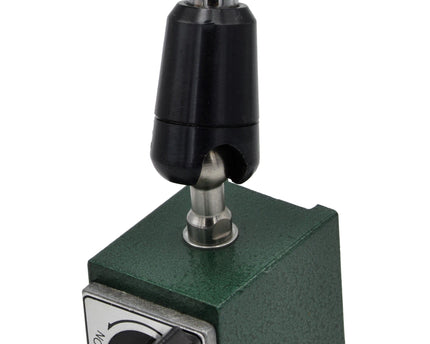

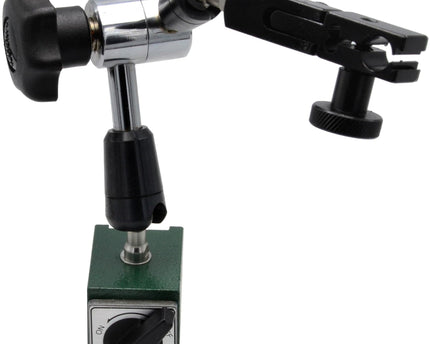

The Insize mechanical lock magnetic stand is designed for use with electronic dial indicators and dial test indicators. It features a central mechanical lock for all joints, a spring-loaded neck, and a V-shaped base for fixing to flat or cylindrical surfaces.

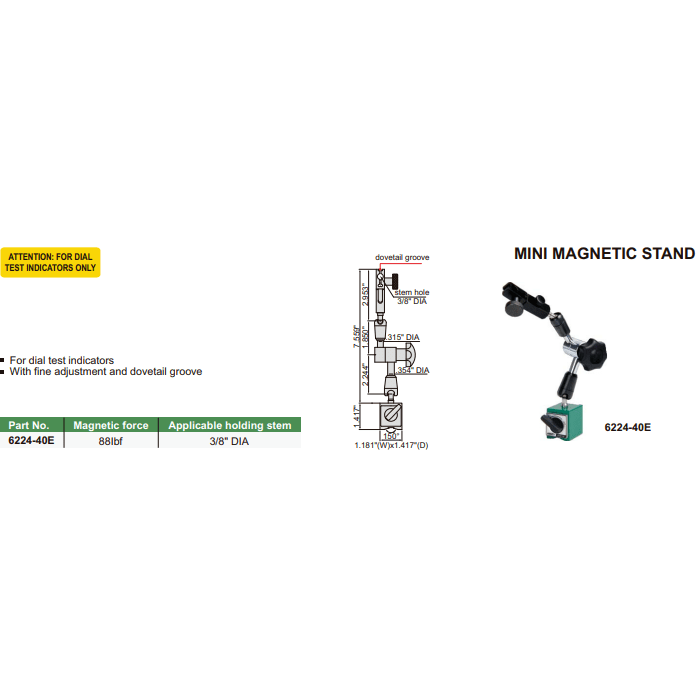

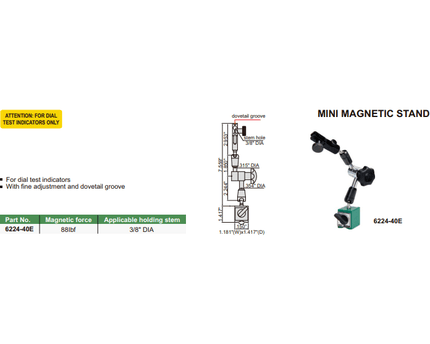

Specifications
-
Part No: 6224-40E
-
Application: For electronic dial indicators and dial test indicators
-

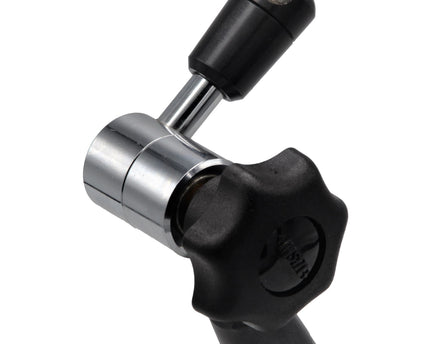

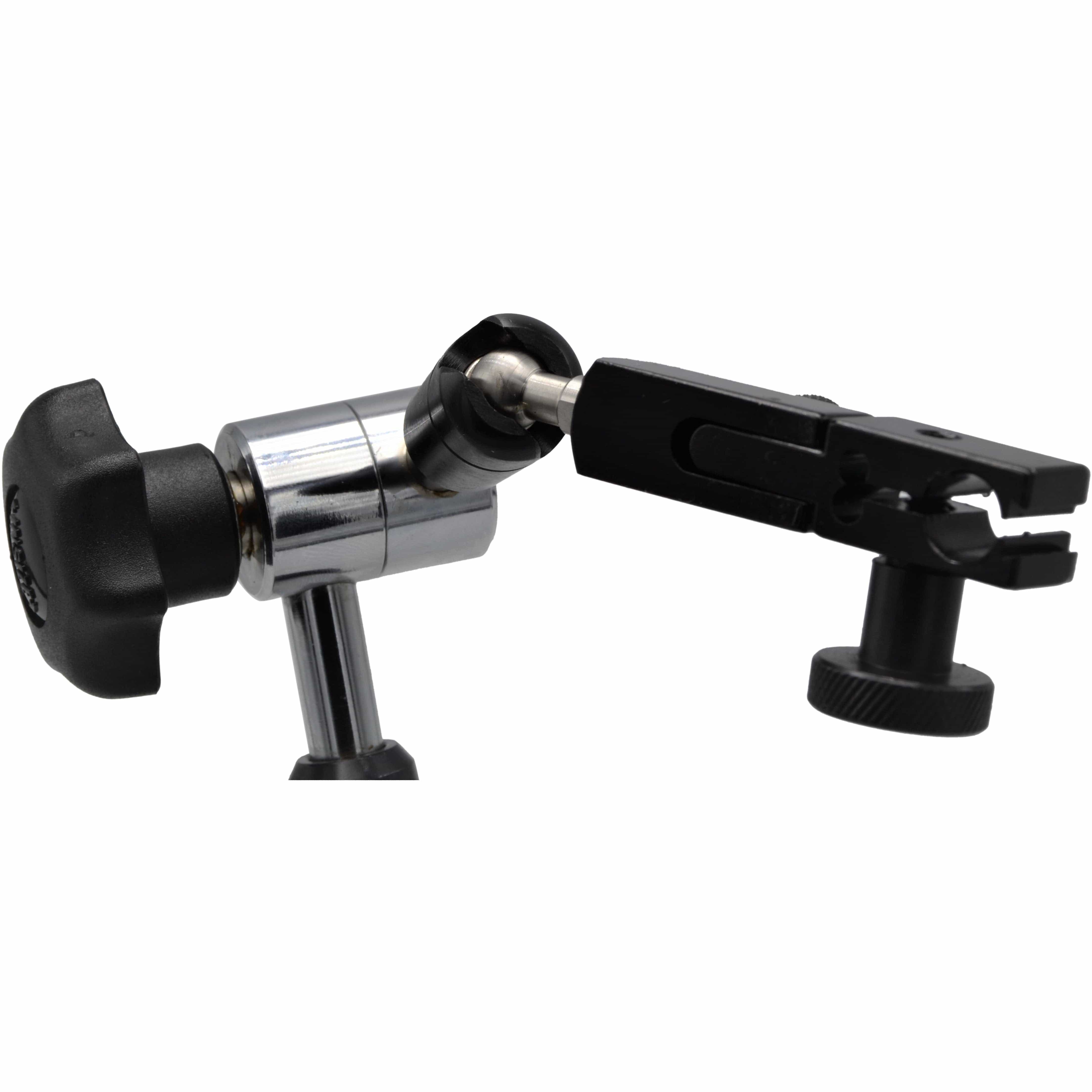

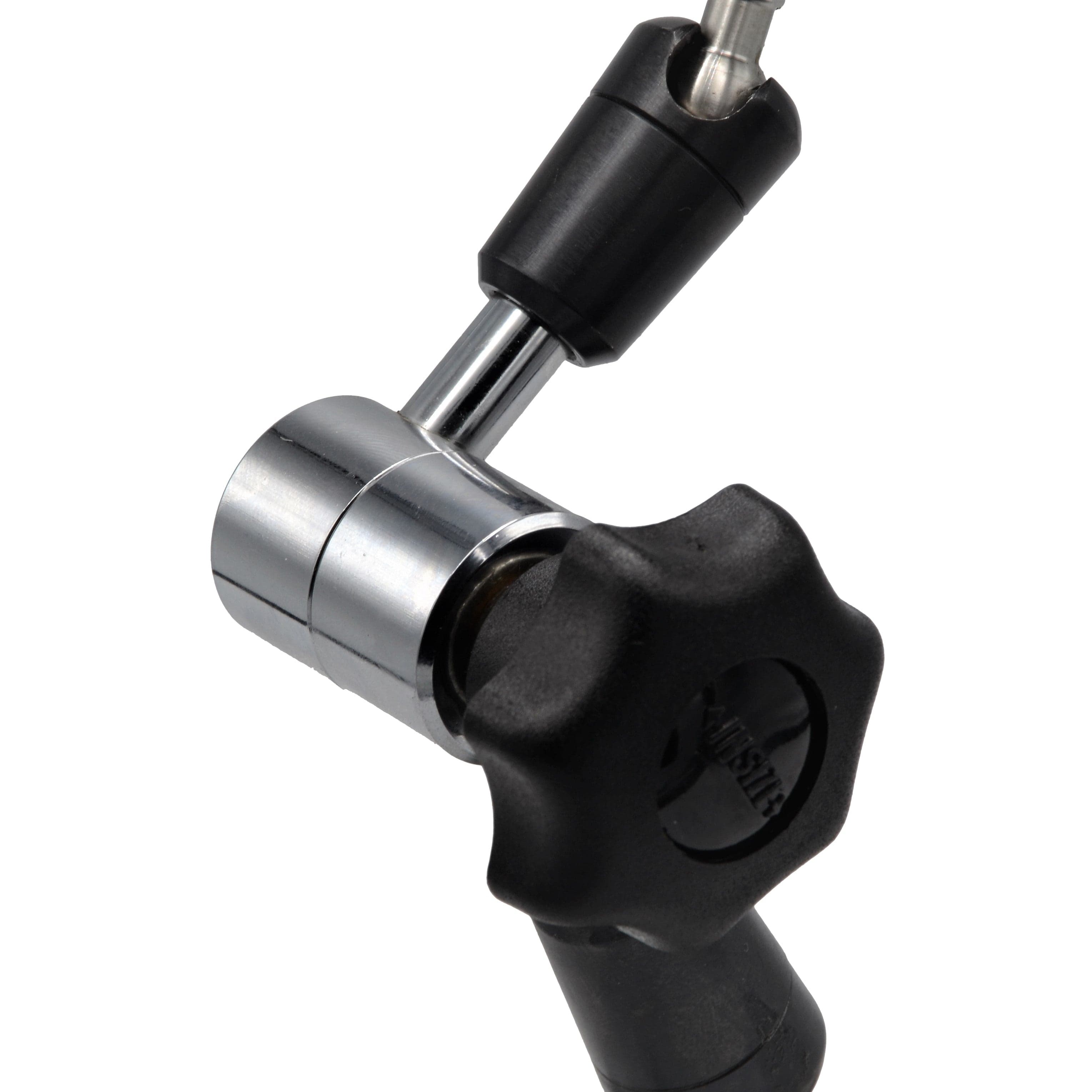

Locking System: Central mechanical lock for all joints
-

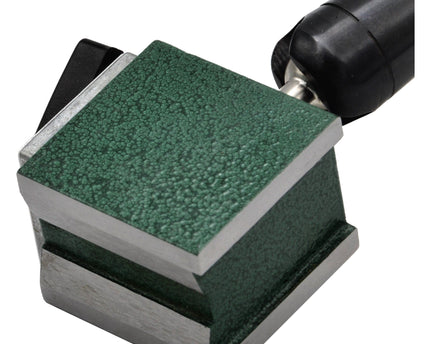

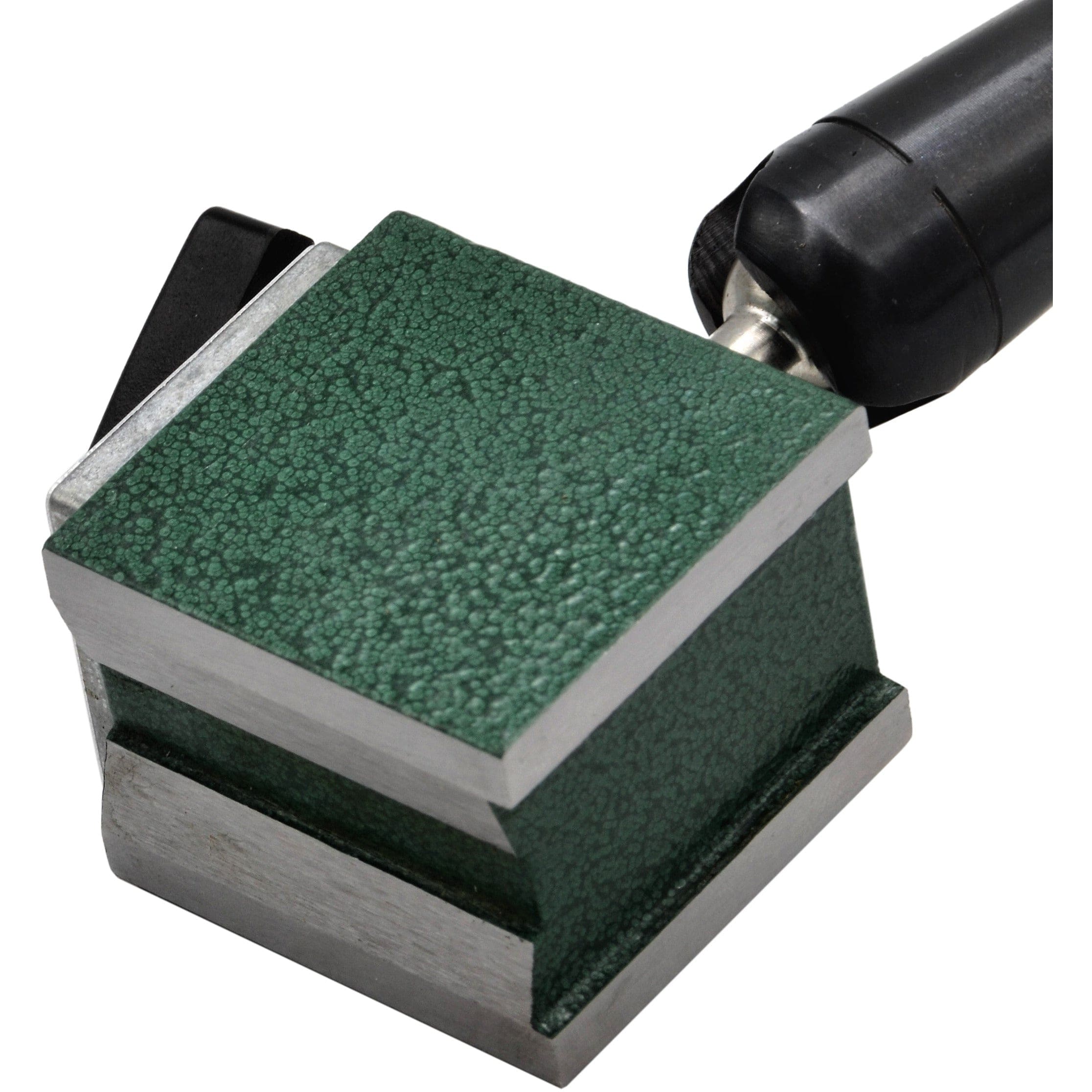

Base Type: V-shaped base
-
Base Dimensions: 40 × 30 × 35 mm
-
Height: Main stalk to centre of lock 75 mm
-
Mounting: 3/8" stem
-
Magnetic Force: 40 kg / 88 lbf
-

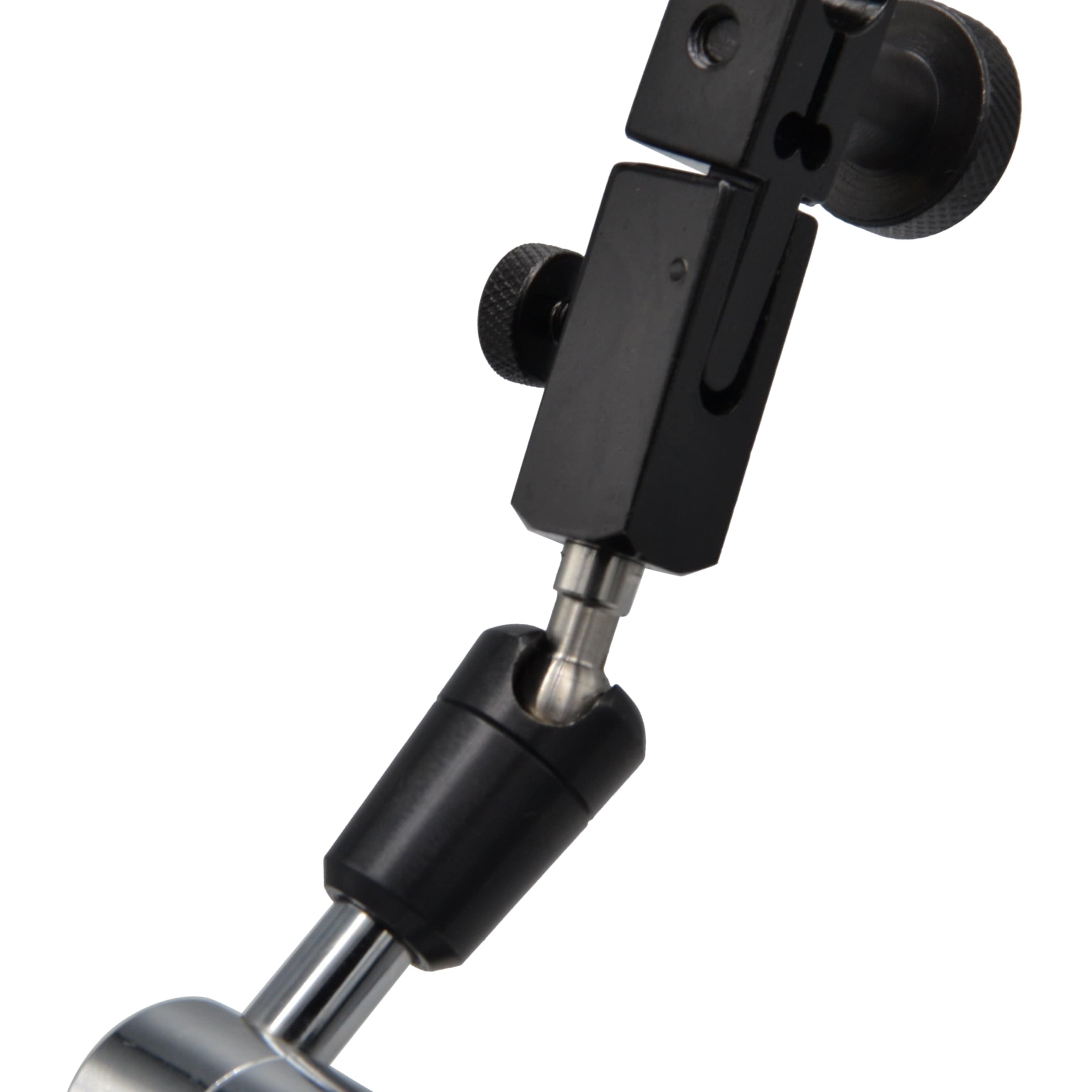

Adjustment: Fine adjustment
-
Neck: Spring loaded
-
Item Weight: 0.48 kg
-

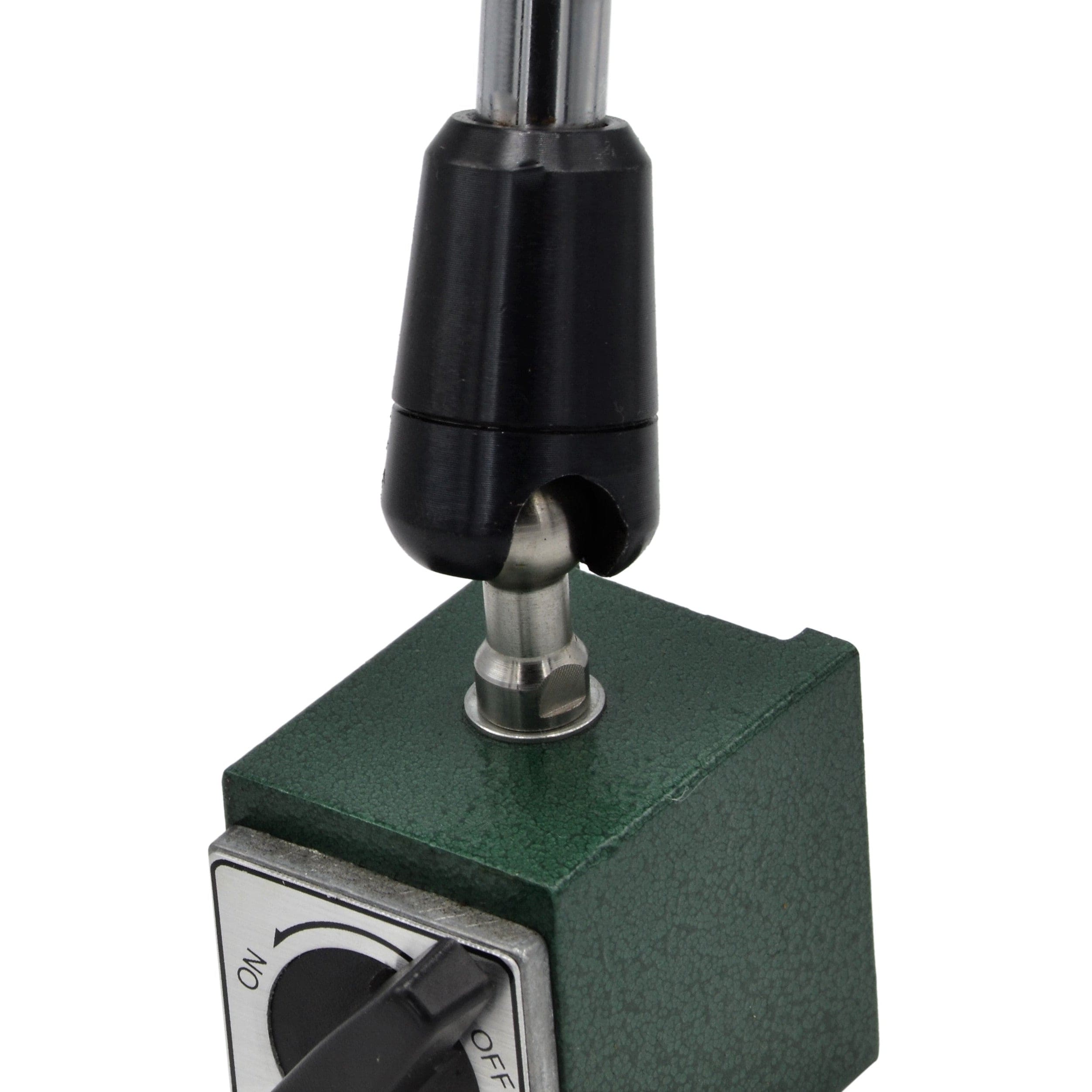

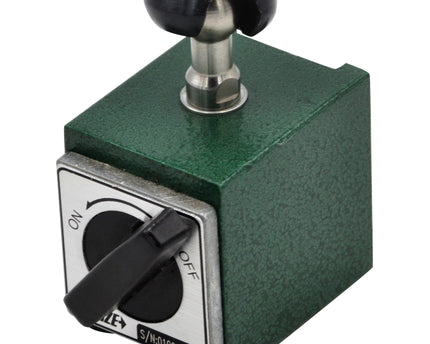

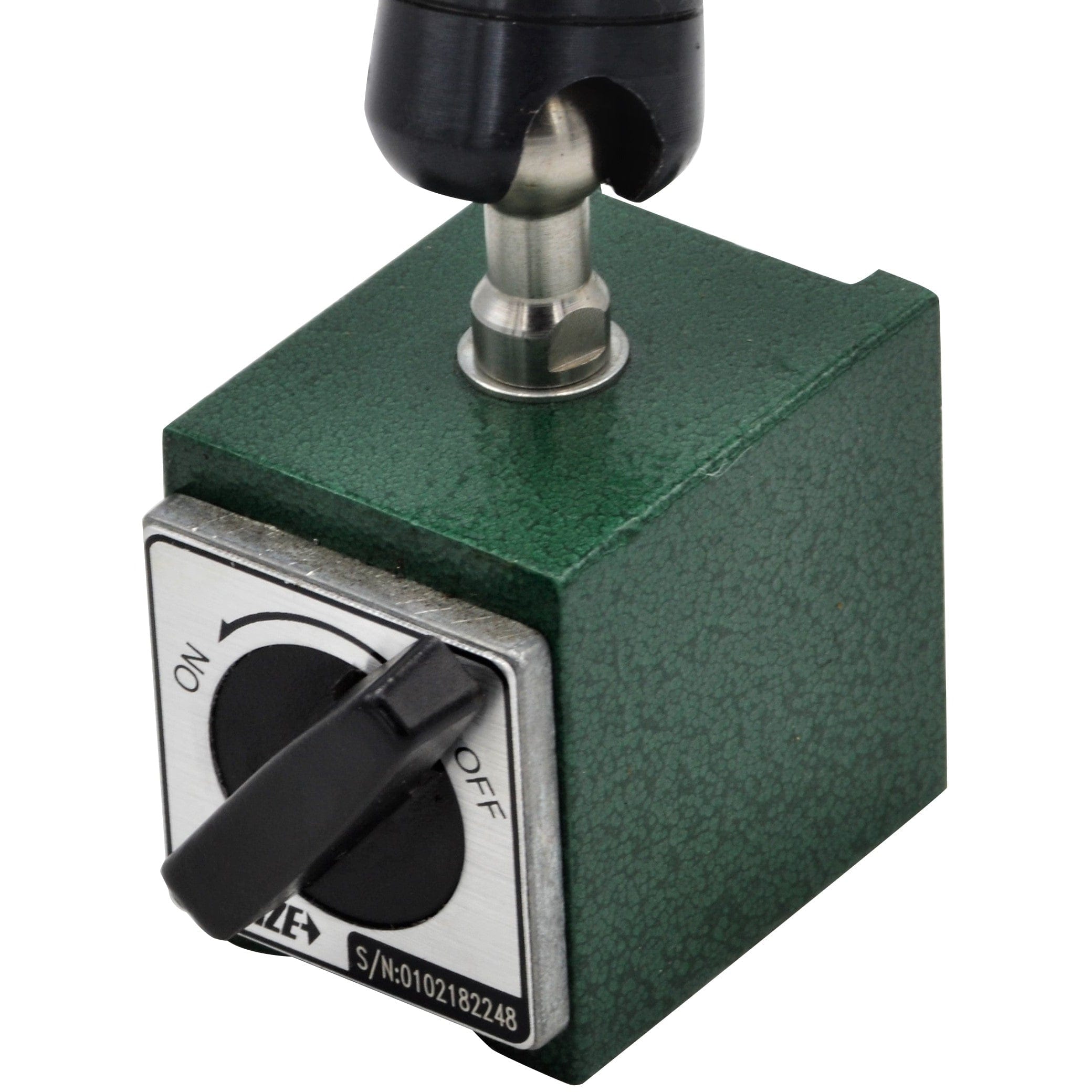

Switch: On/off switch to engage or disable magnetic force
Well designed and durable, the Insize mechanical lock magnetic stand is suitable for precision measuring applications.
