Description
Insize Needle Point for Bore Gauge
The Insize 6282-1707 Needle Point is designed for precision internal measurement applications with bore gauges. Made of durable carbide, it provides excellent wear resistance and accuracy when measuring small internal diameters and difficult-to-reach points.

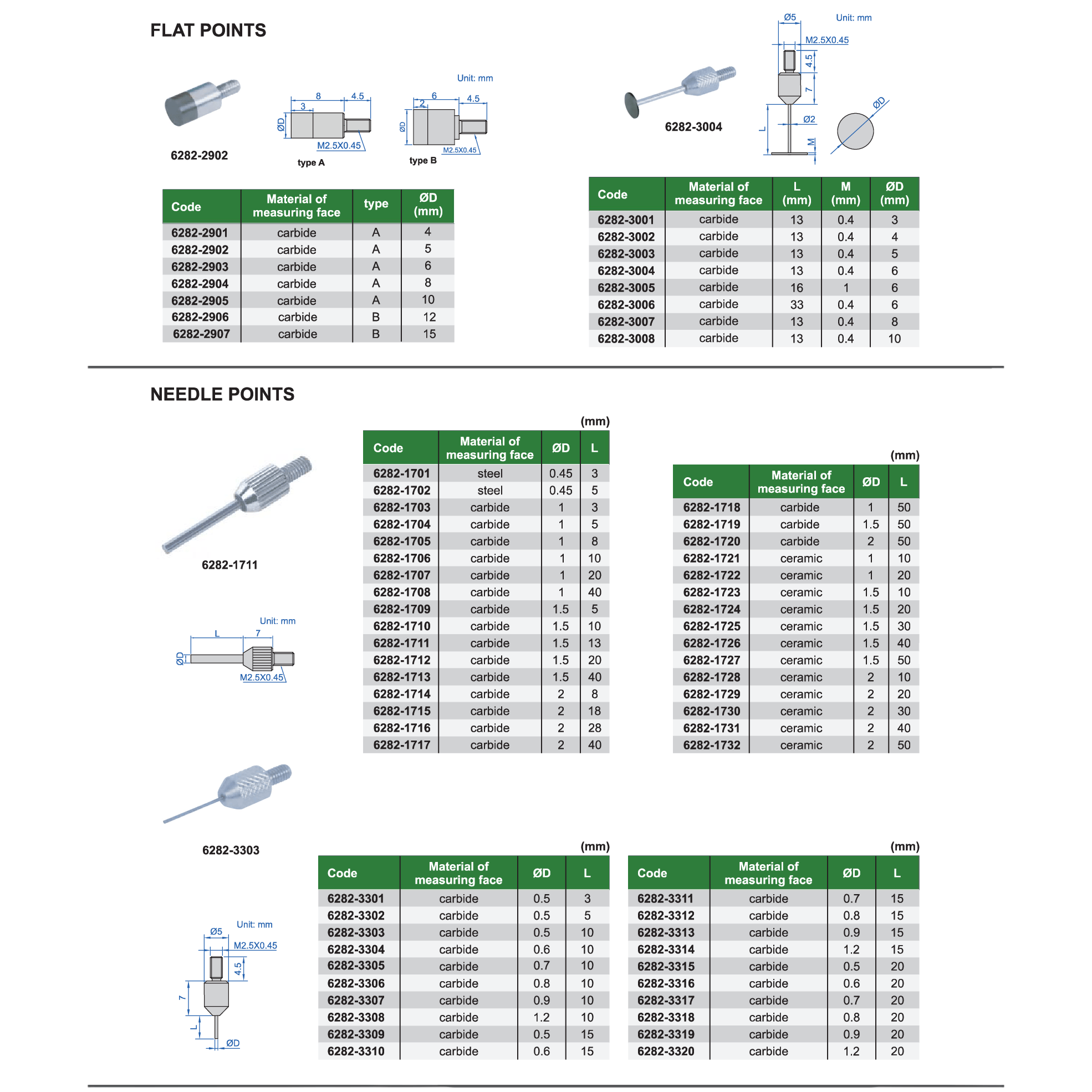

Specifications :
- Part No: 6282-1707
- Category: Needle Point
- Material of Measuring Face: Carbide
- ØD: 1 mm
- L (Length): 20 mm
- Thread: M2.5 × 0.45
- Application: Internal diameter and groove measurement
- Compatibility: INSIZE 6282 Series Bore Gauges
Reliable and long-lasting, the INSIZE 6282-1707 ensures accurate bore measurements in machining, tooling, and inspection tasks.
