Description

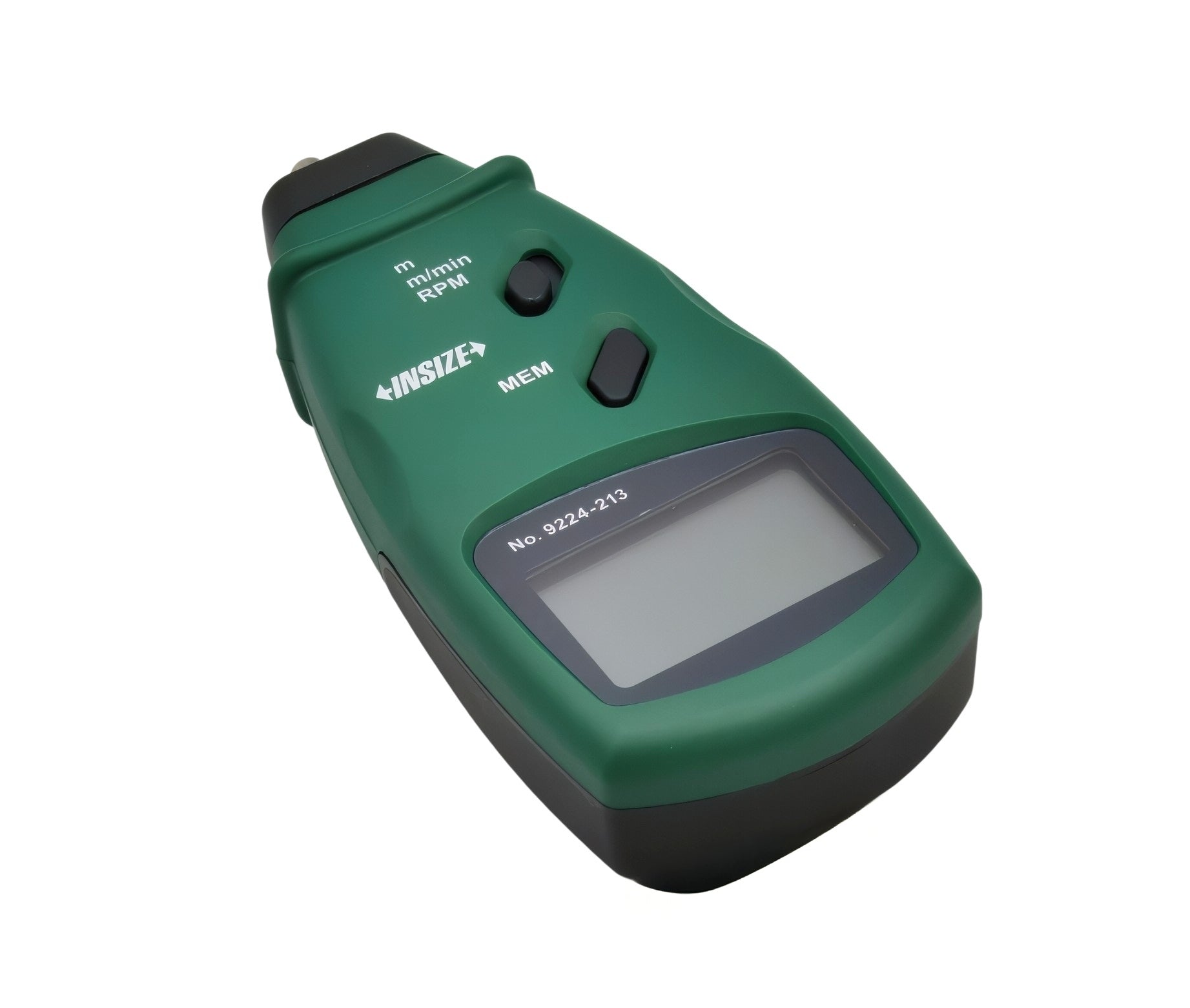

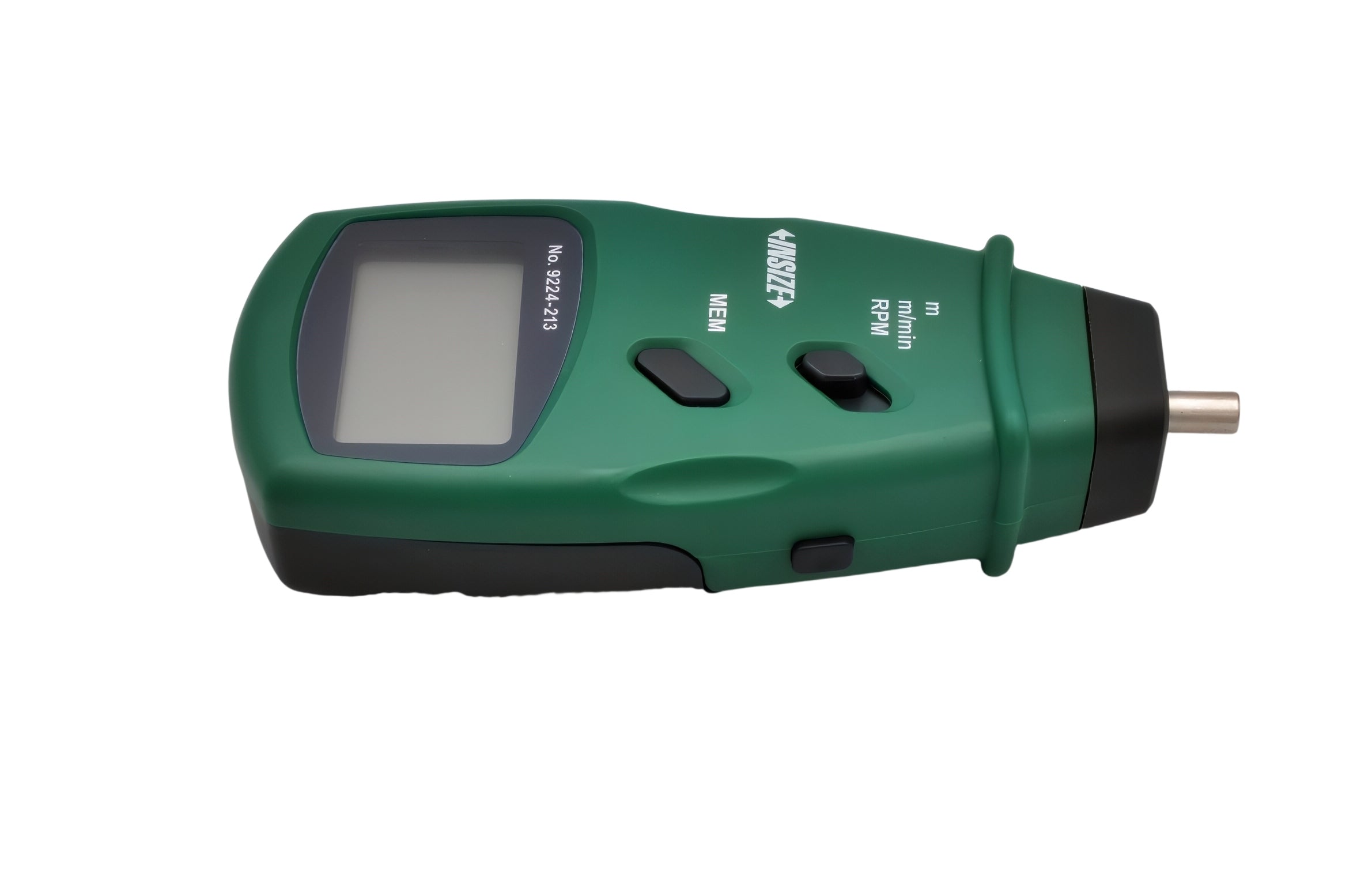

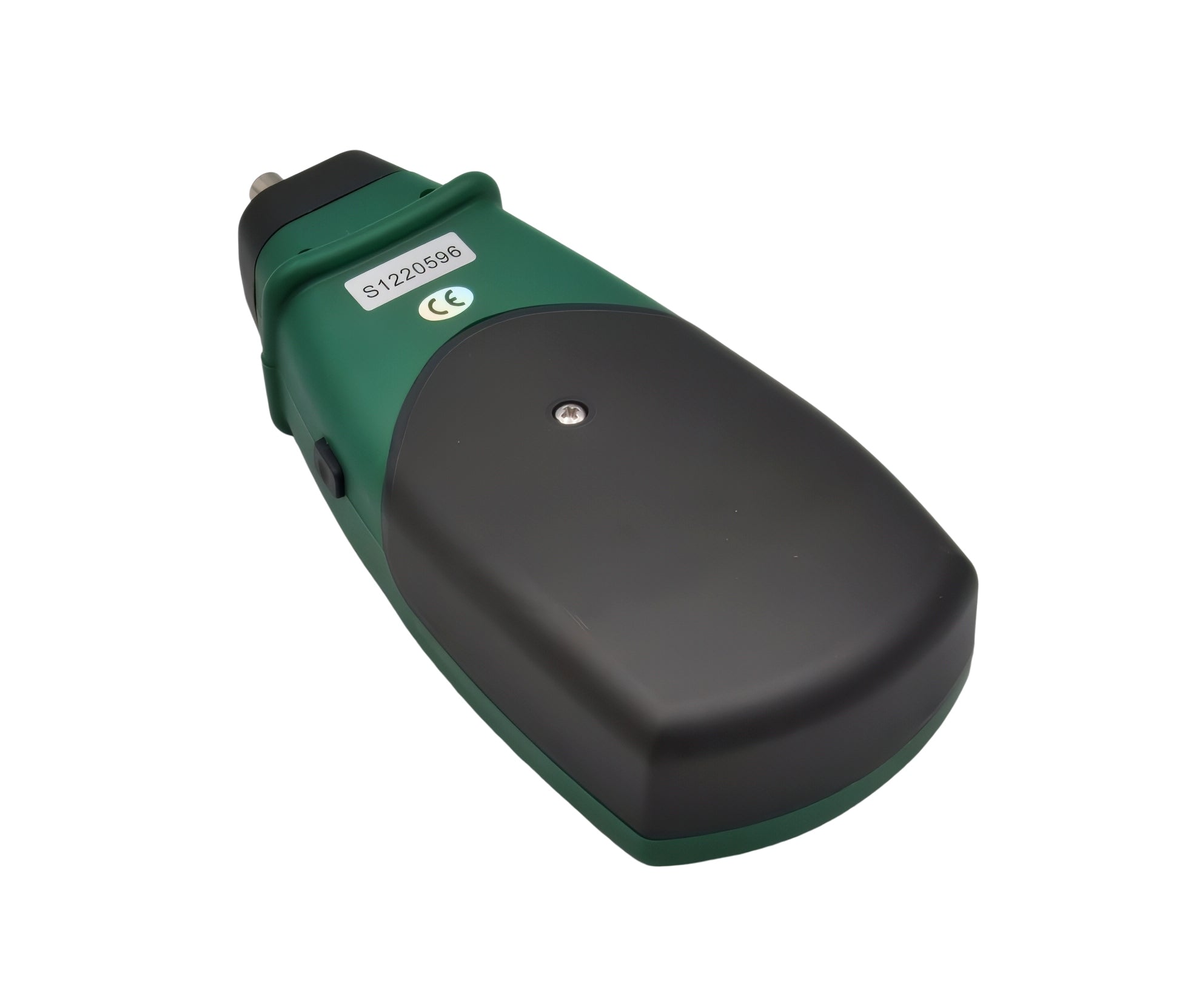

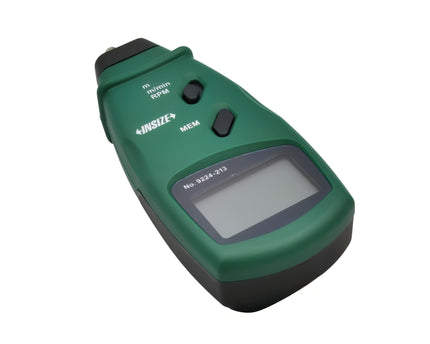

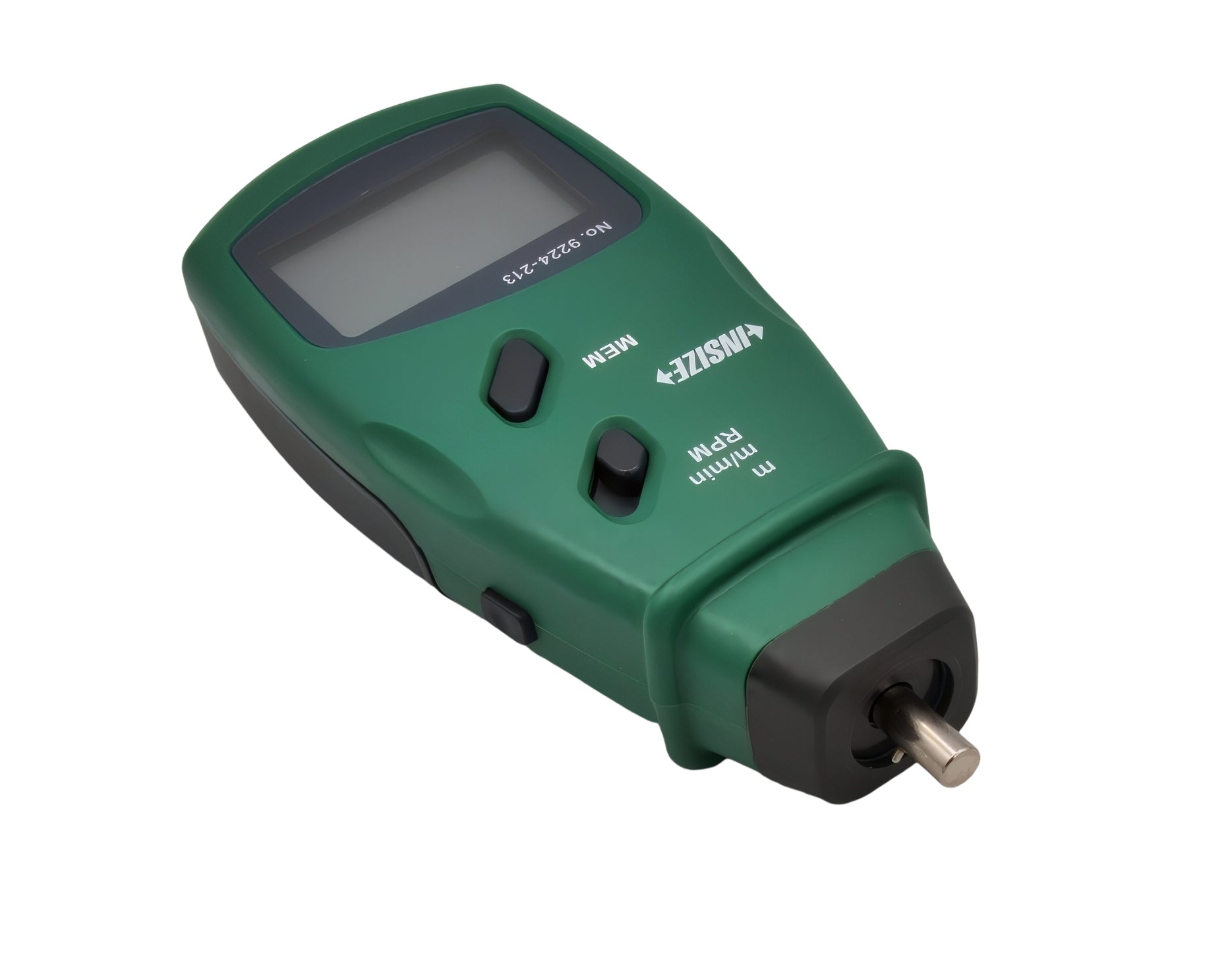

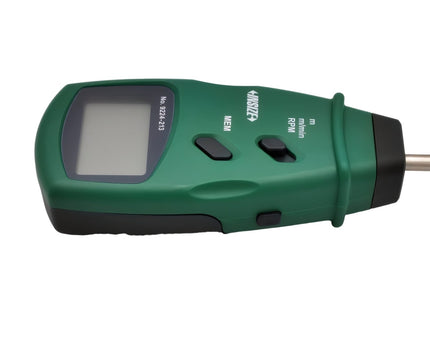

The Insize 9224-213 Contact Tachometer is a versatile precision measuring instrument designed for measuring rotary speed, line speed, and line length in industrial, maintenance, and workshop applications. Featuring a backlit digital display and multifunction capability, this tachometer provides reliable measurement performance for machinery inspection, conveyor monitoring, and rotational speed analysis.
Designed for professional measurement applications, the unit automatically stores maximum, minimum, and last measured values, with memory capacity for up to 96 data records during continuous operation. The tachometer includes multiple measuring accessories for a wide range of contact measurement tasks.
Key Features & Benefits
- Measures rotary speed, line speed, and line length
- Wide rotary speed measuring range up to 19,999RPM
- Backlit digital display for improved visibility
- Stores maximum, minimum, and last measured values
- Memory storage for up to 96 measurements
- Suitable for continuous measurement applications
- Supplied with multiple contact measuring heads
- Compact and portable handheld design
- Fast sampling response for accurate readings
- Ideal for machinery maintenance and inspection work
Technical Specifications
- Part Number: 9224-213
- Product Type: Contact Tachometer
- Rotary Speed Measuring Range: 0.5~19999RPM
- Line Speed Measuring Range: 0.05~500m/min
- Line Length Measuring Range: 0.05~99999m
- Rotary Speed Resolution:
- 0.1RPM (0.5~999.9RPM)
- 1RPM (1000~19999RPM)
- Line Speed Resolution:
- 0.01m/min (0.05~99.99m/min)
- 0.1m/min (100~500m/min)
- Line Length Resolution: 0.02m
- Rotary Speed Accuracy:
- ±(0.4%n+1d)RPM (n<300RPM)
- ±(0.05%n+1d)RPM (n≥300RPM)
- Line Speed Accuracy: ±(1%+1d)m/min
- Line Length Accuracy: ±(1%+1d)m
- Sampling Time: 0.8s (above 60RPM)
- Operating Temperature: 0~40°C

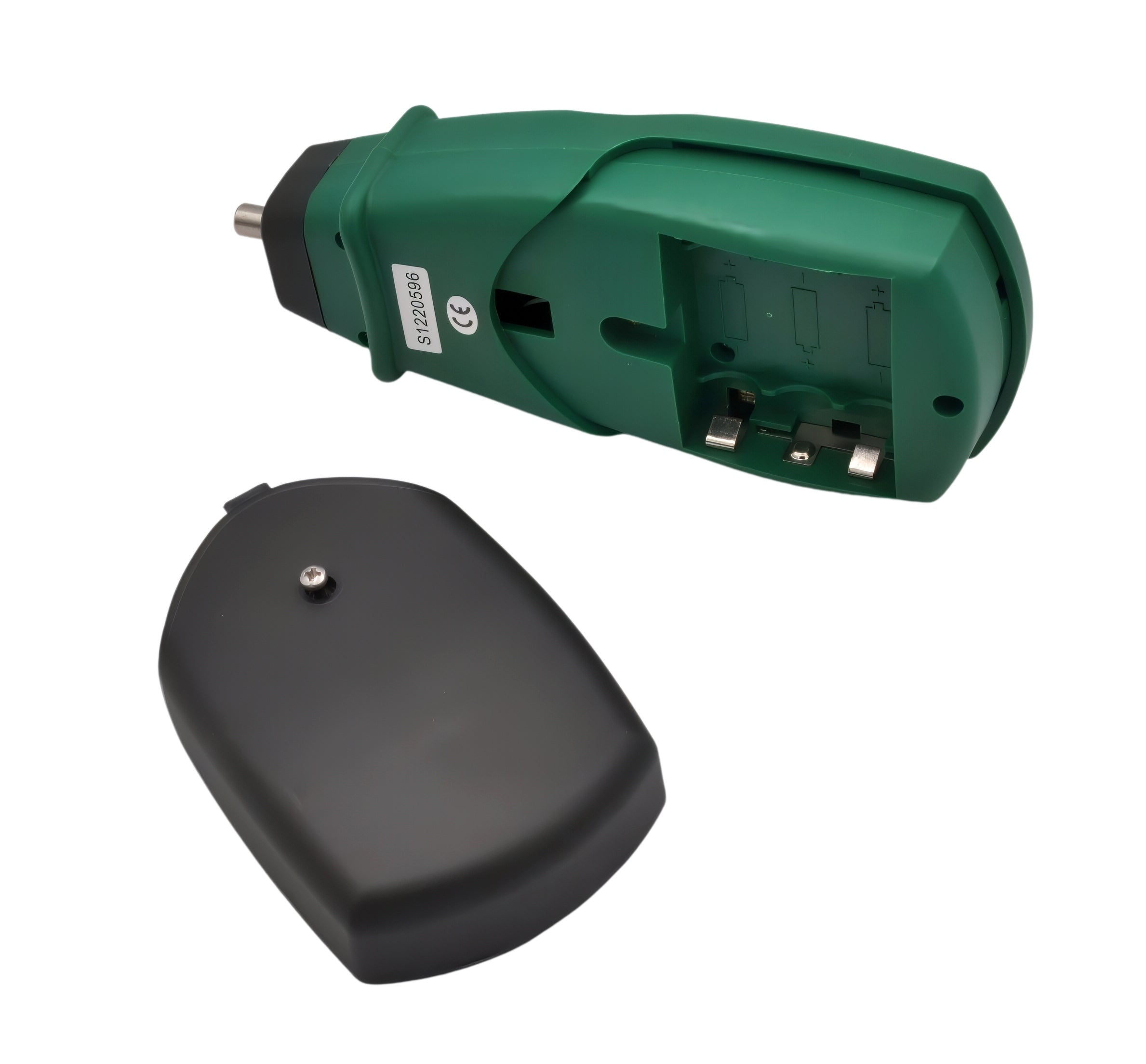

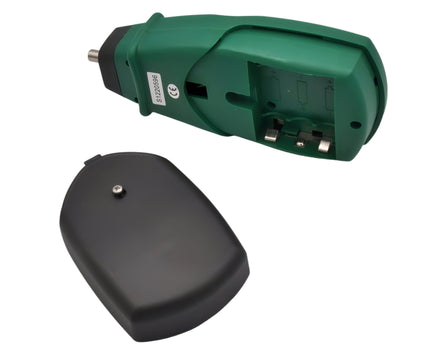

- Power Supply: 3 x AA batteries
- Dimensions: 171 x 71 x 35mm
- Weight: 162g

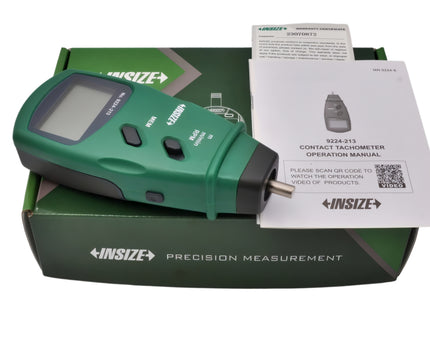

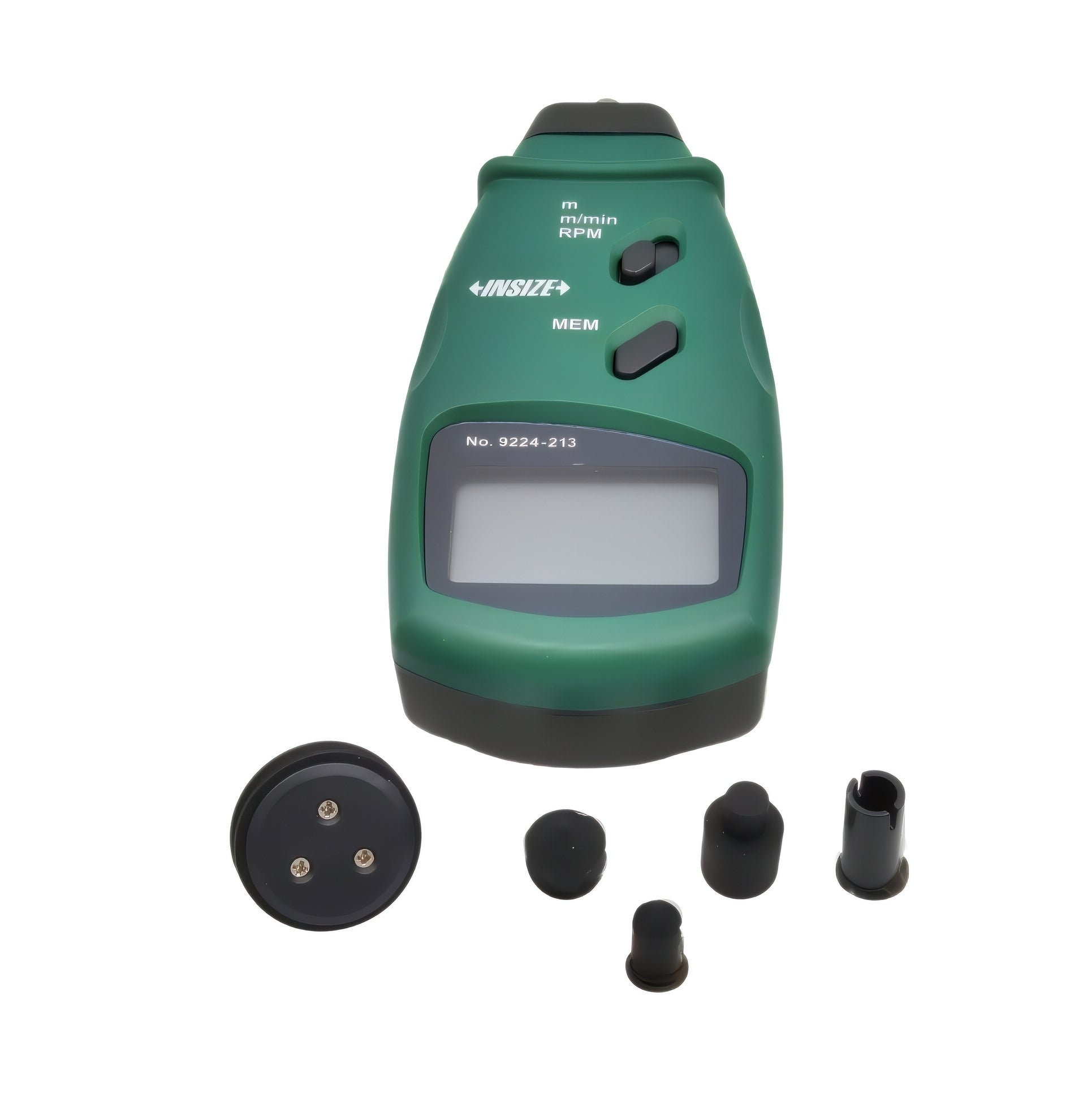

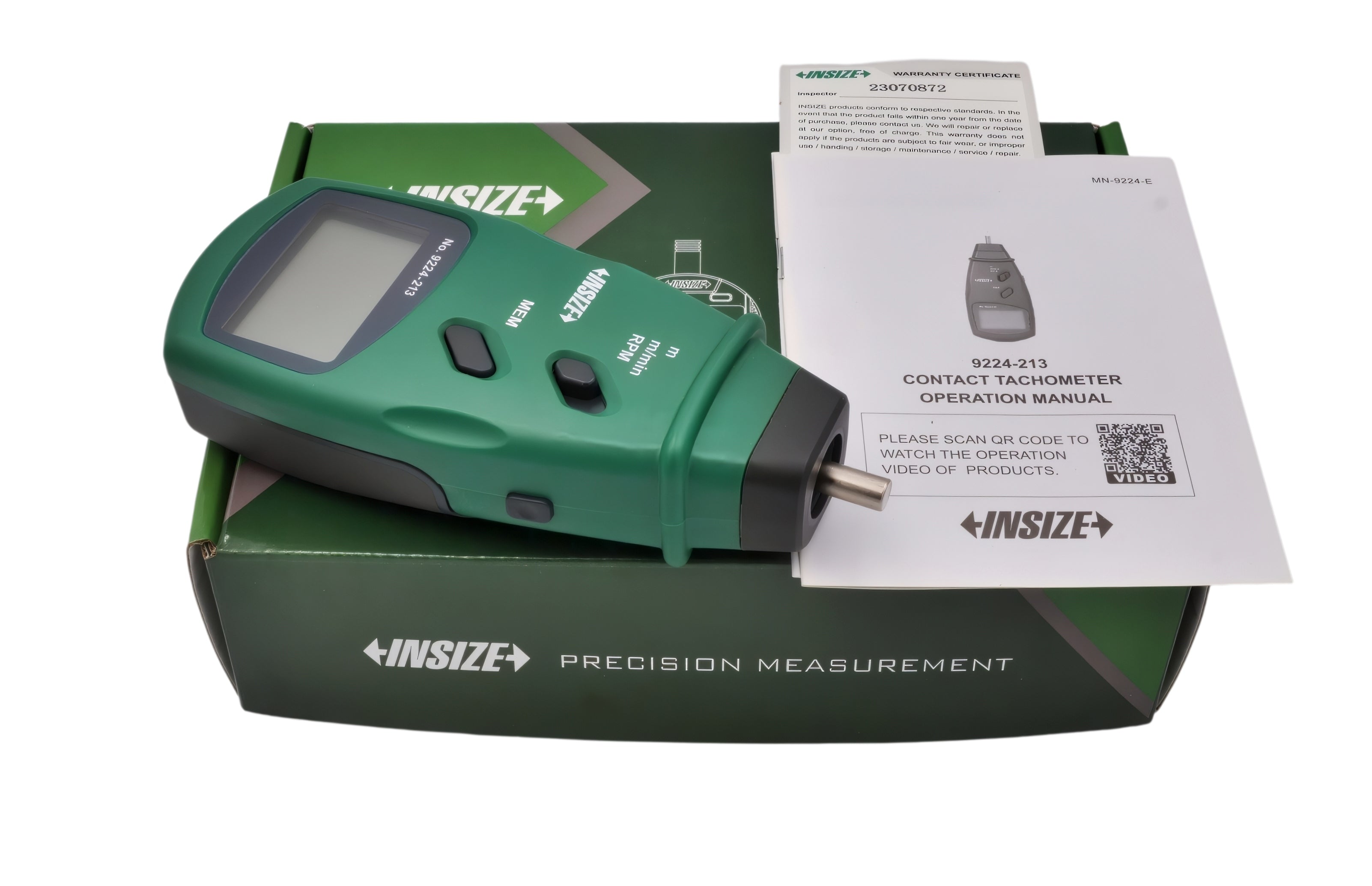

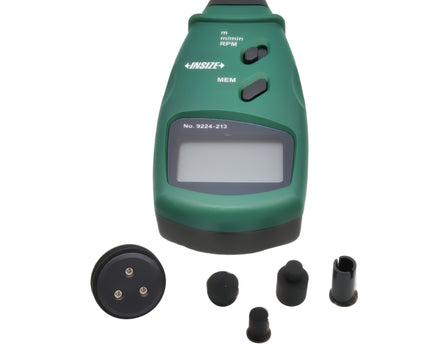

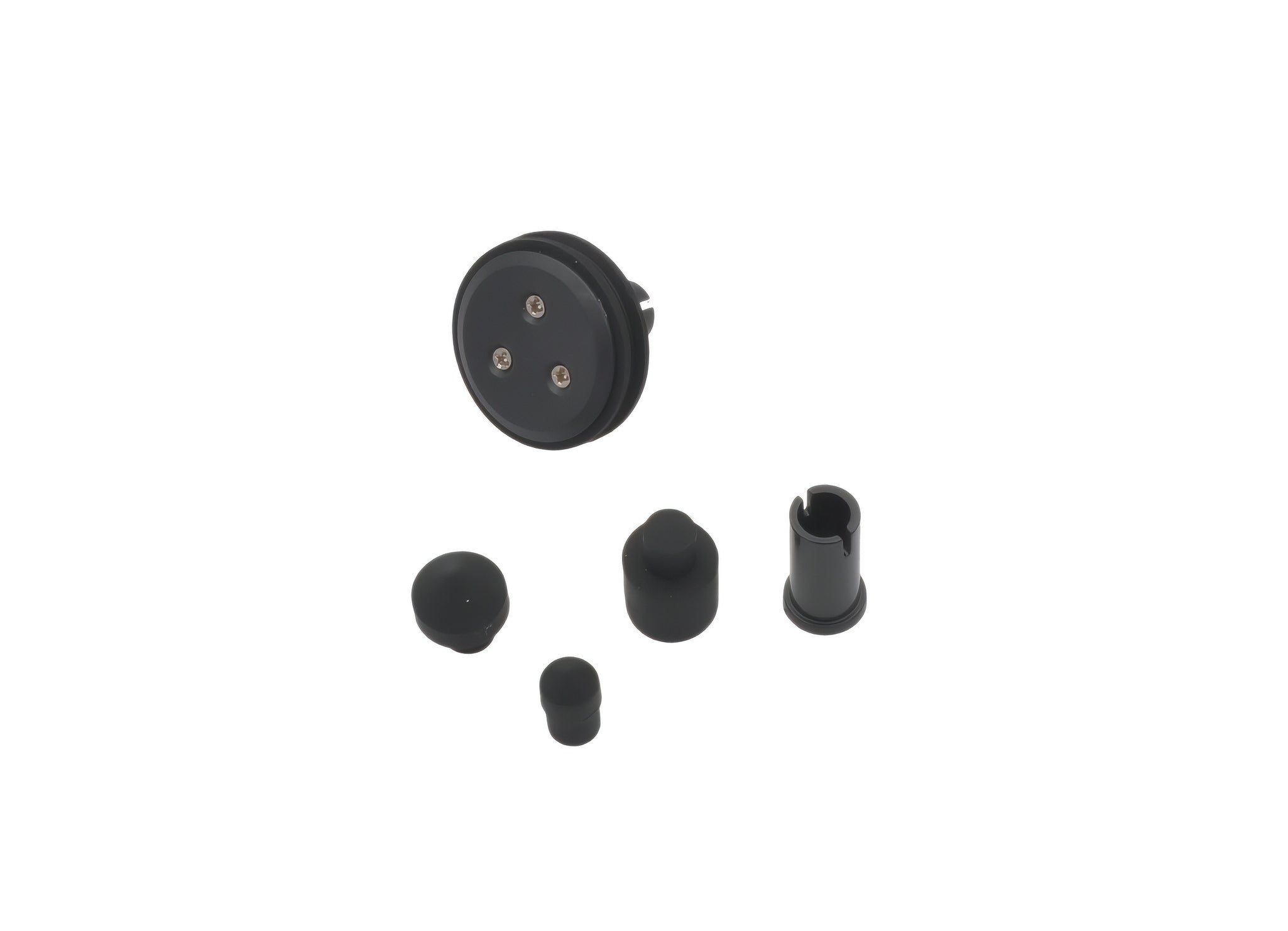

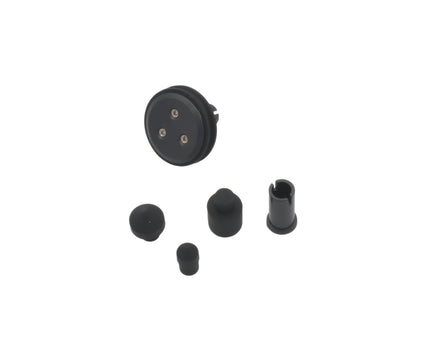

Standard Delivery
- Main unit
- Wheel with 0.1m perimeter
- Clamping sleeve
- Cone head
- Small cone head
- Cone cavity head
- 3 x AA batteries
Applications
- Rotary machinery speed measurement
- Conveyor and belt speed monitoring
- Motor and spindle RPM checking
- Industrial maintenance inspection
- Production line speed verification
- Workshop machinery testing
- Mechanical equipment diagnostics
- Line length and travel measurement
Insize precision measuring instruments are trusted worldwide for their dependable accuracy, practical industrial functionality, and reliable inspection performance across engineering, manufacturing, and maintenance environments.
The Insize 9224-213 Contact Tachometer delivers accurate and versatile speed measurement capability for industrial machinery monitoring, maintenance inspection, and workshop diagnostic applications.
