Description

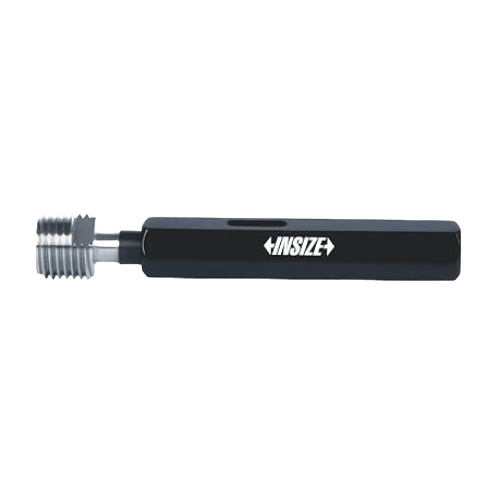

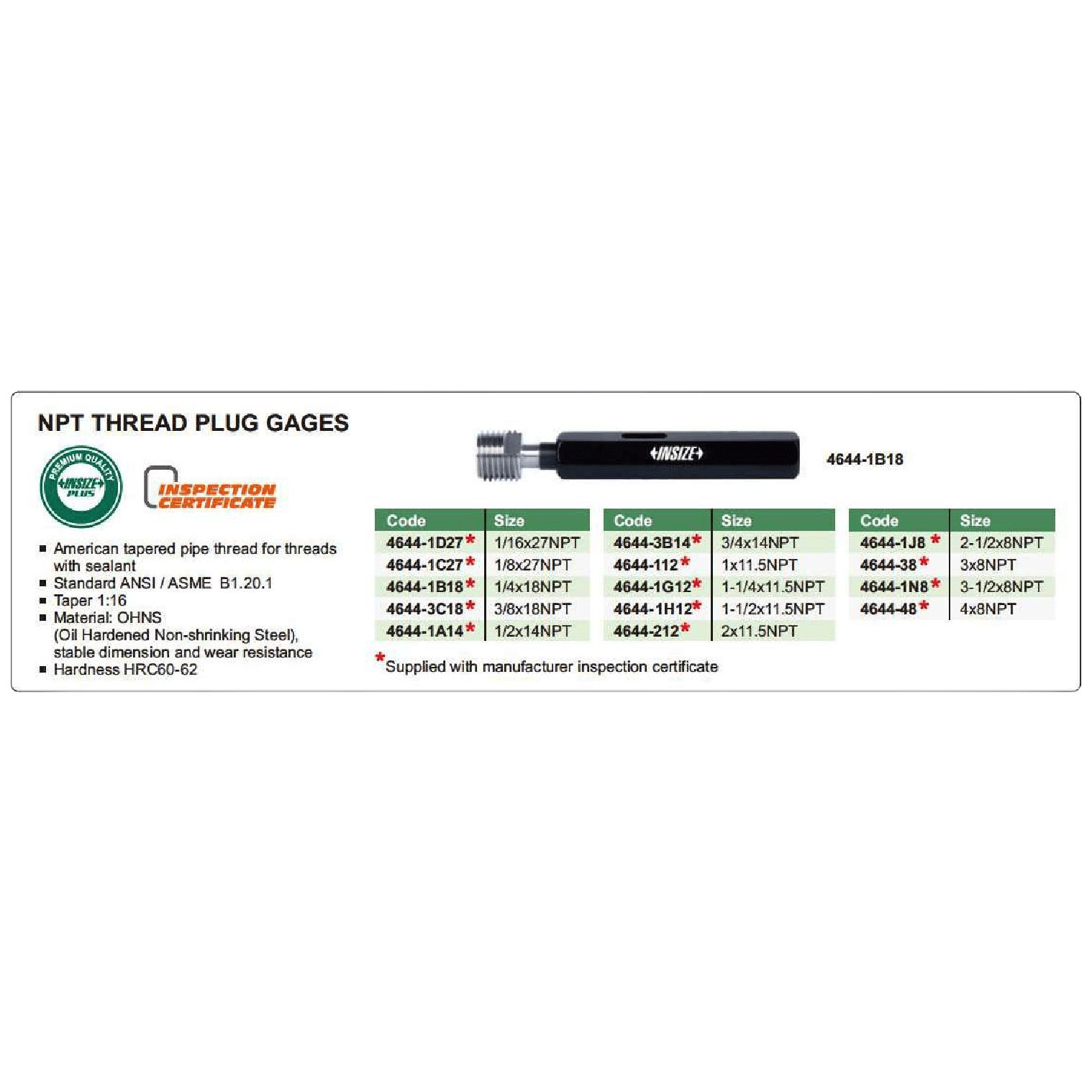

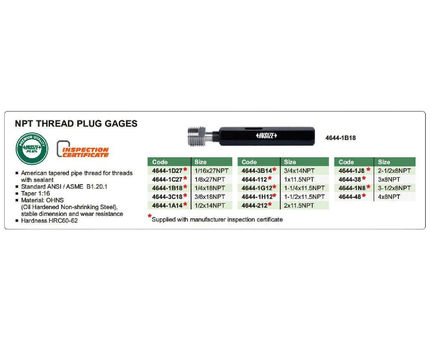

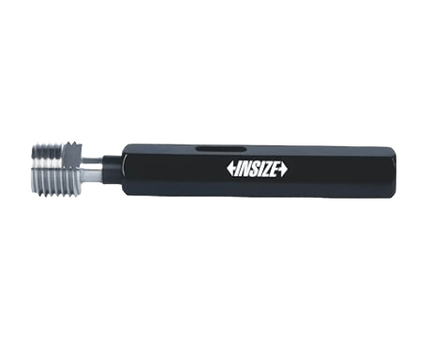

Insize NPT Thread Plug Gage 1/8 x 27 Taper 1:16 Series 4644-1C27
The Insize 4644-1C27 is a precision NPT thread plug gage designed for verifying 1/8 x 27 tapered pipe threads. Built to ANSI/ASME B1.20.1 standards, it includes both GO and NOGO members to ensure accurate inspection of tapered pipe threads with sealant. Made from OHNS (oil-hardened non-shrinking steel), this gage provides excellent dimensional stability and wear resistance, hardened to HRC60–62. Supplied with a manufacturer's inspection certificate for traceability.
Specifications:
-
Part No: 4644-1C27
-
Thread Size: 1/8 x 27 NPT
-
Type: NPT Thread Plug Gage (GO & NOGO)
-
Standard: ANSI/ASME B1.20.1
-
Taper: 1:16
-
Material: OHNS steel
-
Hardness: HRC60–62
-
Certificate: Manufacturer inspection certificate
Engineered for precision, the Insize 4644-1C27 ensures reliable gauging of tapered NPT threads in manufacturing and inspection processes.
