Description
Insize Radius Gauge Set
The Insize 4804-25E Radius Gauge Set is a precision measuring tool designed to accurately determine the radius of both concave and convex surfaces. With a range from 1/64" to 1/2", this set is ideal for applications in machining, metalworking, and quality control where precise radius measurements are crucial.

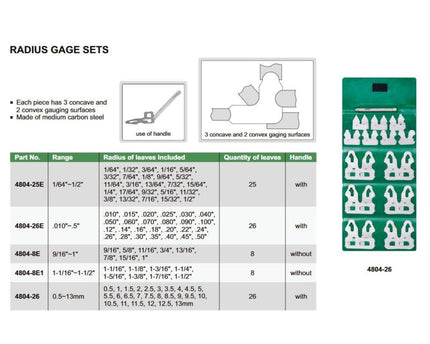

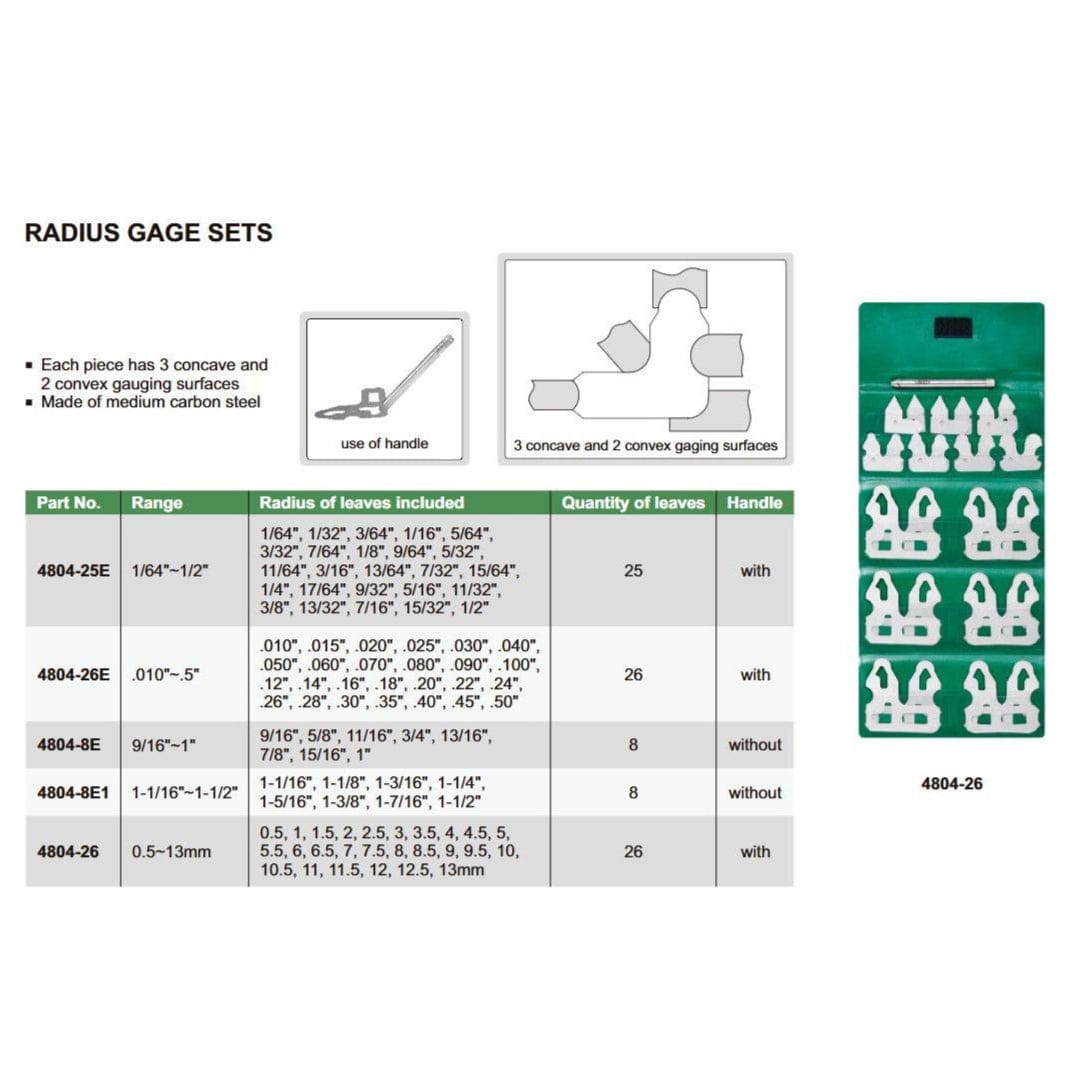

Specifications :
-
Part No: 4804-25E
-
Range: 1/64" to 1/2"
-
Number of Leaves: 25
-
Included Sizes (mm): 1/64", 1/32", 3/64", 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
-

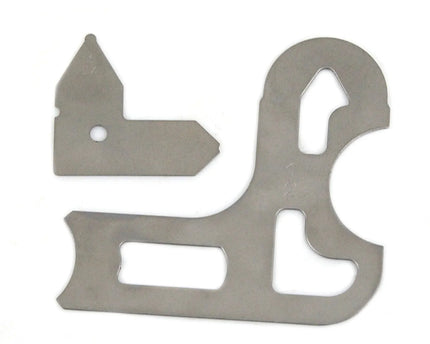

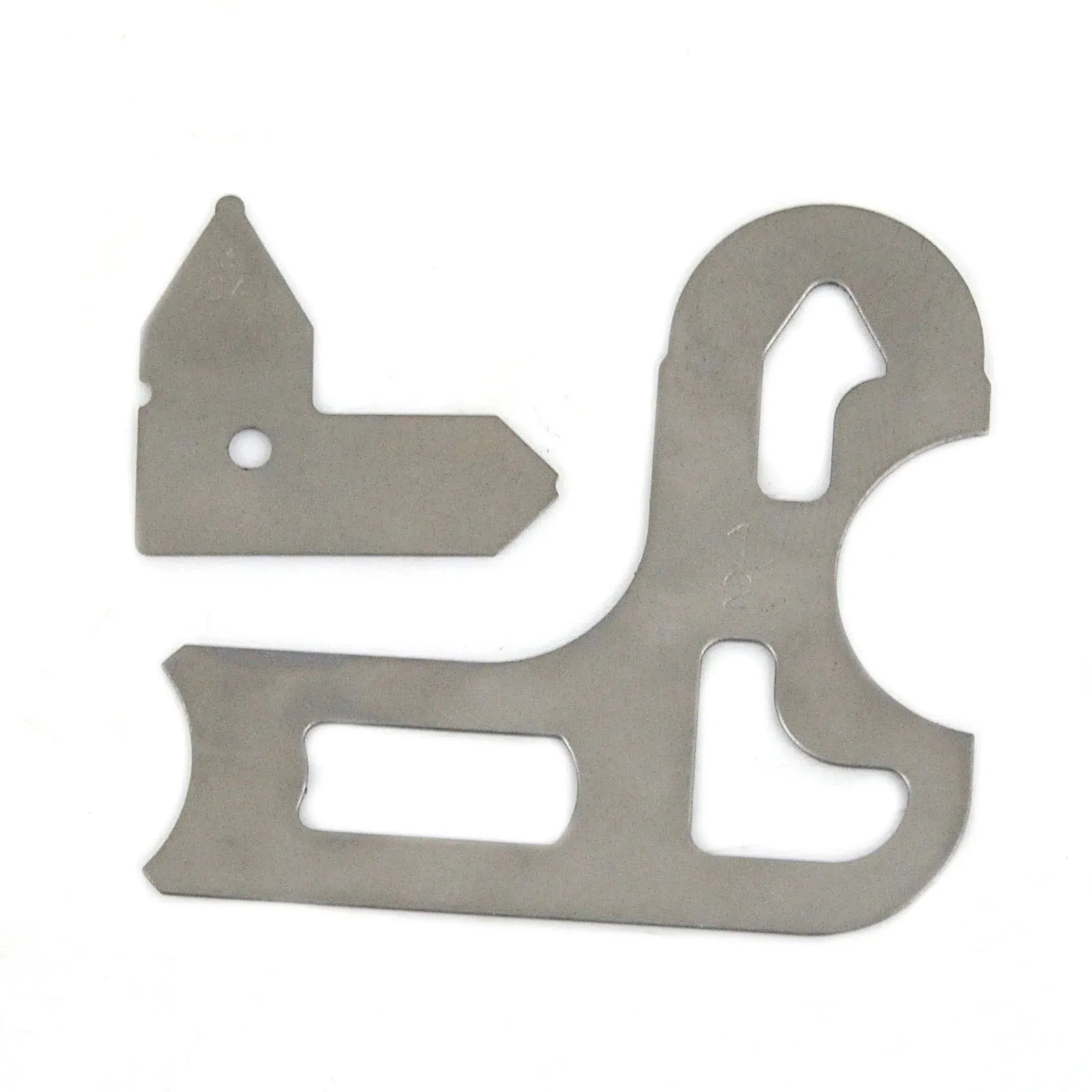

Configuration: Each leaf features 3 concave and 2 convex gauging surfaces
-
Accuracy: ±0.002"
-
Material: Hardened steel
-
Finish: Uncoated
-

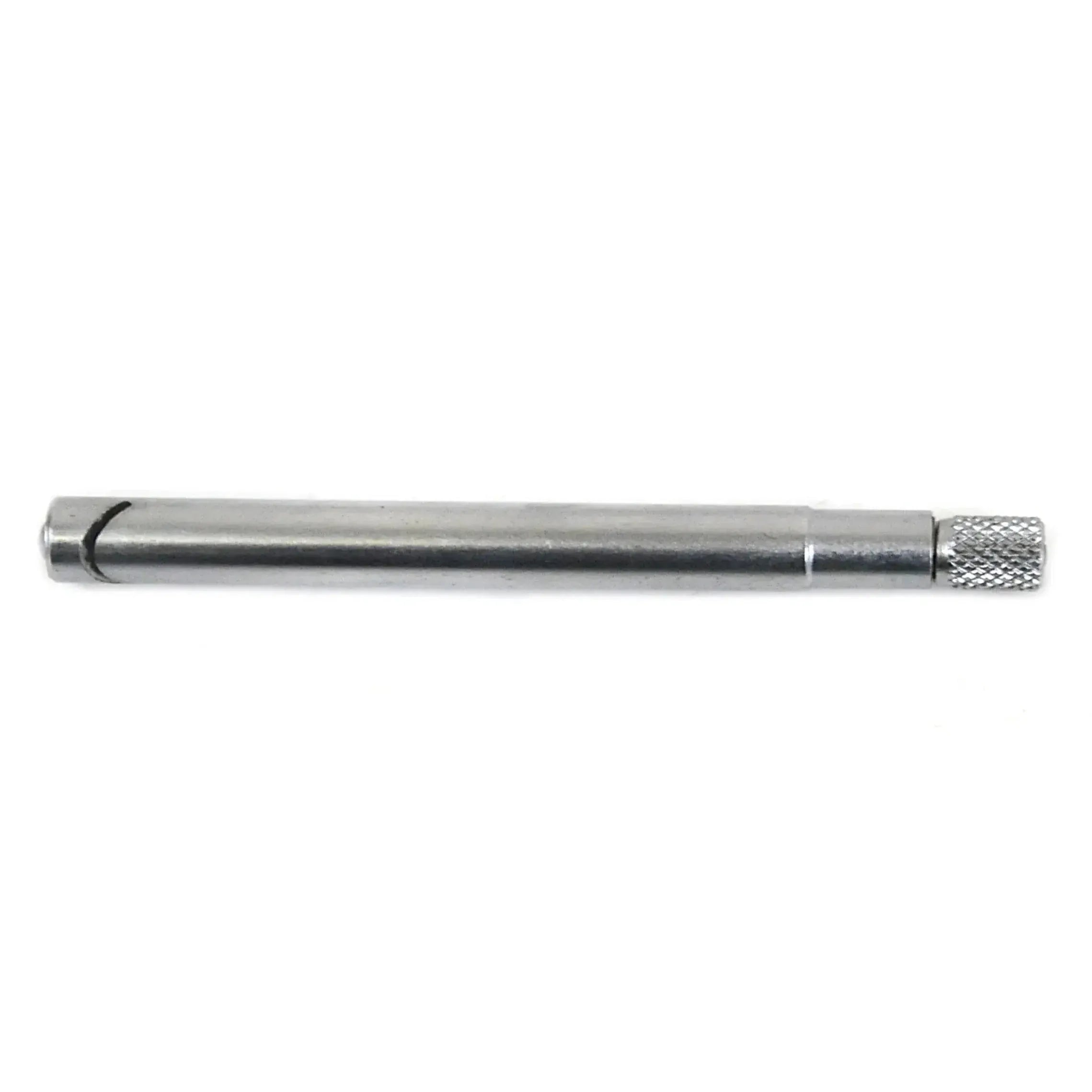

Design: Fixed leaves with handle
-

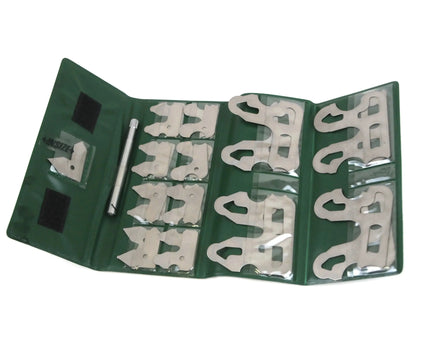

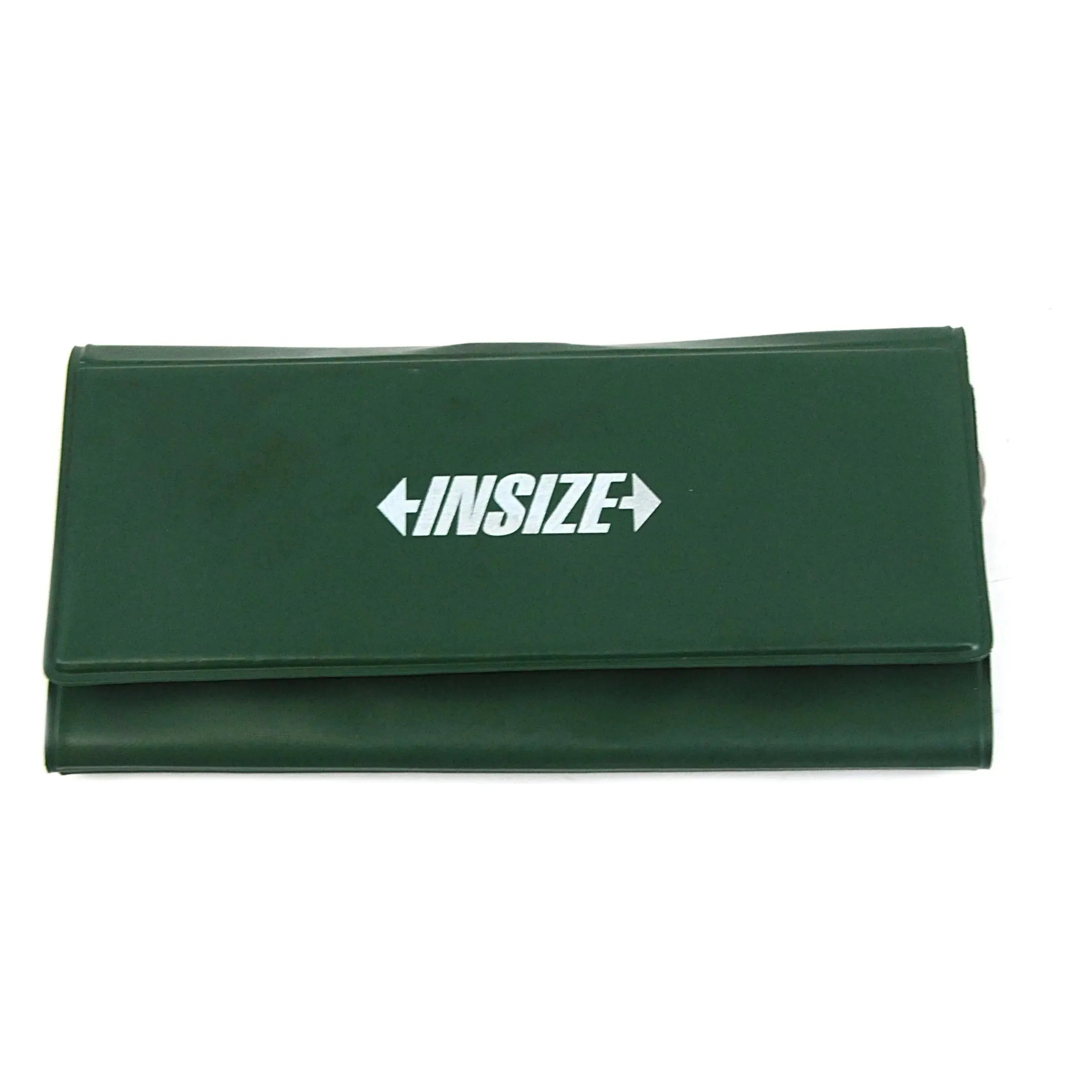

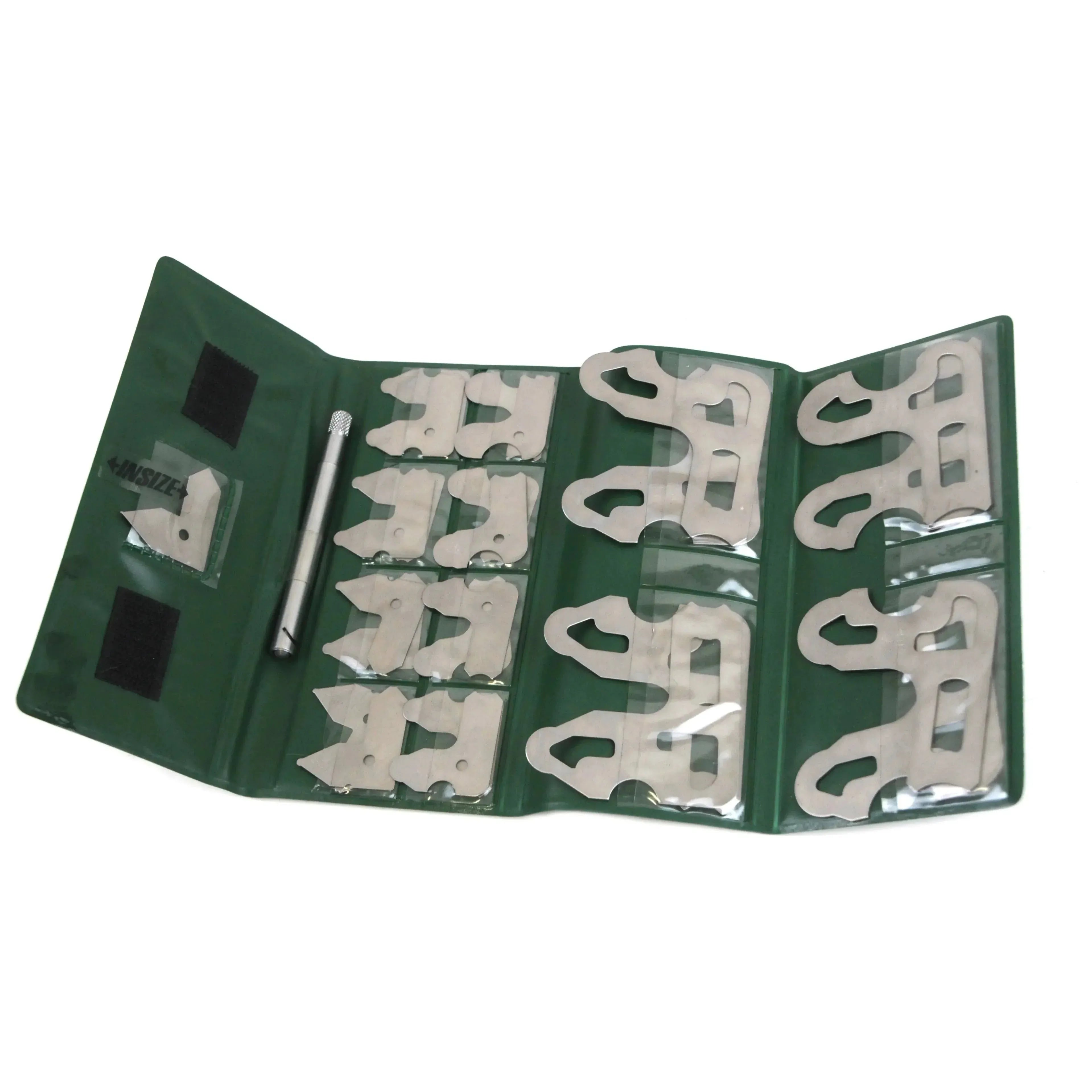

Packaging: Supplied in a protective storage pouch
Well designed, durable, and high-precision tools suitable for determining the radius of concave and convex surfaces in various applications. The Insize Radius Gauge Set is an essential tool for precision work in machining, metalworking, and quality control, ensuring accurate radius measurements every time.
