Description

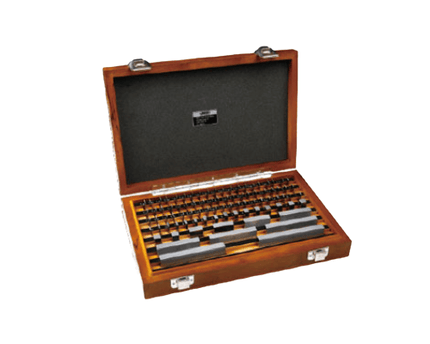

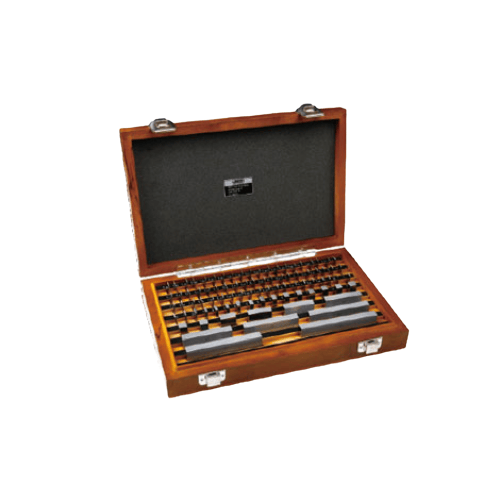

Insize Steel Gauge Block Set (Grade 2)
The Insize 4100-2122 Steel Gauge Block Set is a precision standard manufactured from alloy steel in compliance with ISO 3650 (Grade 2). The 122-piece set is supplied with a manufacturer's inspection certificate and stored in a protective wooden case. Blocks with a length ≥125 mm include clamping holes.
Specifications :
-
Part No: 4100-2122
-
Blocks per Set: 122
-
Grade: ISO 3650 Grade 2
-

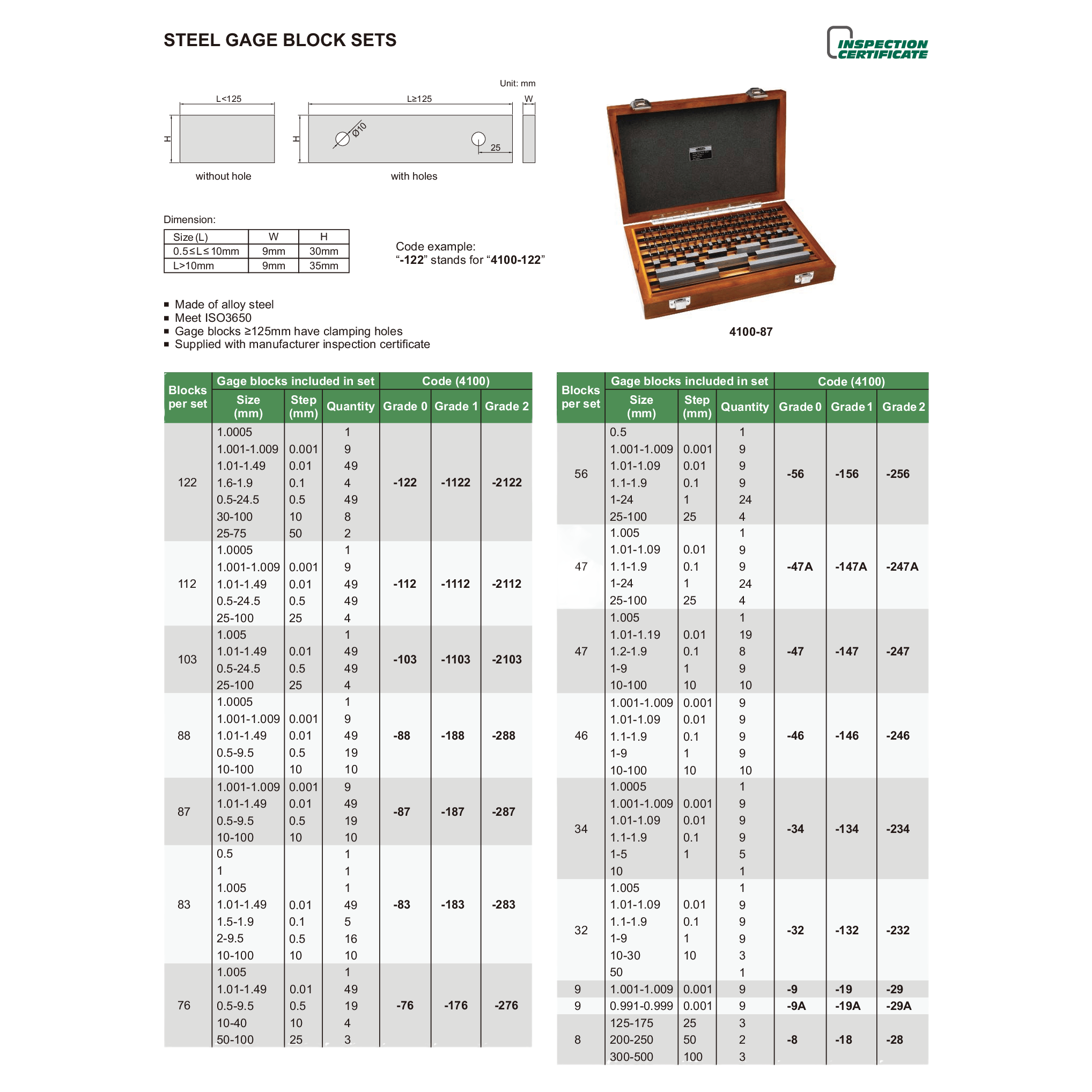

Block Sizes Included (mm):
- 1.0005 × 1
- 1.001–1.009 (step 0.001) × 9
- 1.01–1.49 (step 0.01) × 49
- 1.6–9 (step 0.1) × 9
- 0.5–24.5 (step 0.5) × 49
- 25–100 (step 25) × 4
- 30–100 (step 10) × 8
- 25–75 (step 25) × 2
-
Material: Alloy steel
-
Block Dimensions:
-
0.5 mm ≤ L ≤ 10 mm: W = 9 mm, H = 30 mm
-
L > 10 mm: W = 9 mm, H = 35 mm
-
Additional Notes: Blocks with a length ≥125 mm have clamping holes.
-
Included Accessories: Wooden case, manufacturer inspection certificate
Stable, durable, and accurate, the INSIZE 4100-2122 Grade 2 set is ideal for calibration, inspection, and precision measurement tasks.
