Description

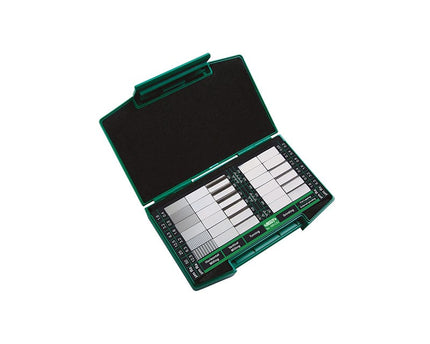

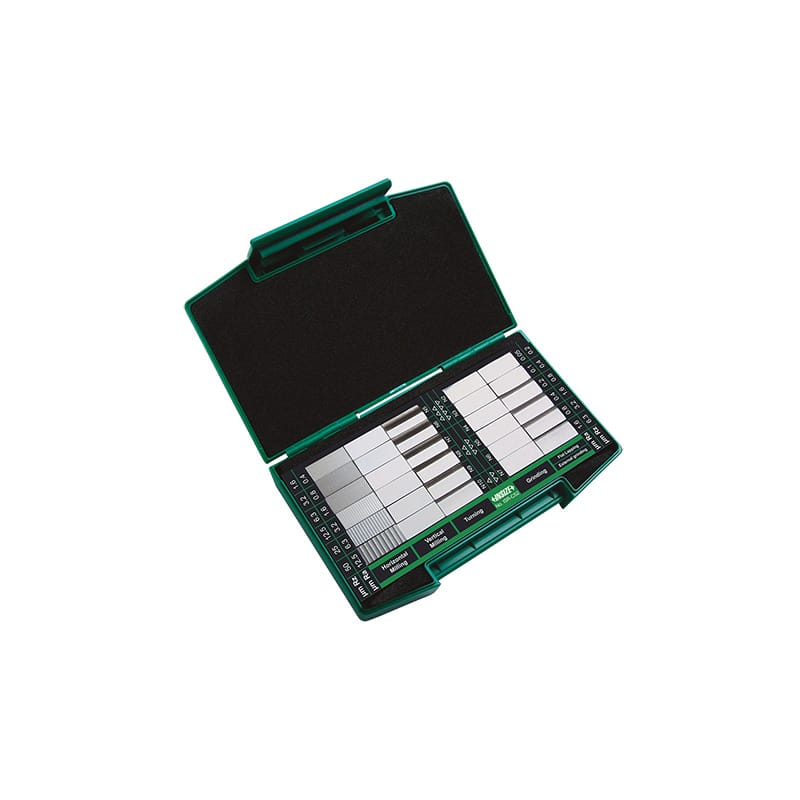

The Insize ISR-CS2 Surface Roughness Specimen Set is a practical reference tool designed for checking, identifying, and comparing surface roughness by visual and tactile inspection. It enables machinists, inspectors, and engineers to quickly verify surface finish standards across a range of machining processes.
Manufactured from durable carbon steel, each specimen is precisely finished to represent specific roughness values (Ra and Rz). This set is ideal for workshop use, training, quality control, and inspection environments where quick surface finish comparison is required without the need for electronic instruments.
Key Features & Benefits
- Used for checking, identifying, and specifying surface roughness by comparison
- Covers multiple machining methods including milling, turning, and grinding
- Includes a wide range of Ra and Rz roughness values
- Made from durable carbon steel for long service life
- Ideal for workshop, inspection, and training applications

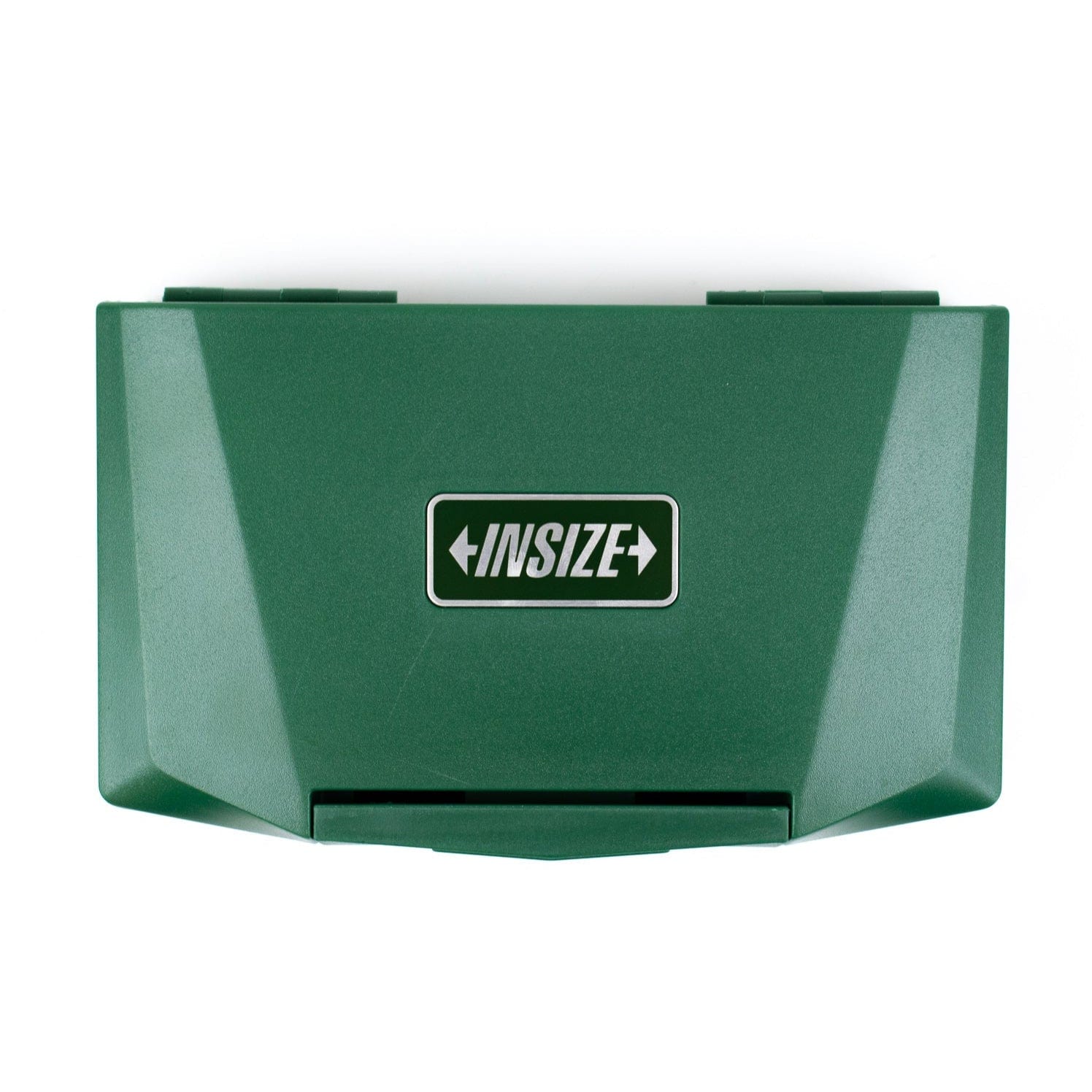

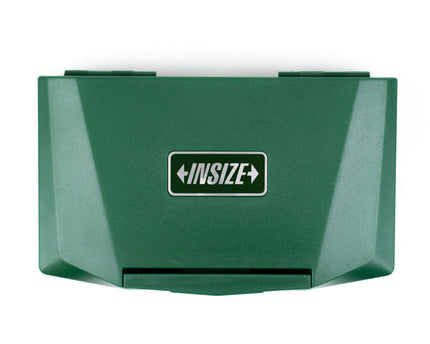

- Compact set supplied in protective case for easy storage

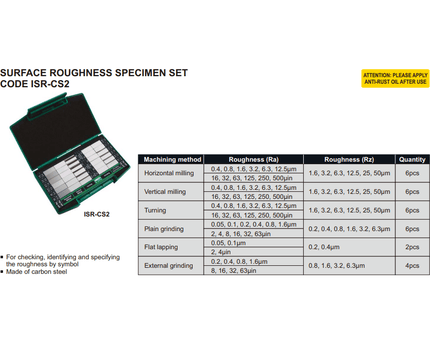

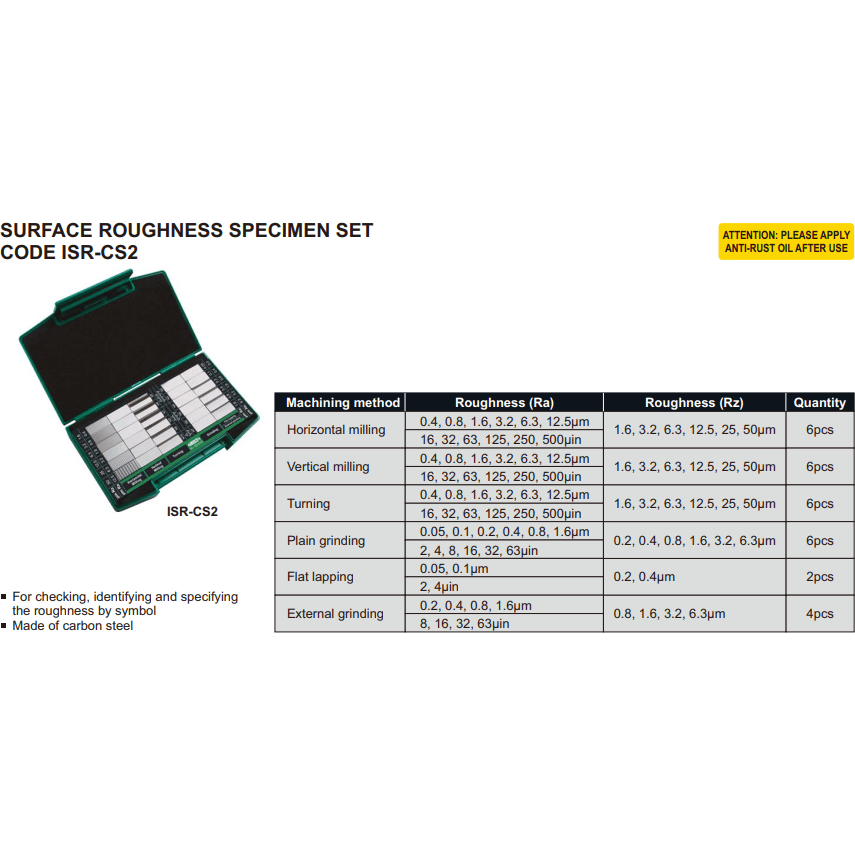

Technical Specifications
- Part Number: ISR-CS2
- Product Type: Surface Roughness Specimen Set
- Material: Carbon Steel

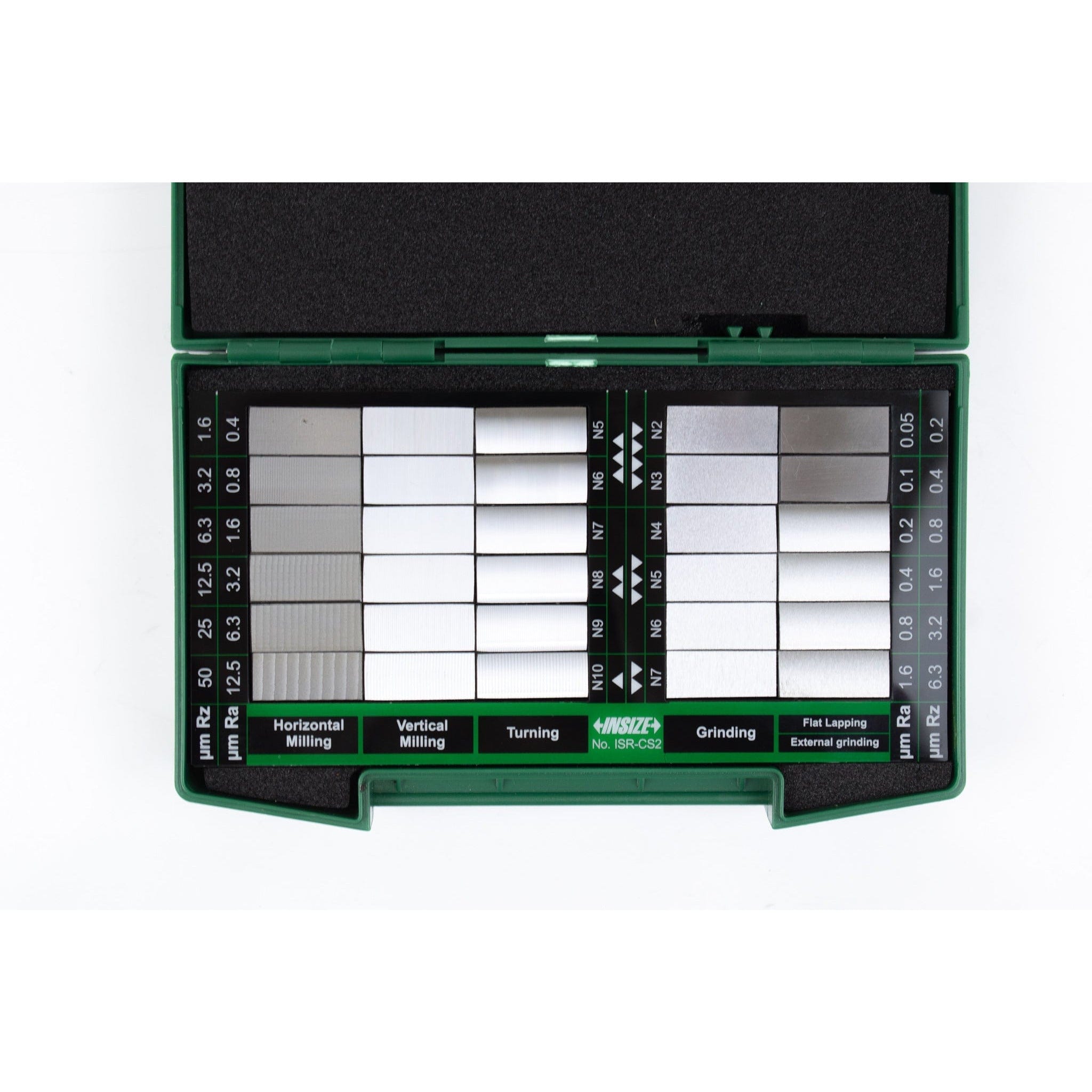

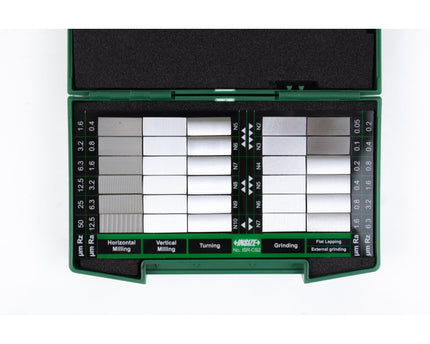

- Machining Methods Included:
- Horizontal Milling
- Vertical Milling
- Turning
- Plain Grinding
- Flat Lapping
- External Grinding
- Roughness (Ra):
- Milling & Turning: 0.4, 0.8, 1.6, 3.2, 6.3, 12.5µm
- Plain Grinding: 0.05, 0.1, 0.2, 0.4, 0.8, 1.6µm
- Flat Lapping: 0.05, 0.1µm
- External Grinding: 0.2, 0.4, 0.8, 1.6µm
- Roughness (Rz):
- Milling & Turning: 1.6, 3.2, 6.3, 12.5, 25, 50µm
- Plain Grinding: 0.2, 0.4, 0.8, 1.6, 3.2, 6.3µm
- Flat Lapping: 0.2, 0.4µm
- External Grinding: 0.8, 1.6, 3.2, 6.3µm
- Quantity:
- Horizontal Milling: 6 pcs
- Vertical Milling: 6 pcs
- Turning: 6 pcs
- Plain Grinding: 6 pcs
- Flat Lapping: 2 pcs
- External Grinding: 4 pcs
Insize is a globally recognised manufacturer of precision measuring tools, offering reliable and high-quality inspection solutions trusted across engineering, machining, and industrial environments worldwide.
