Description

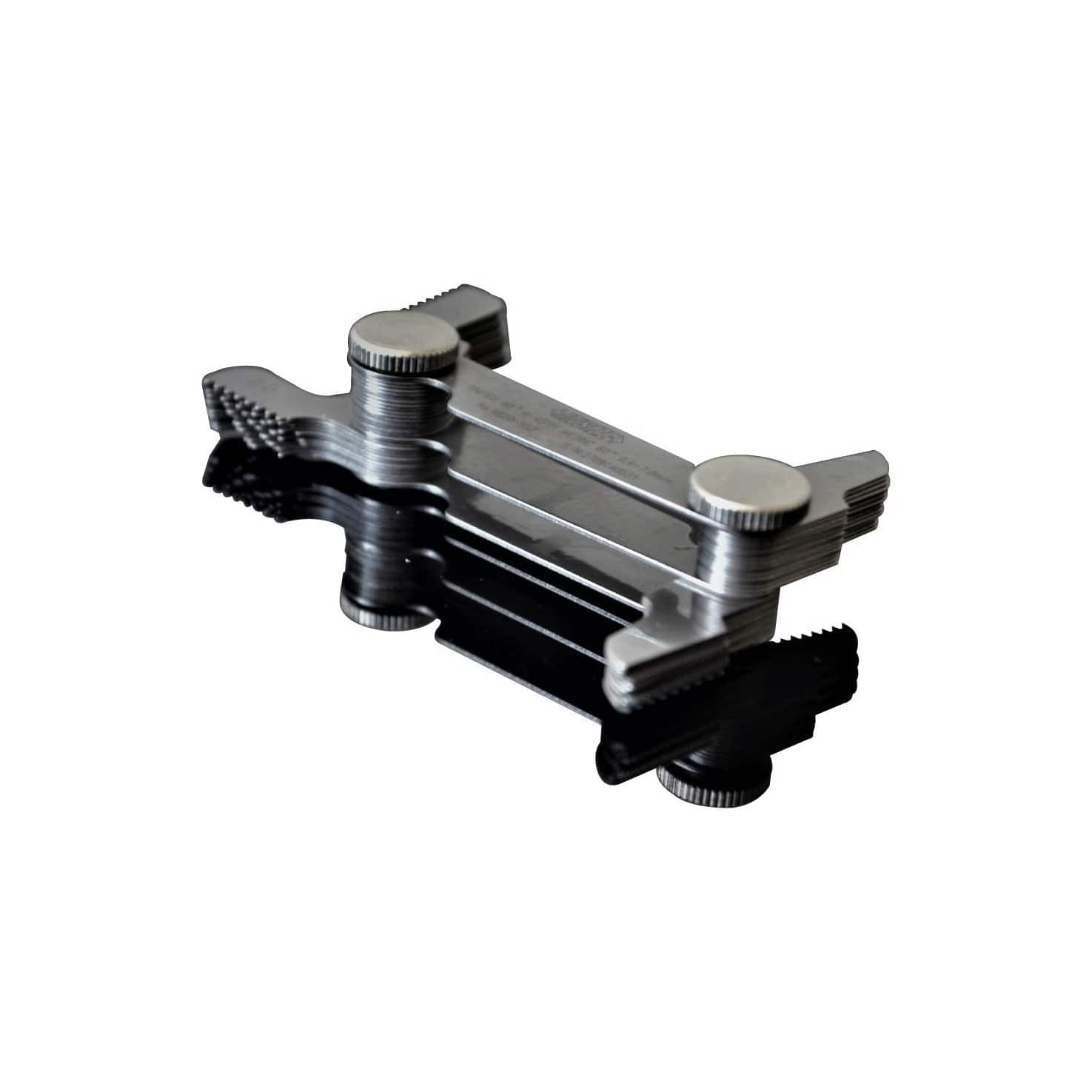

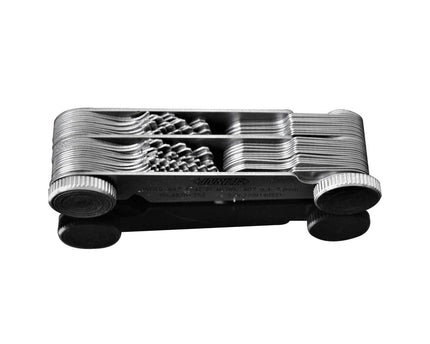

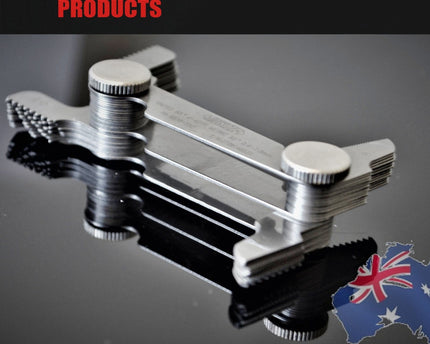

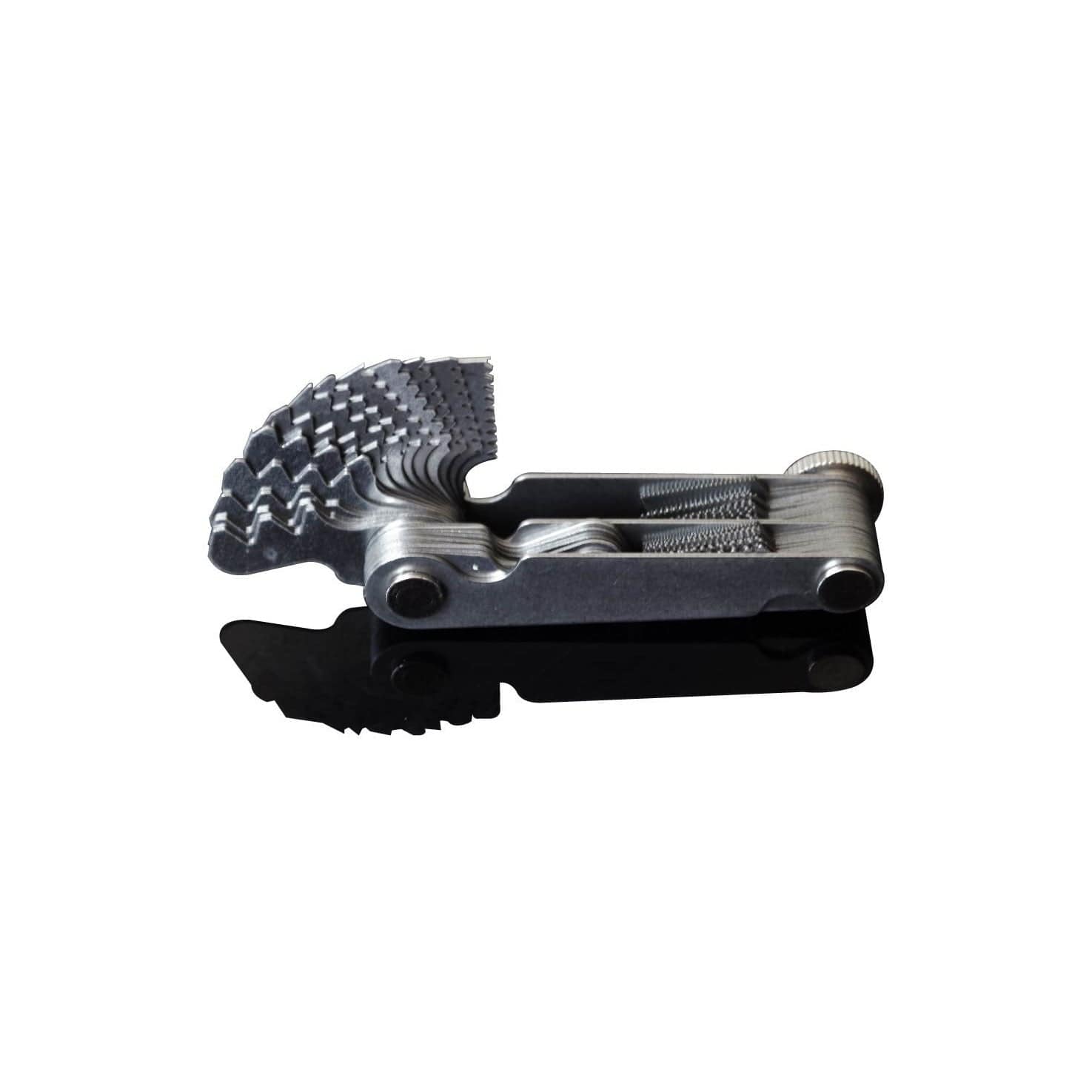

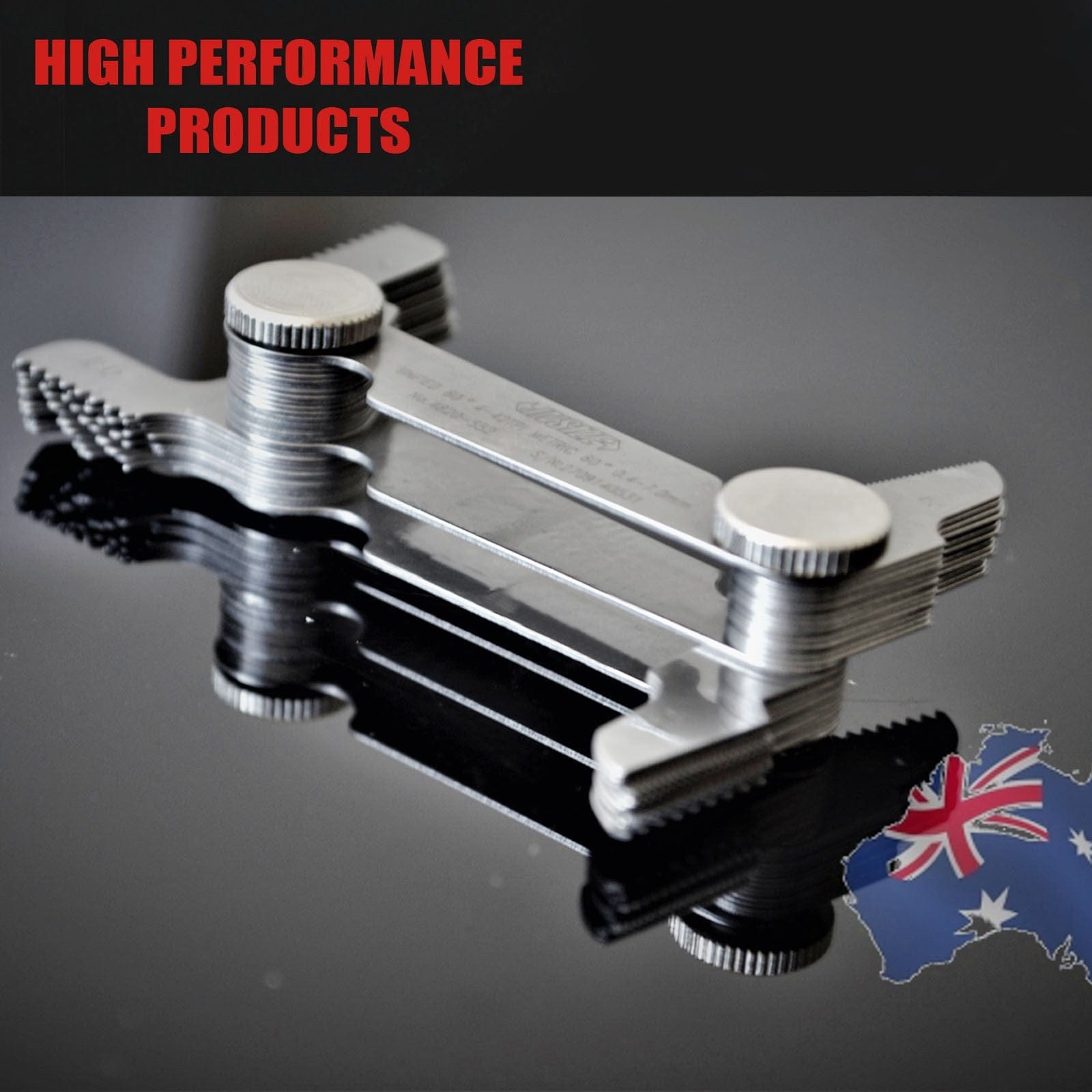

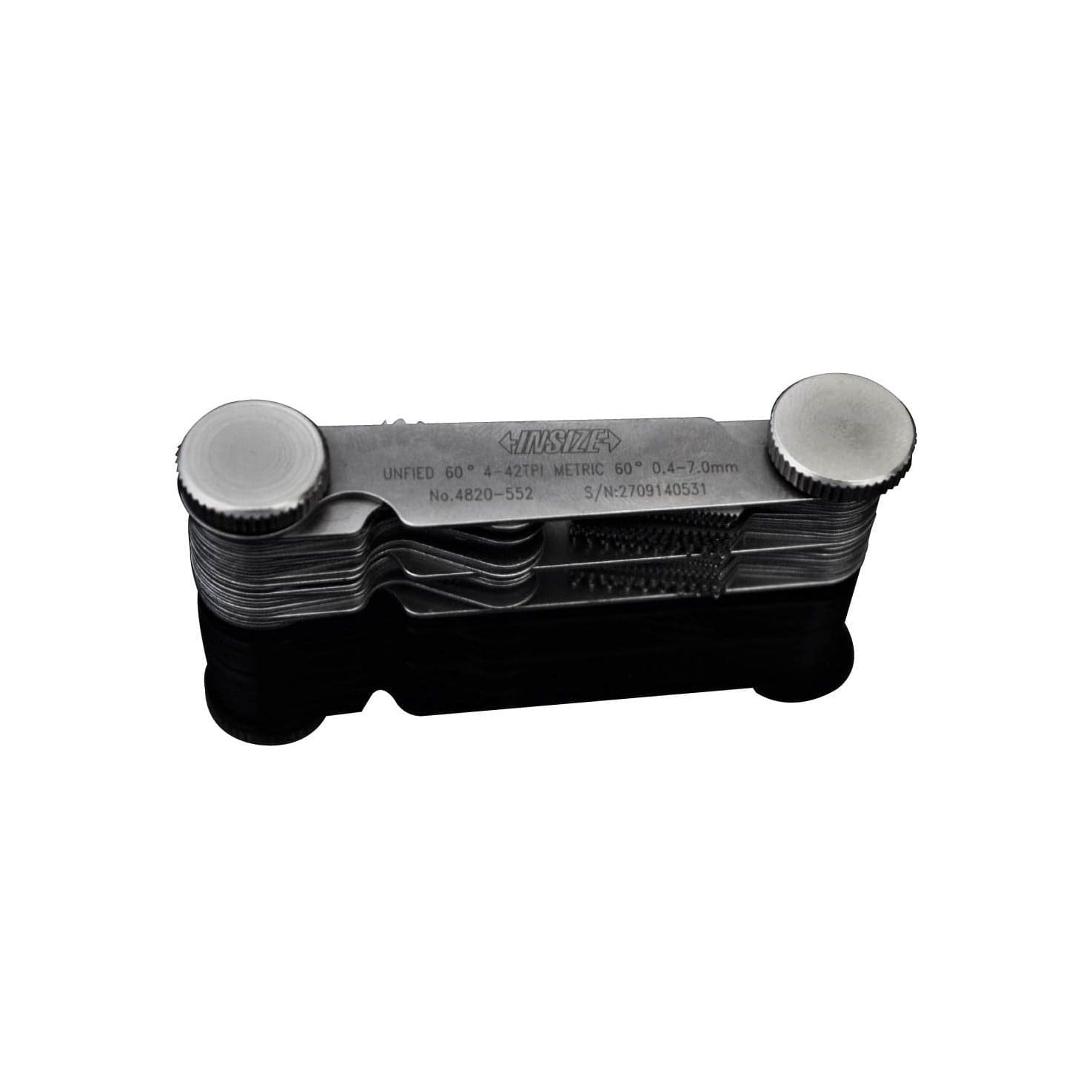

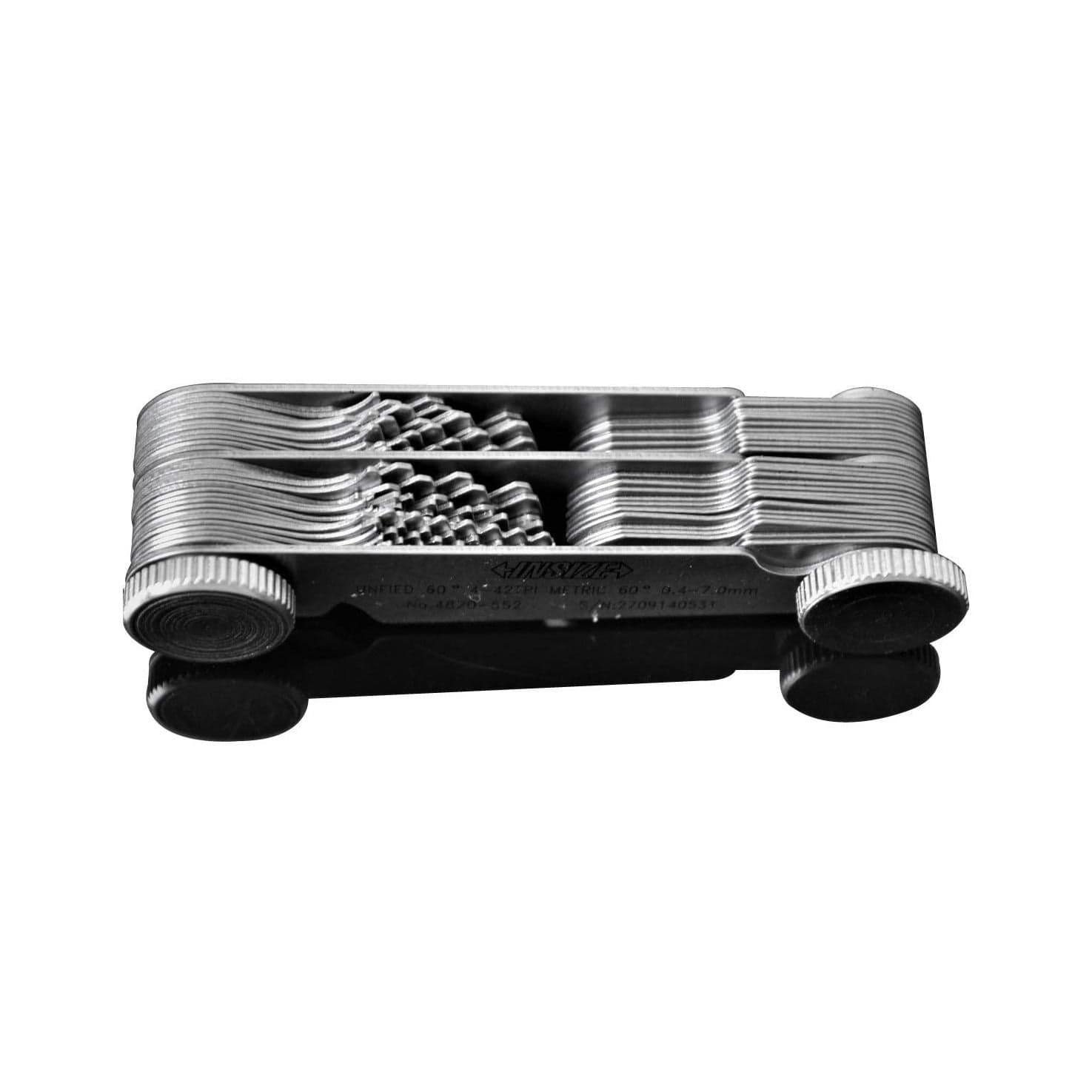

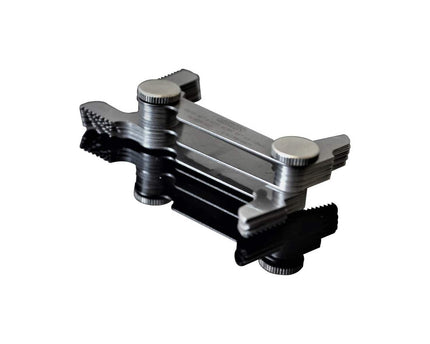

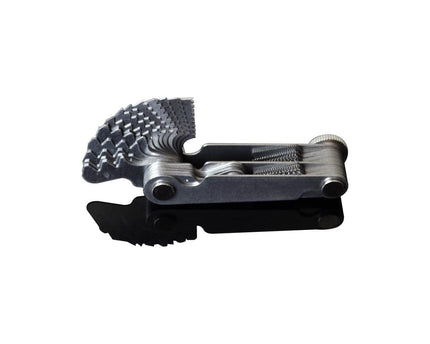

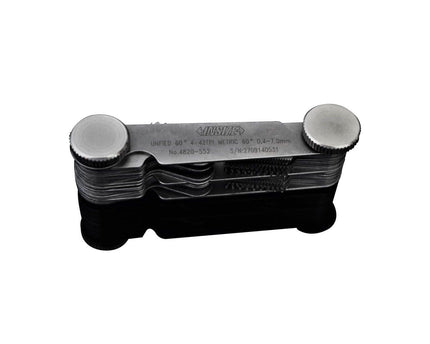

Insize Metric 60° & Unified 60° Screw Pitch Gauge
The Insize Metric and Unified Screw Pitch Gauge is designed for accurate identification of metric 60° and unified 60° screw thread pitches. It is suitable for use in machining, inspection, and maintenance applications where reliable thread verification is required.

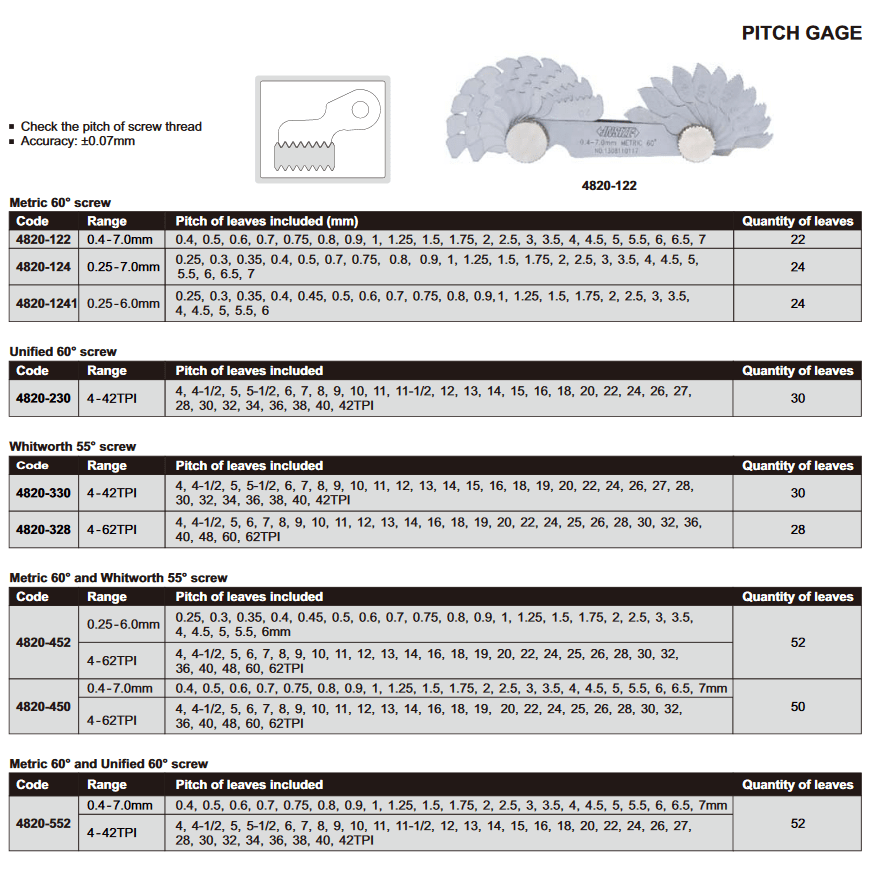

Specifications:
-
Part Number: 4820-552
-
Thread Type: Metric 60° / Unified 60°
-
Accuracy: ±0.07 mm
-
Range: 0.4–7 mm / 4–42 TPI
-
Pitch of Leaves Included (mm): 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7
-
Pitch of Leaves Included (TPI): 4, 4½, 5, 5½, 6, 7, 8, 9, 10, 11, 11½, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42
-
Quantity of Leaves: 52
-
Application: Identification of screw thread pitch
-
Material: Medium carbon steel
Manufactured for durability and consistent accuracy, this pitch gauge enables quick and precise verification of both metric and unified thread forms in workshop and inspection environments.
