Description

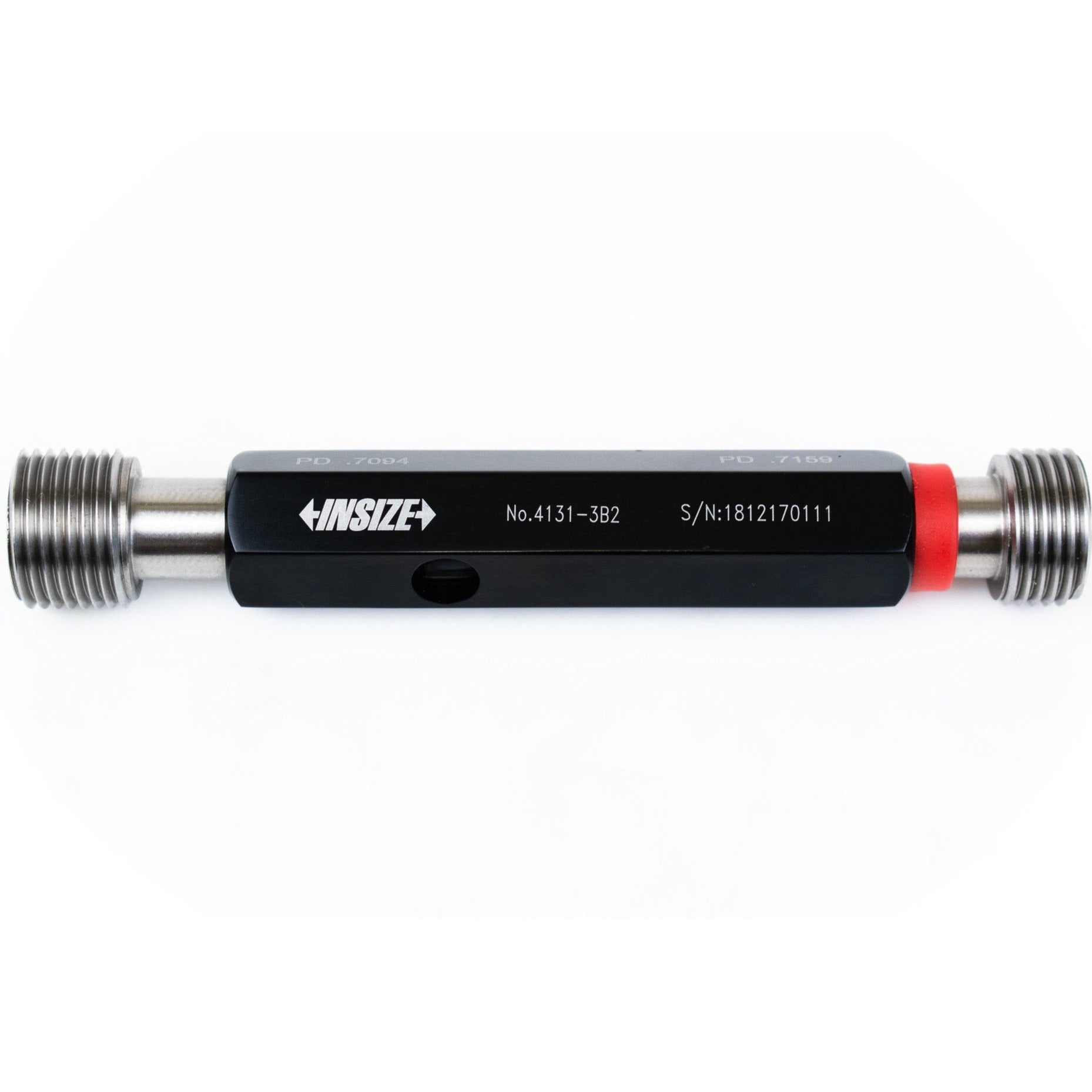

Insize Thread Plug Gauge
The Insize Thread Plug Gauge is a precision inspection tool designed for accurate verification of internal Unified National Fine (UNF) threads. Using the GO / NO-GO gauging method, it provides a fast and reliable means of confirming correct thread form, pitch diameter, and interchangeability in machining, manufacturing, and quality control applications.
Specifications :
-

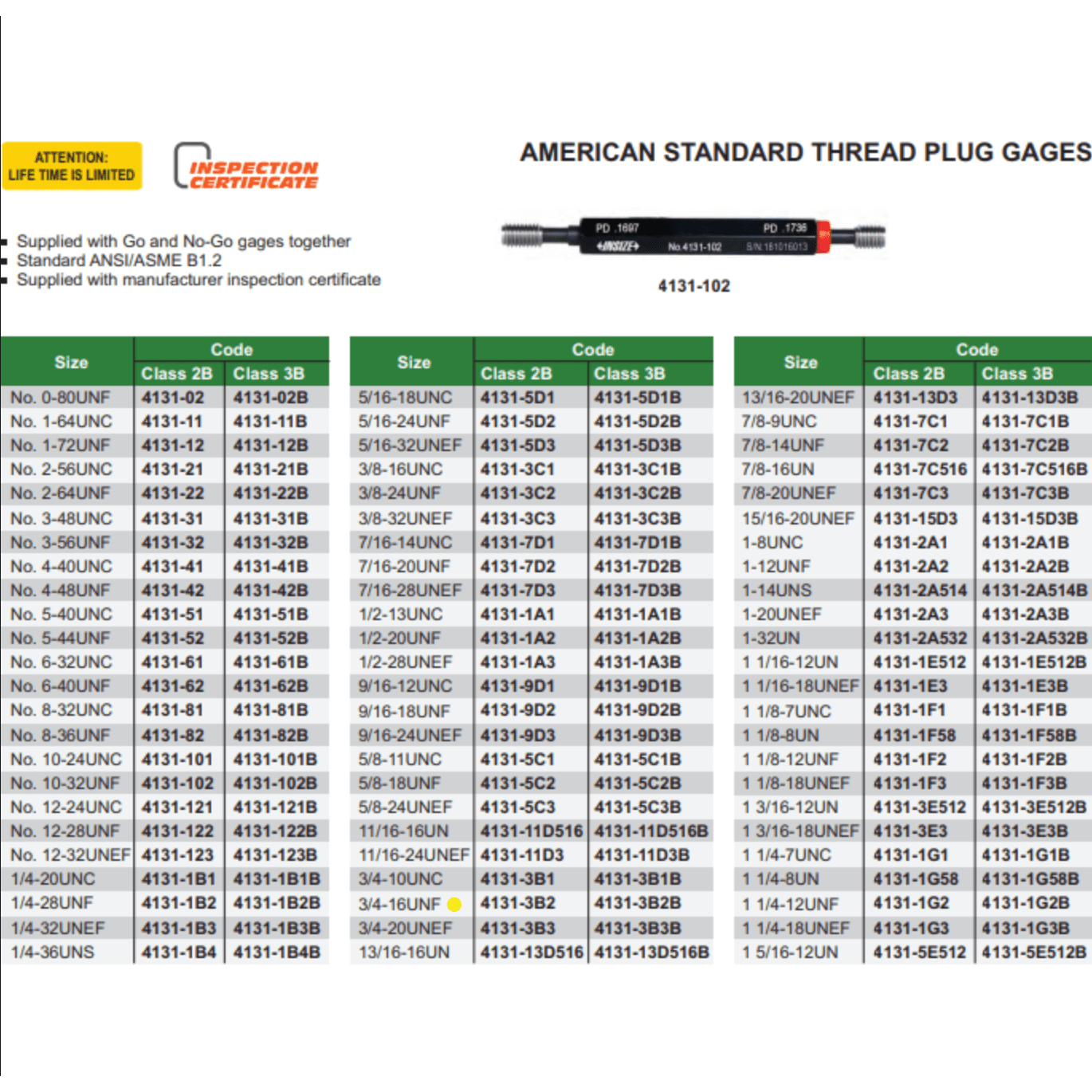

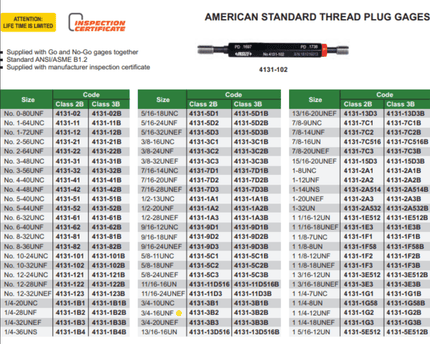

Part No: 4131-3B2
-
Thread Size: 3/4" × 16 UNF
-

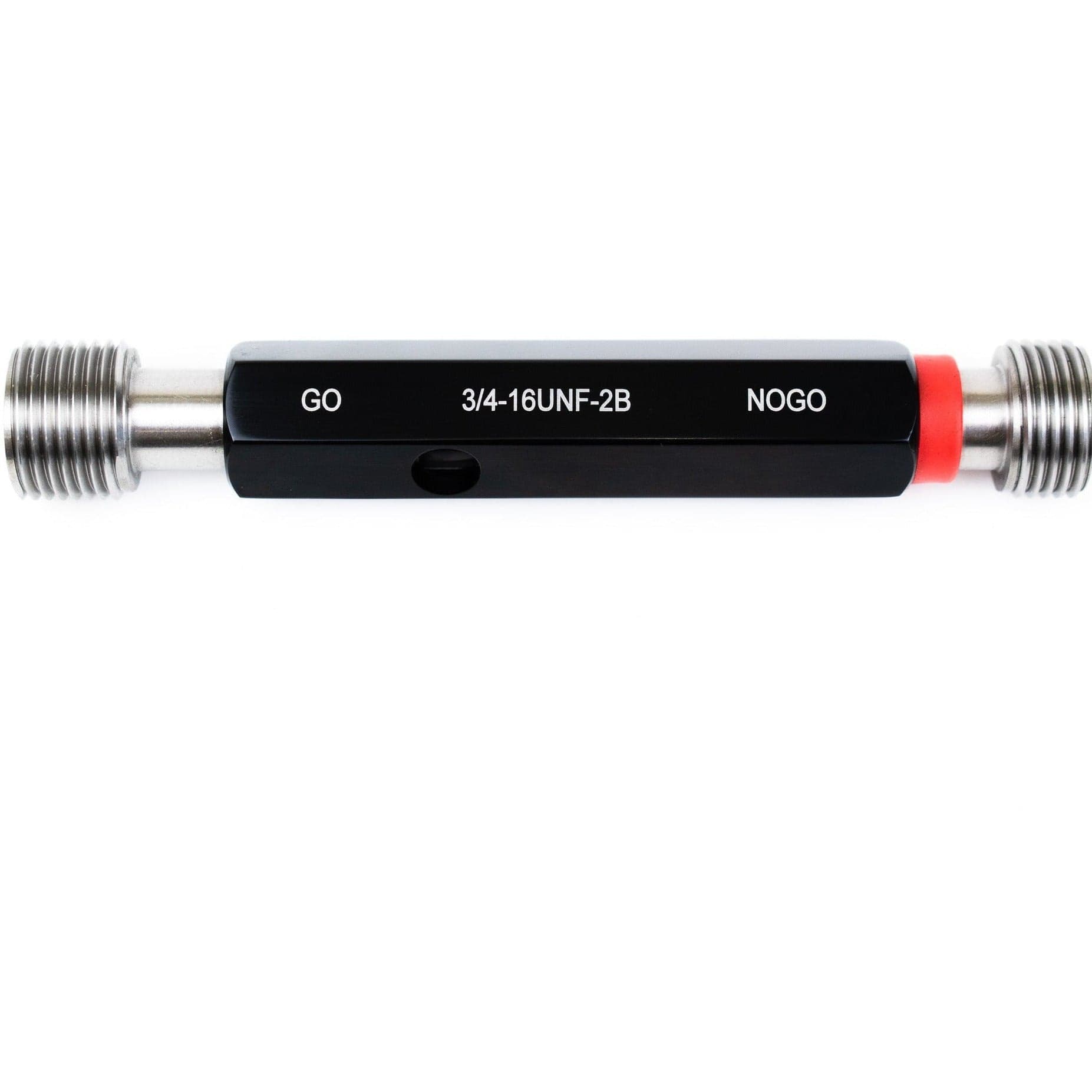

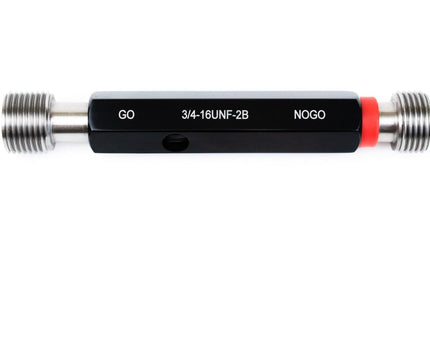

Gauge Type: GO & NO-GO gauges supplied together
-
Standard: ANSI / ASME B1.2
-
Certification: Manufacturer inspection certificate supplied
Manufactured from hardened and precision-ground gauge steel, Insize thread plug gauges provide excellent wear resistance, dimensional stability, and repeatable accuracy. Clearly identified GO and NO-GO ends allow quick assessment of internal threads, helping to prevent oversize or undersize tapped holes while ensuring compliance with international thread standards in production and inspection environments.
