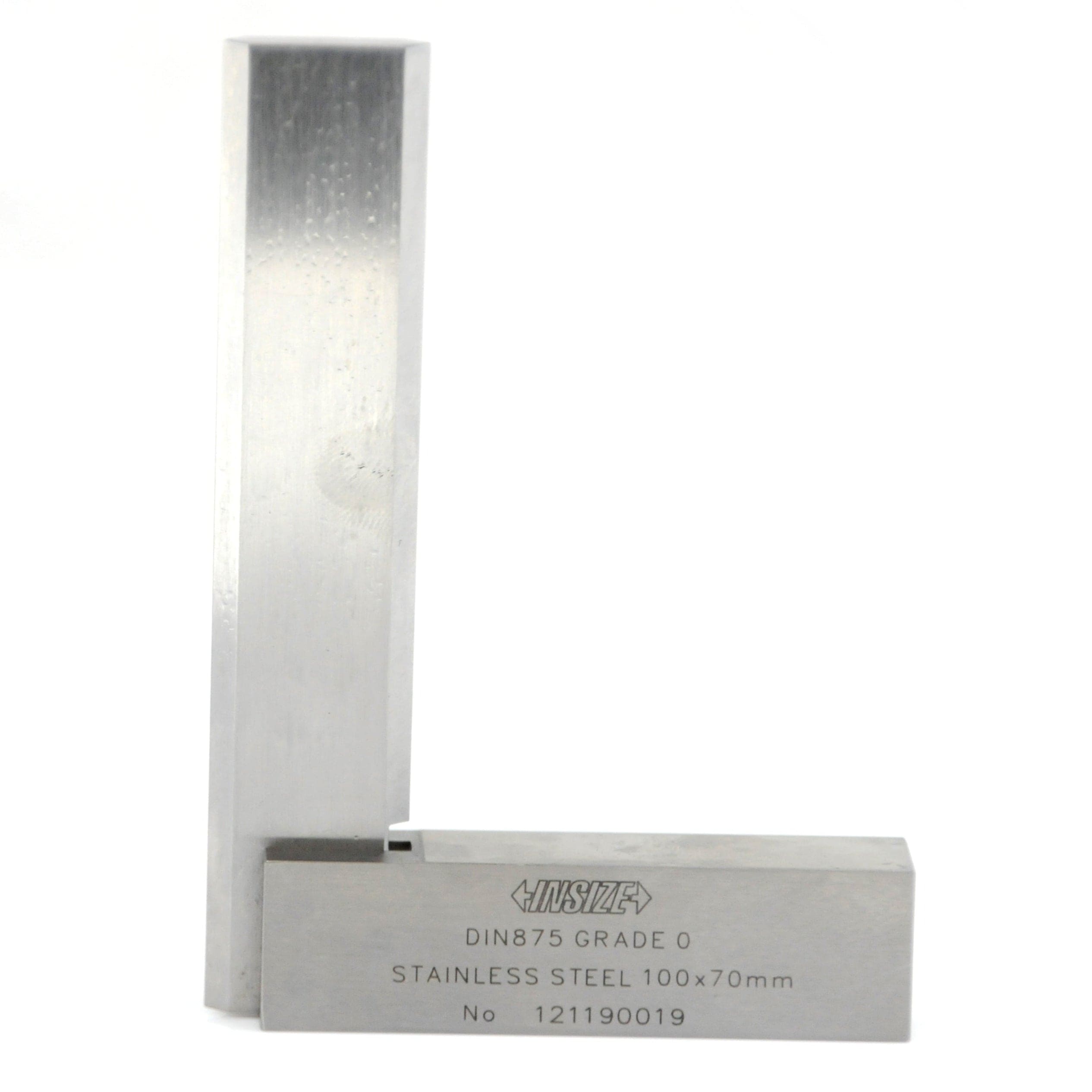

Insize Bevelled Edge Square 100 × 70 mm
Insize Bevelled Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. The bevelled measuring edges allow reliable contact on internal corners and external faces, while the wide base provides added stability during use.

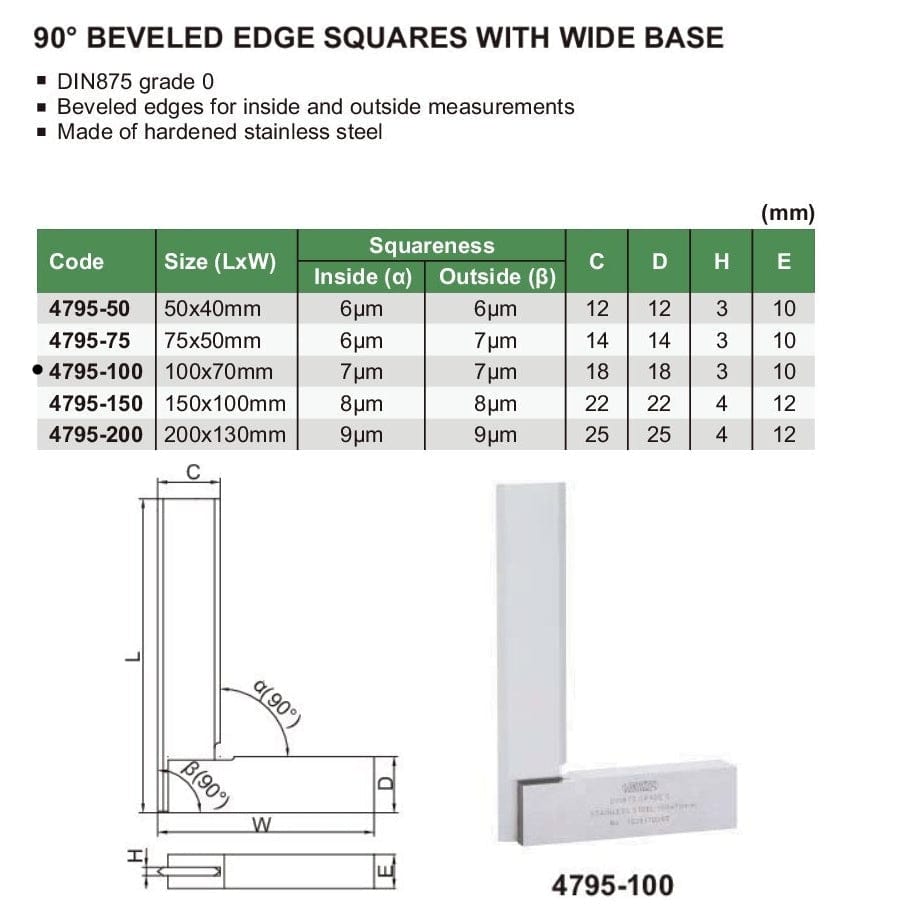

Key Features:
-
Part Number: 4795-100
-
Size (L × W): 100 × 70 mm
-
Angle: 90°
-
Squareness: Inside 7 µm / Outside 7 µm
-
C: 18 mm
-
D: 18 mm
-
E: 10 mm
-
H: 3 mm
-
Design: Bevelled edges with a wide base
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for durability and high accuracy, this bevelled-edge square delivers dependable squareness verification and precise layout capability, making it ideal for precision engineering, inspection, and toolroom environments.
