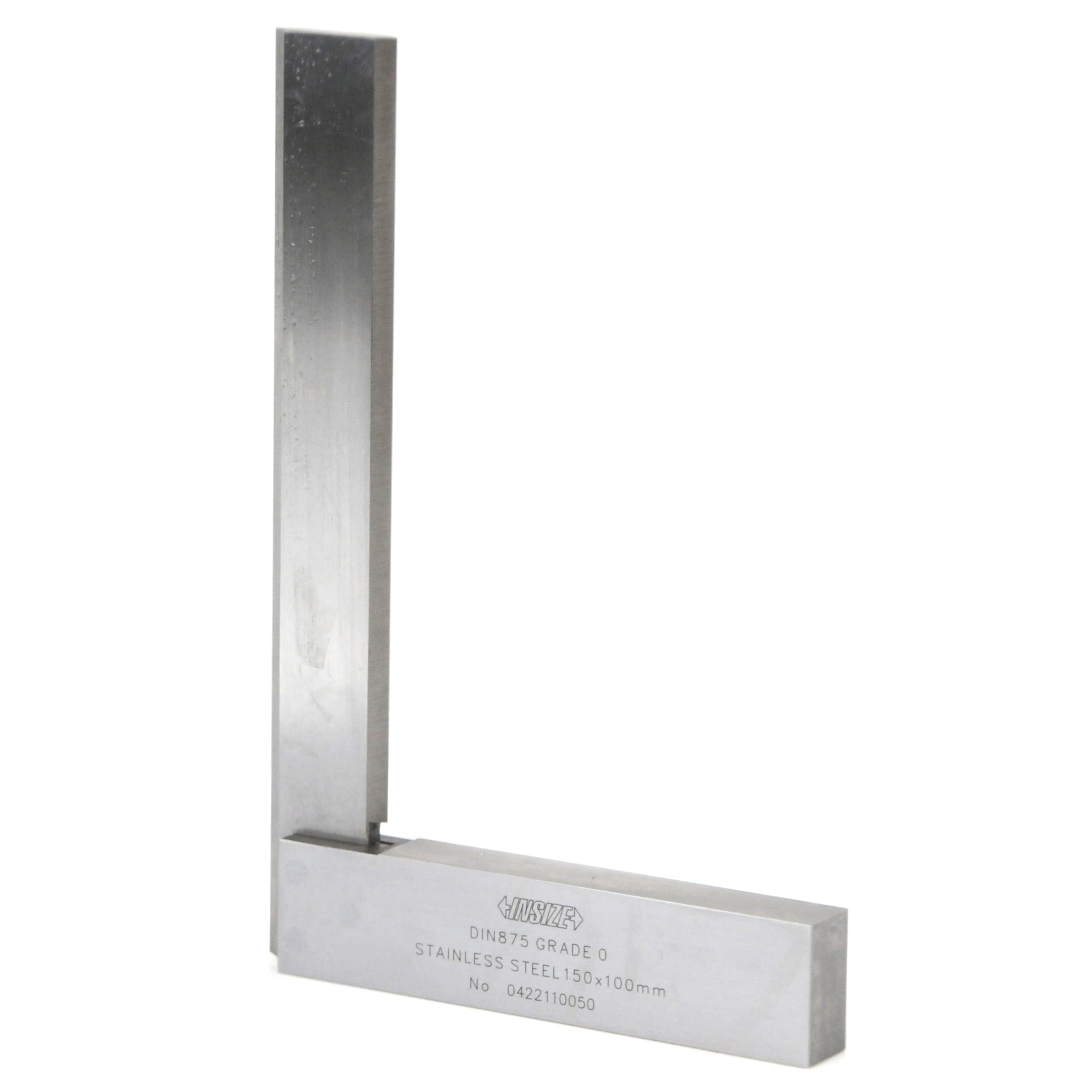

Insize Bevelled Edge Square 150 × 100 mm
The Insize Bevelled Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. Bevelled measuring edges ensure reliable contact on internal corners and external faces, while the wide base enhances stability for consistent and repeatable measurements.

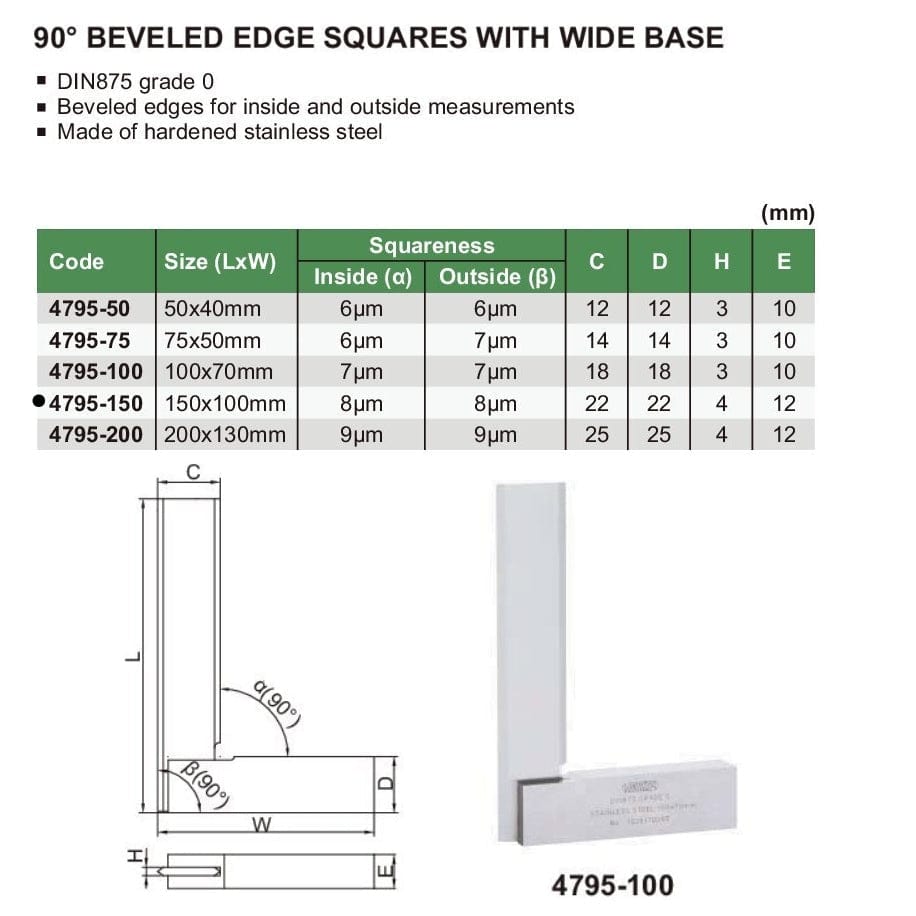

Specifications:
-
Part No.: 4795-150
-
Size (L × W): 150 × 100 mm
-
Angle: 90°
-
Squareness: Inside 8 µm / Outside 8 µm
-
C: 22 mm
-
D: 22 mm
-
E: 12 mm
-
H: 4 mm
-
Design: Bevelled edges with a wide base
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for durability and high accuracy, this bevelled-edge square provides dependable squareness verification and precise layout capability, making it suitable for precision engineering, inspection, and toolroom use.
