Description

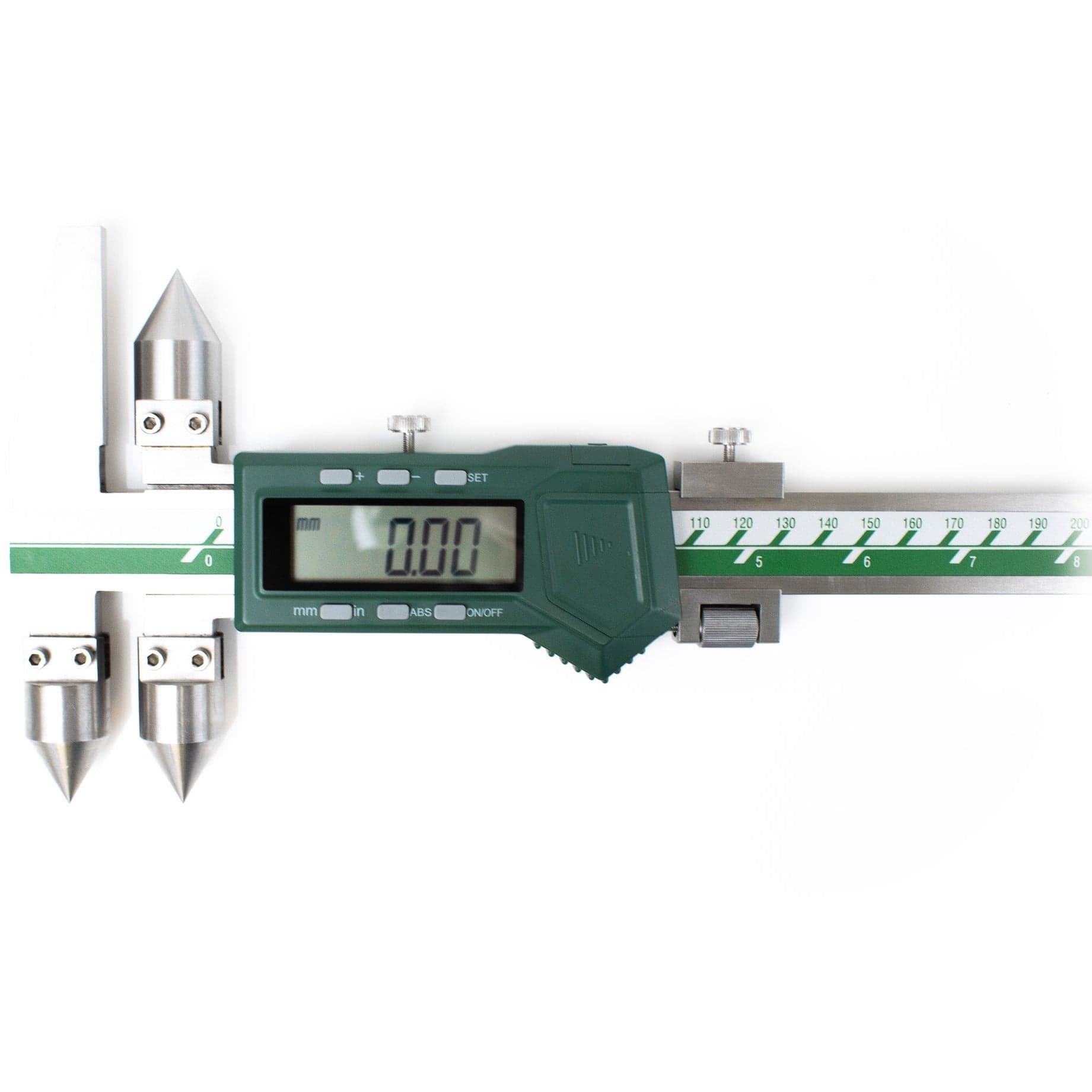

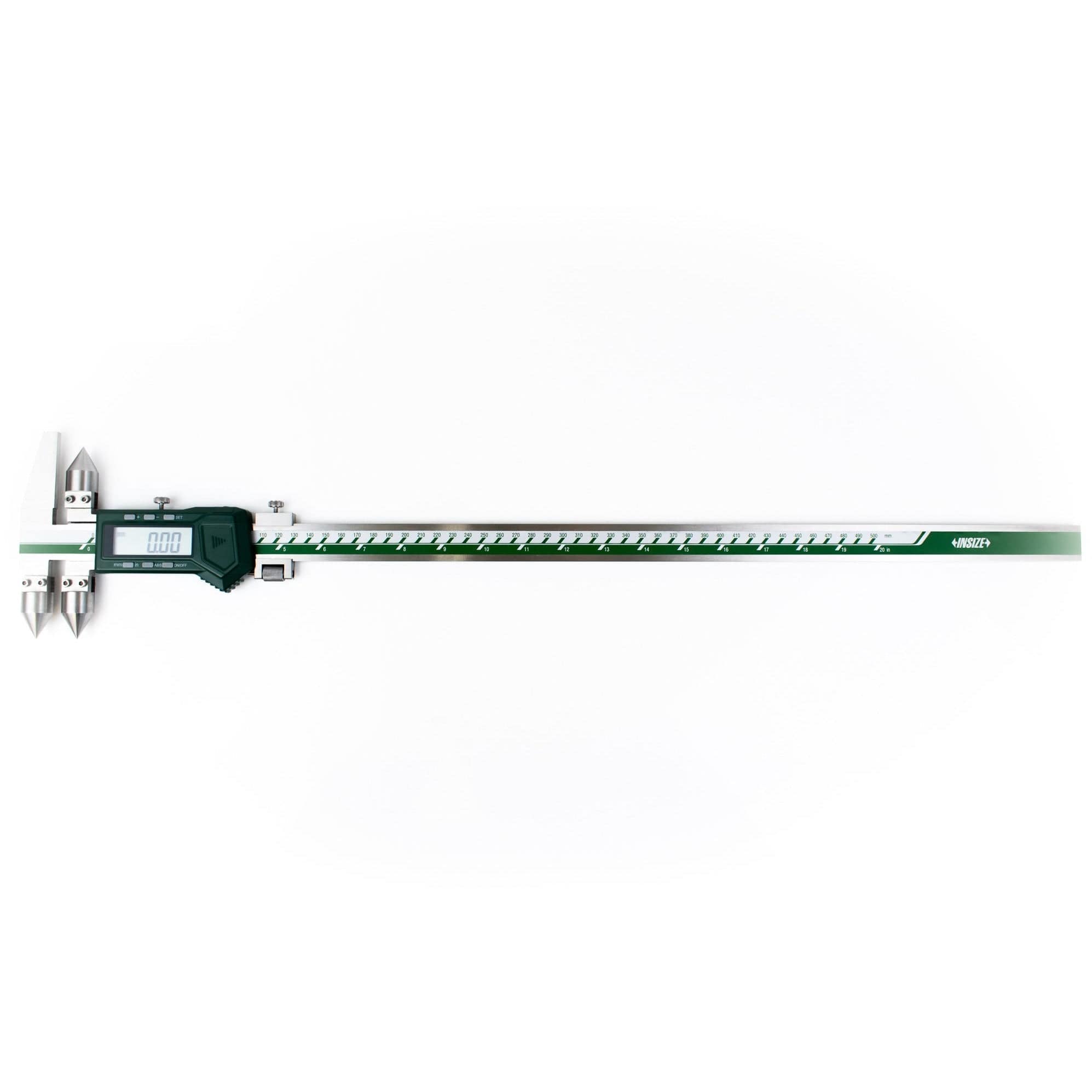

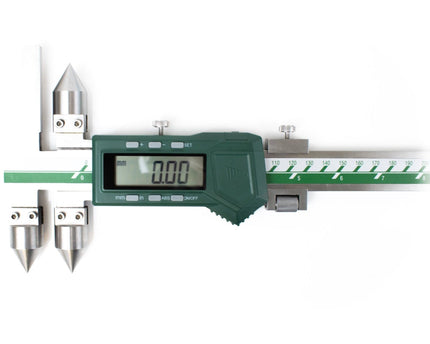

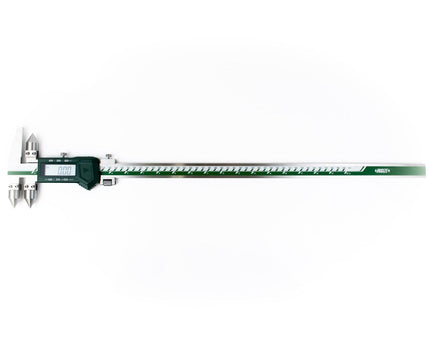

Insize Digital Centerline Caliper
A high-precision digital measuring instrument designed specifically for determining hole-to-hole and edge-to-hole center distances. Engineered for accuracy, smooth operation, and durability, this tool provides reliable measurement performance across extended ranges, making it ideal for machining, inspection, and layout applications.

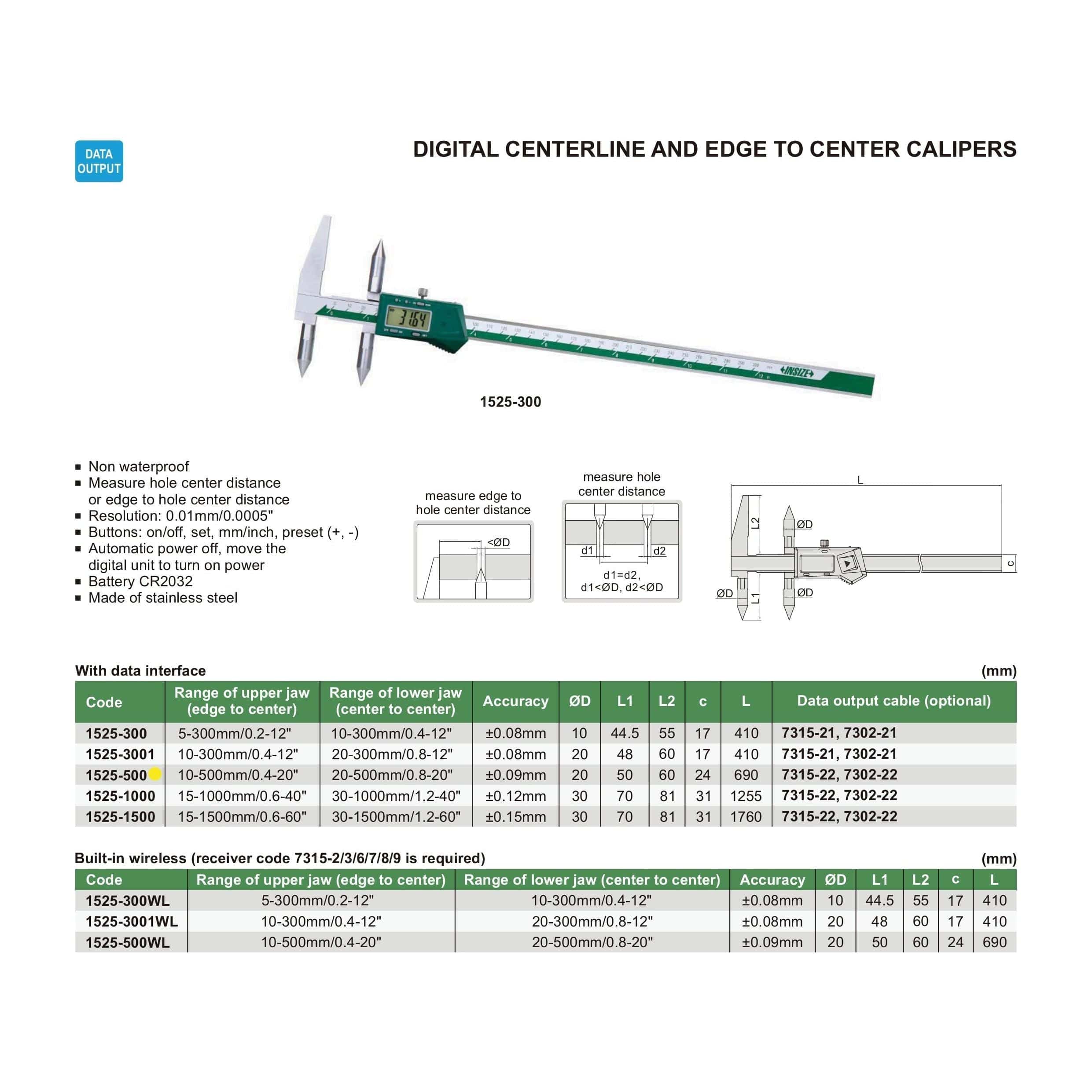

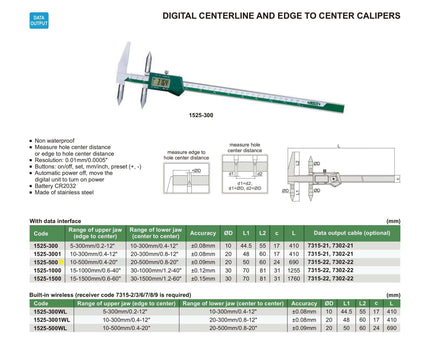

Specifications :
- Part no: 1525-500
- Accuracy: ±0.09mm
- Resolution: 0.01mm / 0.0005"
- Range of upper jaw (edge to center): 10–500mm / 0.4–20"
- Range of lower jaw (center to center): 20–500mm / 0.8–20"

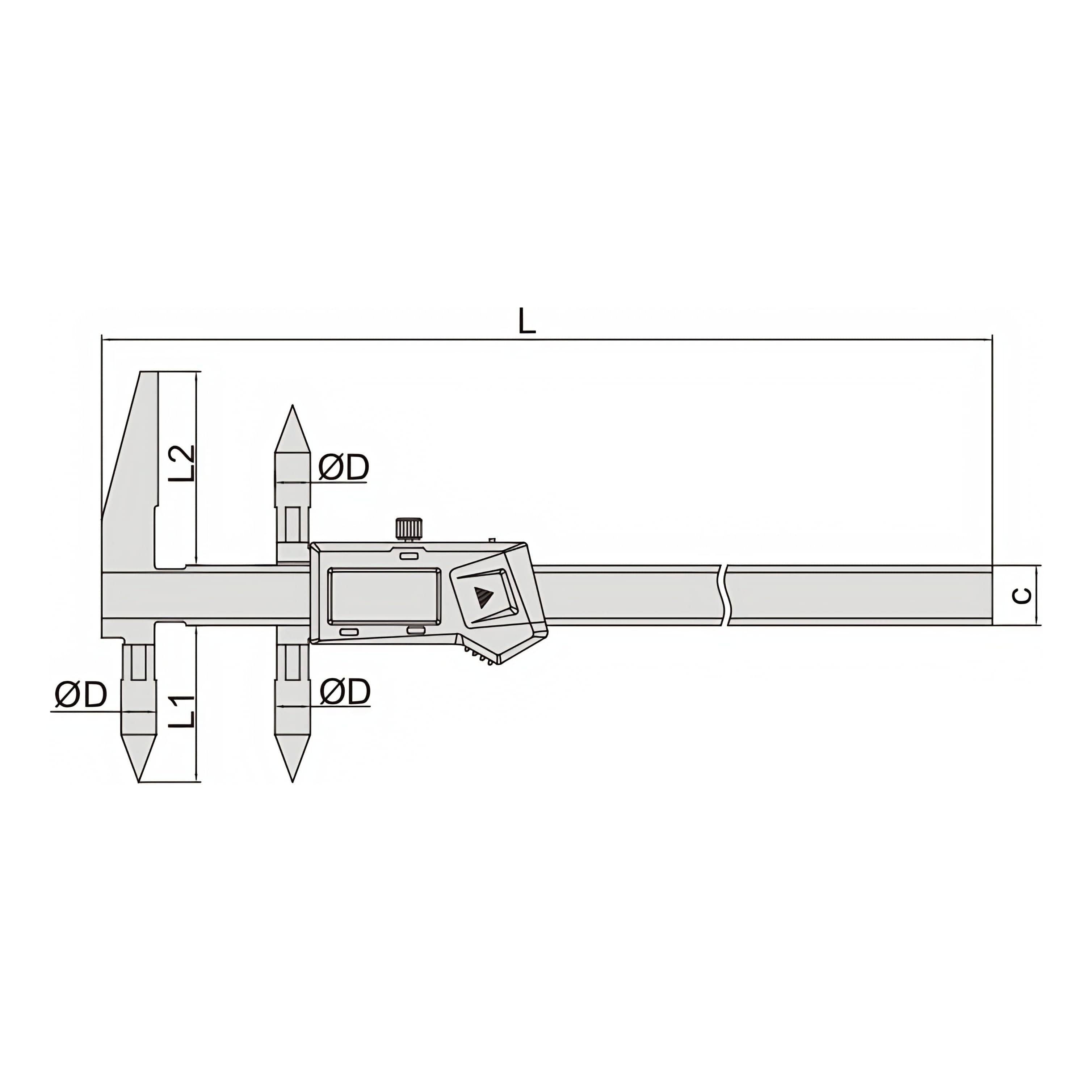

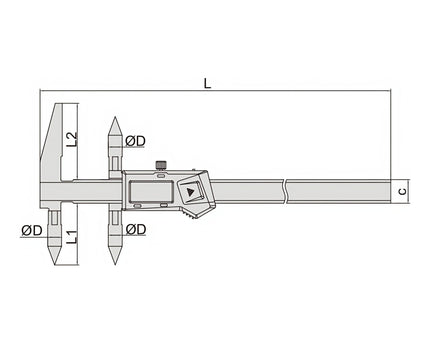

- L1: 50mm
- L2: 60mm
- C: 24mm
- L: 690mm
- Measures the hole center-to-center distance or edge-to-center distance
- Buttons: on/off, set, mm/inch, preset (+/–)
- Automatic power-off; move the digital unit to reactivate
- Battery: CR2032
- Made of stainless steel
Well-designed, durable, high-precision measuring equipment suitable for a wide range of applications. The digital centerline caliper offers smooth movement, a clear digital readout, and accurate measurement of hole spacing on the same or offset planes. Ideal for machining, quality control, and fabrication tasks that require dependable, repeatable measurements.
