Description

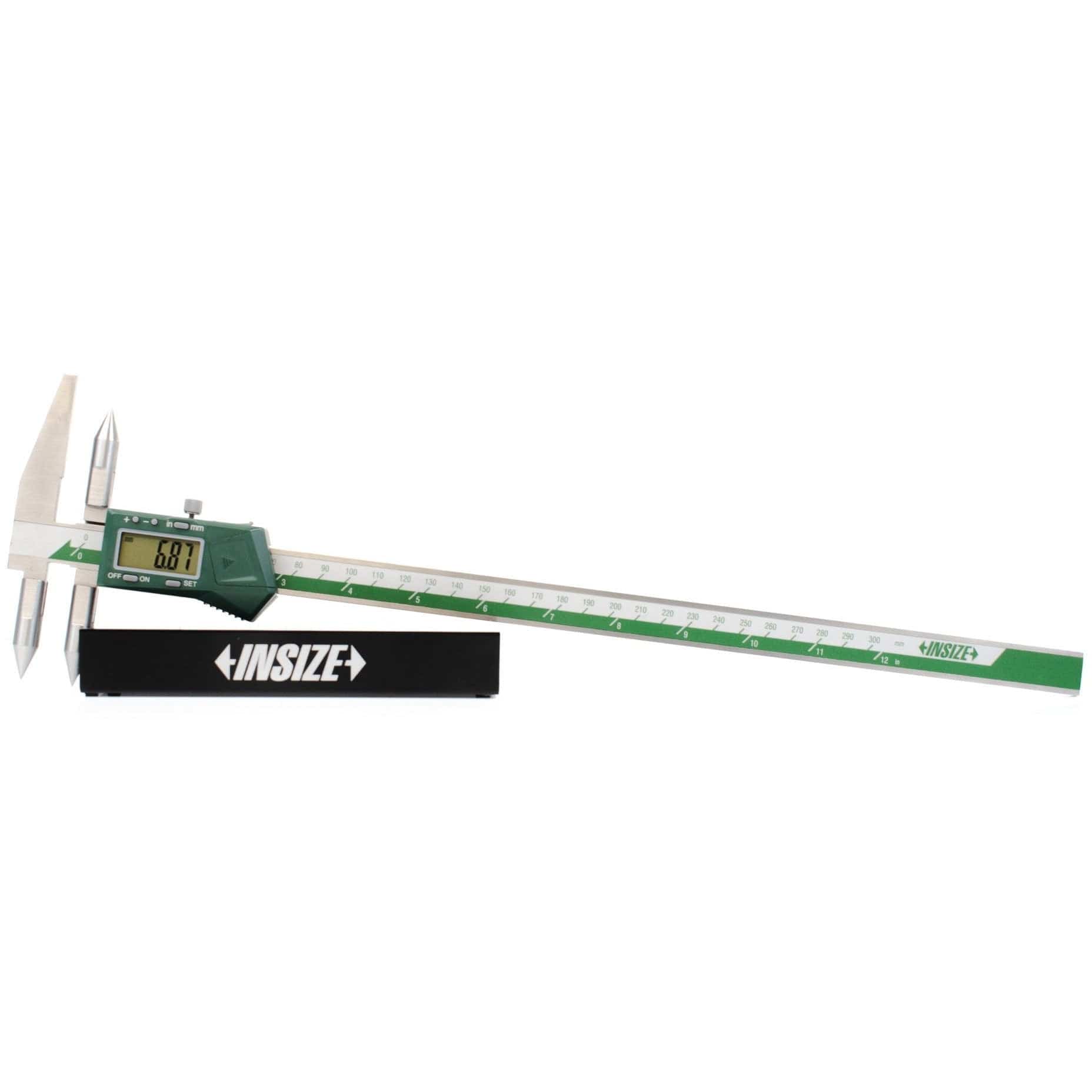

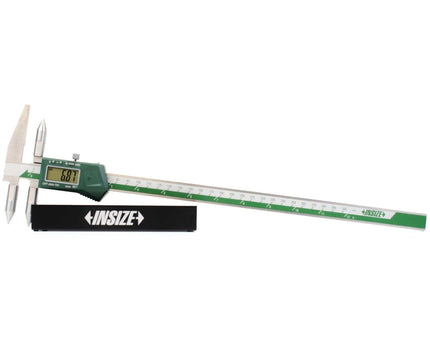

Insize Digital Centerline Caliper
A high-precision digital measuring instrument designed for accurately determining hole center distances, edge-to-center distances, and center-to-center spacing. Engineered for reliable performance, this specialized caliper provides clear digital readings, smooth operation, and consistent accuracy across a wide measuring range. Ideal for machining, fabrication, inspection, and layout applications requiring precise centerline measurement.

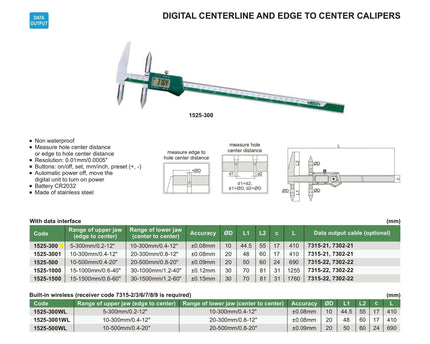

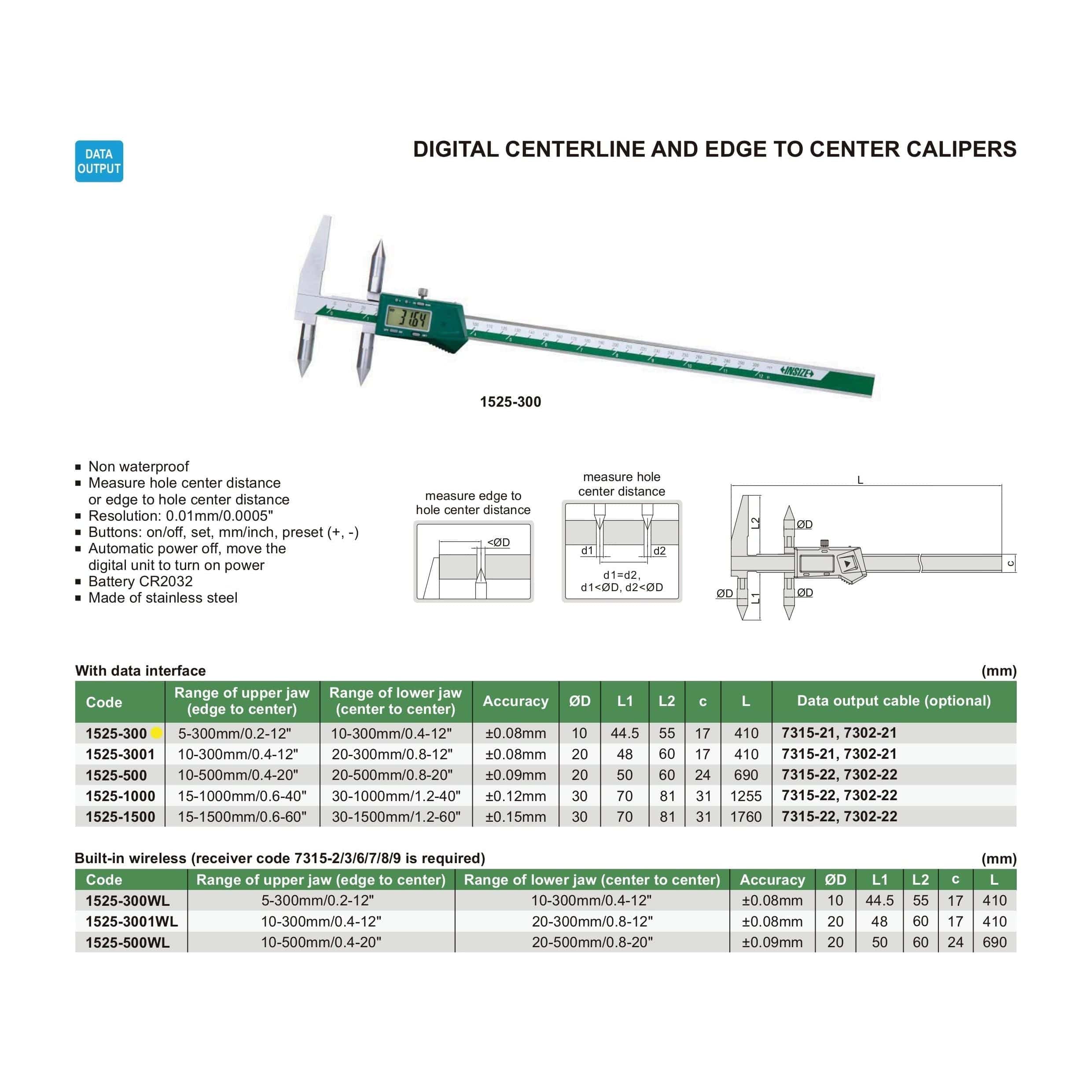

Specifications :
- Part no: 1525-300
- Accuracy: ±0.08mm
- Resolution: 0.01mm / 0.0005"
- Upper jaw measuring range (edge to center): 5–300mm / 0.2–12"
- Lower jaw measuring range (center to center): 10–300mm / 0.4–12"

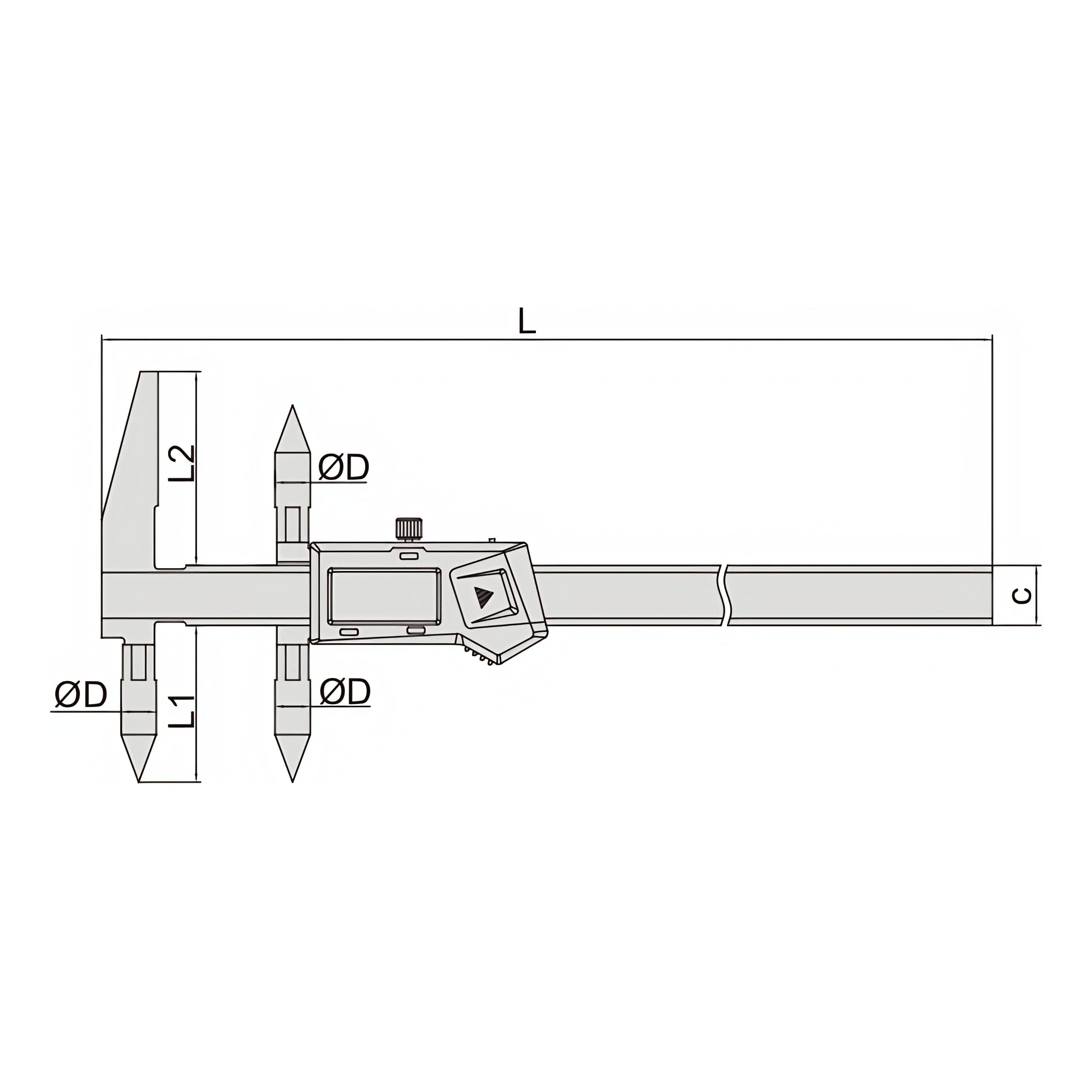

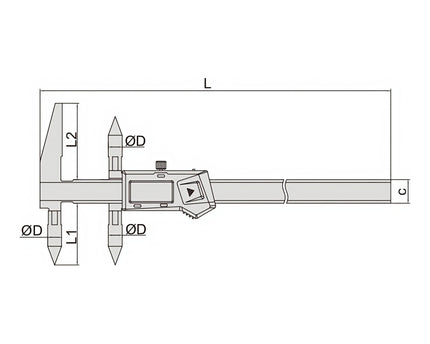

- L1: 44.5mm
- L2: 55mm
- C: 17mm
- L: 410mm
- Functions: on/off, set, mm/inch conversion, preset (+/-)
- Automatic power off; movement of the slider reactivates the display
- Battery type: CR2032
- Material: stainless steel construction
Well-designed and durable, this high-precision tool is ideal for measuring hole center spacing in both aligned and offset planes. Offering stable digital readings, easy adjustment, and reliable repeatability, the Insize digital centerline caliper is perfectly suited for precision engineering and professional workshop use.
