Description

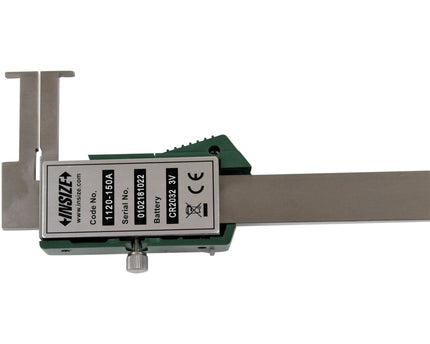

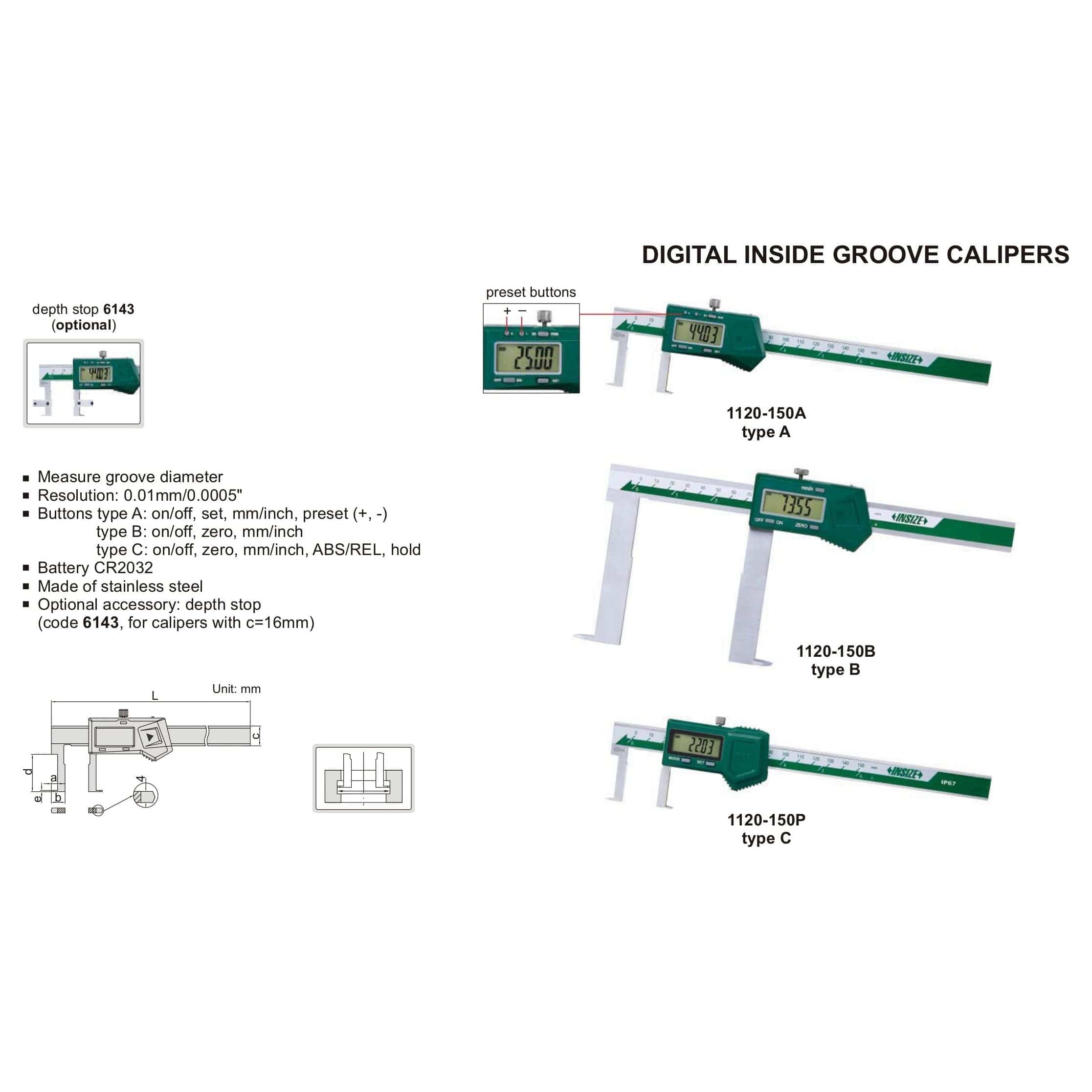

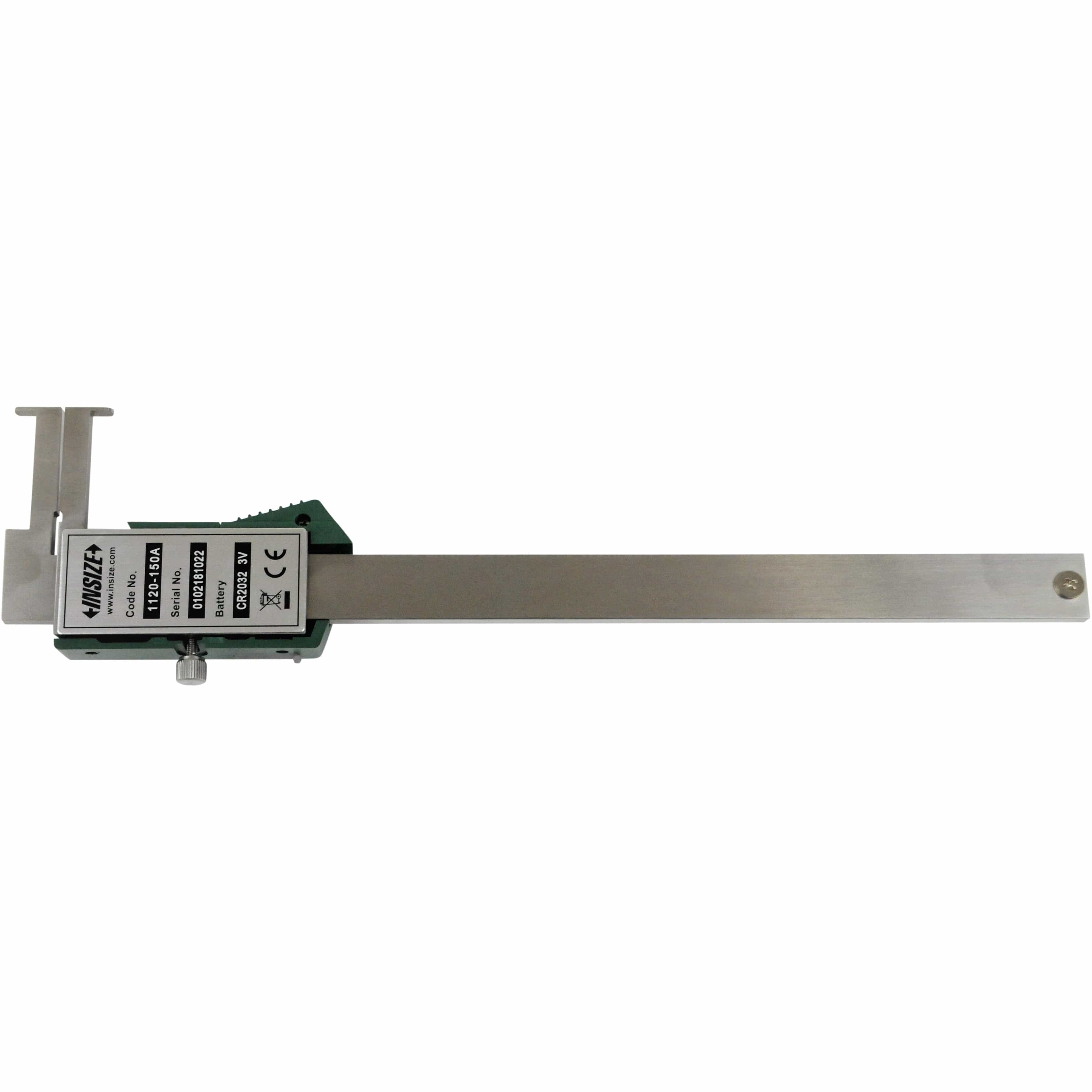

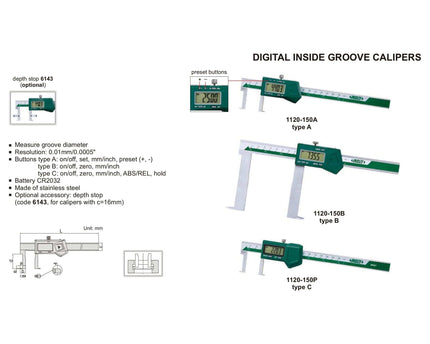

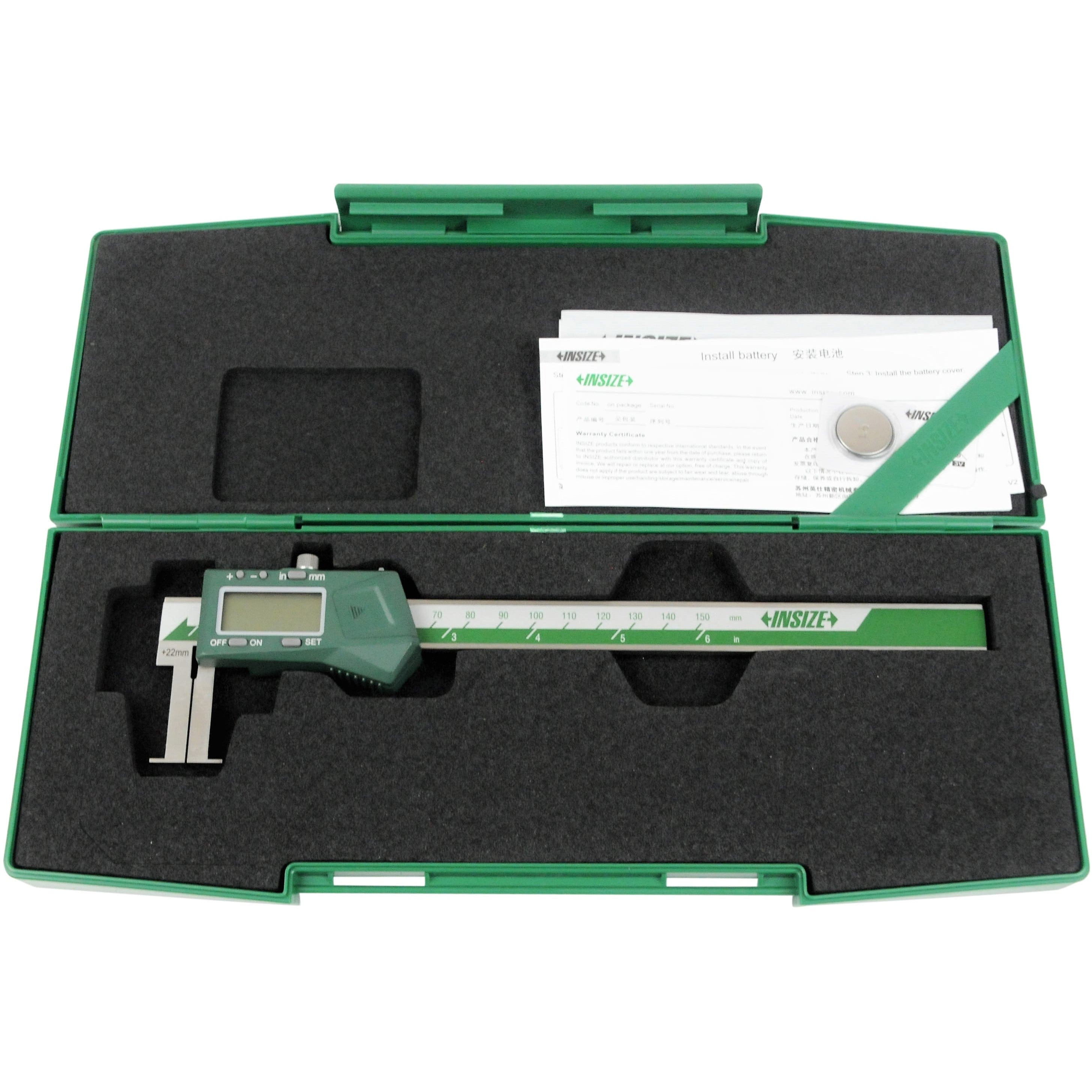

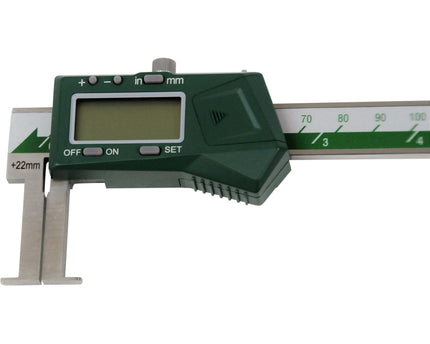

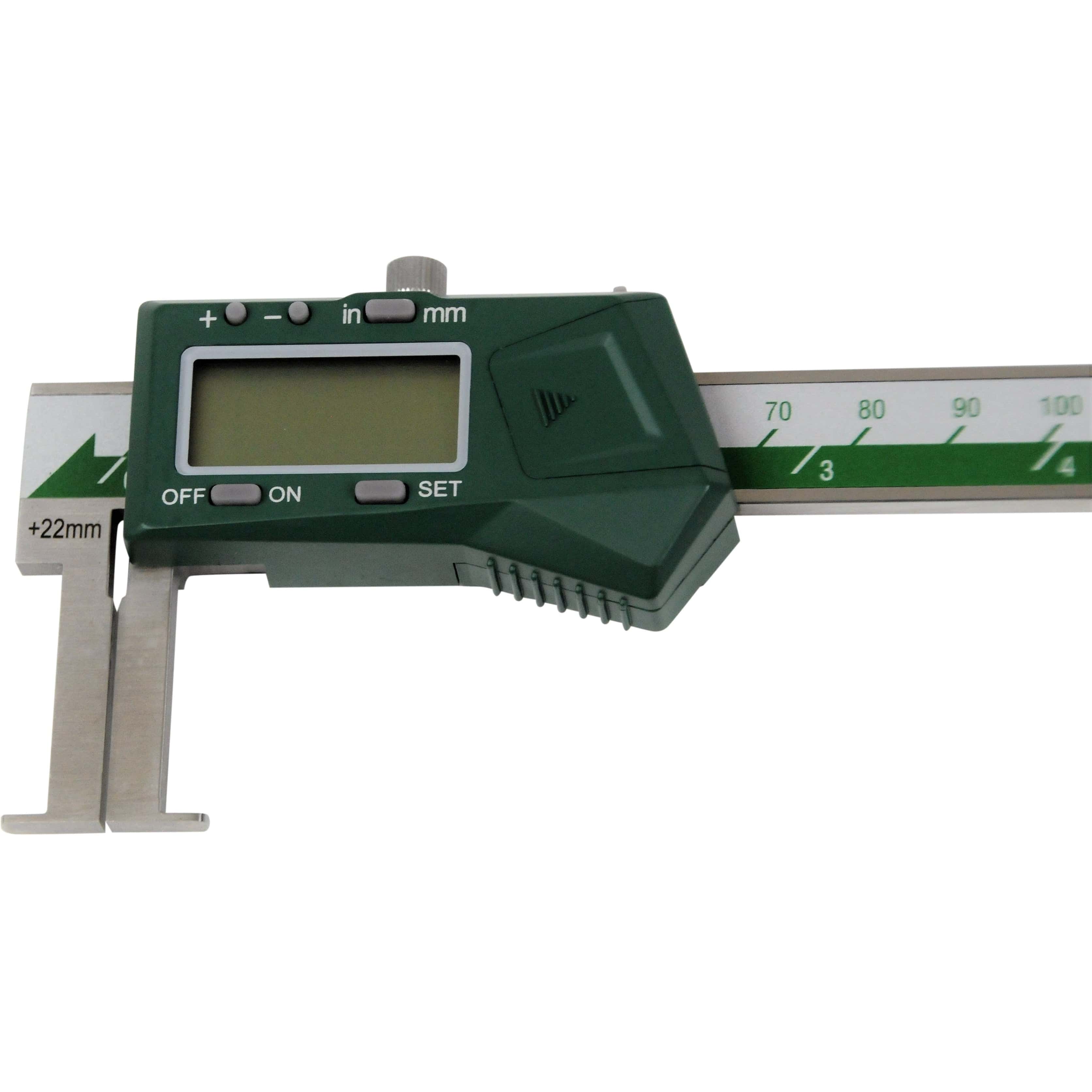

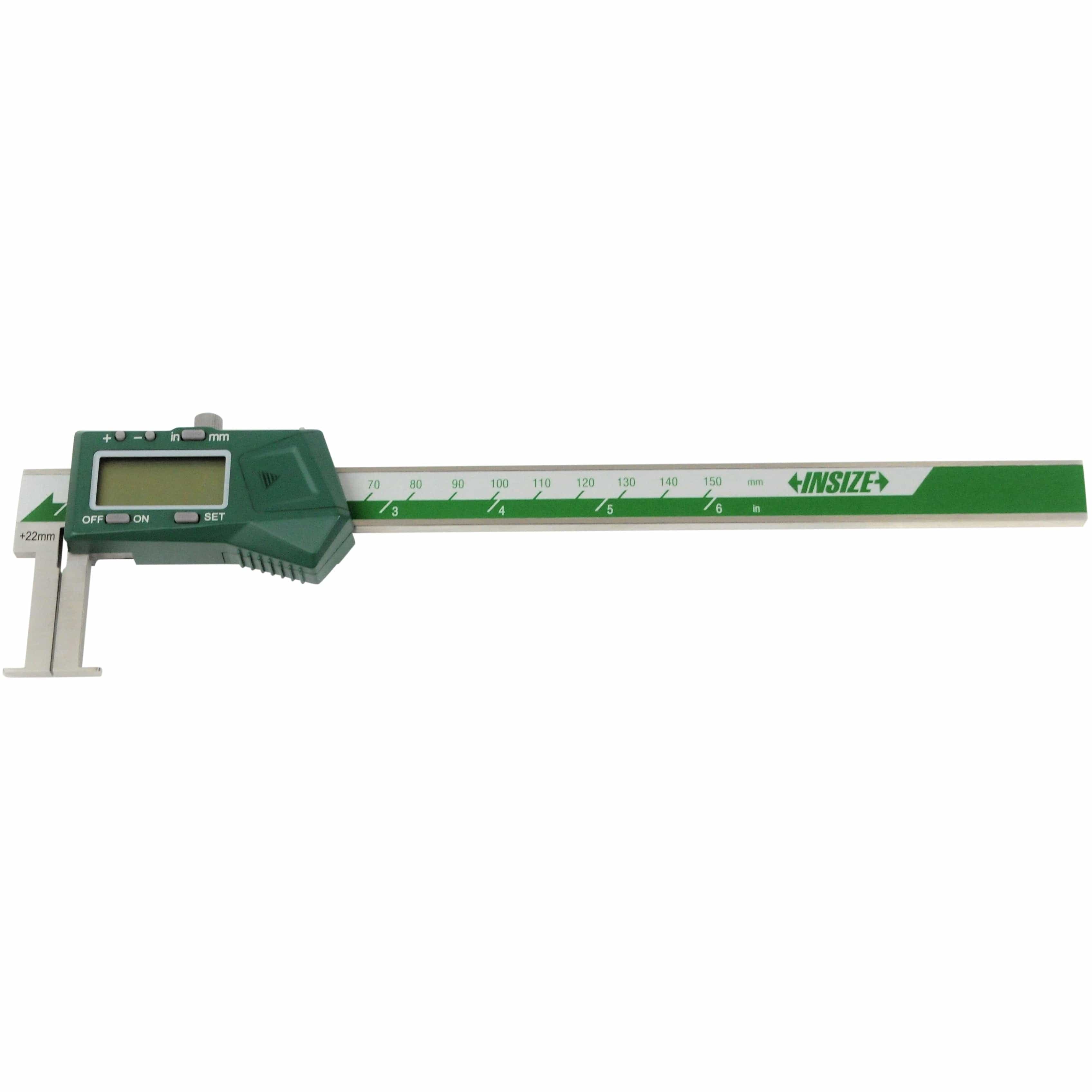

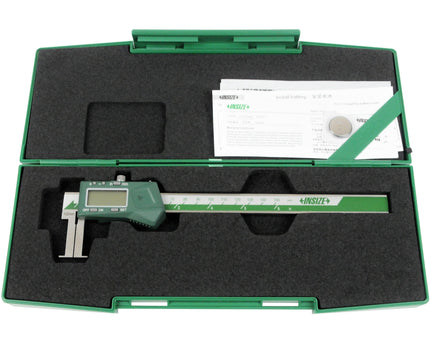

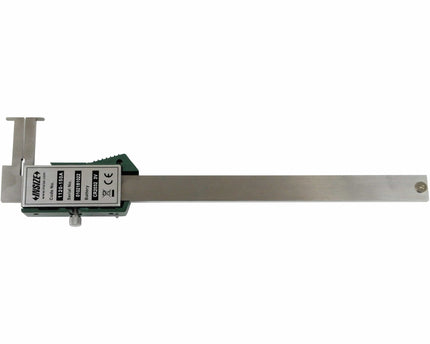

Insize Digital Inside Groove Caliper 22–150 mm
The Insize Digital Inside Groove Caliper 22–150 mm is a precision instrument specifically designed for measuring the diameter of internal grooves with high accuracy. Built with a stainless steel body and equipped with intuitive digital controls, this caliper offers reliable performance in various industrial and machining applications where precise internal dimensioning is essential.

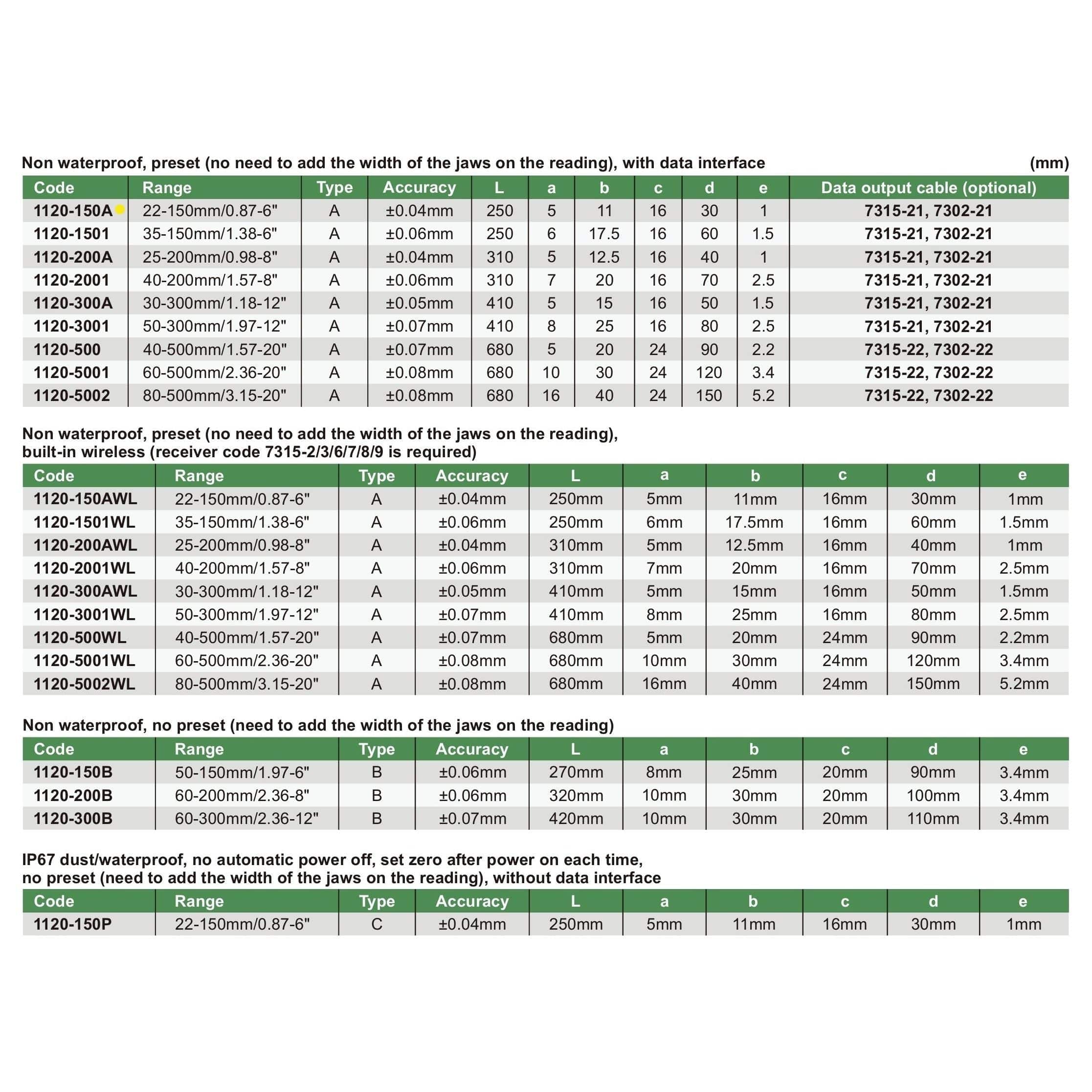

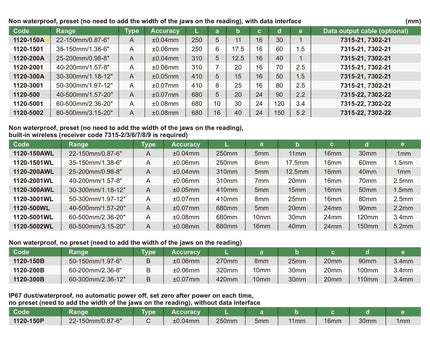

Specifications :
-

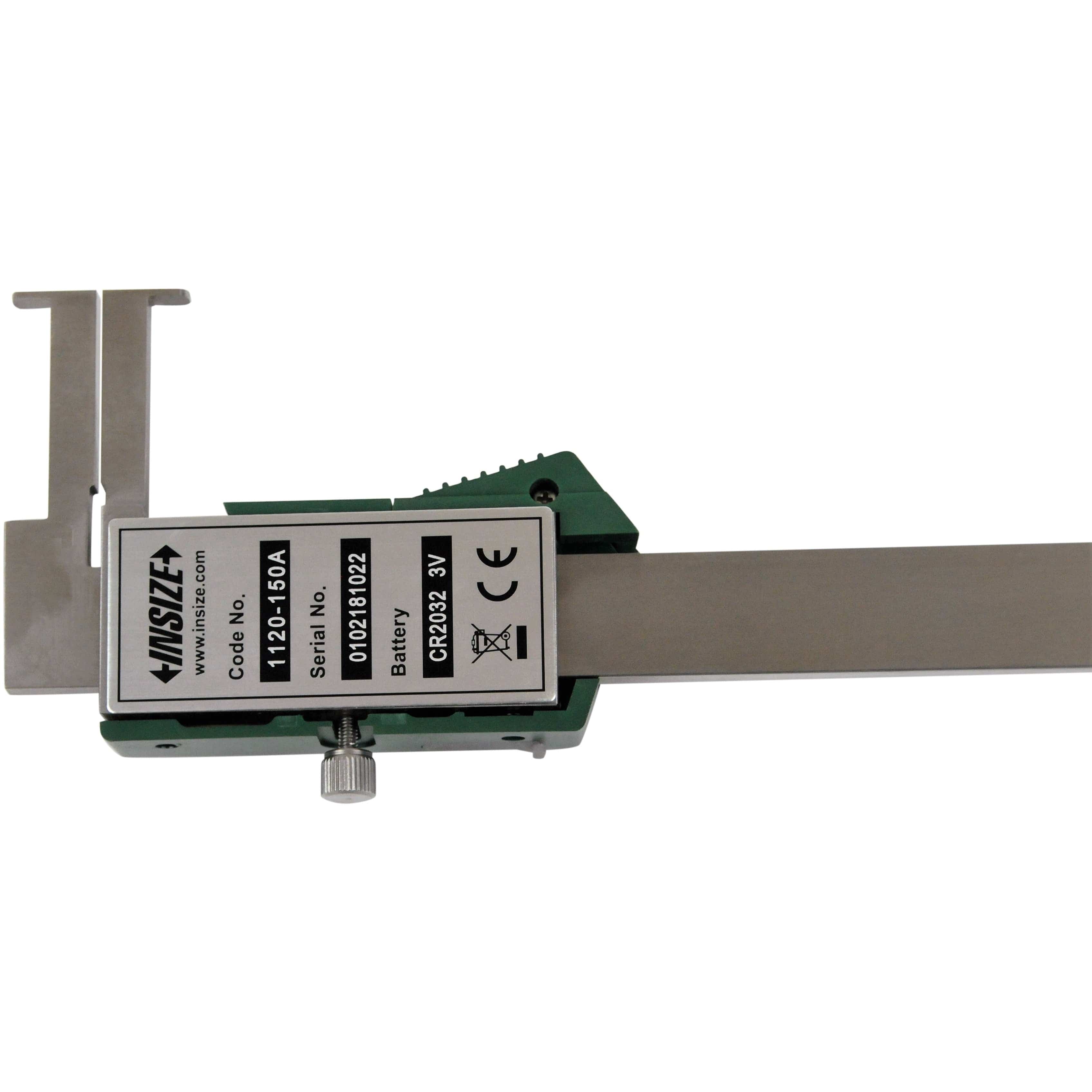

Part No: 1120-150A
-
Range: 22–150 mm / 0.87–6"
-
Resolution: 0.01 mm / 0.0005"
-
Accuracy: ±0.04 mm
-
Type: A
-

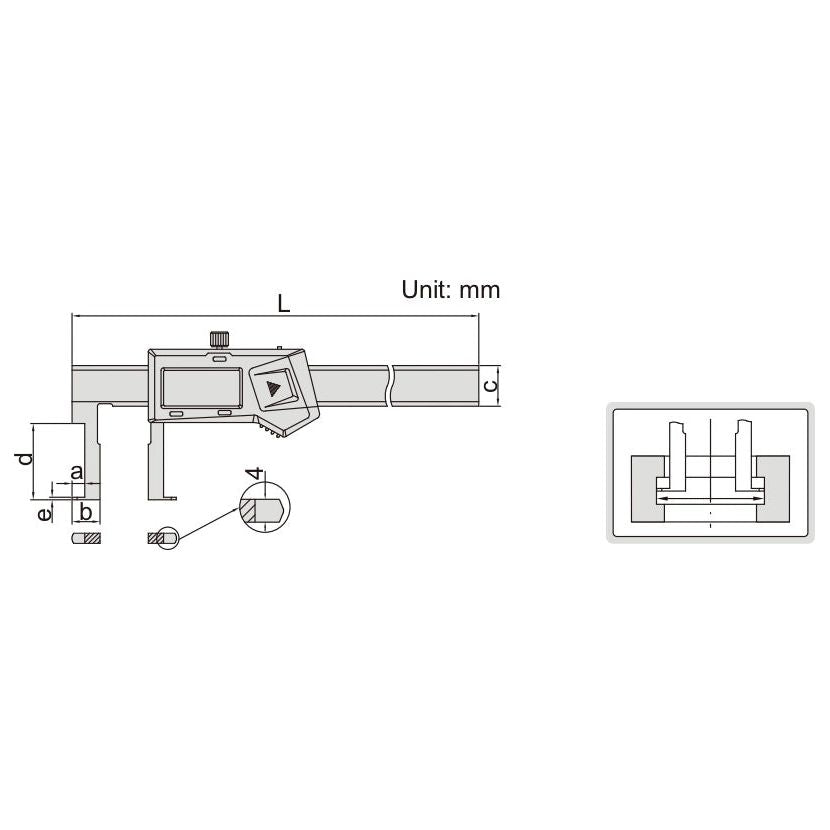

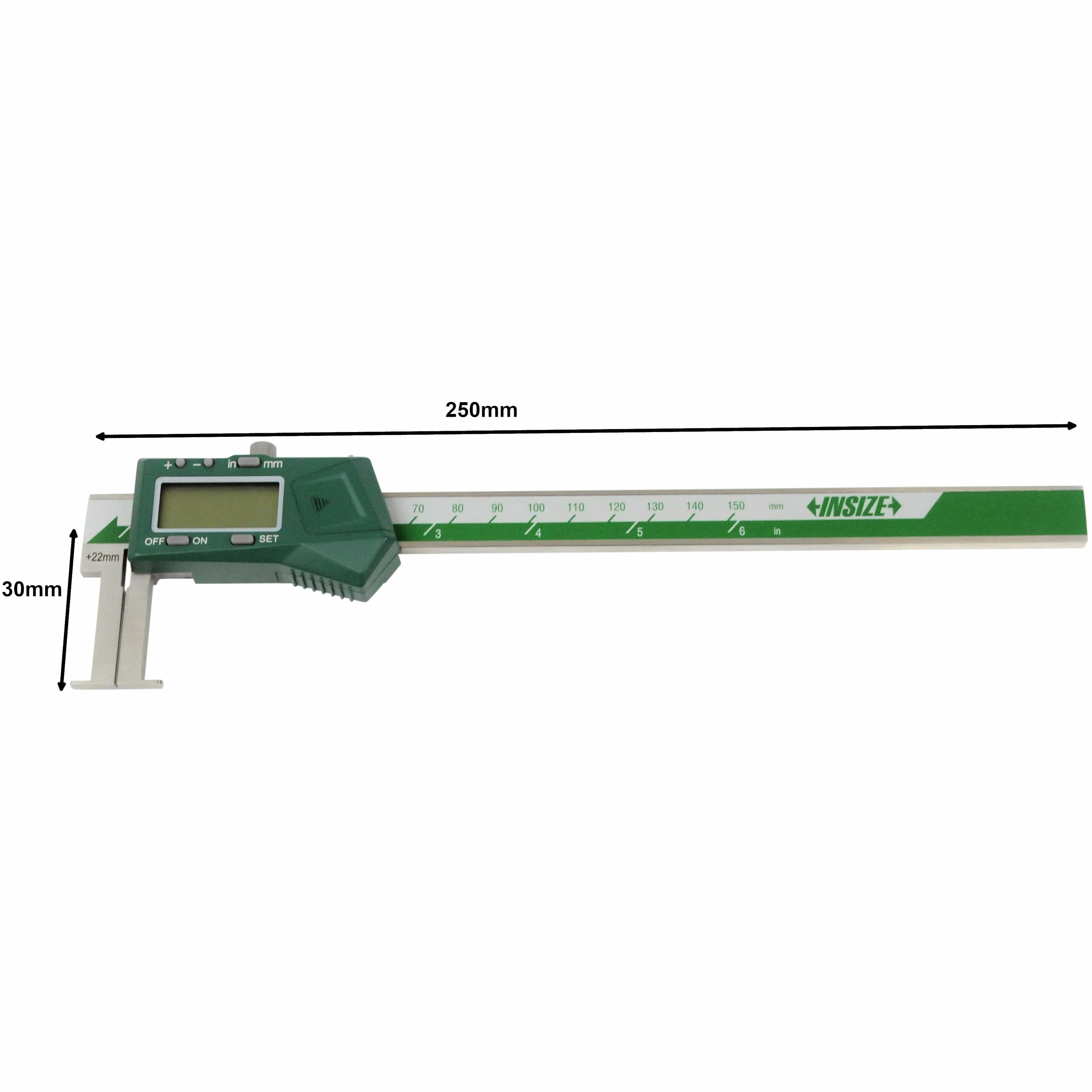

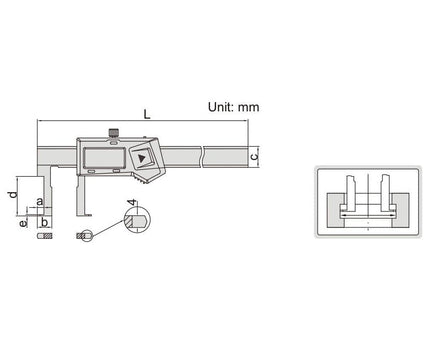

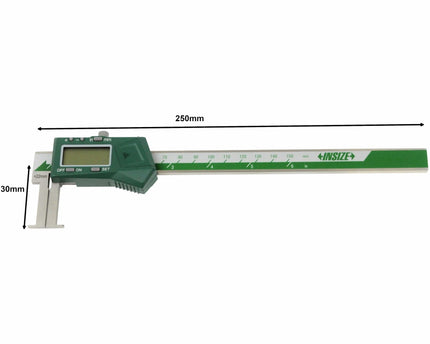

Dimensions: A: 5 mm, B: 11 mm, C: 16 mm, D: 30 mm, E: 1 mm, L: 250 mm
-
Function: Designed to measure groove diameter
-
Buttons: On/Off, Set, mm/inch, Preset (+/-)
-
Power: CR2032 battery, automatic power off; activates by moving the digital unit
-
Data Output: Yes
-
Material: Stainless steel
-
Optional Accessories: Depth stop (Code: 6143), data output cable (Codes: 7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Well designed, durable high precision tools that are suitable for various measuring ranges. This precision instrument is perfect for measuring small distances and making them visible to the user. Easy to use and adjust digital inside groove caliper to measure the diameter of grooves.
