Description

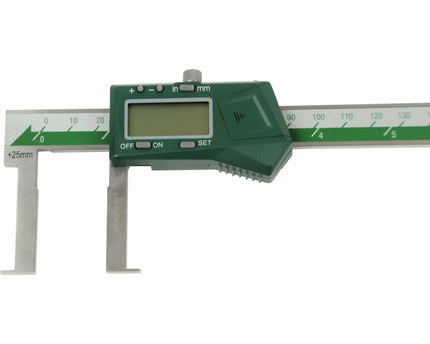

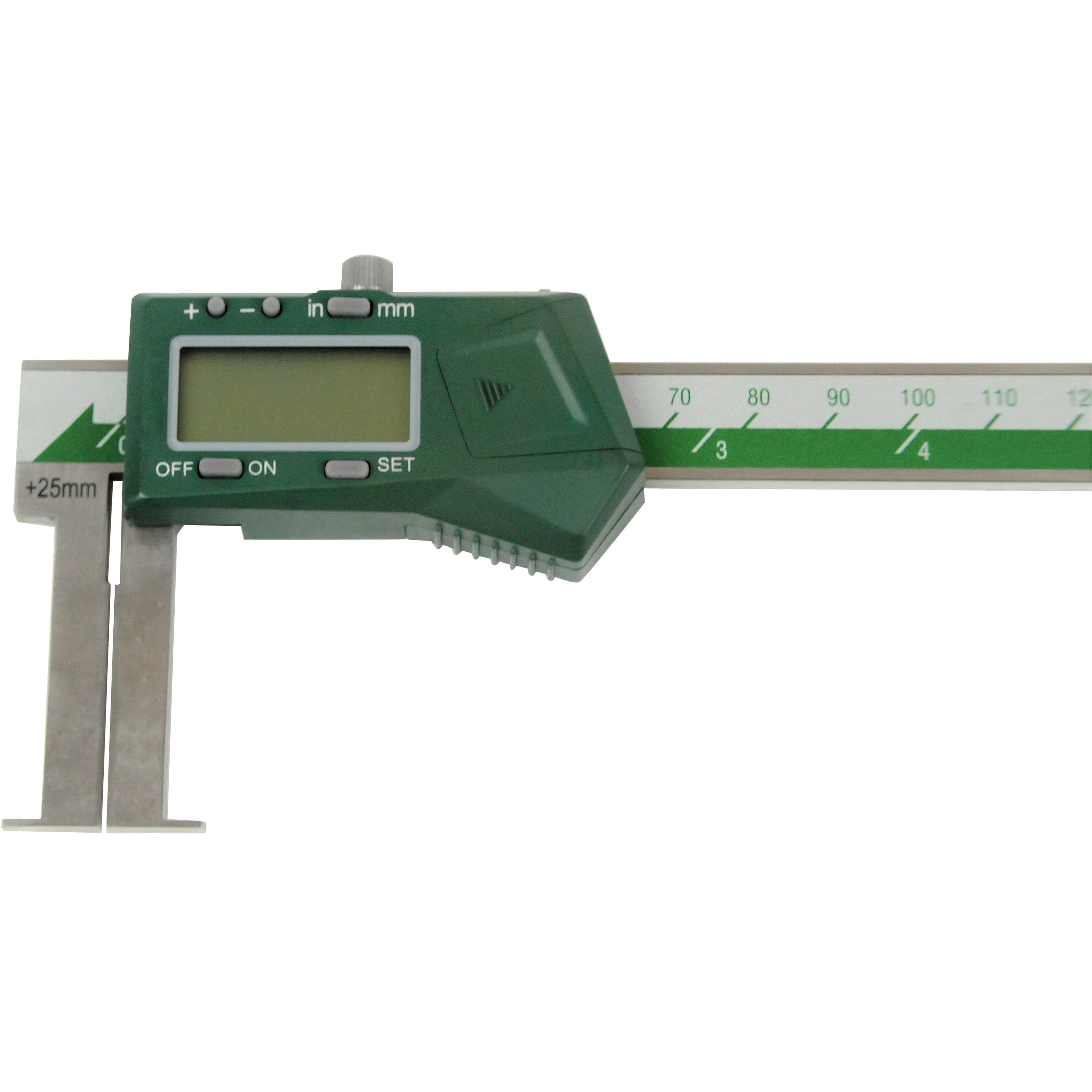

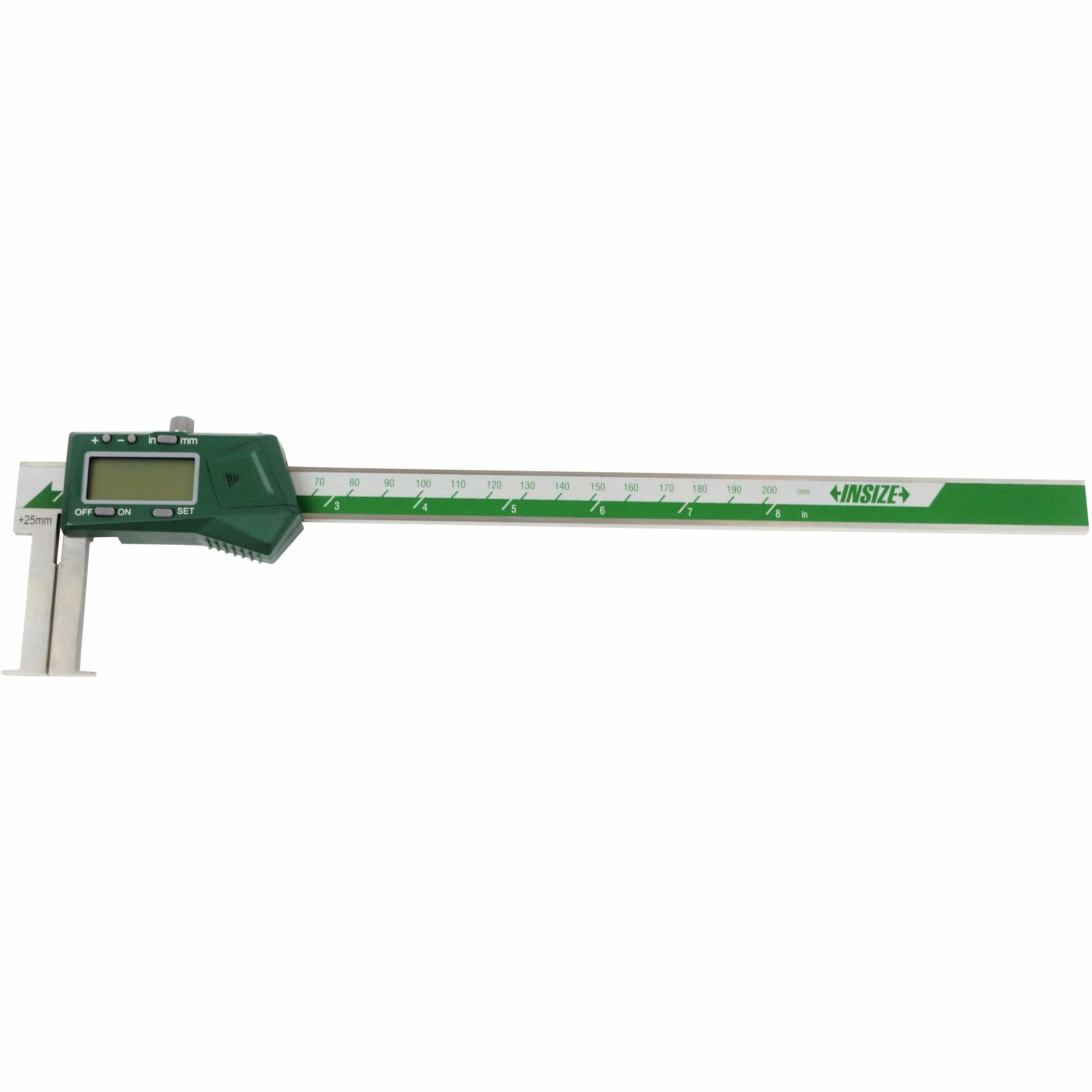

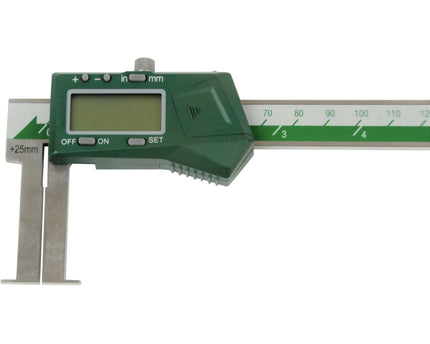

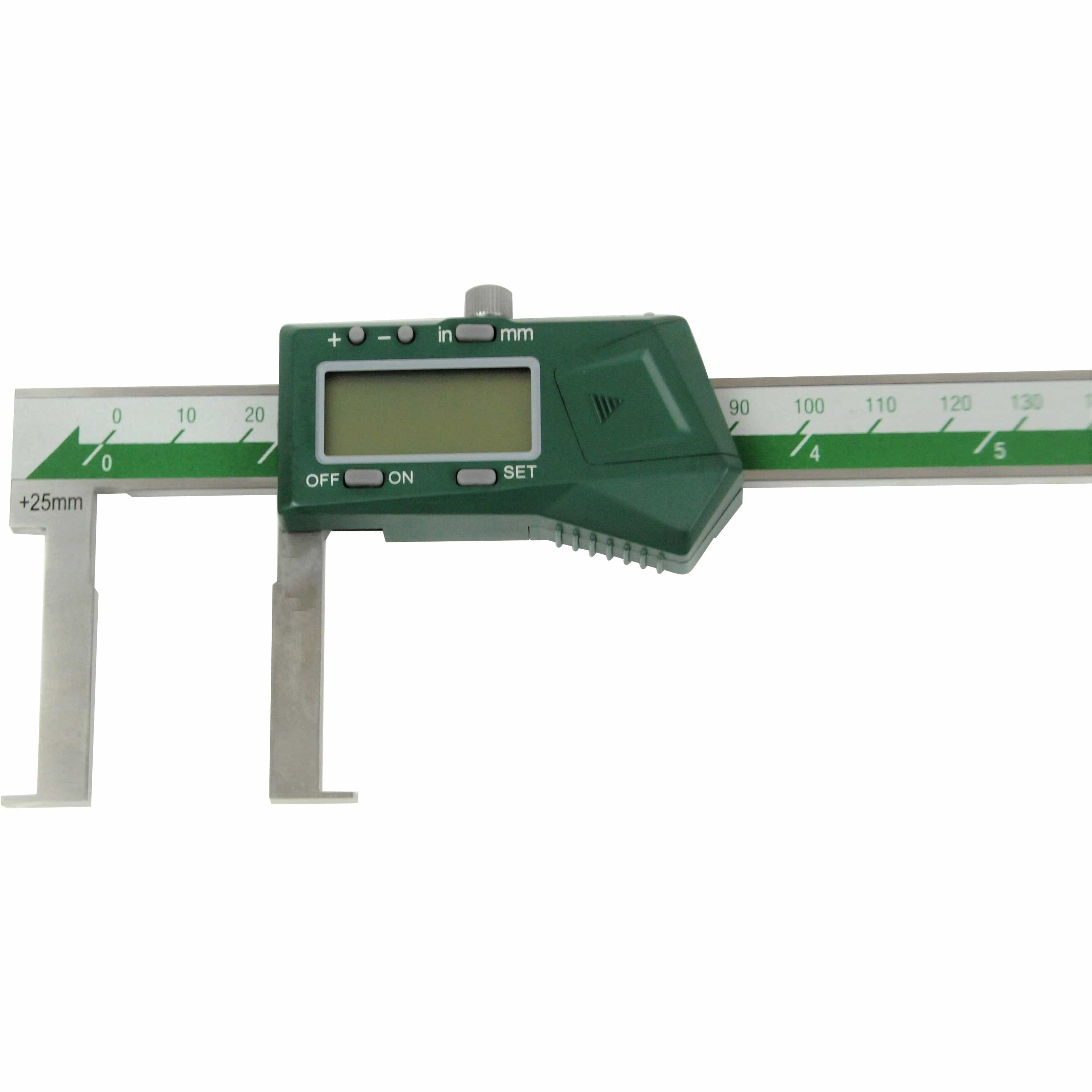

Insize Digital Inside Groove Caliper 25–200 mm
The Insize Digital Inside Groove Caliper 25–200 mm is a precision measuring tool designed specifically for accurately measuring internal groove diameters. With a stainless steel construction and user-friendly digital interface, it is ideal for high-precision applications in machining, inspection, and manufacturing where internal feature verification is critical.

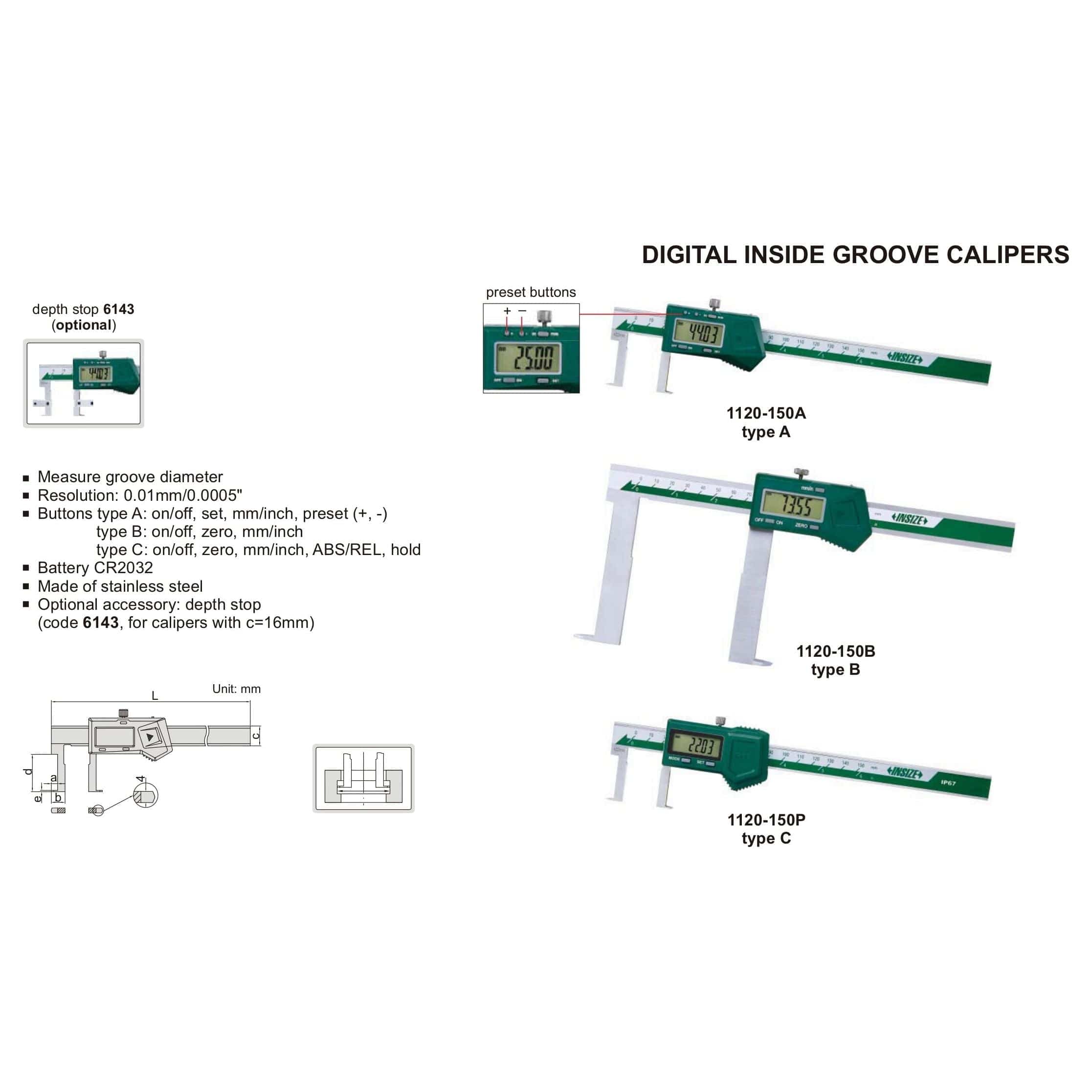

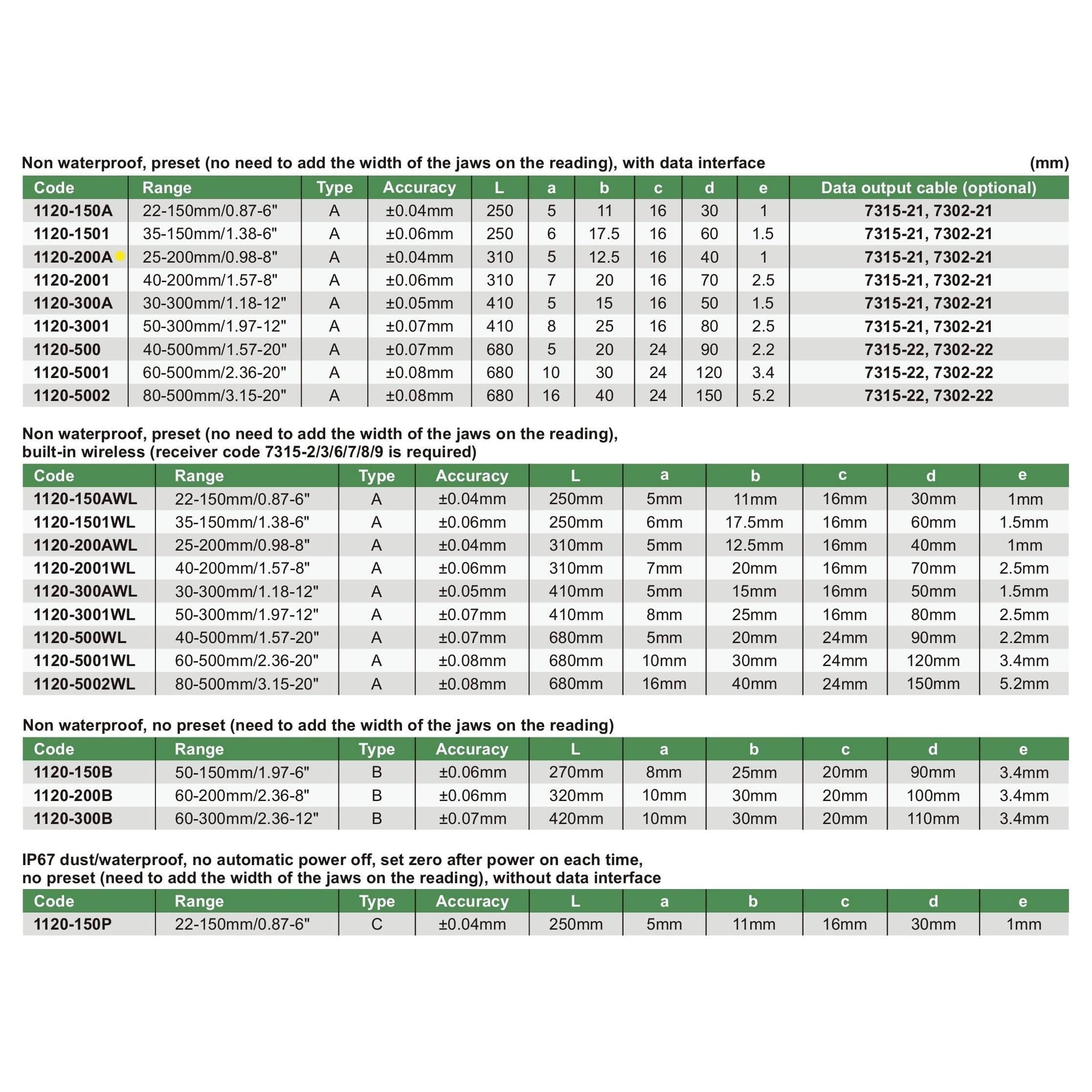

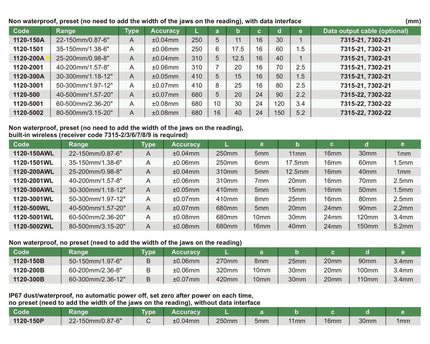

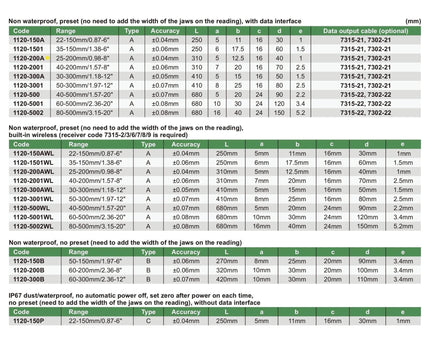

Specifications :
-

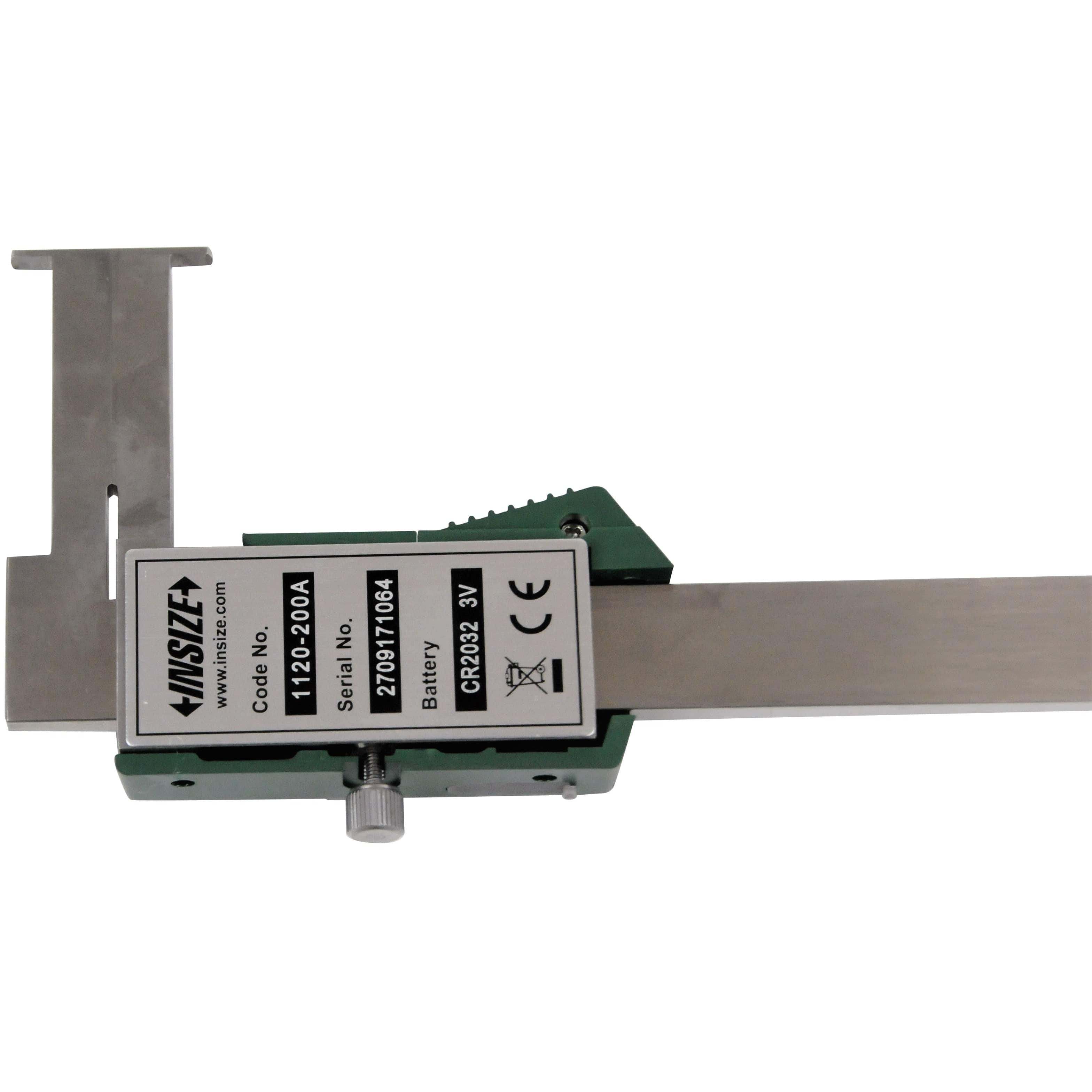

Part No: 1120-200A
-

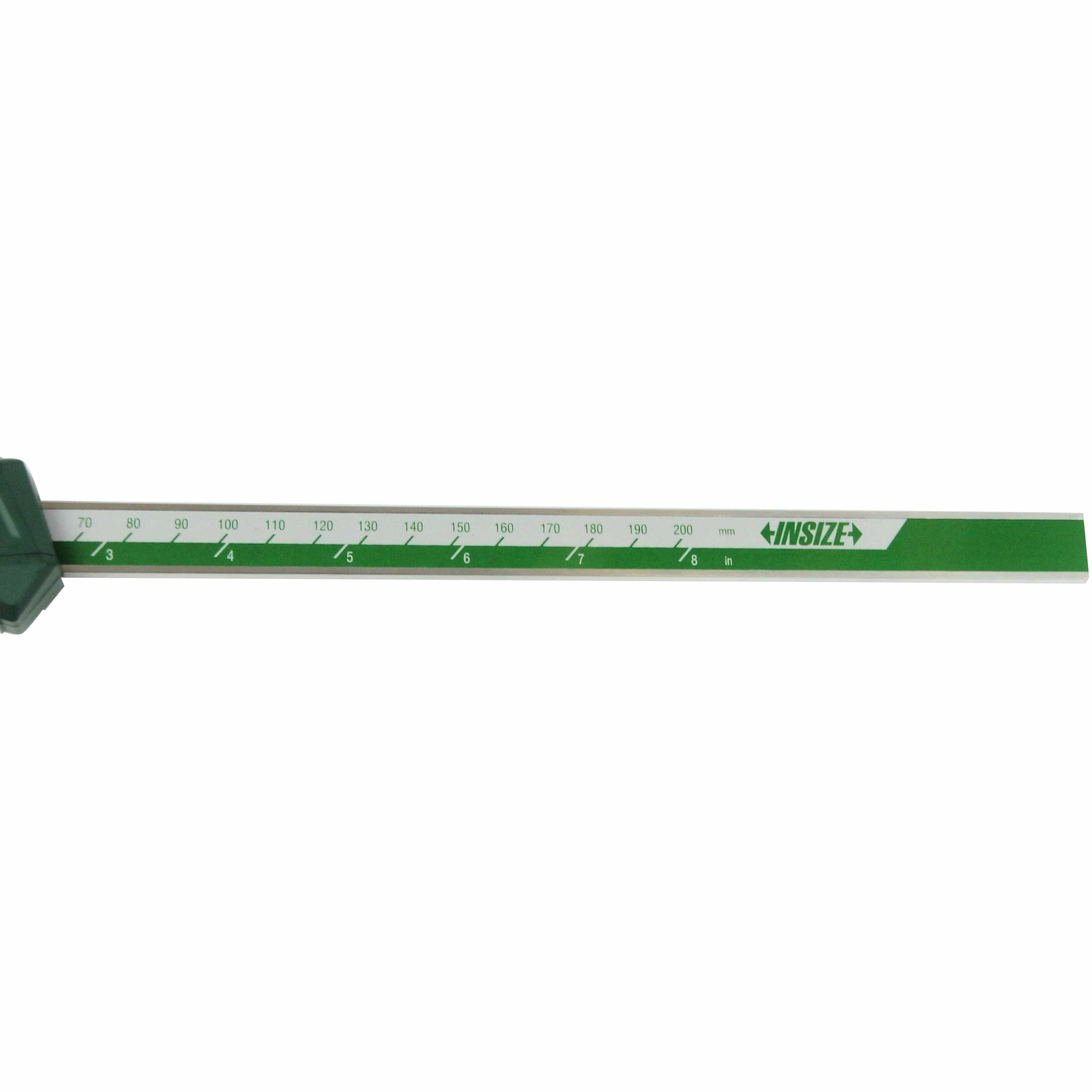

Range: 25–200 mm / 0.98–8"
-
Resolution: 0.01 mm / 0.0005"
-
Accuracy: ±0.04 mm
-
Type: A
-

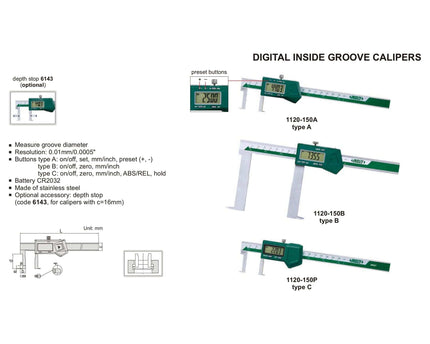

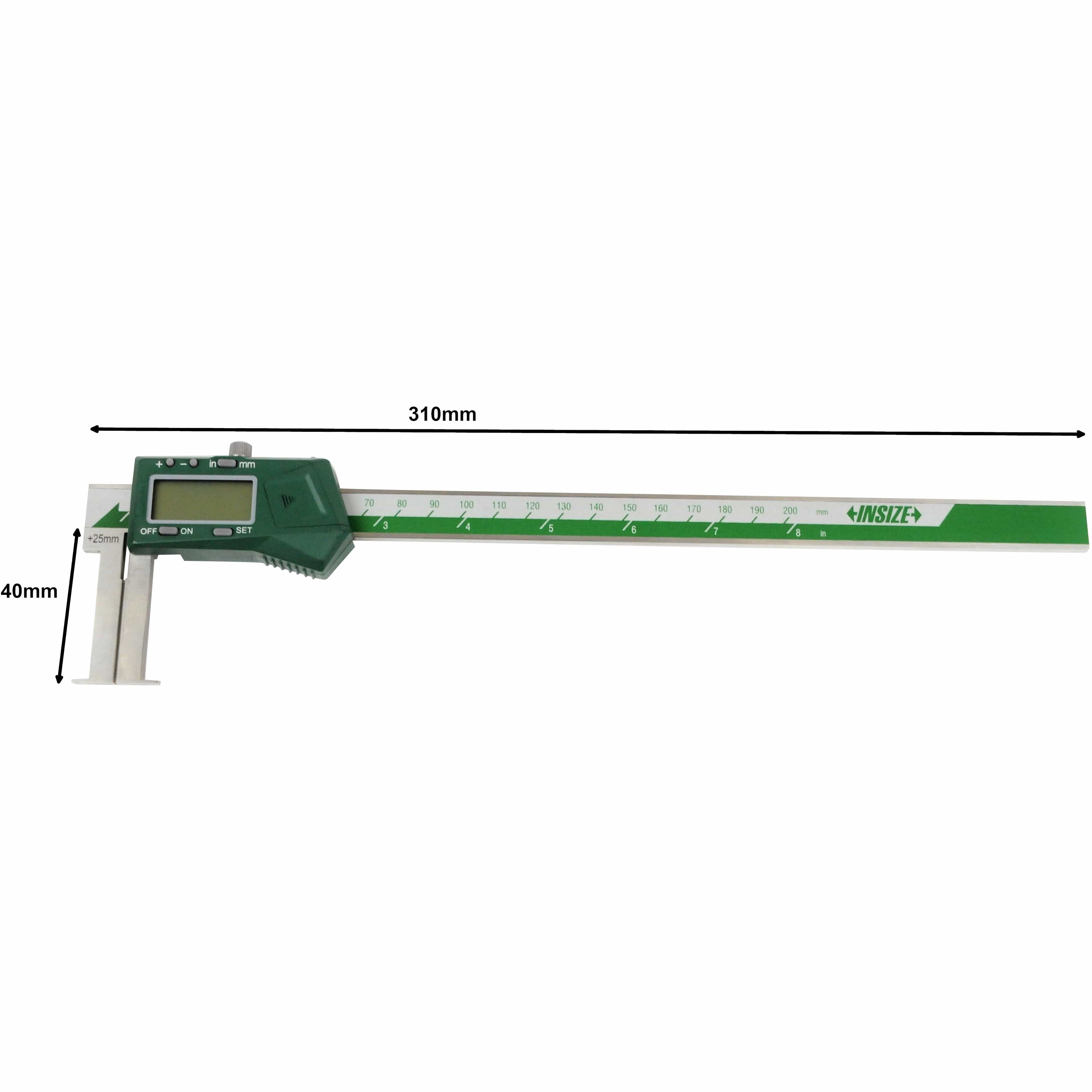

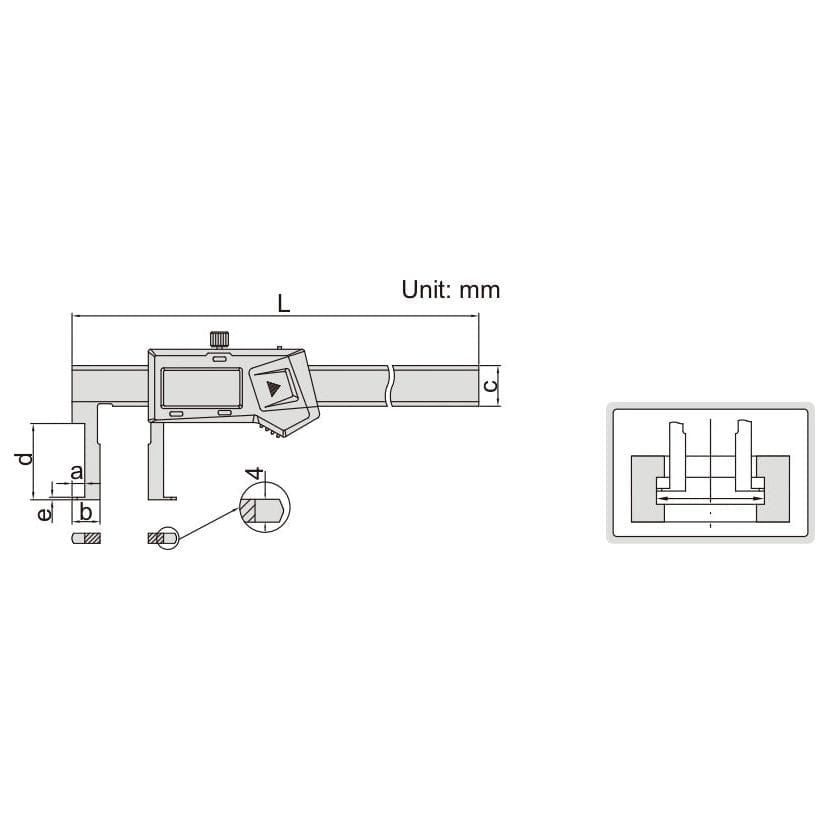

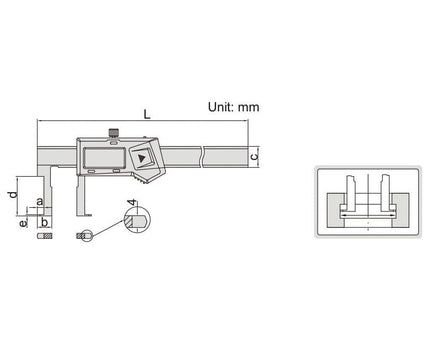

Dimensions: A: 5 mm, B: 12.5 mm, C: 16 mm, D: 40 mm, E: 1 mm, L: 310 mm
-
Function: Measures groove diameter
-
Buttons: On/Off, Set, mm/inch, Preset (+/-)
-

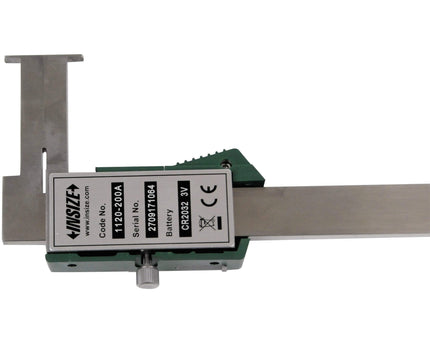

Power: CR2032 battery, automatic power off; activates by moving the digital unit
-
Data Output: Yes
-

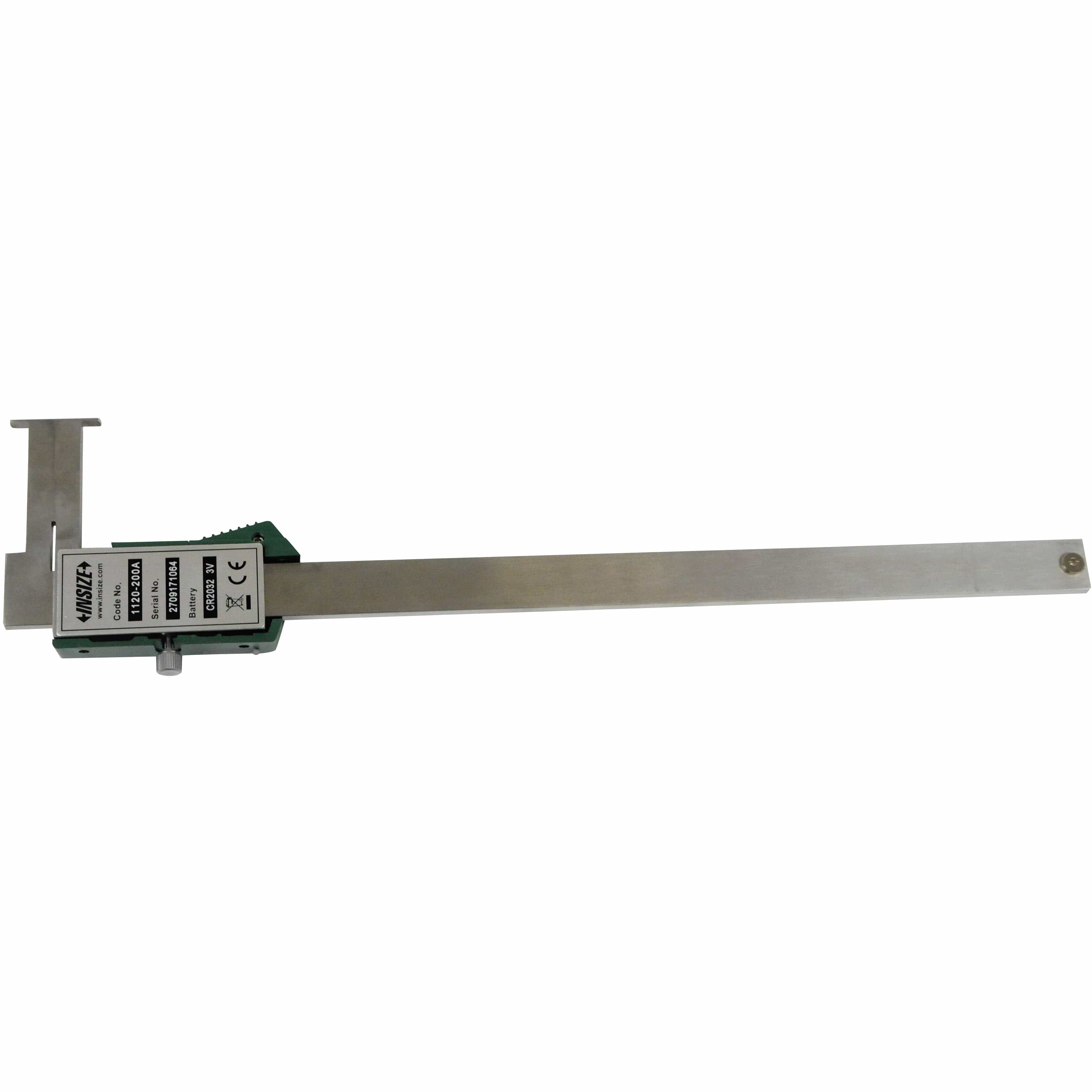

Material: Stainless steel
-
Optional Accessories: Depth stop (Code: 6143), data output cable (Codes: 7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Well designed, durable high precision tools that are suitable for various measuring ranges. This precision instrument is perfect for measuring small distances and making them visible to the user. Easy to use and adjust digital inside groove caliper to measure the diameter of grooves.
