Description

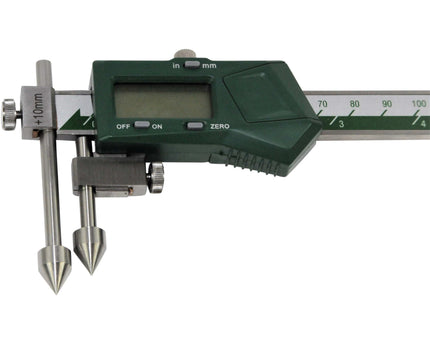

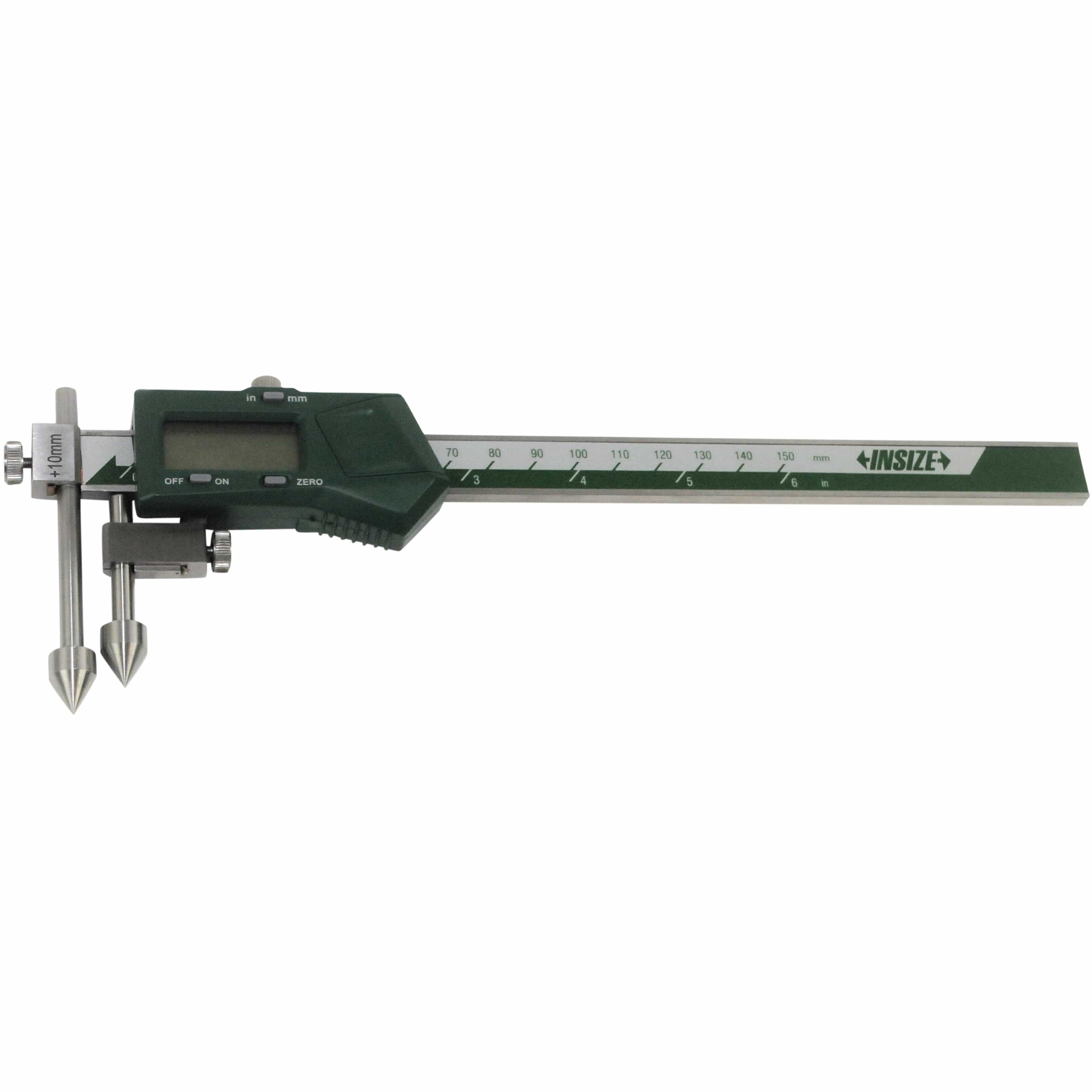

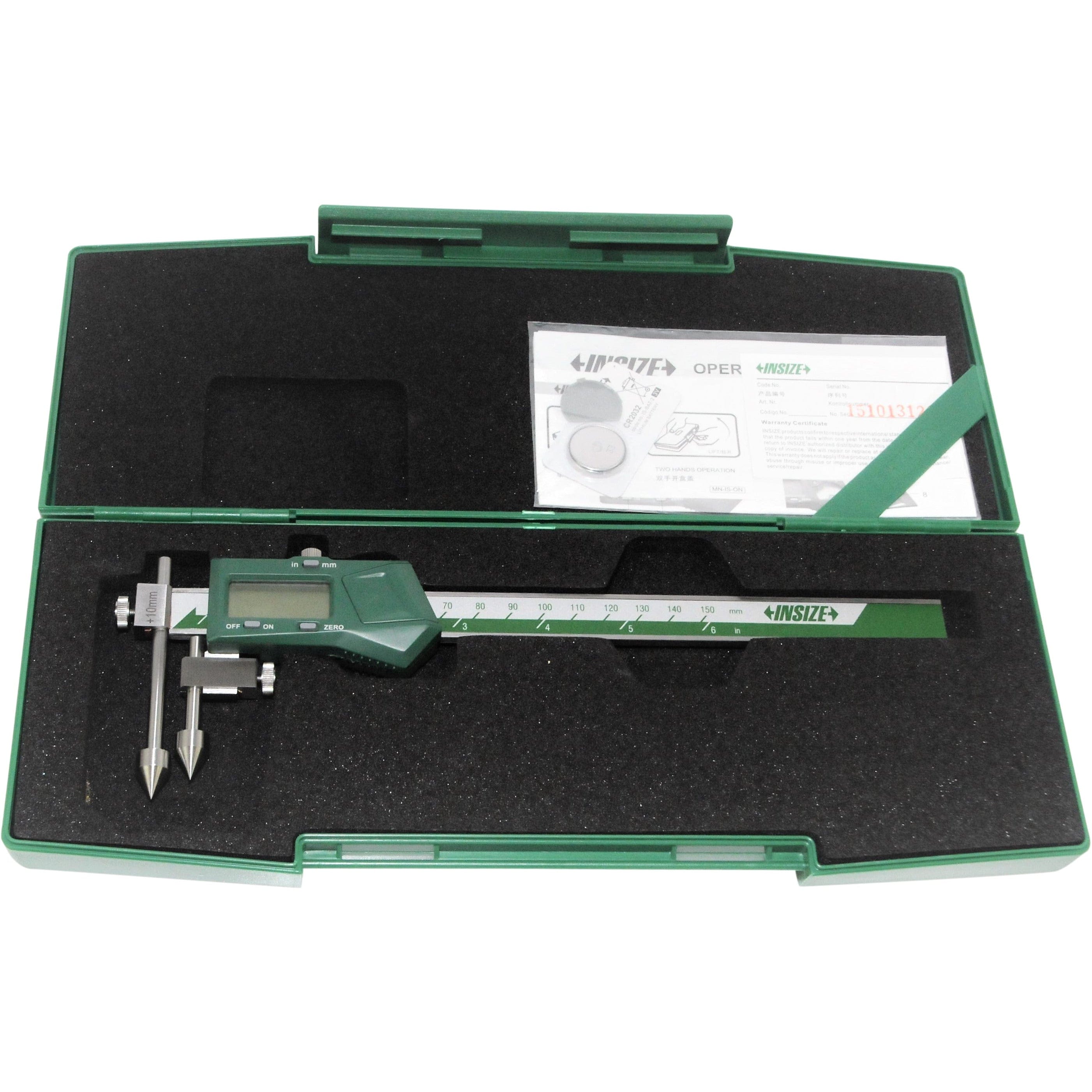

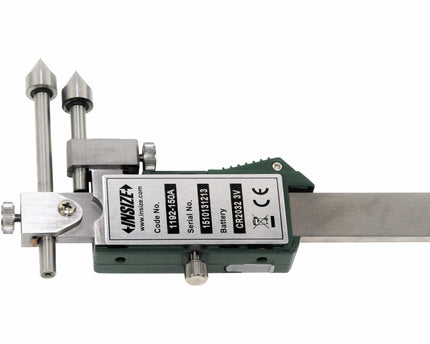

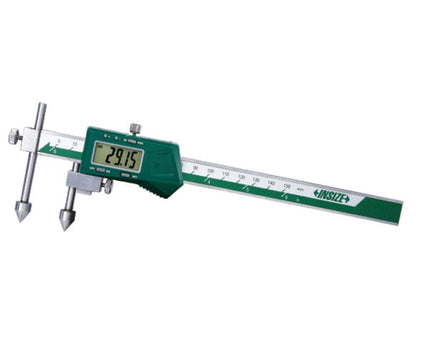

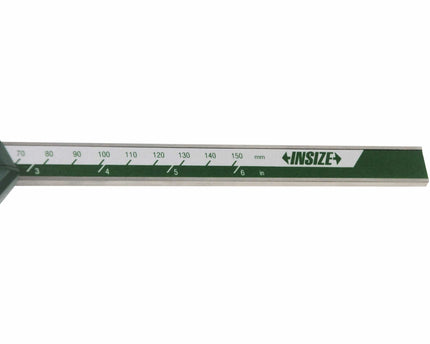

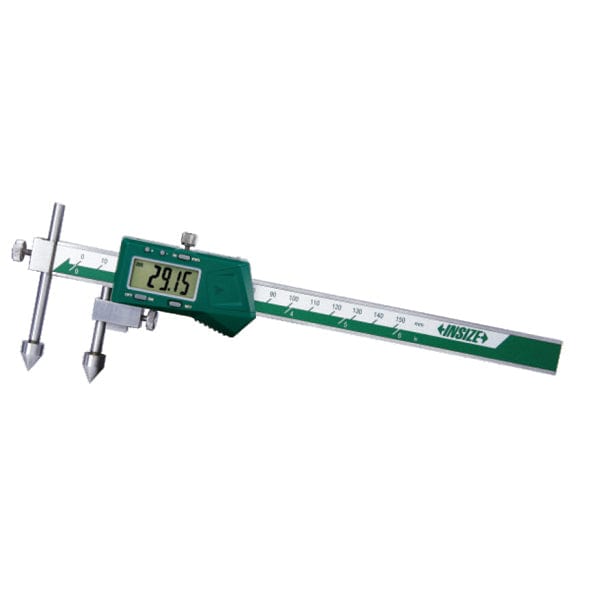

Insize 10–150 mm Digital Offset Caliper
A precision digital offset caliper designed for accurate measurement of hole centre distances on the same or offset planes. Manufactured from stainless steel and engineered for smooth, reliable operation, it is ideal for machining, inspection, and general workshop measurement tasks.

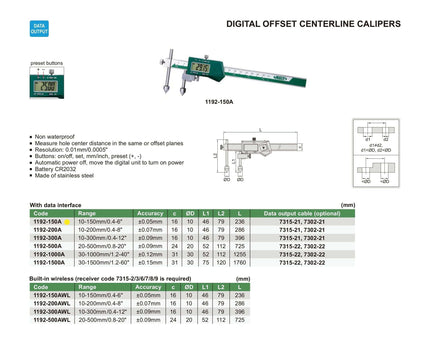

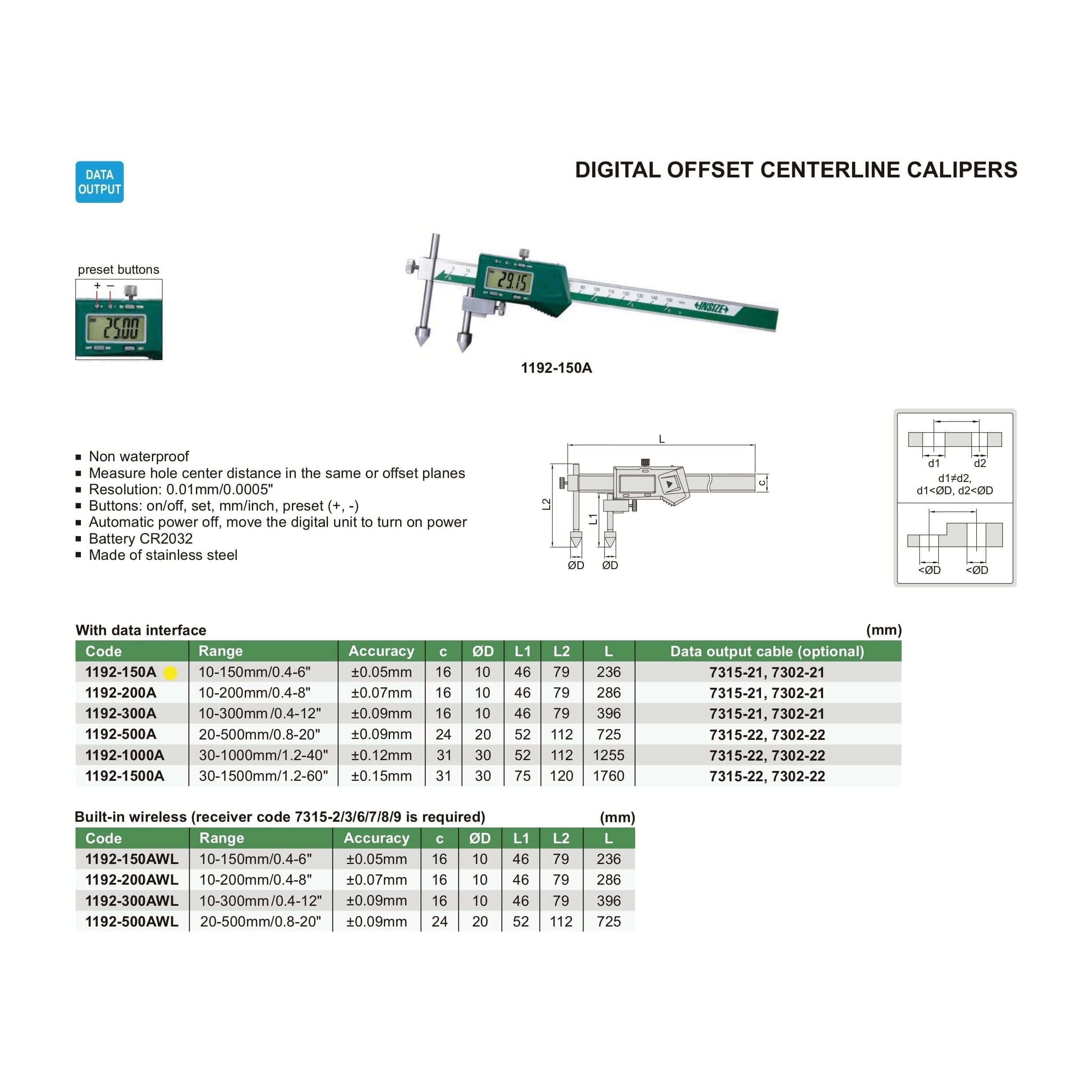

Specifications:
- Part No: 1192-150A
- Accuracy: ±0.05 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 10–150 mm / 0.4–6"

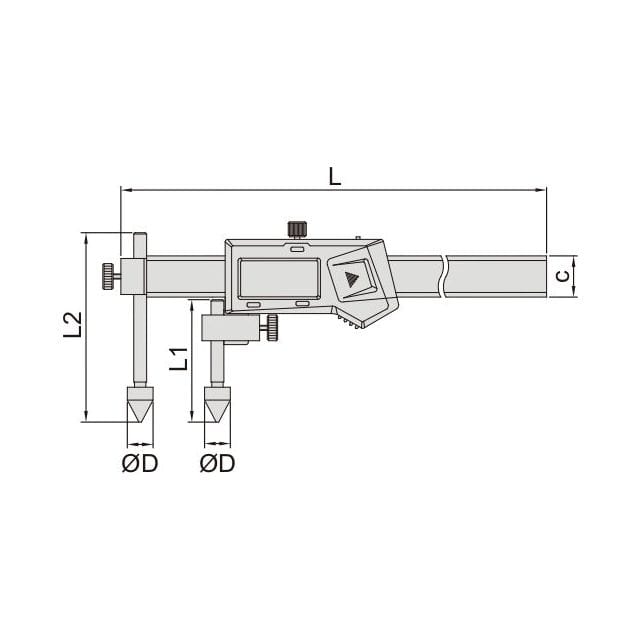

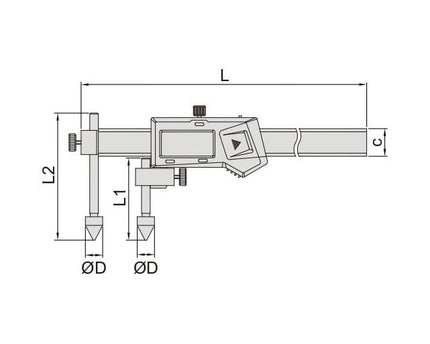

- C: 16 mm
- L: 236 mm
- L1: 46 mm
- L2: 79 mm

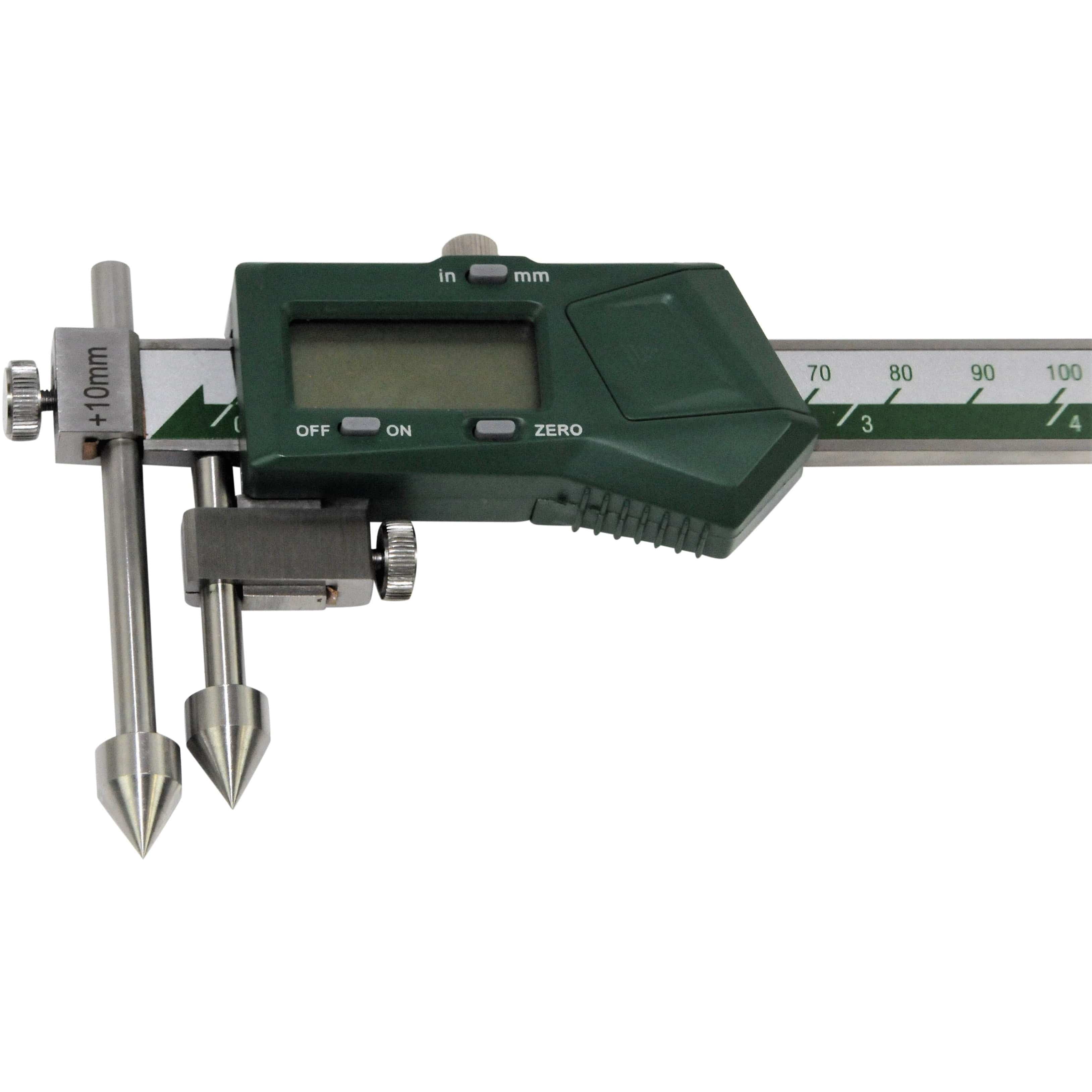

- Button Functions: On/Off, Set, Inch/mm, Preset (+/-)
- Automatic power-off with movement-activated wake-up
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/5B, 7305-SPC2A)
Well-designed and durable, this high-precision instrument provides accurate measurements for a wide range of applications. Easy to operate and adjust, the digital offset caliper offers dependable performance when measuring hole centre distances on aligned or offset planes.
