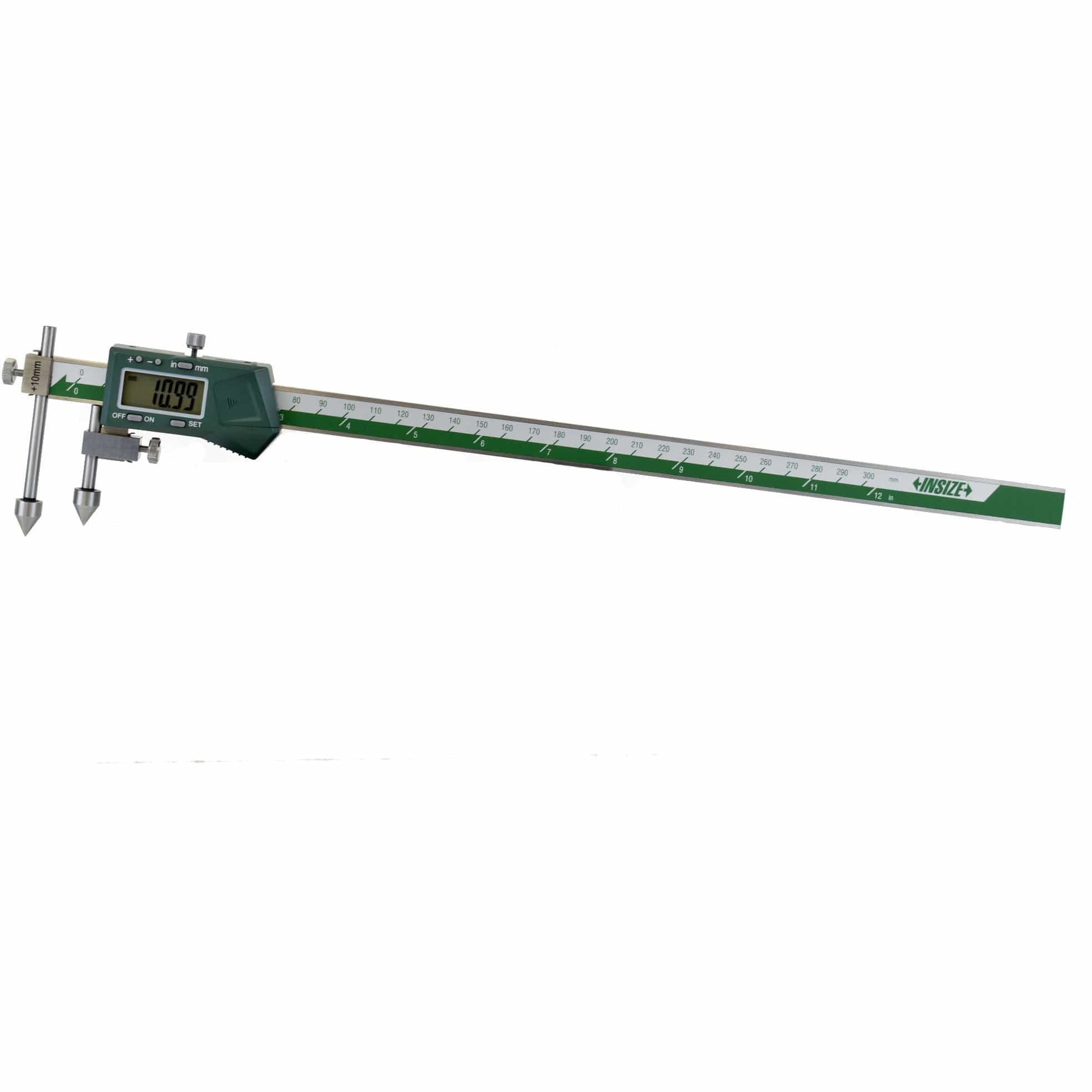

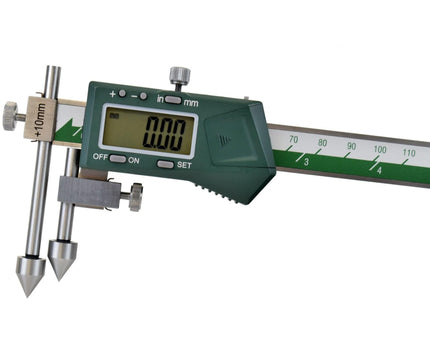

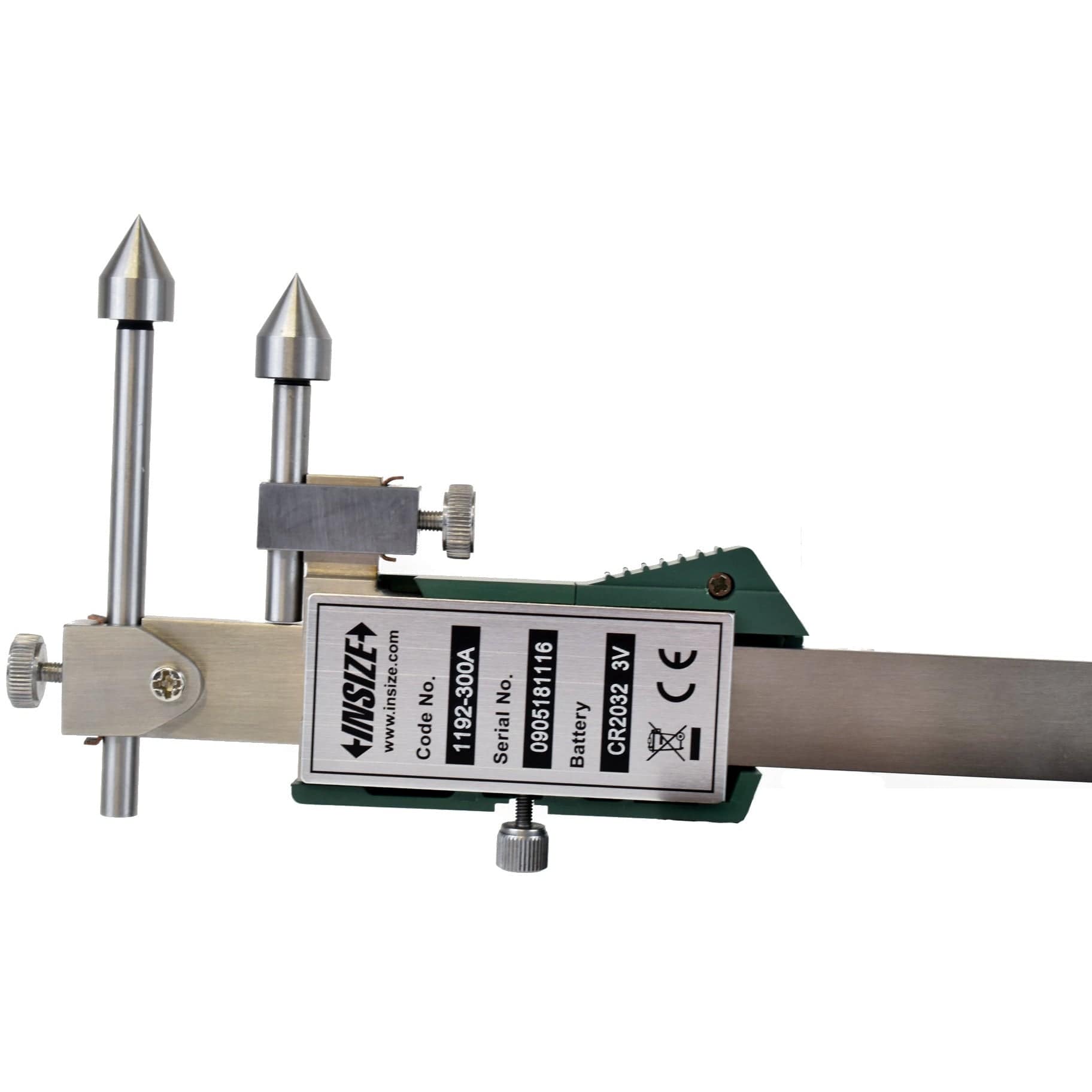

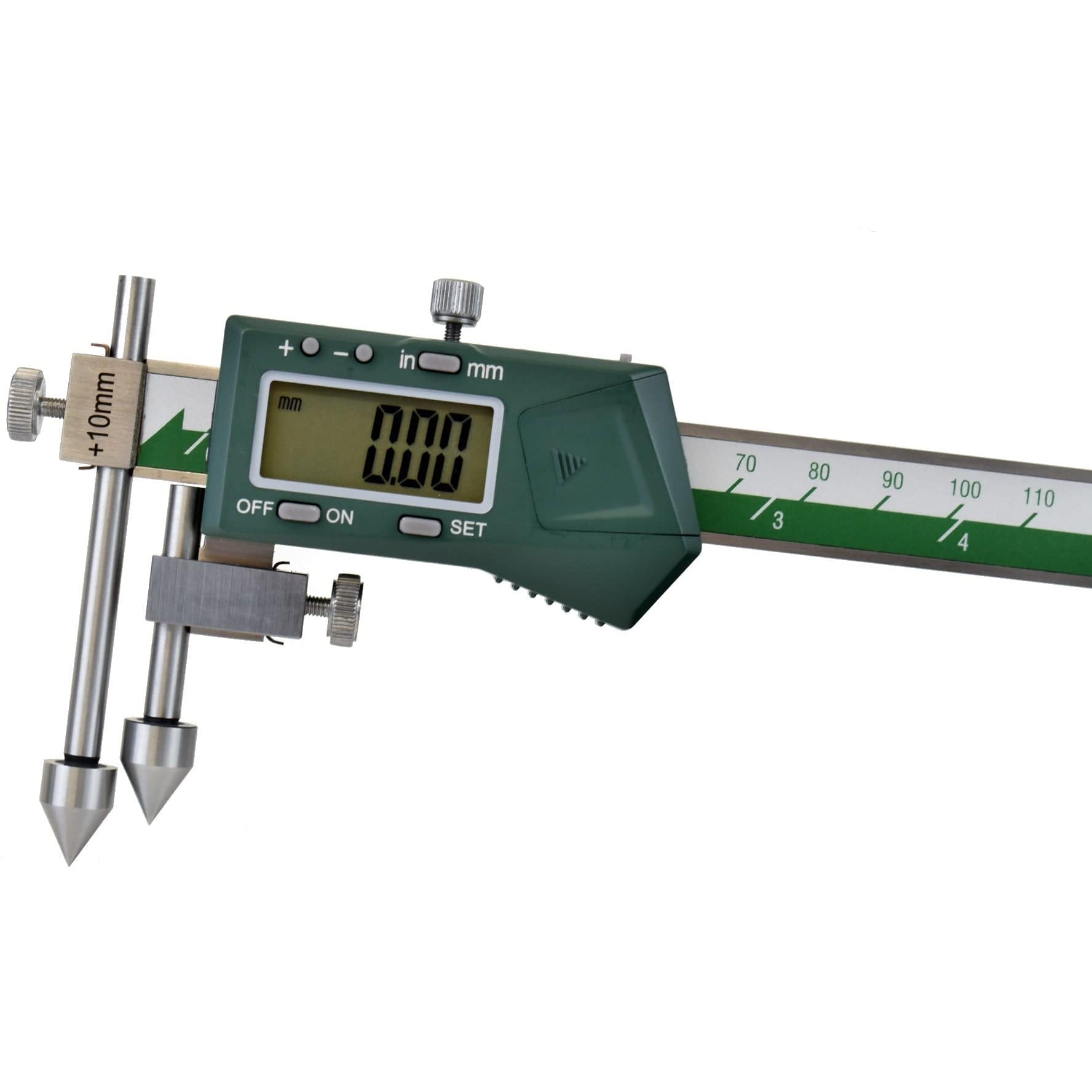

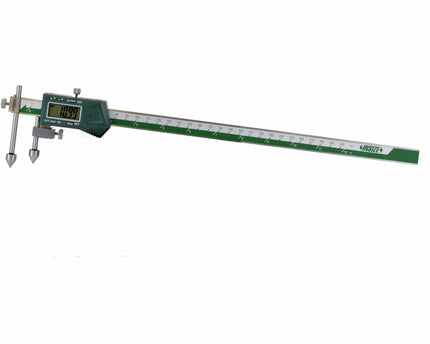

Insize 10–300 mm Digital Offset Caliper
A precision digital offset caliper designed for measuring hole centre distances on the same plane or offset planes. Constructed from stainless steel and engineered for smooth, stable travel, it provides accurate and repeatable measurements for machining, fabrication, and inspection work.

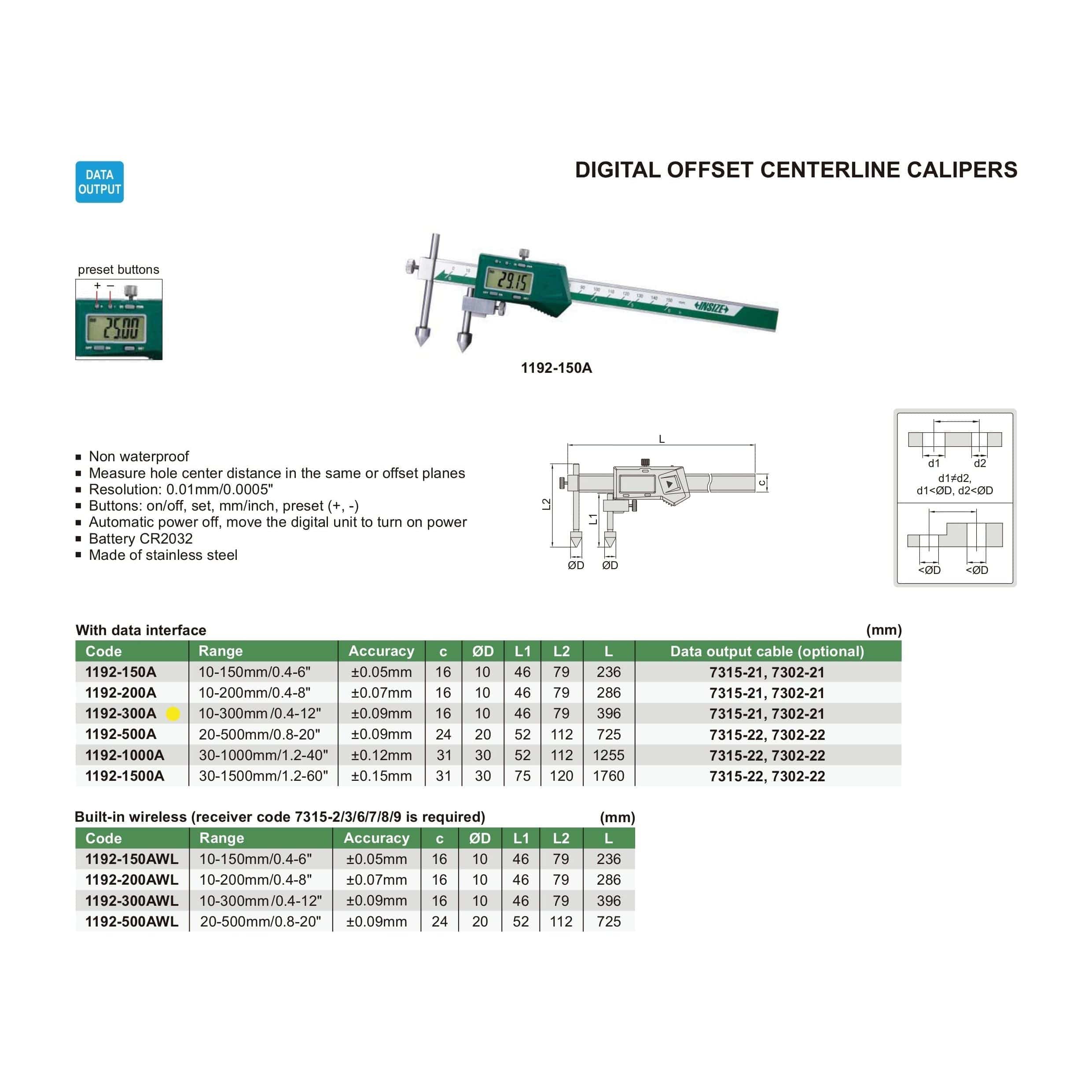

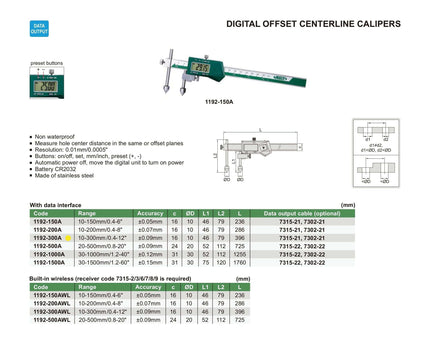

Specifications:

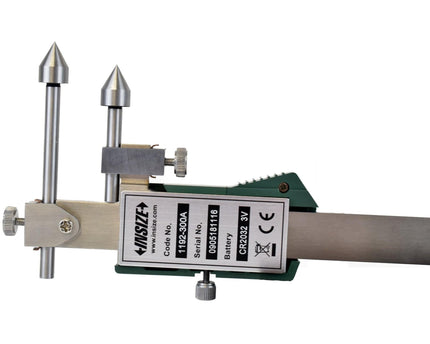

- Part No: 1192-300A
- Accuracy: ±0.05 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 10–300 mm / 0.4–12"

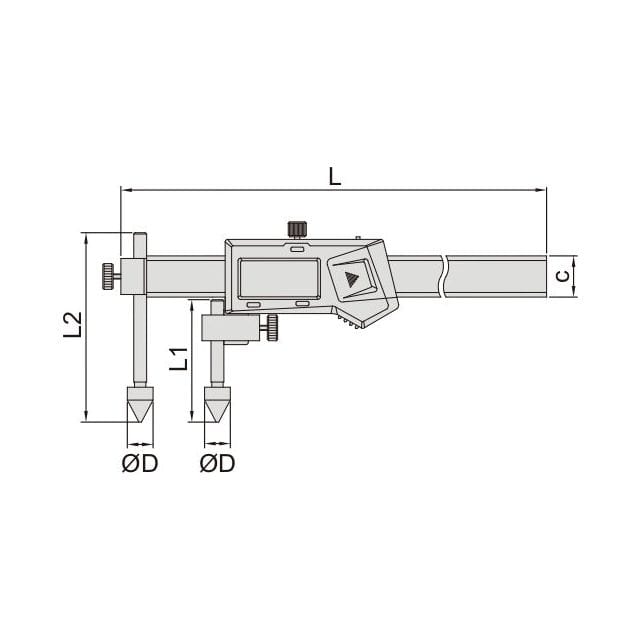

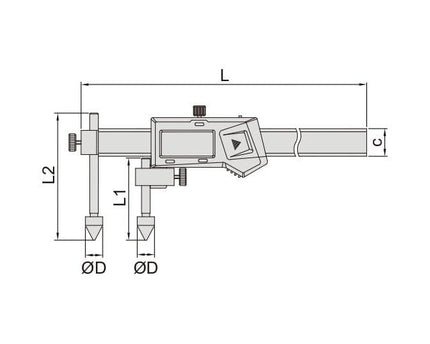

- C: 16 mm
- L: 236 mm
- L1: 46 mm
- L2: 79 mm
- Button Functions: On/off, Set, Inch/mm, Preset (+, –)
-
Automatic power off; move digital unit to turn on
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/5B, 7305-SPC2A)
Well-designed and built for durability, this high-precision tool allows reliable measurement of hole centre distances in both aligned and offset configurations. Easy to operate with clear digital readout, it is ideal for workshop, maintenance, and inspection environments requiring dependable accuracy.
