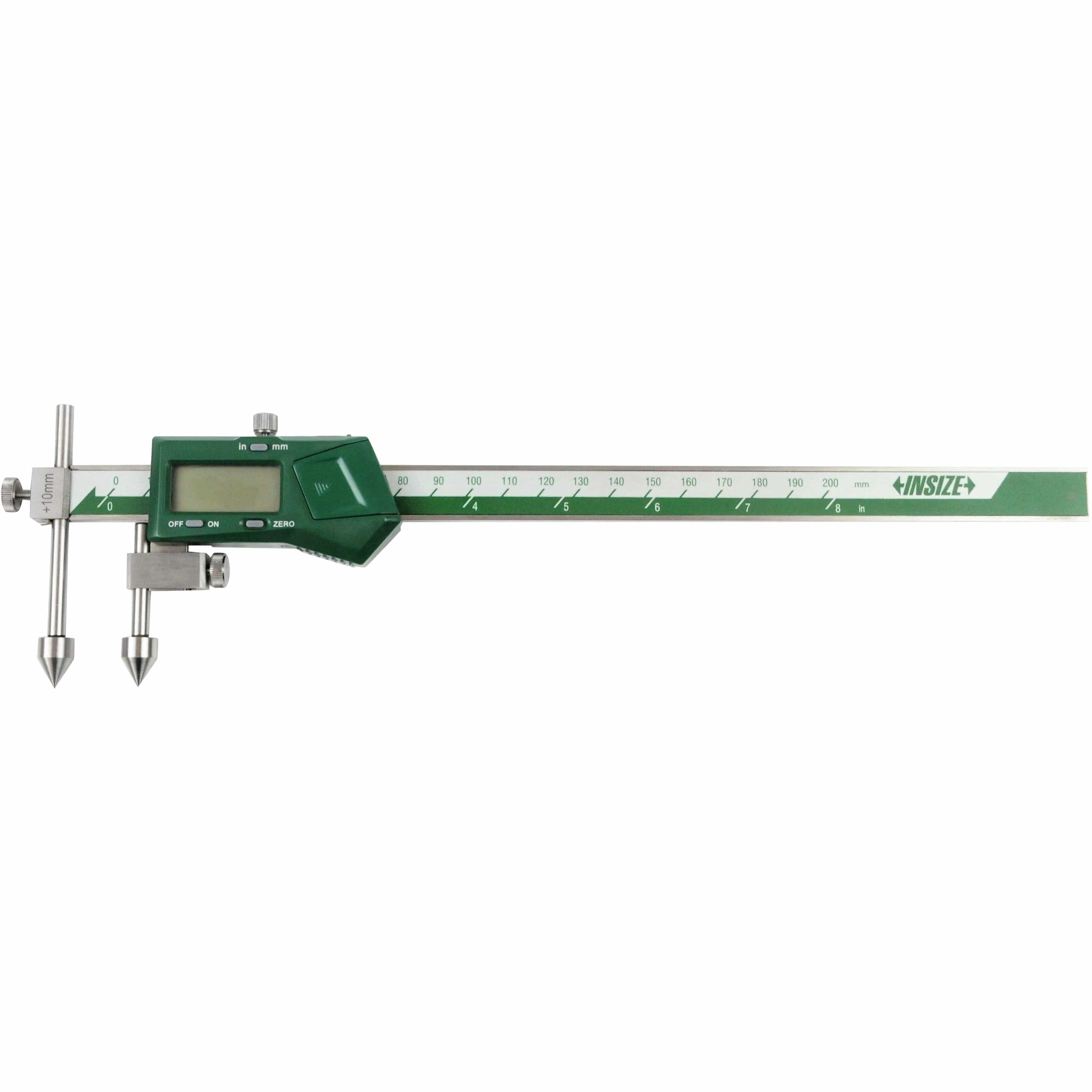

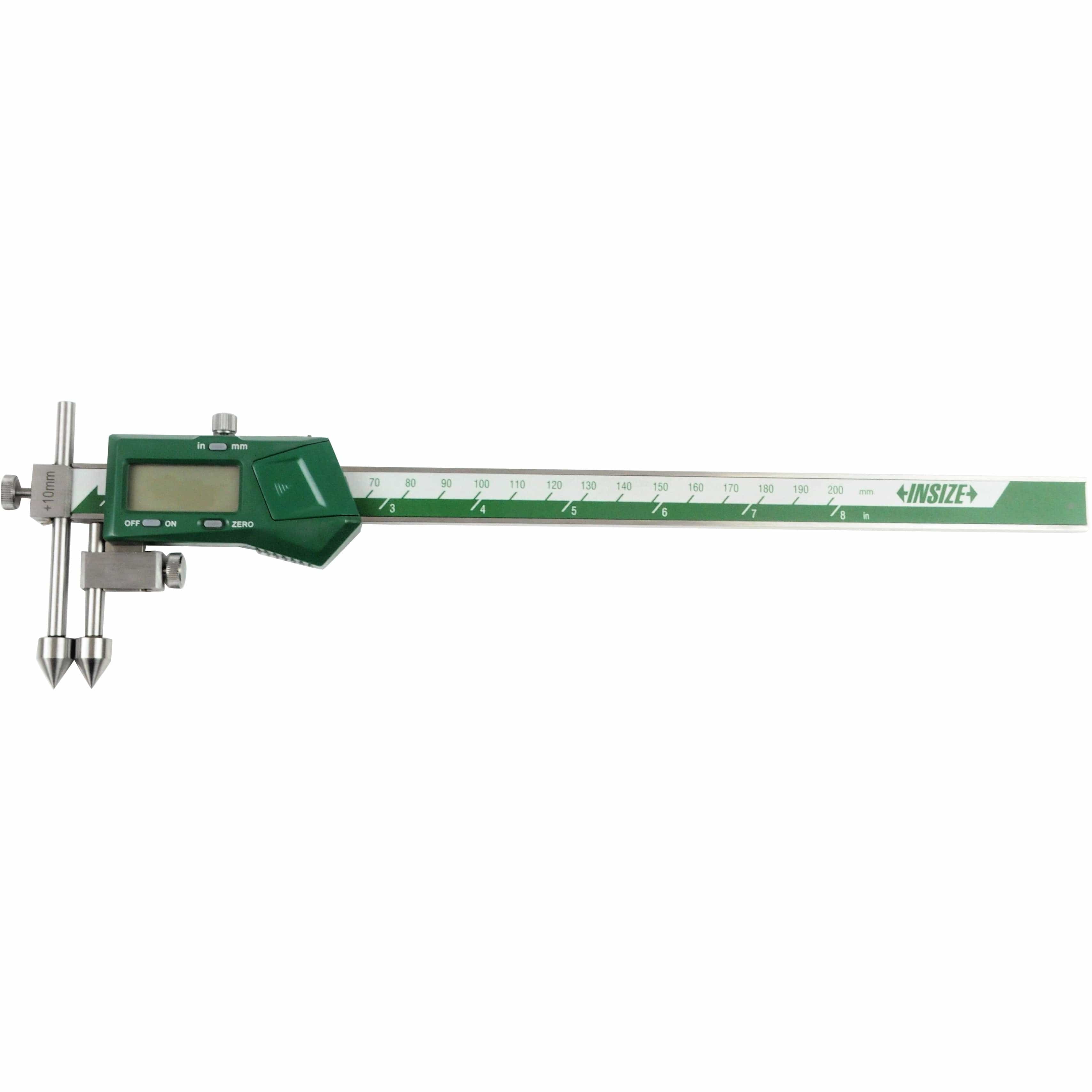

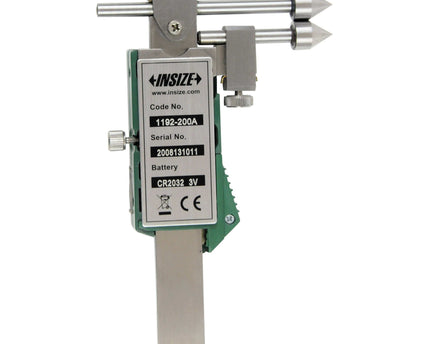

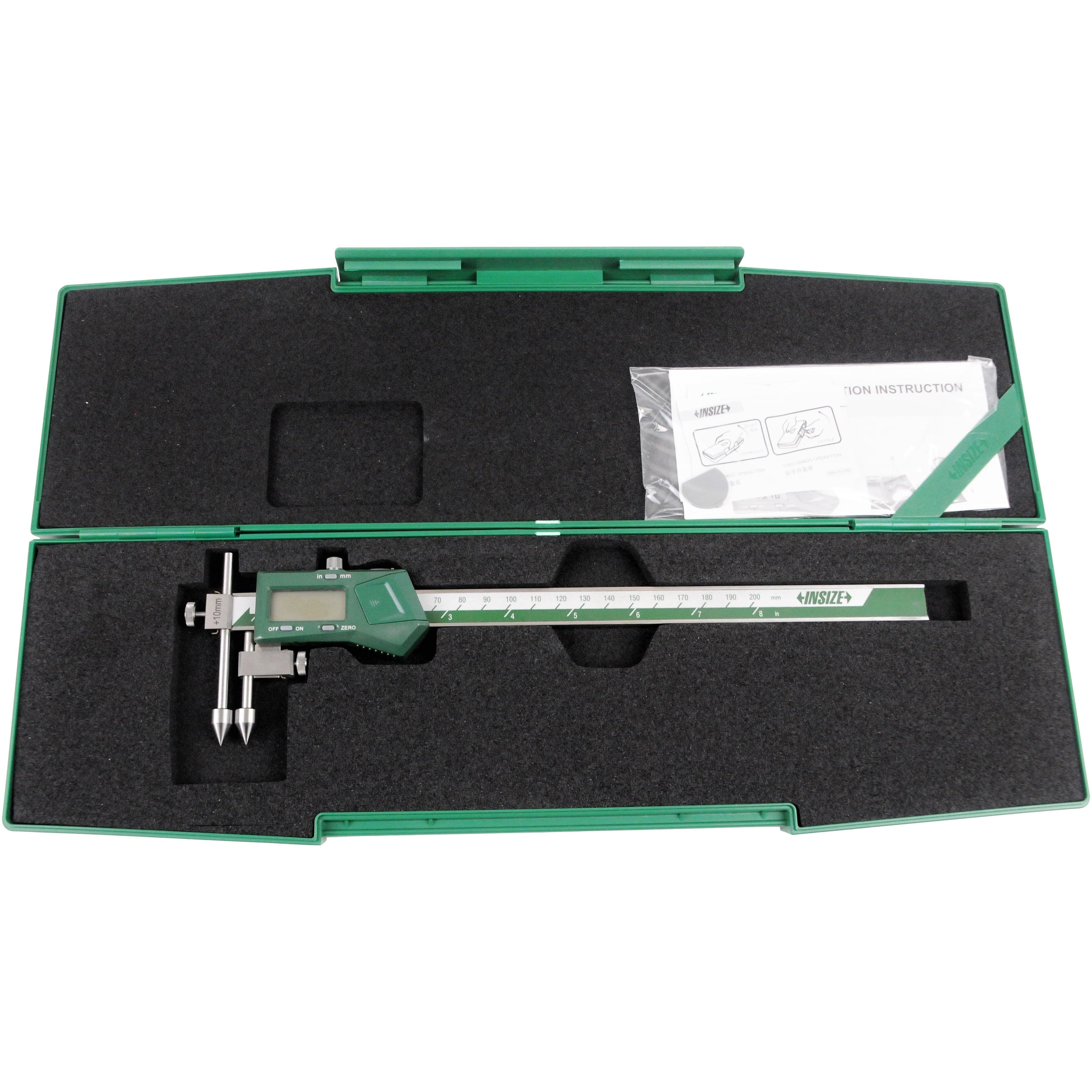

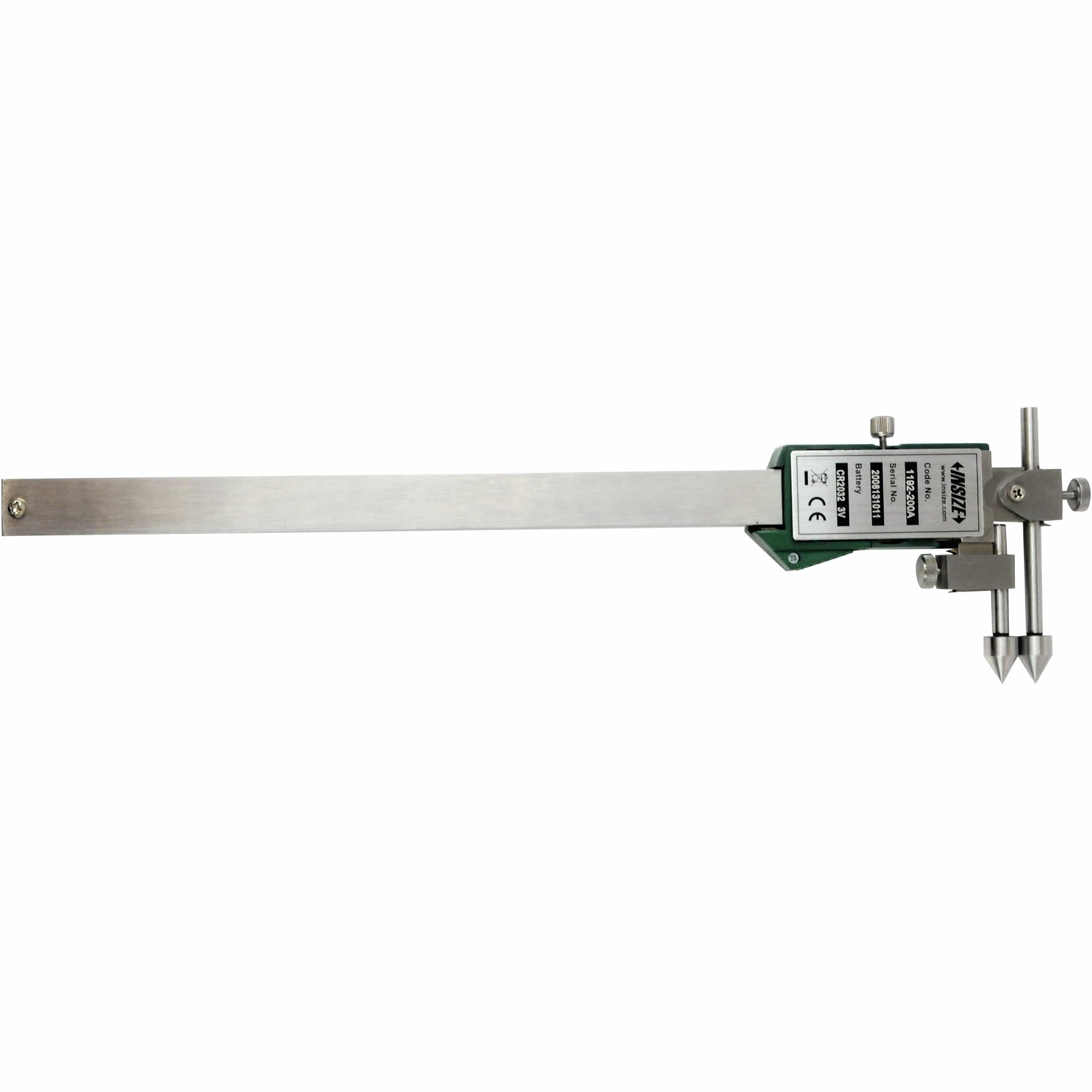

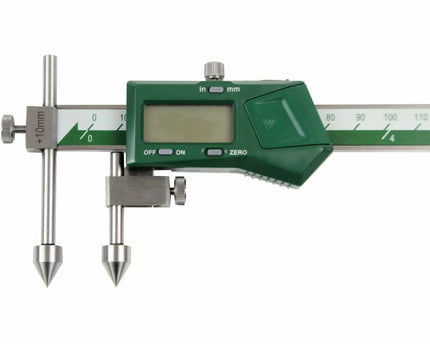

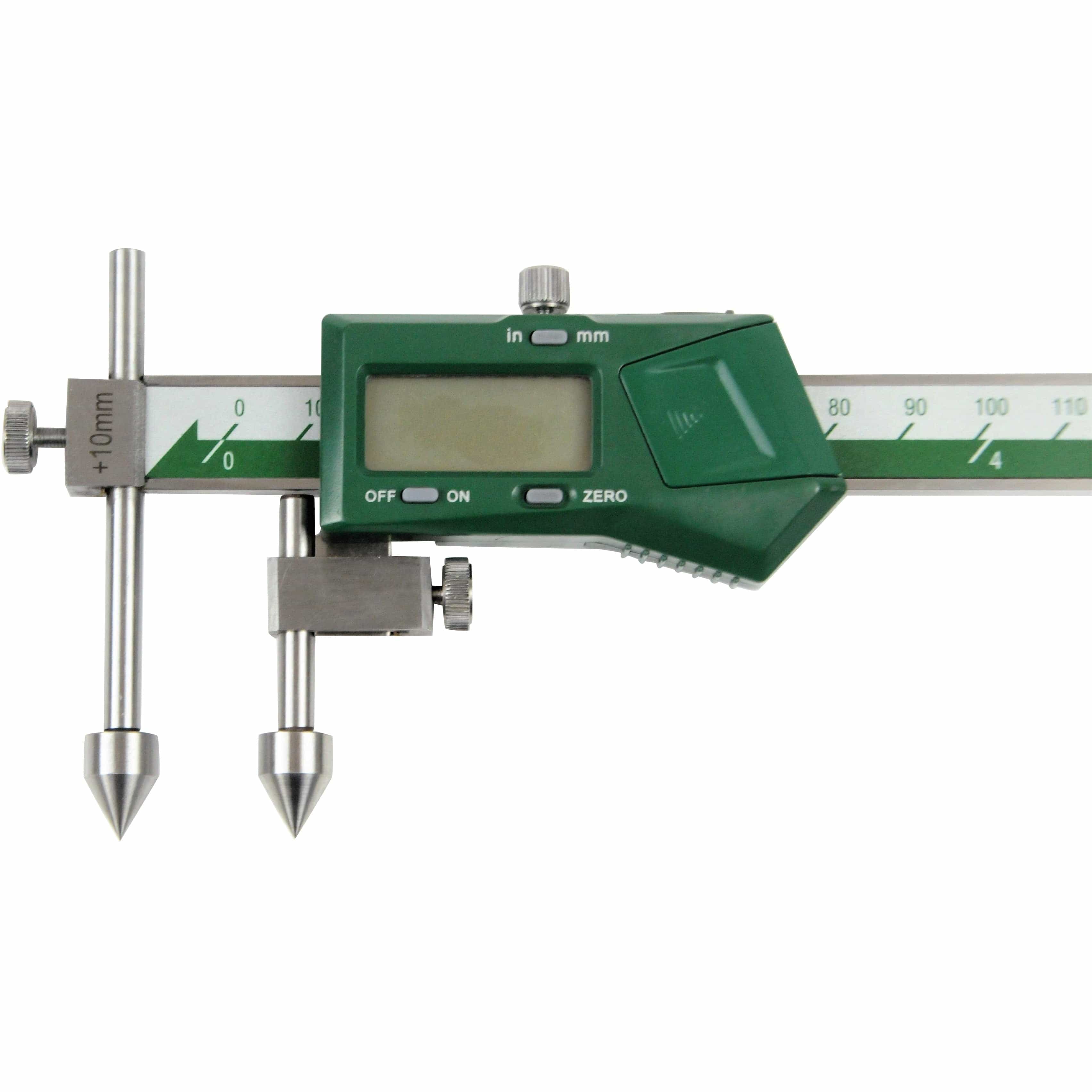

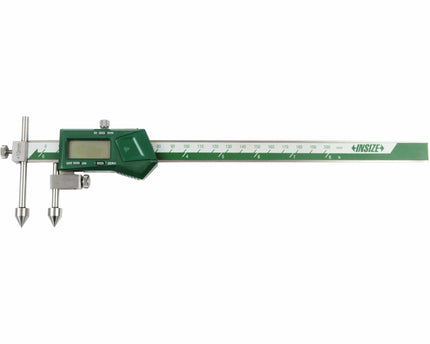

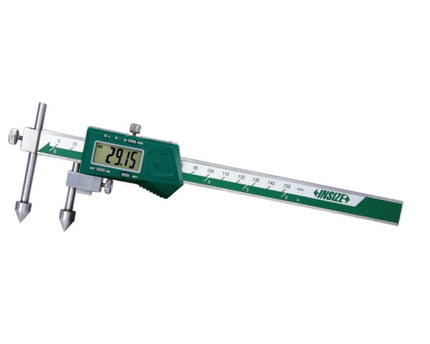

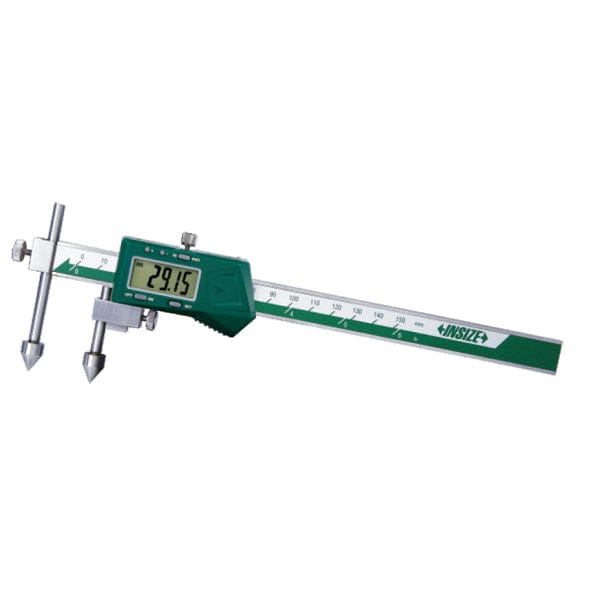

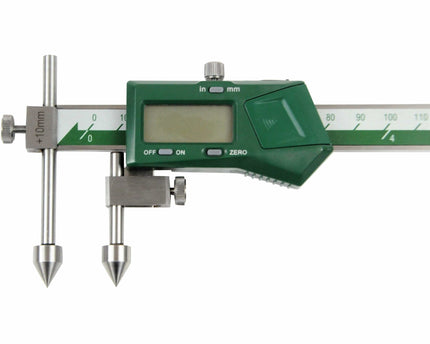

Insize 10–200 mm Digital Offset Caliper
A precision digital offset caliper designed for accurate measurement of hole-centre distances in both aligned and offset planes. Manufactured from stainless steel, it provides smooth movement, clear readings and dependable performance for inspection, machining and engineering applications.

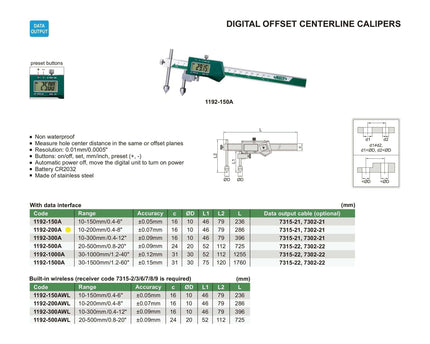

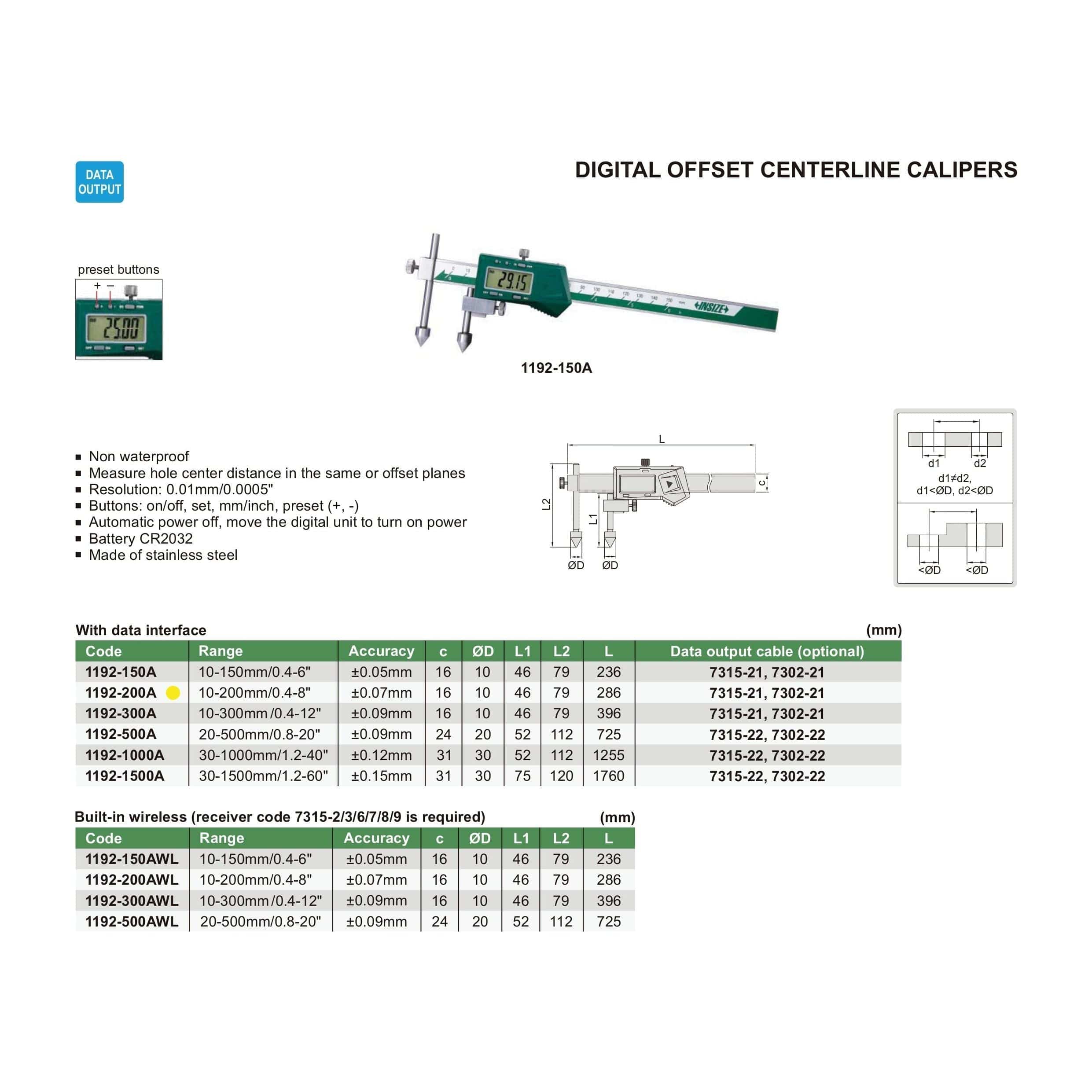

Specifications:

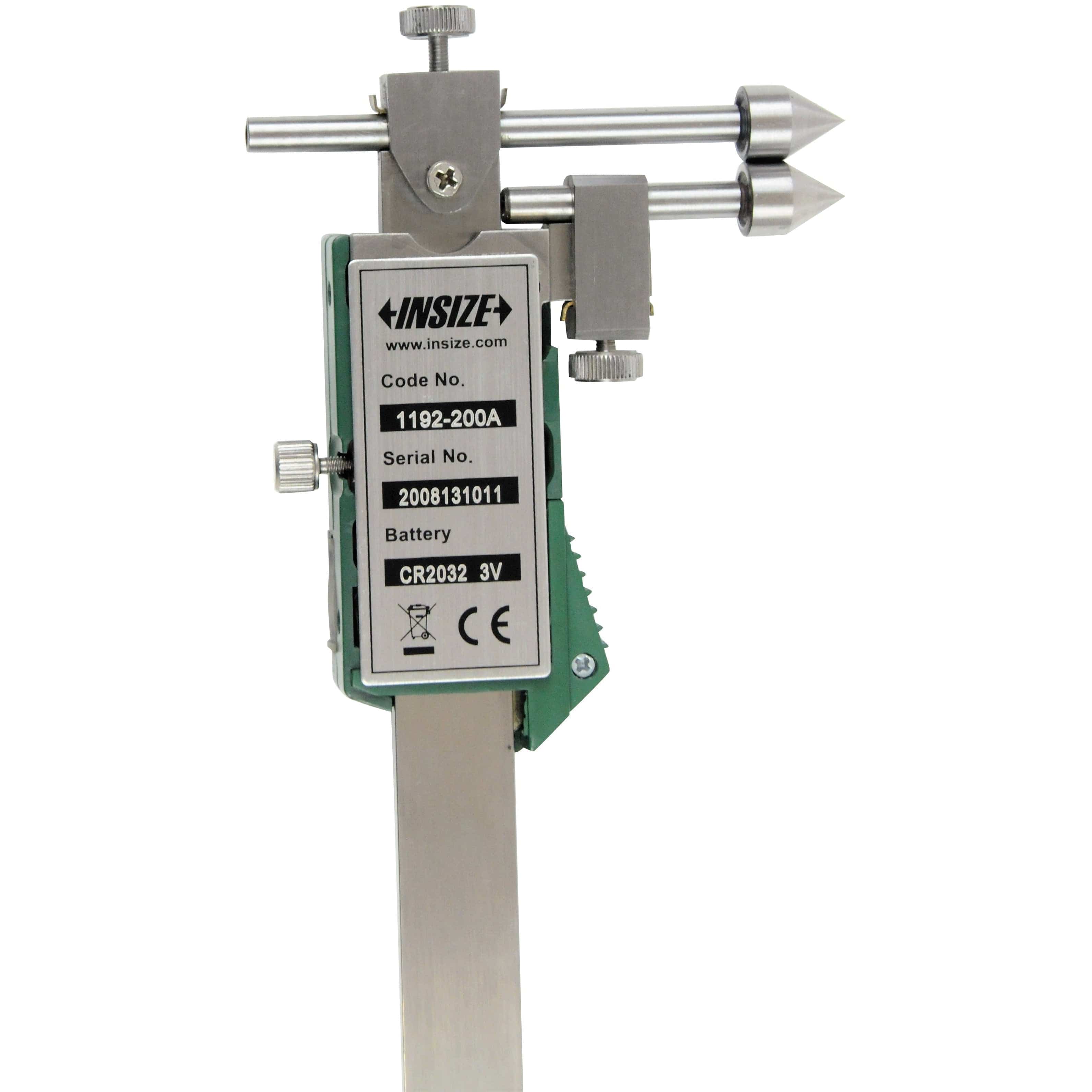

- Part No: 1192-200A
- Accuracy: ±0.07 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 10–200 mm / 0.4–8"

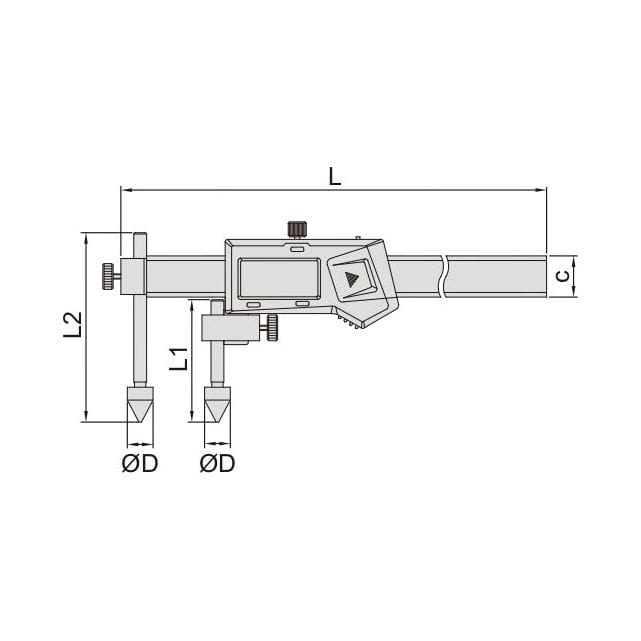

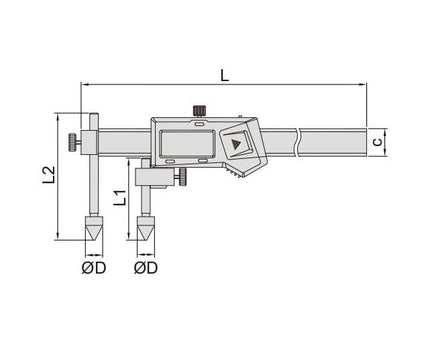

- C: 16 mm

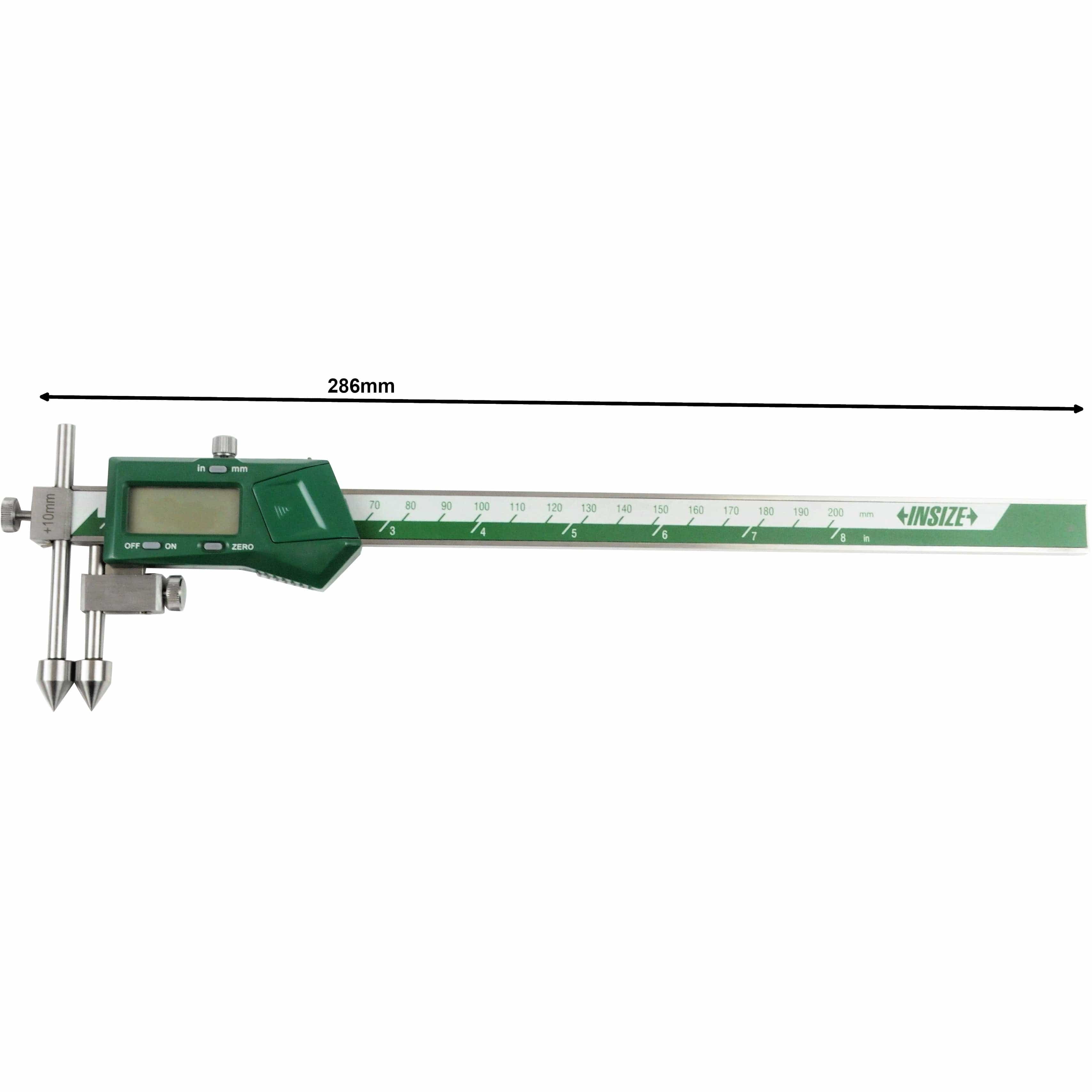

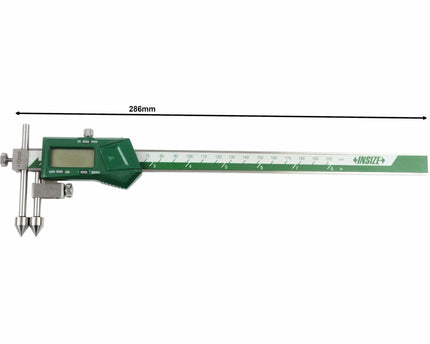

- L: 286 mm
- L1: 46 mm
- L2: 79 mm

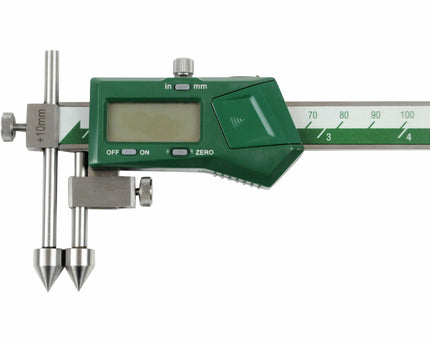

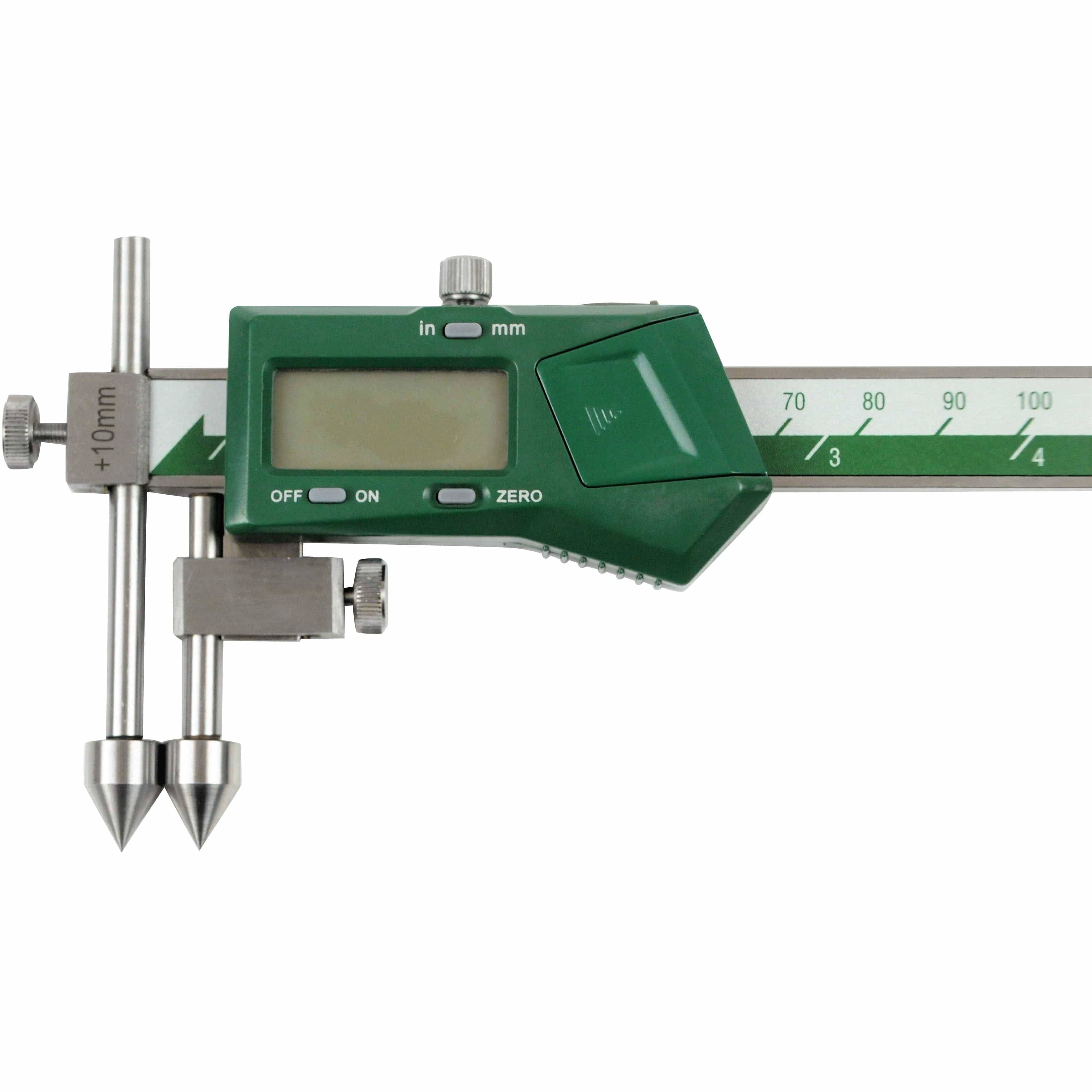

- Buttons: On/Off, Set, Inch/mm, Preset (+/–)
- Automatic power-off feature; move the digital unit to power on
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/5B, 7305-SPC2A)
Well-designed and durable, this high-precision instrument is ideal for accurately measuring hole-centre distances in both same-plane and offset configurations. Easy to use and adjust, it delivers reliable measurement performance for workshop and professional use.
