Description

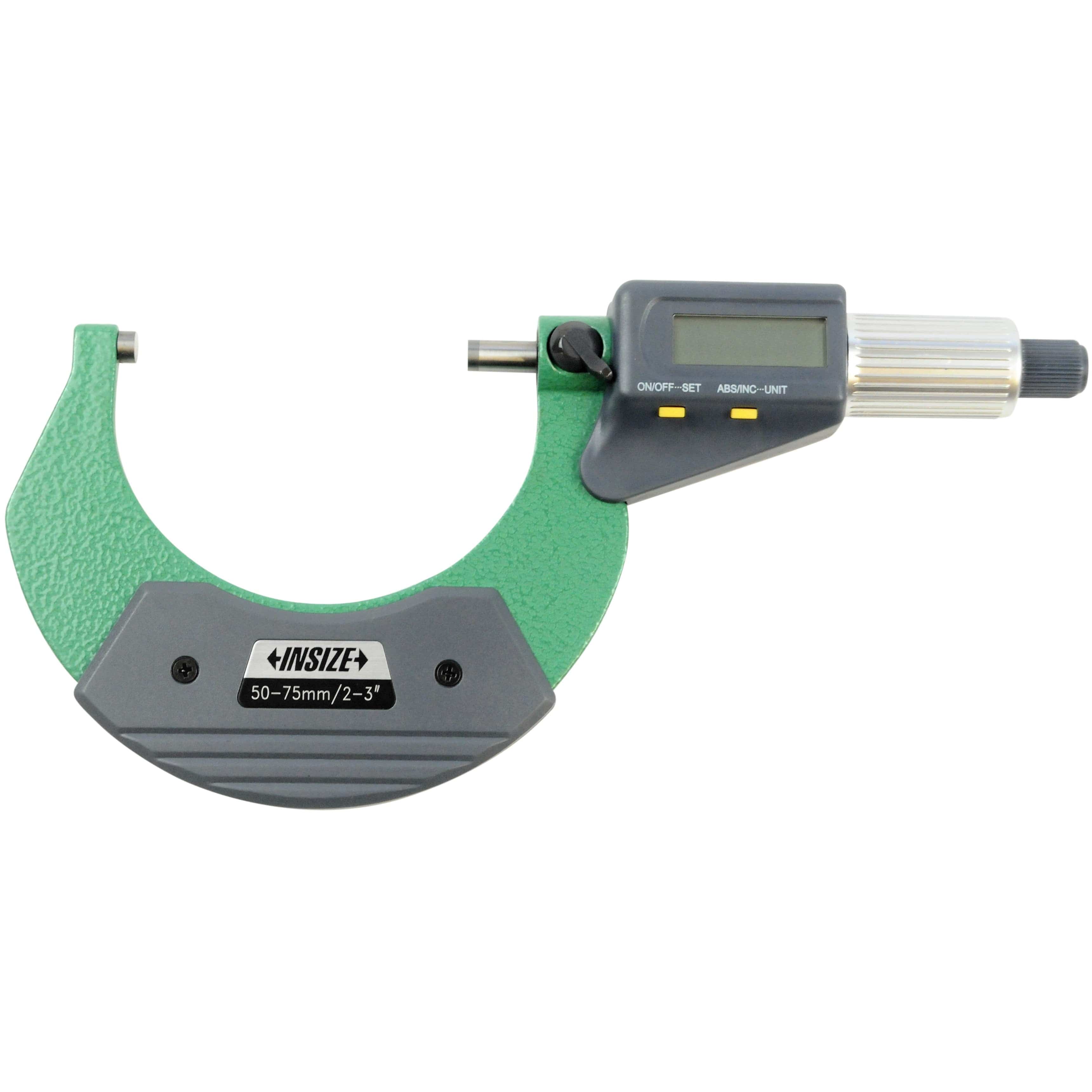

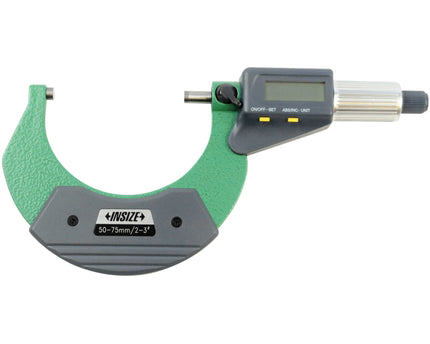

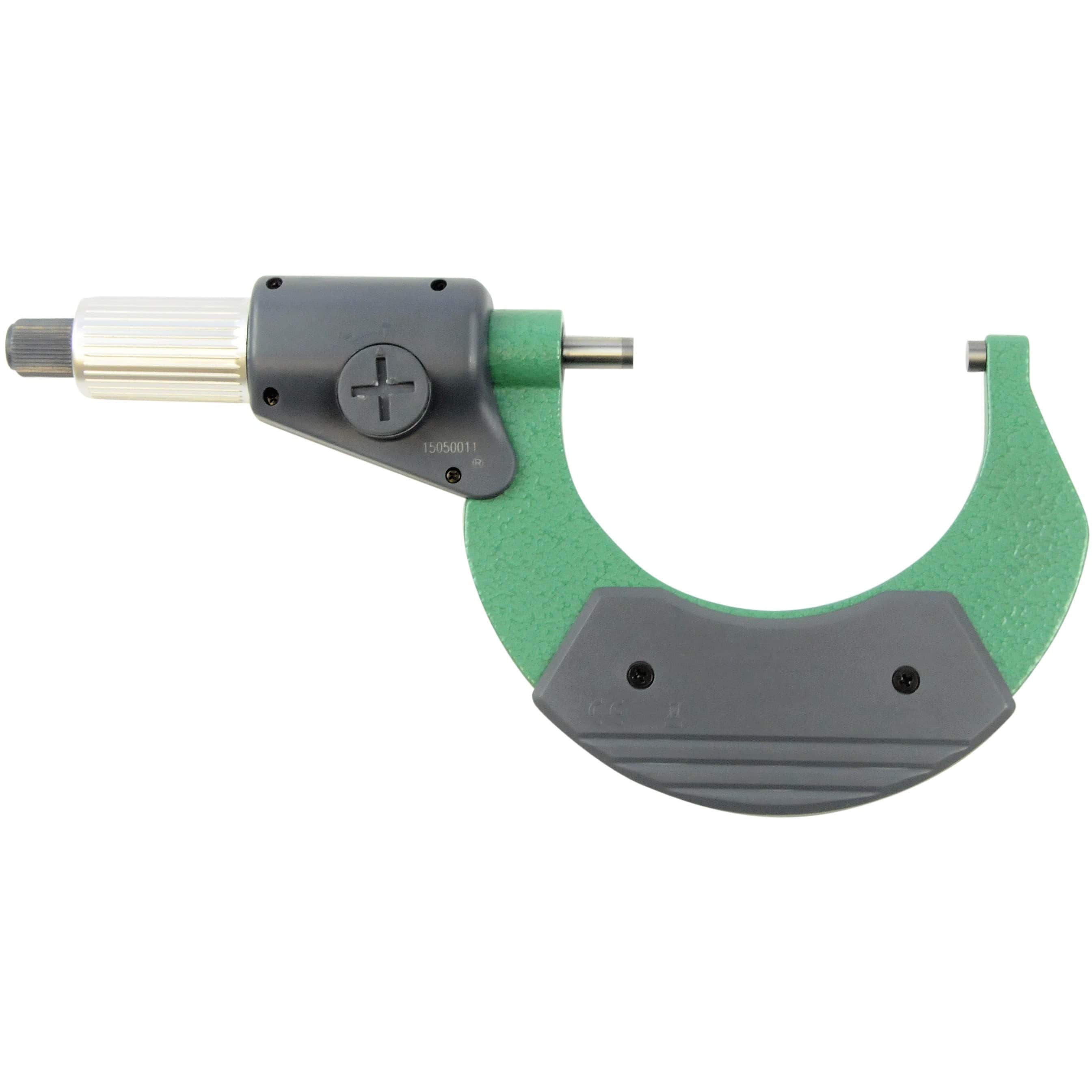

Insize 50–75 mm Digital Outside Micrometer
The Insize 50–75 mm Digital Outside Micrometer is a precision measuring instrument engineered for accurate external measurements in machining, inspection, and quality control applications. Designed to DIN 863 standards, it features a robust frame and an ABSOLUTE digital measuring system to ensure reliable and repeatable results in workshop and metrology environments.

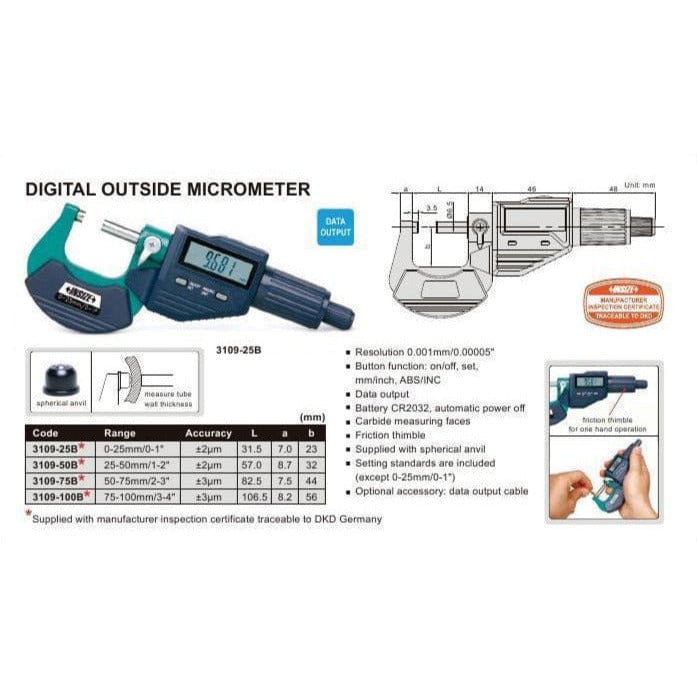

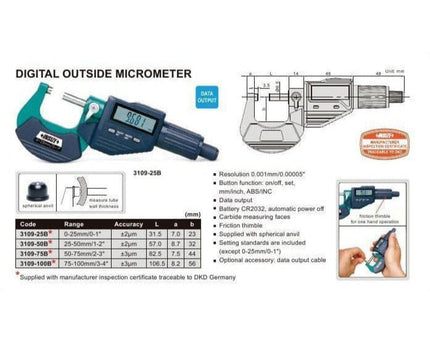

Specifications :
- Part No.: 3109-75A
- Measuring Range: 50–75 mm
- Resolution: 0.01 mm / 0.0005"
- Manufactured in accordance with DIN 863

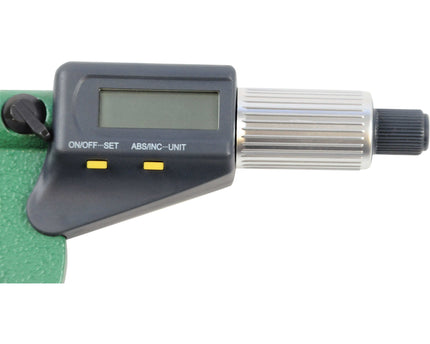

- Button functions: on/off, set, mm/inch, ABS/INC
- Hardened, ground, and lapped spindle thread for high accuracy

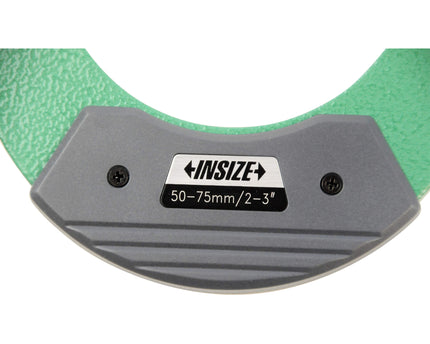

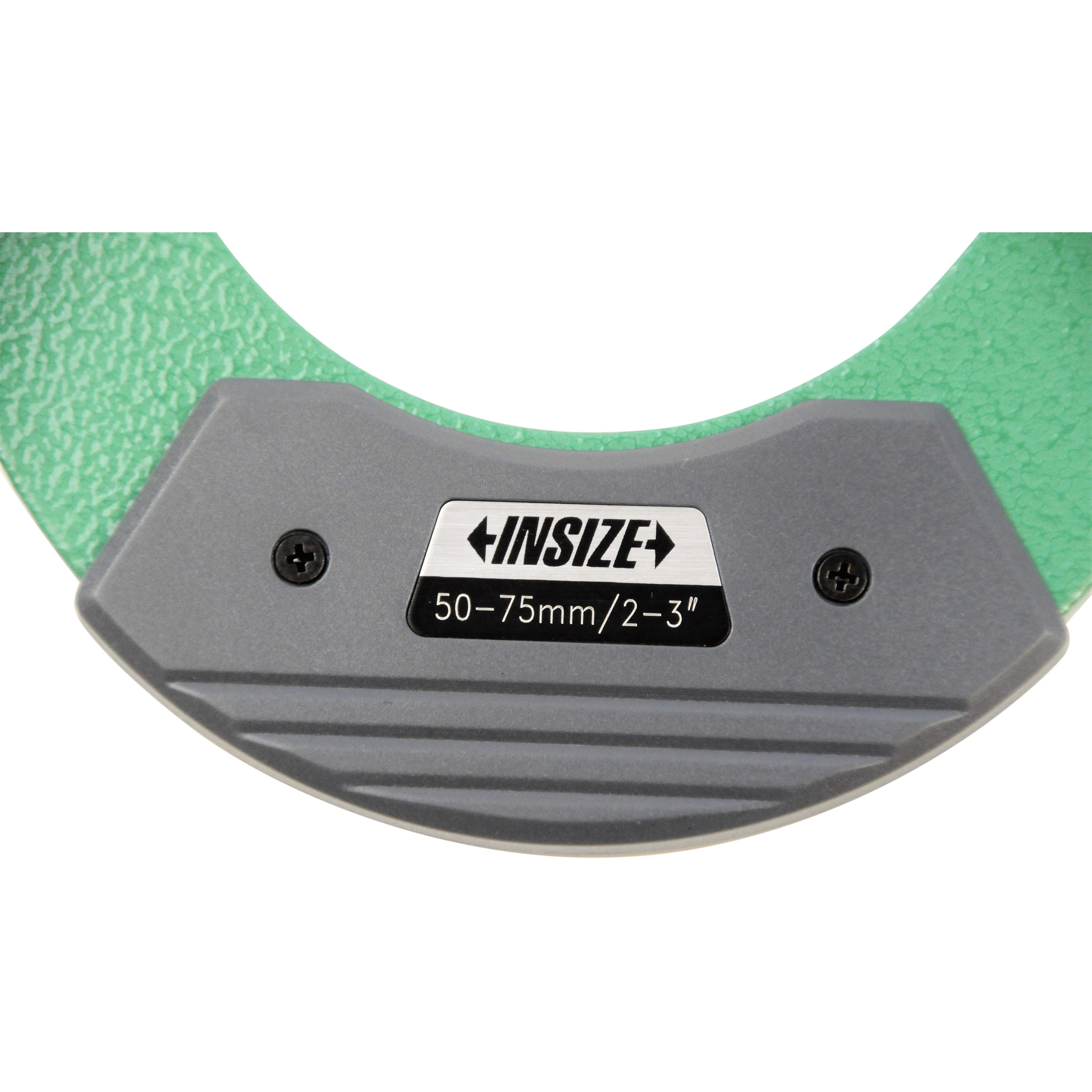

- Baked enamel finish frame
- Satin chrome finish barrel and thimble
- ABSOLUTE measuring system with inch/metric conversion

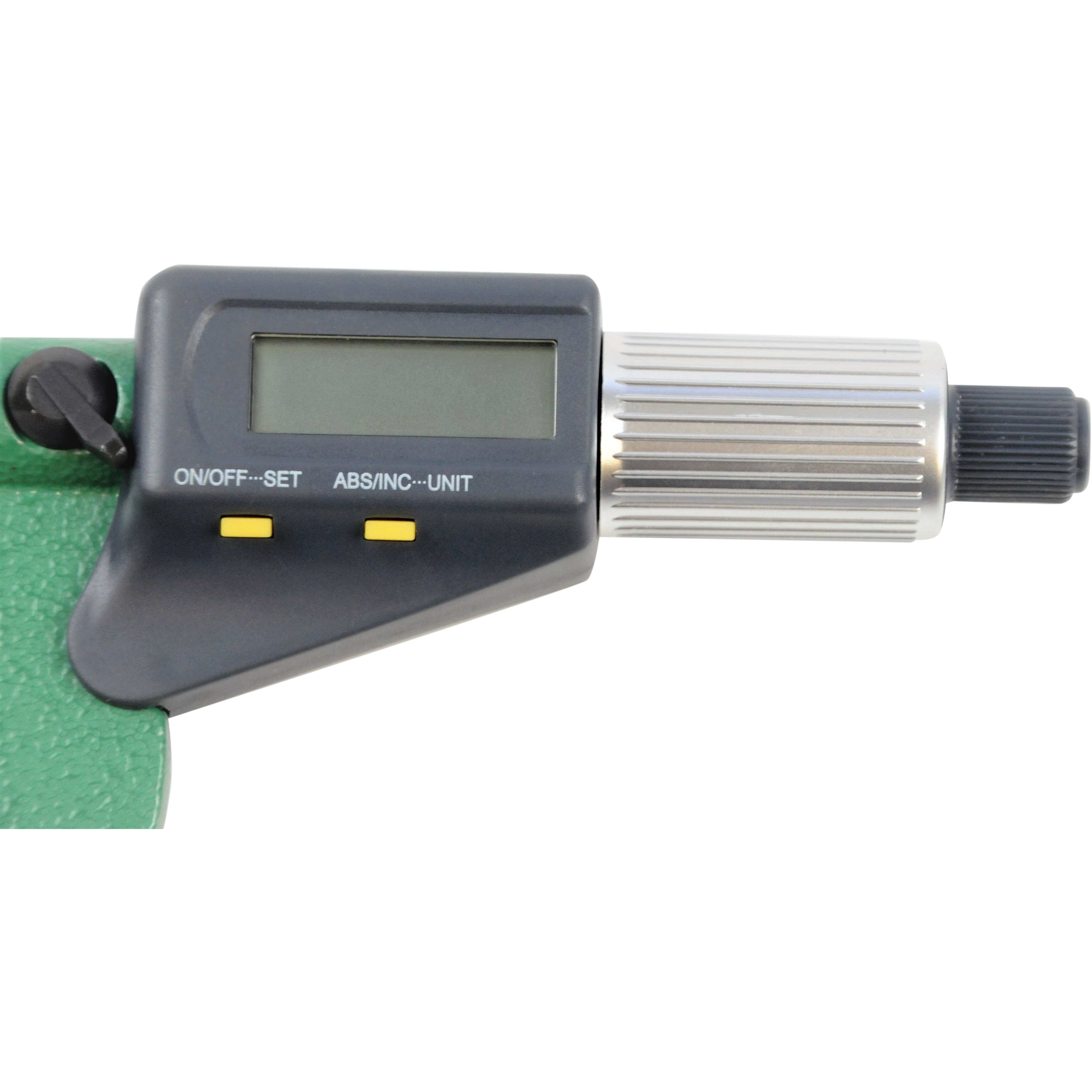

- Large, easy-to-read LCD display
- Clear graduations on a satin chrome surface for smooth operation
- Quick and easy adjustment
- Automatic power-off function
- Carbide measuring face
- Spindle lock
- Ratchet stop for consistent measuring force

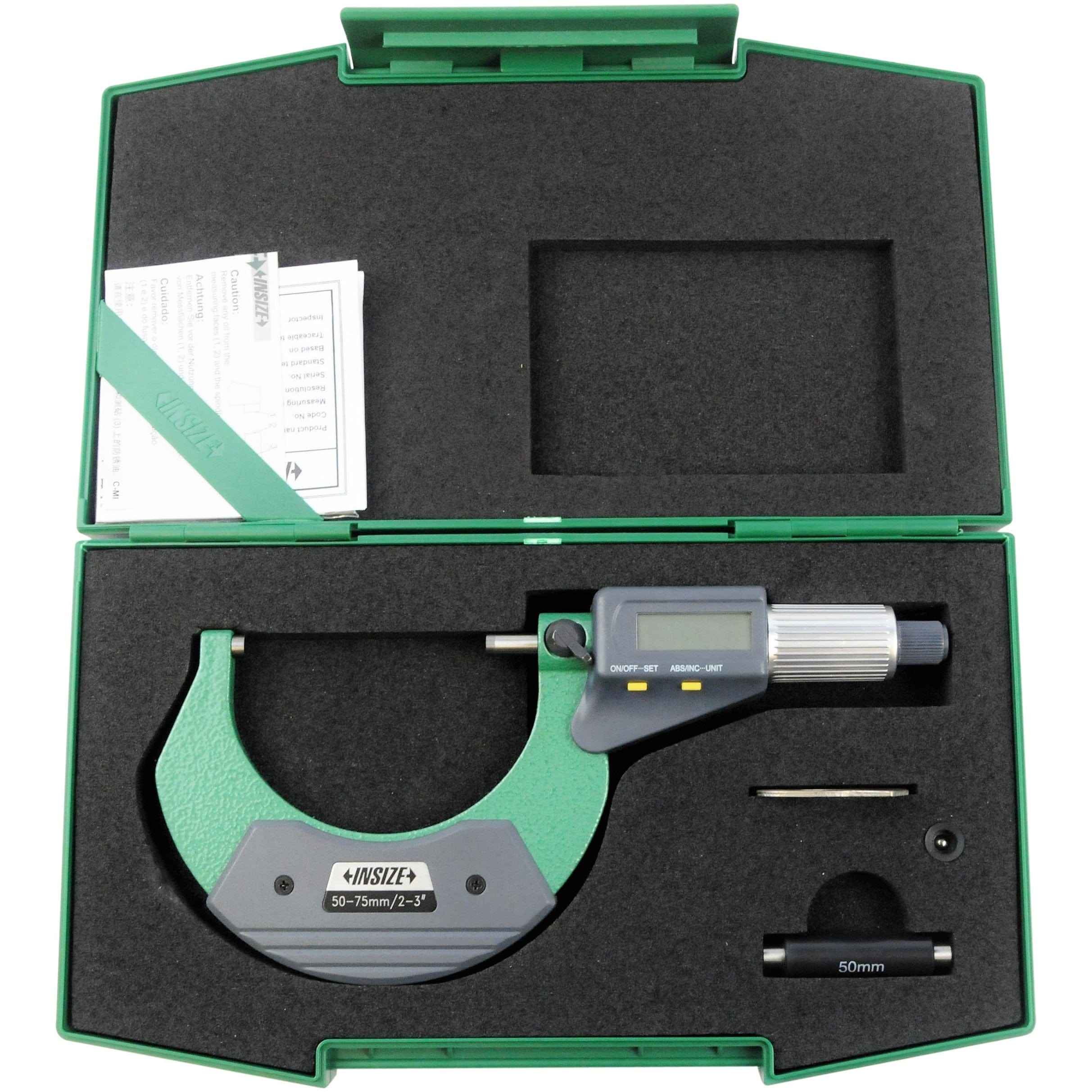

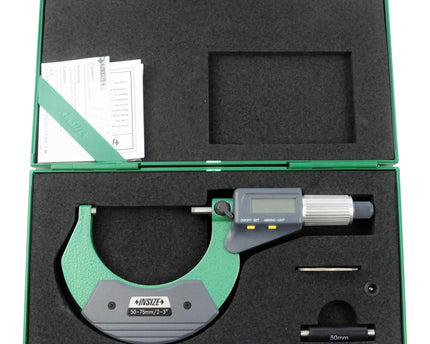

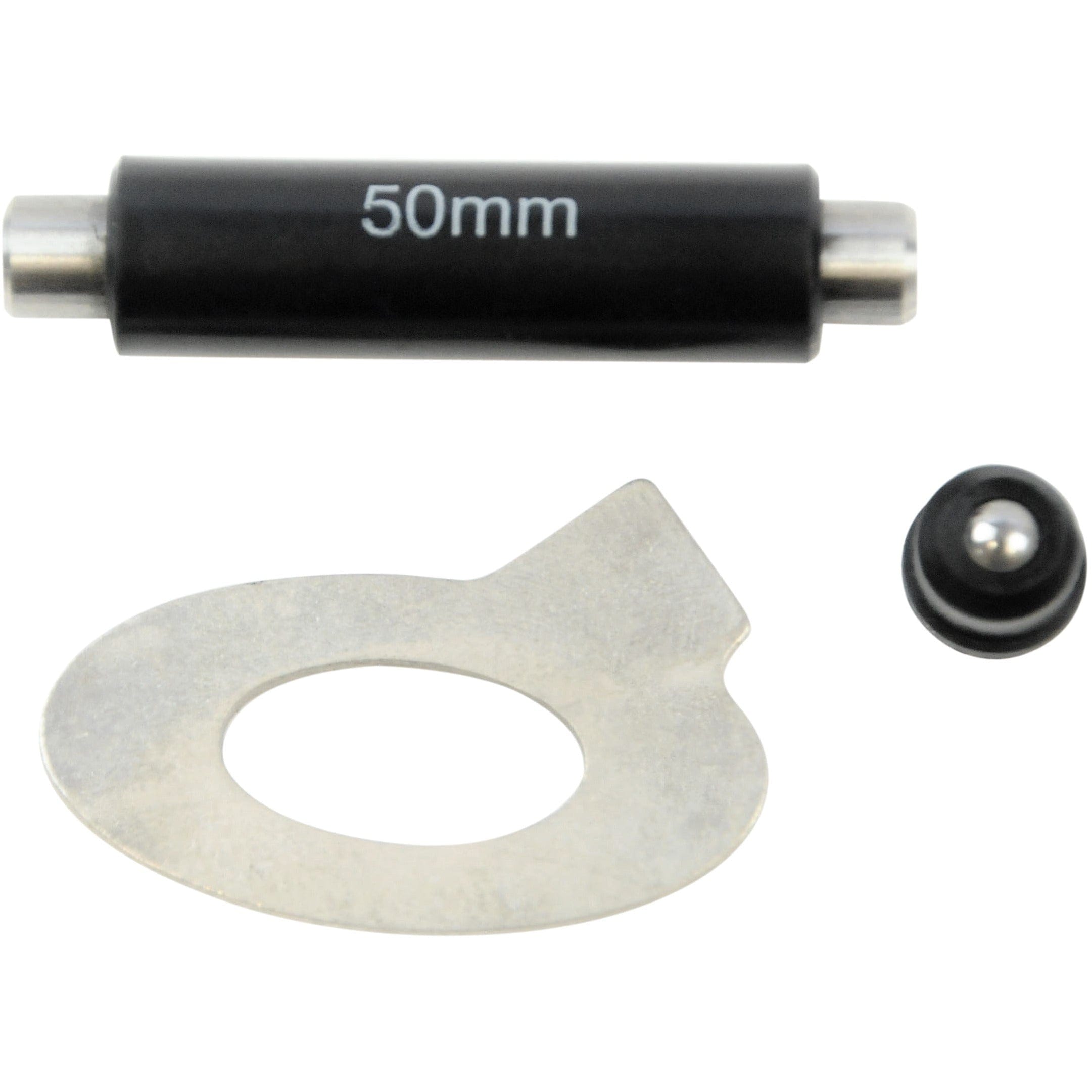

Includes :

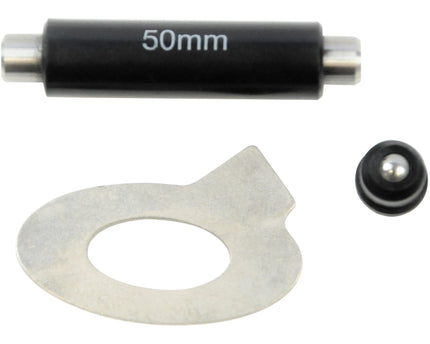

- Zero adjusting wrench
- Spherical anvil

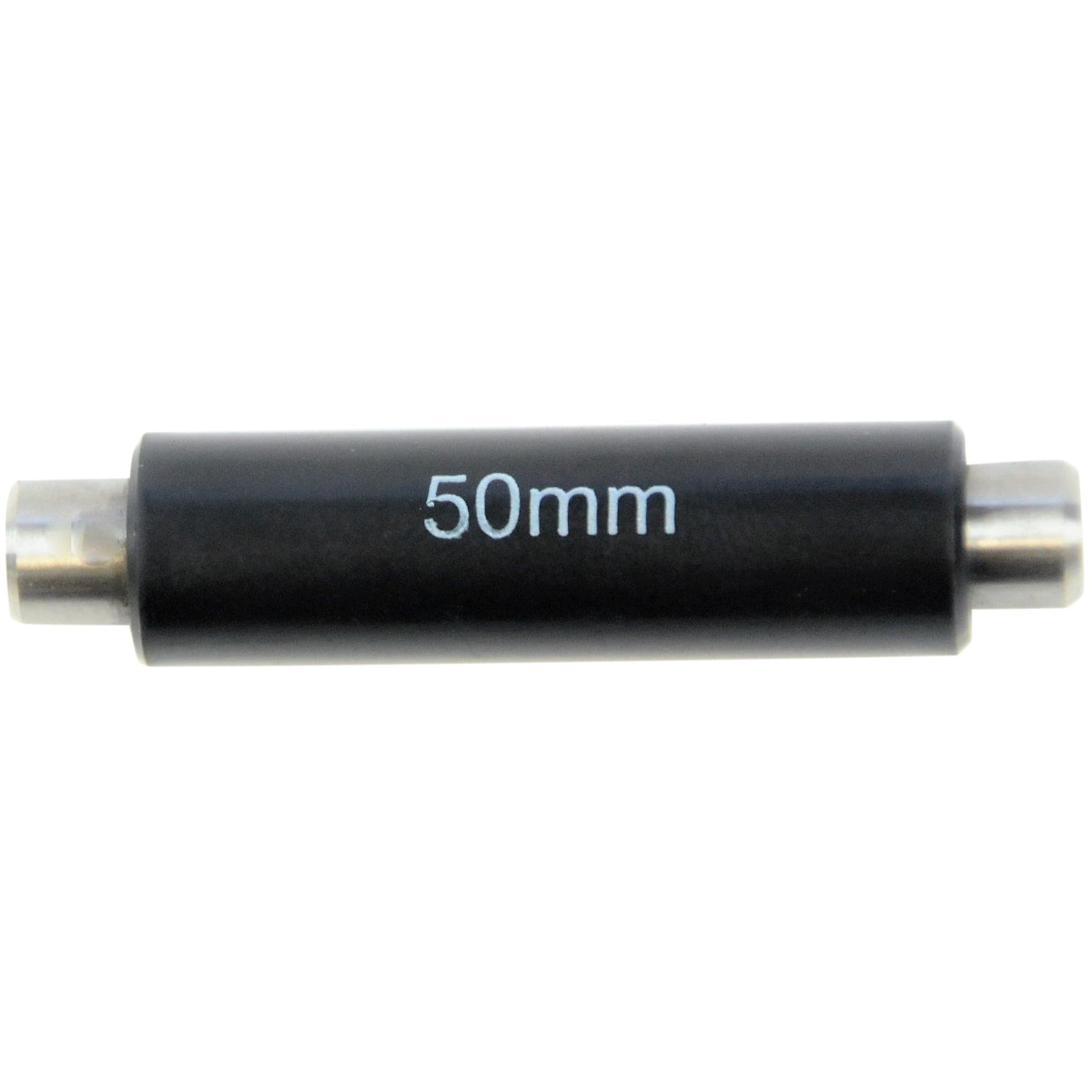

- 50 mm calibration rod

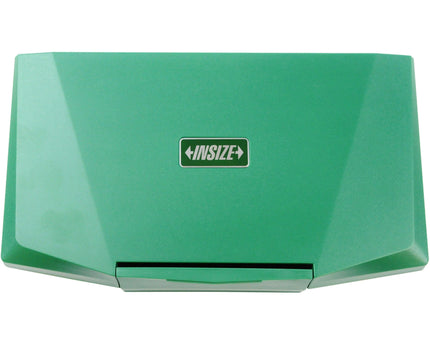

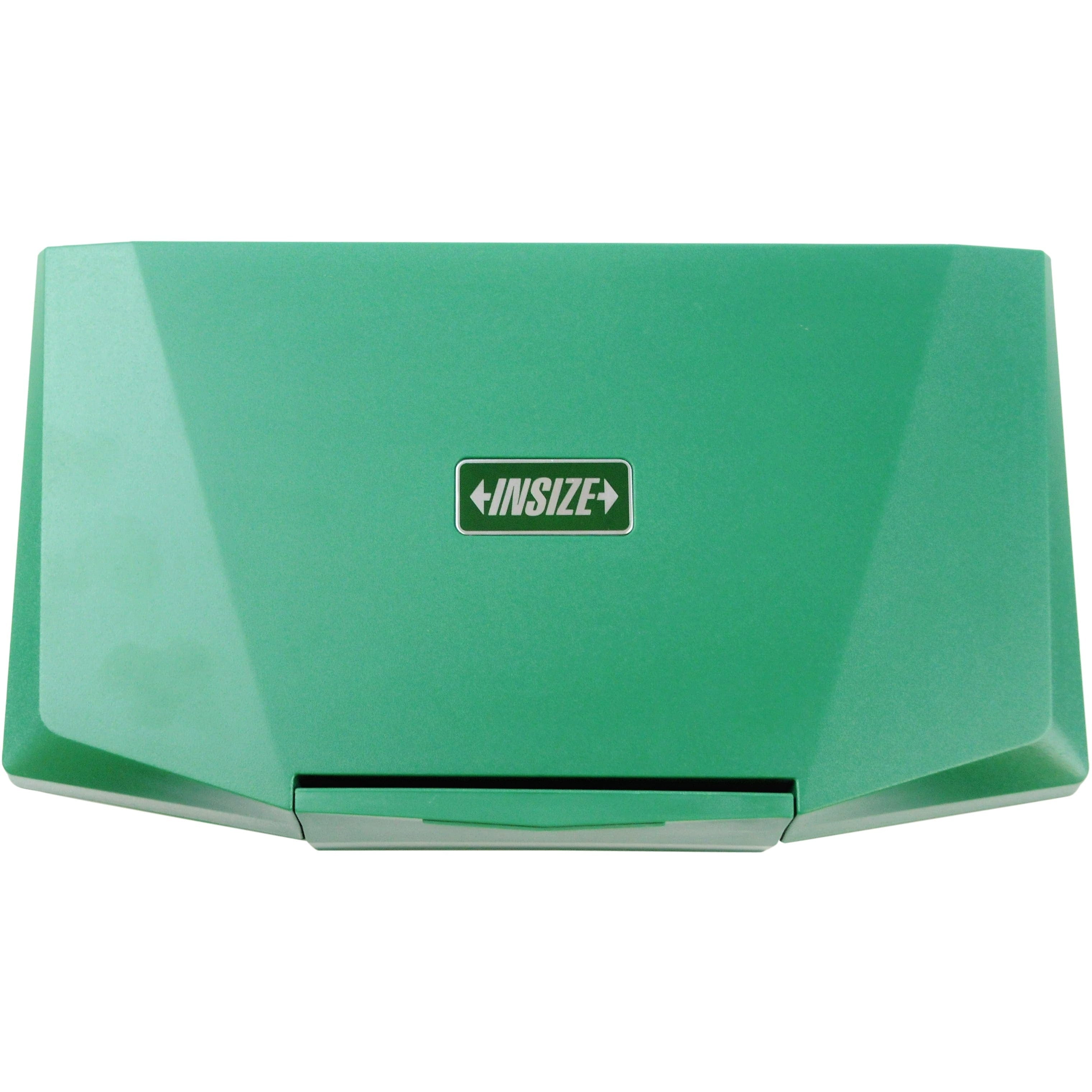

- Custom-styled protective case
Well designed and durable, this digital outside micrometer is suitable for a wide range of precision measuring tasks. Insize measuring instruments are trusted for their accuracy, ease of use, and long service life in demanding workshop and inspection environments.
