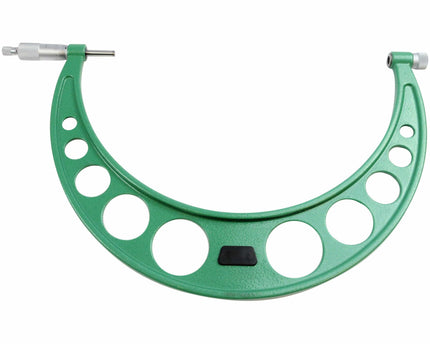

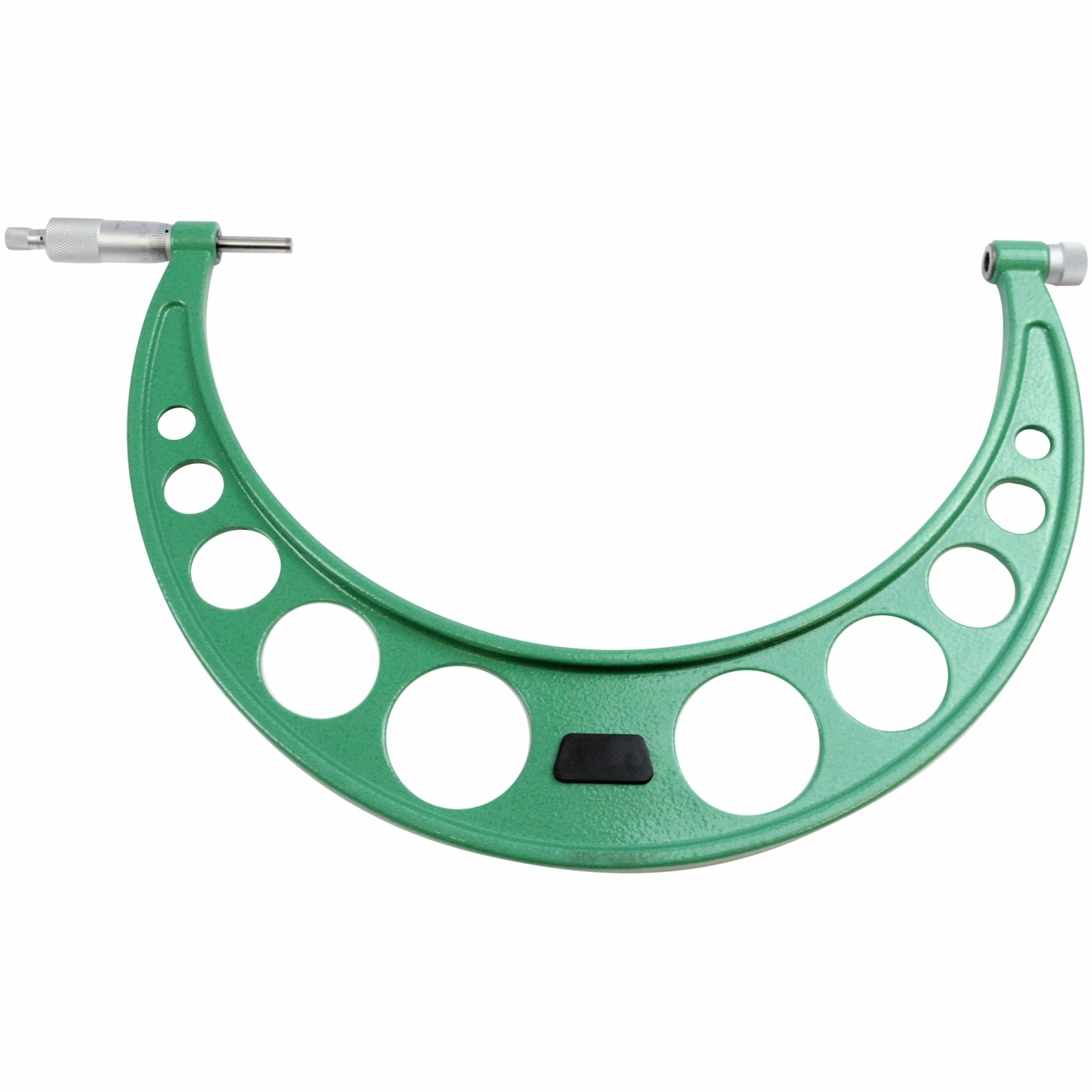

Insize 300–400mm Outside Micrometer
The Insize 300–400mm Outside Micrometer is a precision measuring instrument designed for accurate external measurement of large components in machining, fabrication, and inspection applications. Featuring an interchangeable anvil system and robust construction, it delivers reliable accuracy, repeatability, and durability for professional workshop and quality control use.

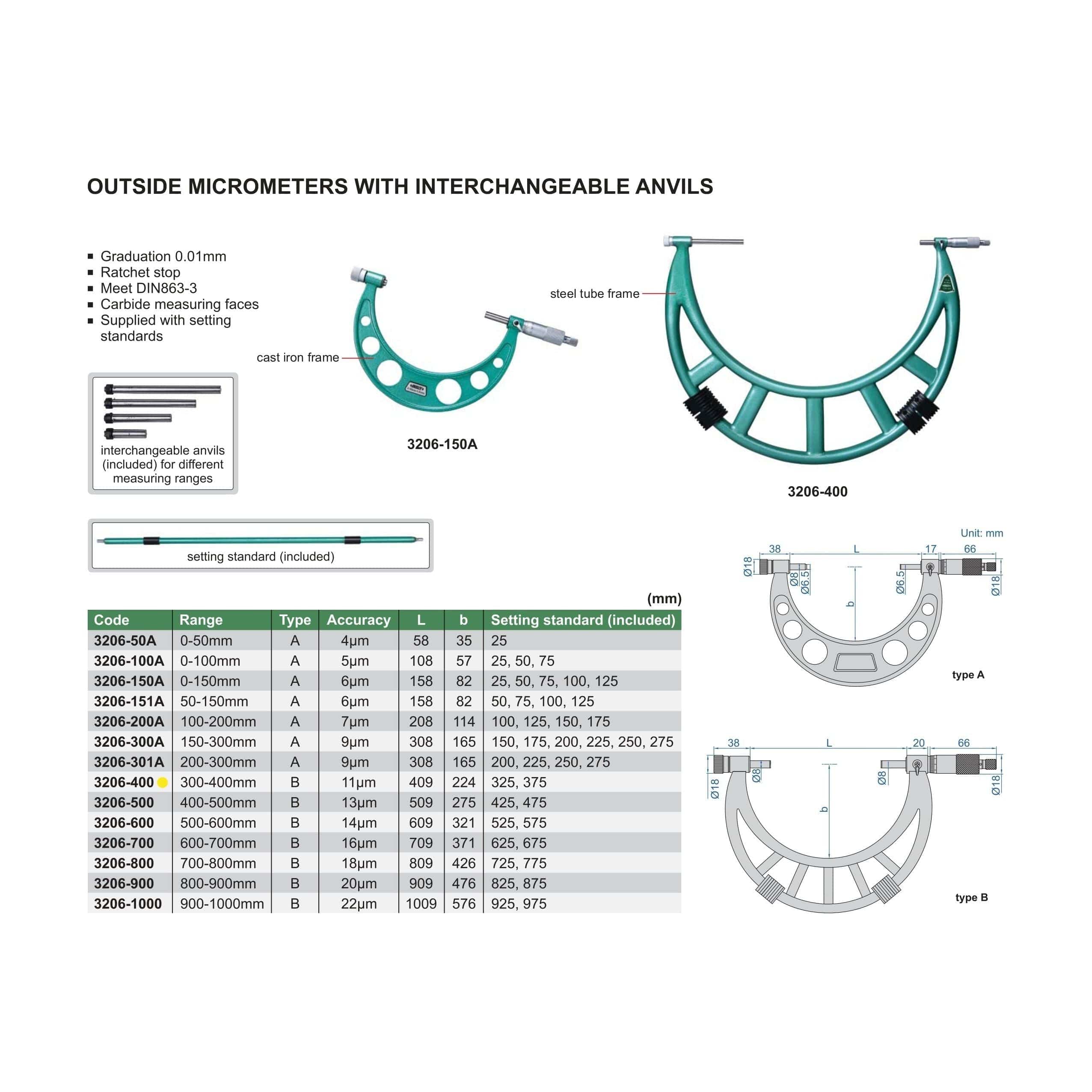

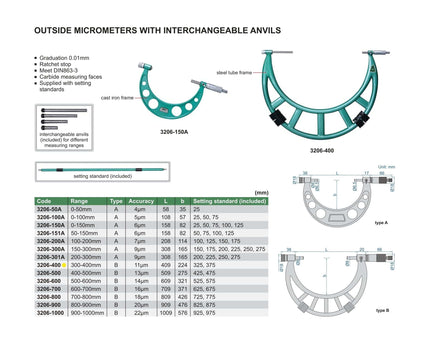

Specifications :
- Part No.: 3206-400
- Measuring range: 300–400mm
- Graduation: 0.01mm

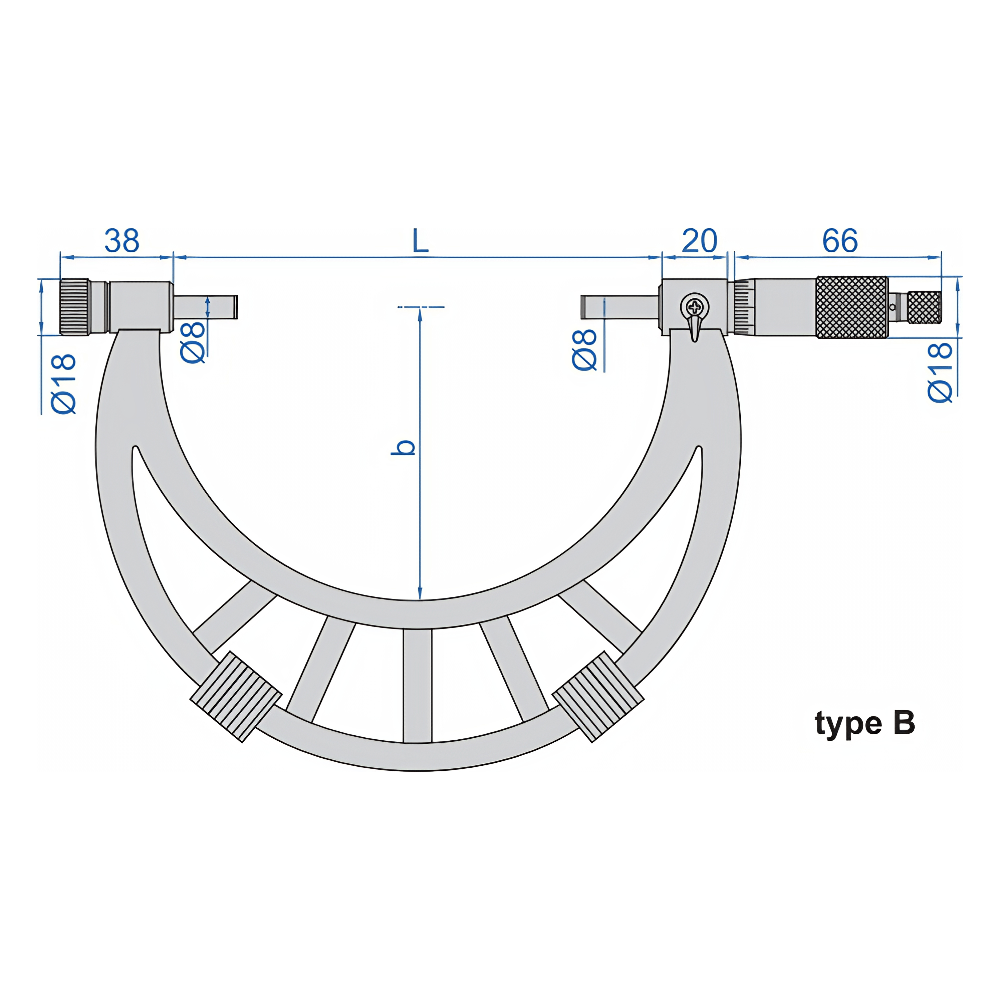

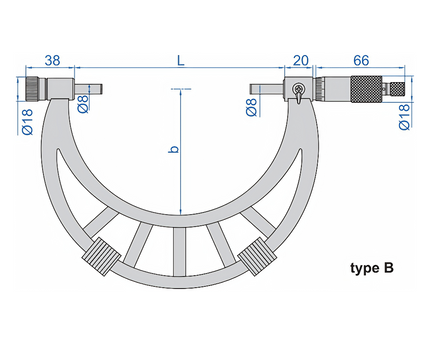

- Overall length (L): 409mm
- Frame depth (B): 224mm
- Type: B
- Interchangeable anvil system for extended measuring capability
- Setting standards: 325mm and 375mm
- Carbide measuring faces for high wear resistance and long service life

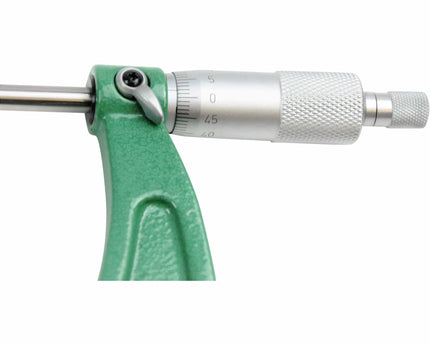

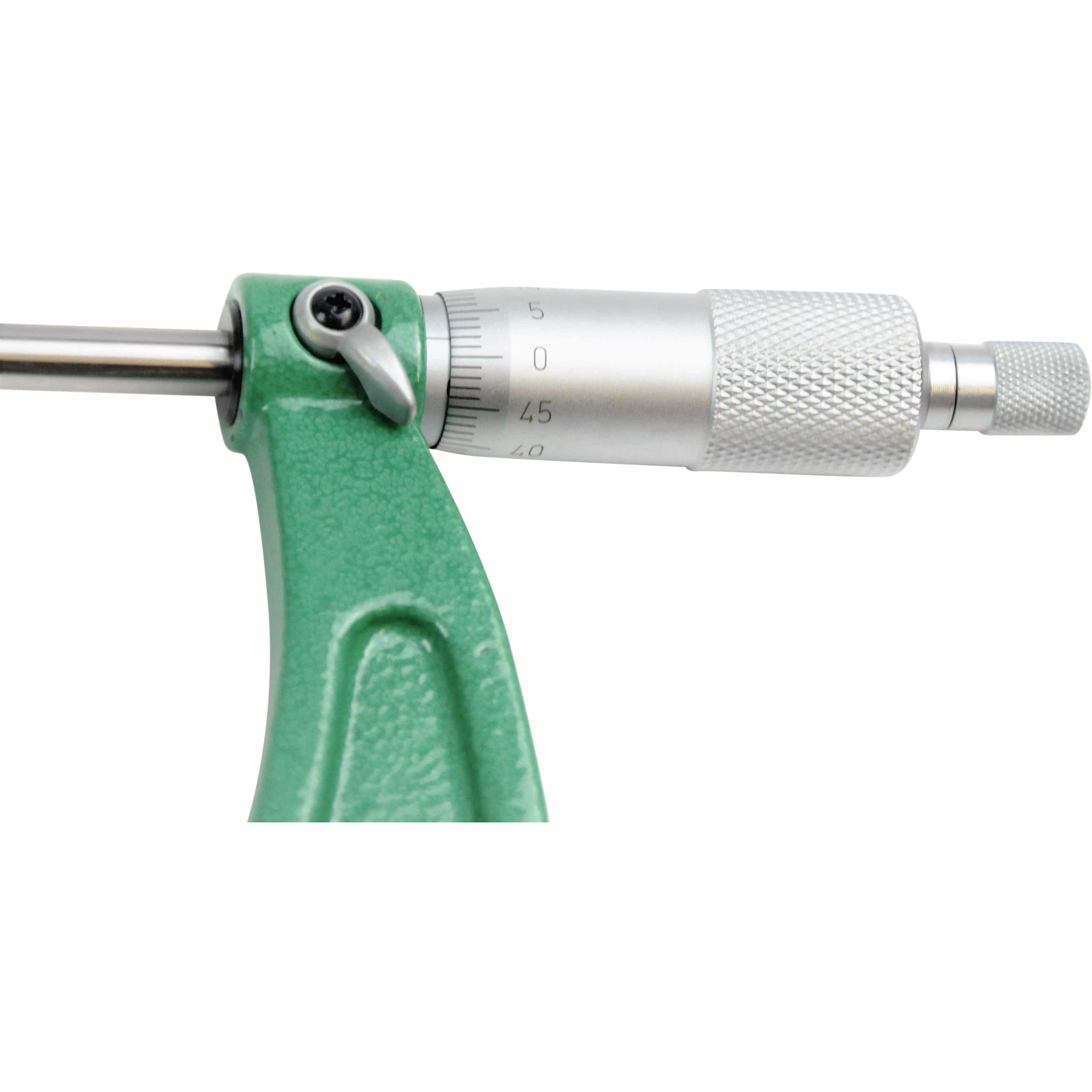

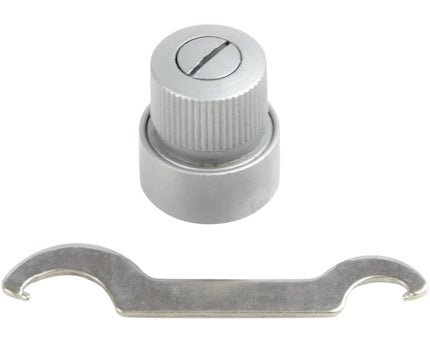

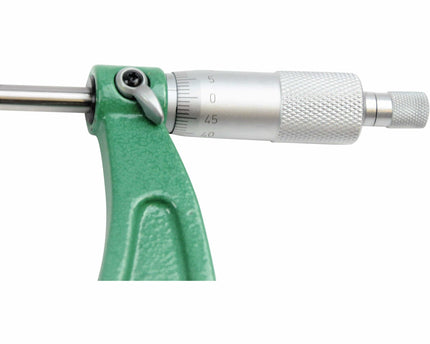

- Ratchet stop to ensure consistent measuring pressure
- Designed for metric measurement applications

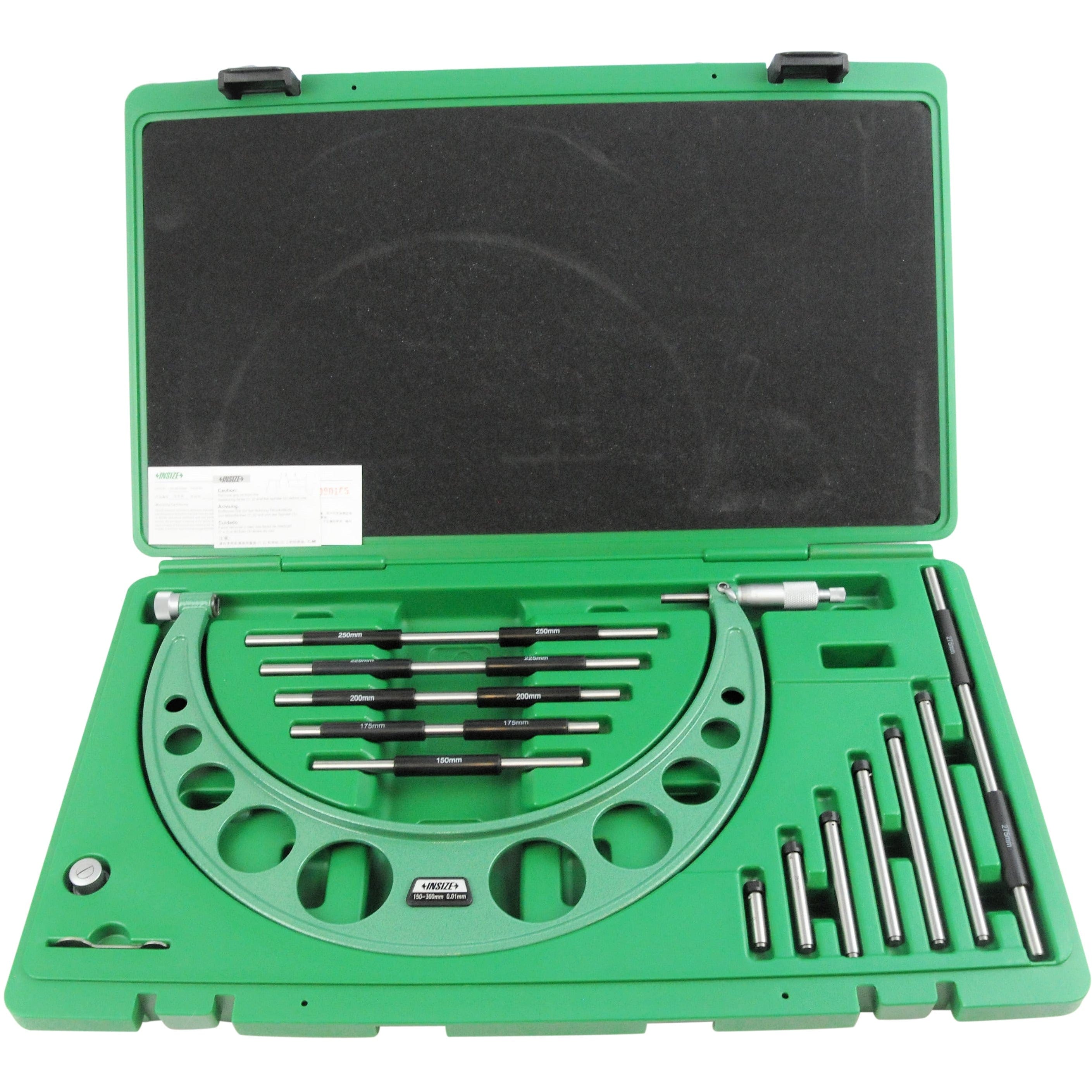

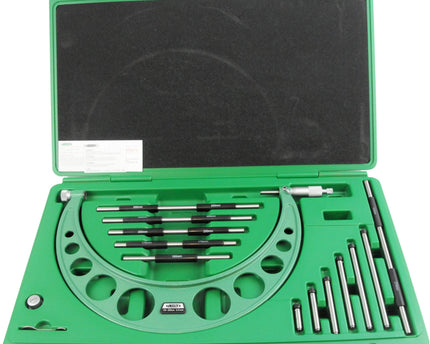

Includes

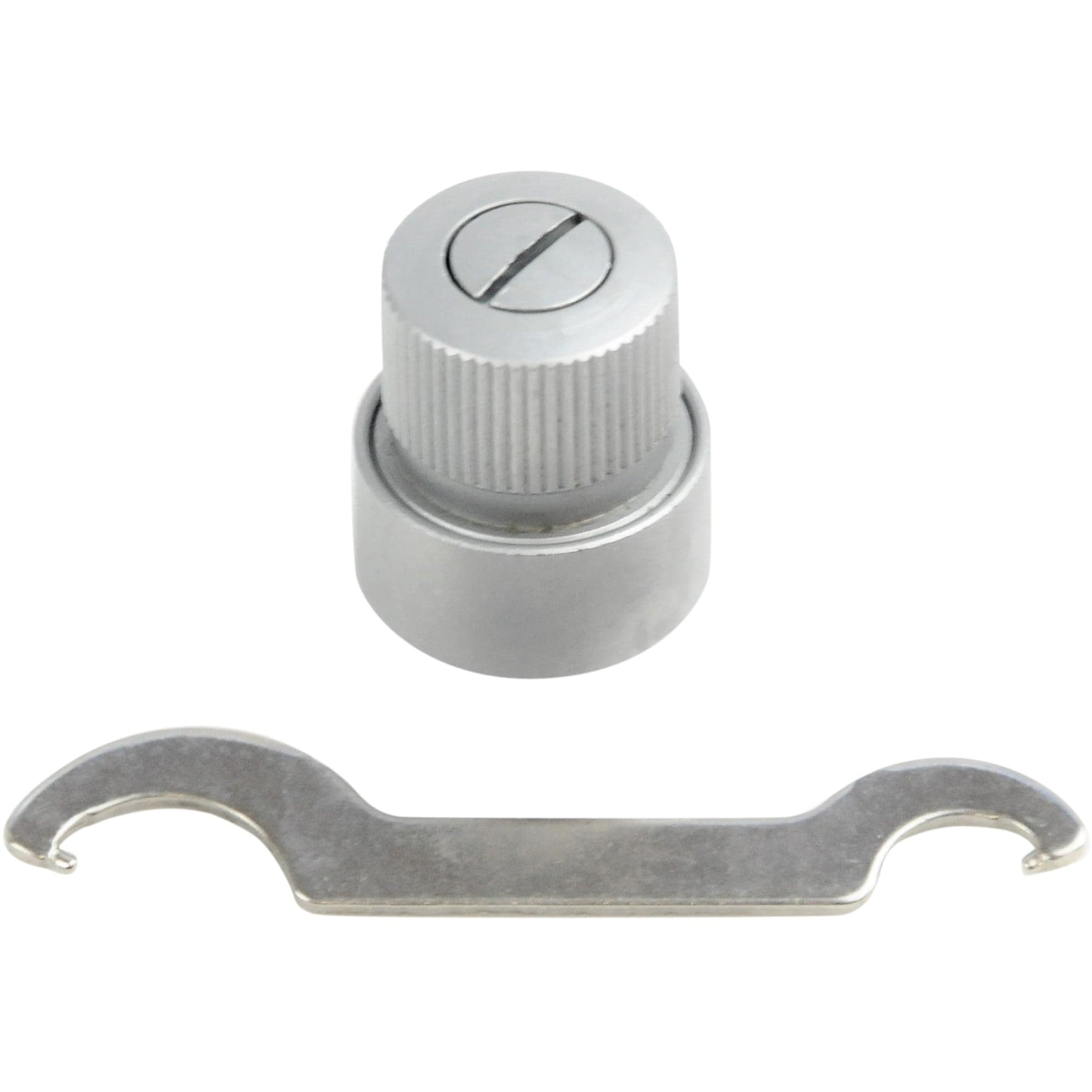

- Zero adjusting wrench
- Insize 3206-400 outside micrometer body (300–400mm range)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Well designed and built for durability, this Insize outside micrometer provides dependable precision for measuring large external dimensions. It is an essential measuring tool for users who require accurate, repeatable results across extended metric measuring ranges.
