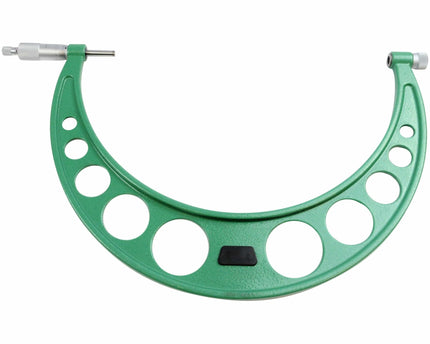

Insize 400–500mm Outside Micrometer
The Insize 400–500mm Outside Micrometer is a precision measuring instrument engineered for accurate external measurement of large components in machining, fabrication, and inspection environments. Featuring an interchangeable anvil system and robust construction, it delivers dependable accuracy, repeatability, and long-term durability for professional workshop and quality control applications.

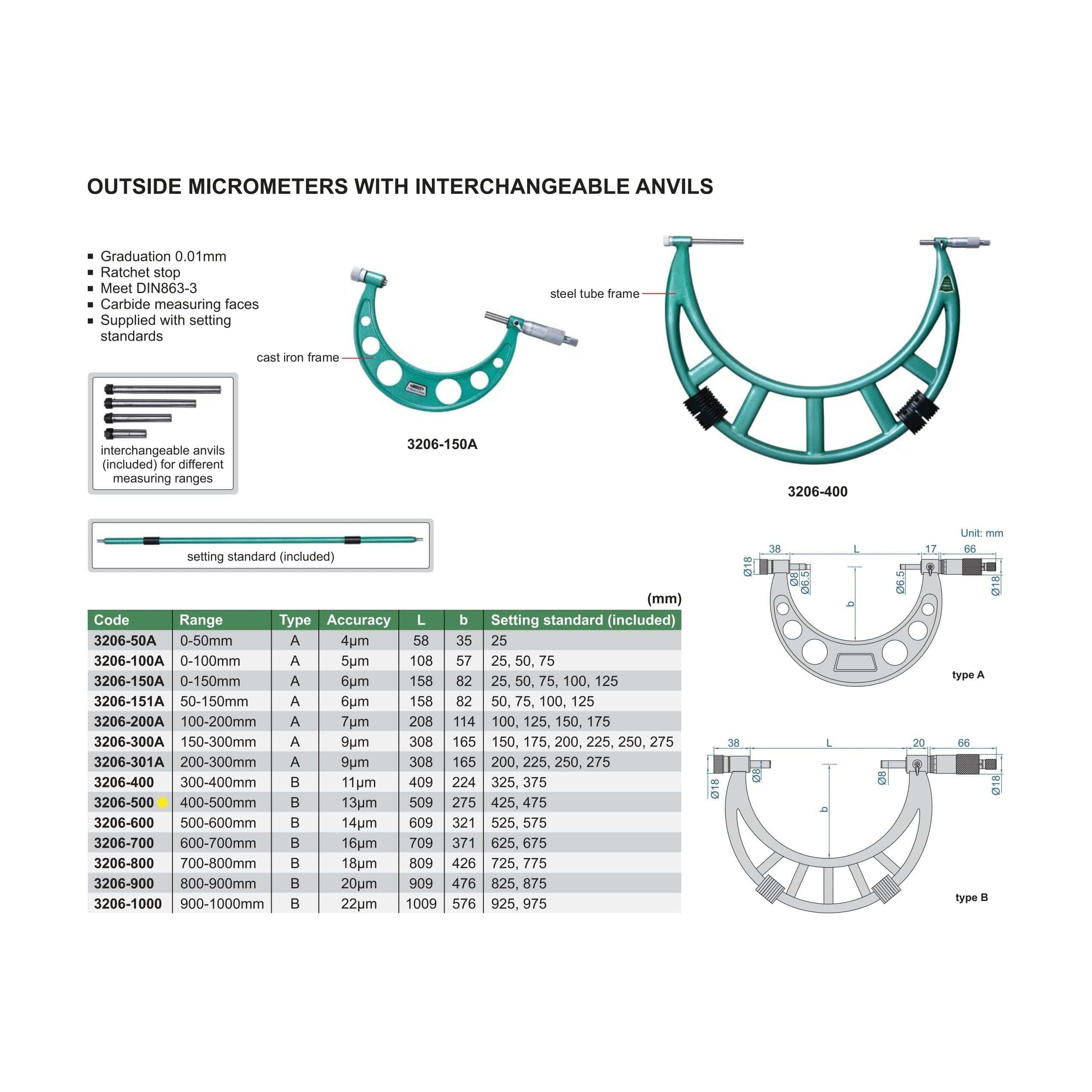

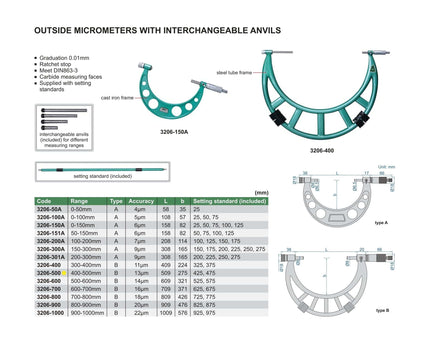

Specifications :
- Part No.: 3206-500
- Measuring range: 400–500mm
- Graduation: 0.01mm
- Overall length (L): 509mm
- Frame depth (B): 275mm
- Type: A
- Interchangeable anvil system for extended measuring capability
- Setting standards: 425mm and 475mm
- Carbide measuring faces for excellent wear resistance and long service life

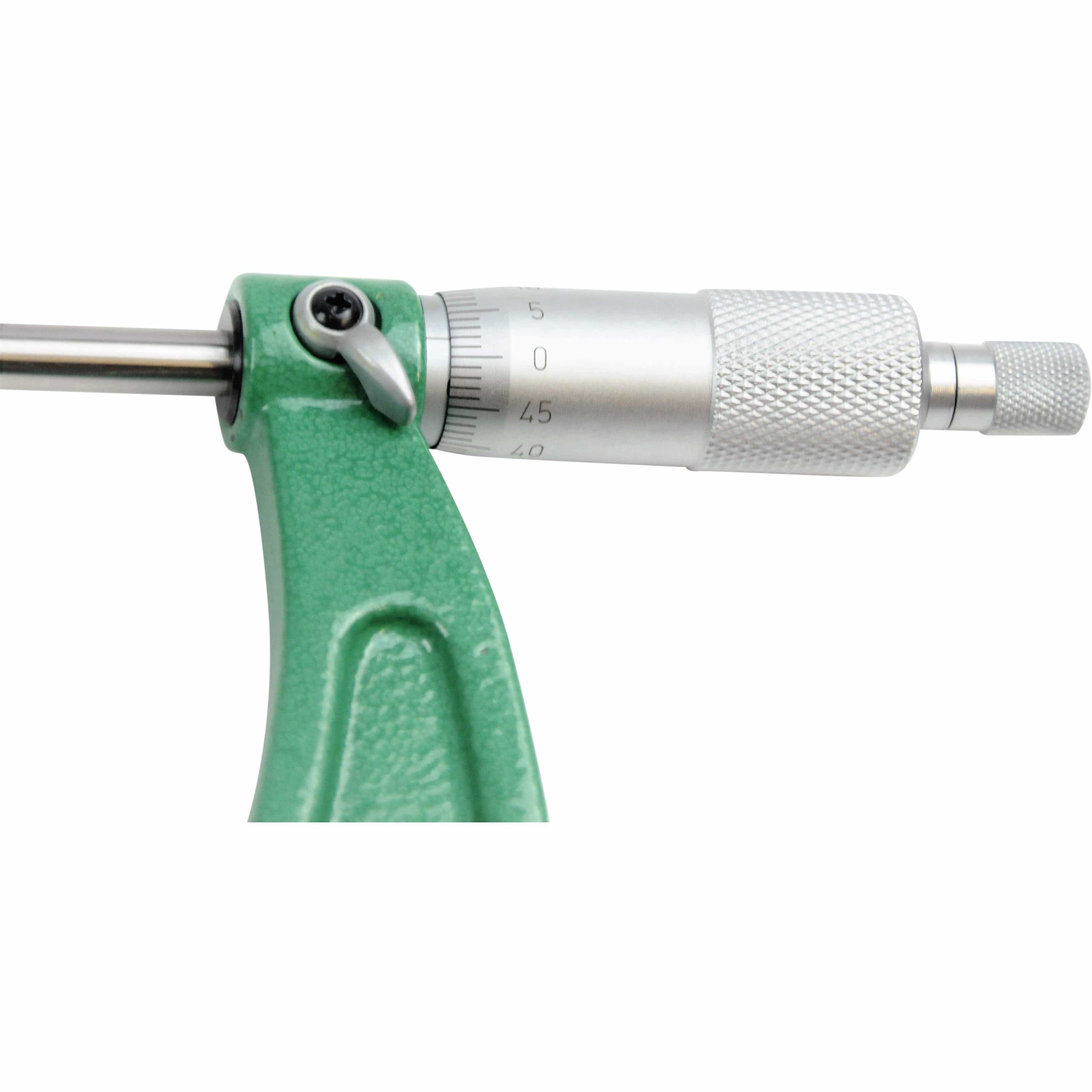

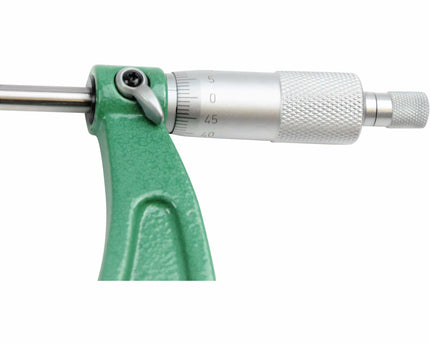

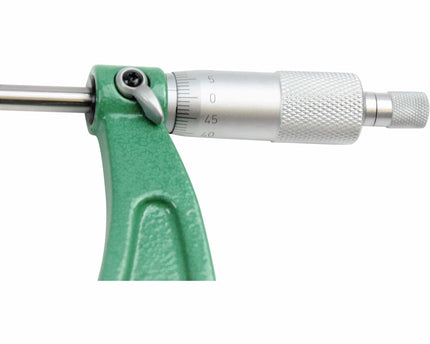

- Ratchet stop to ensure consistent measuring pressure
- Designed for metric measurement applications

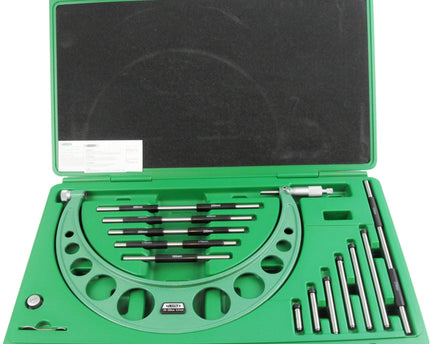

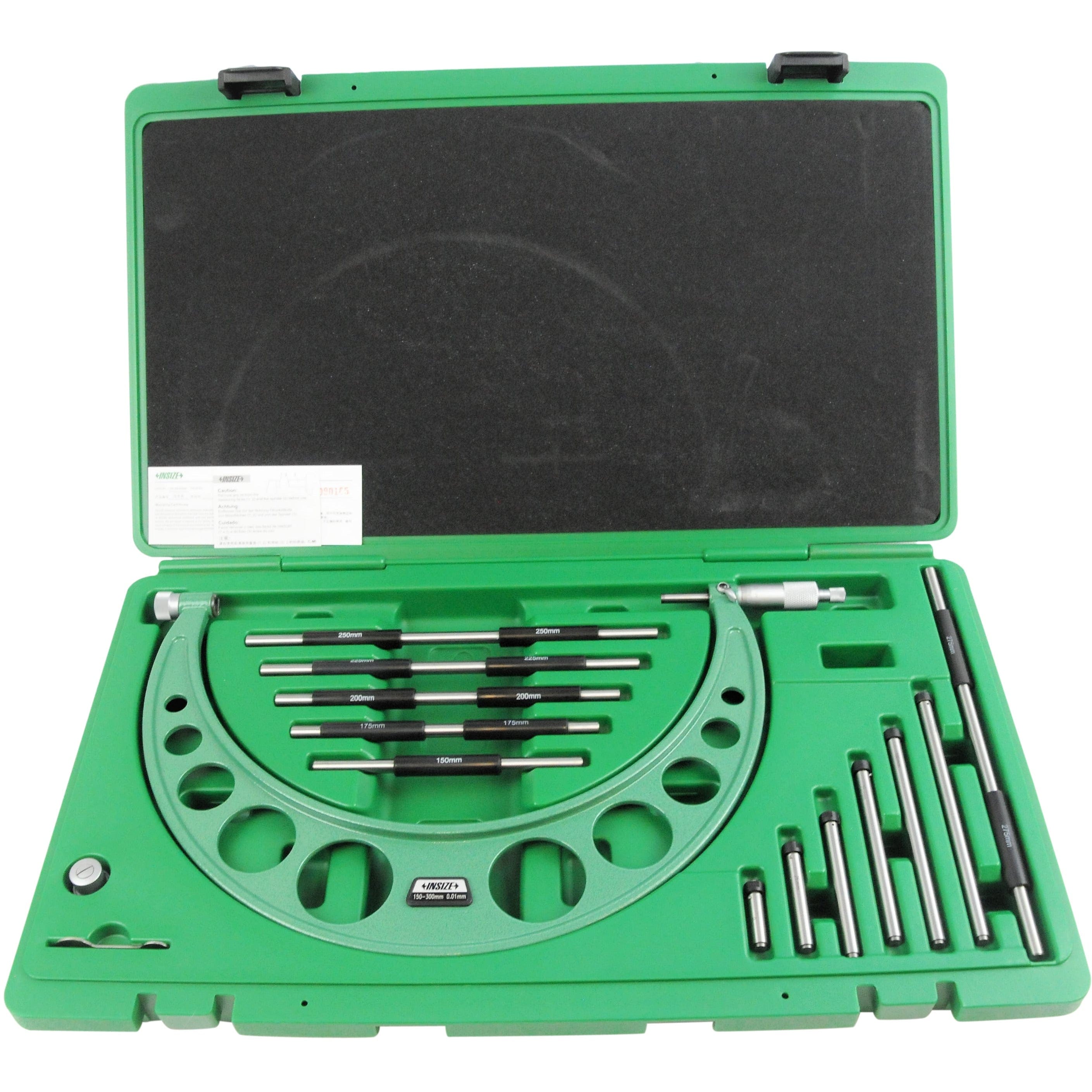

Includes

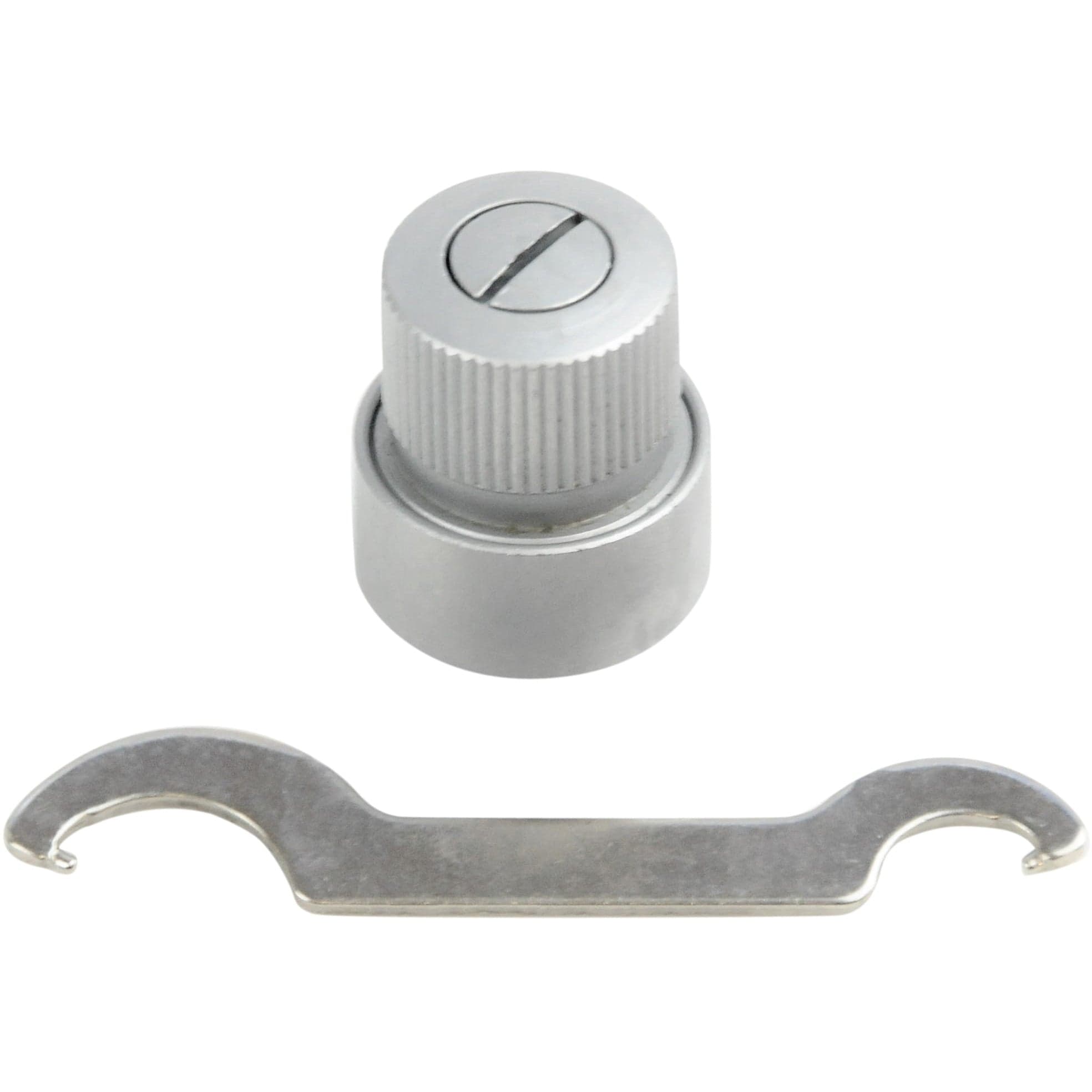

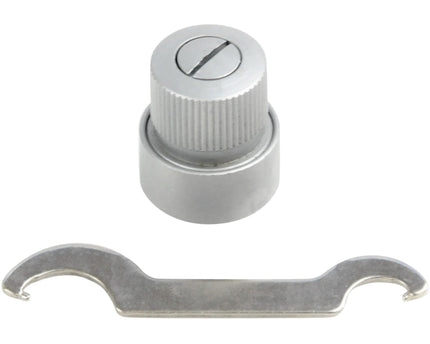

- Zero adjusting wrench

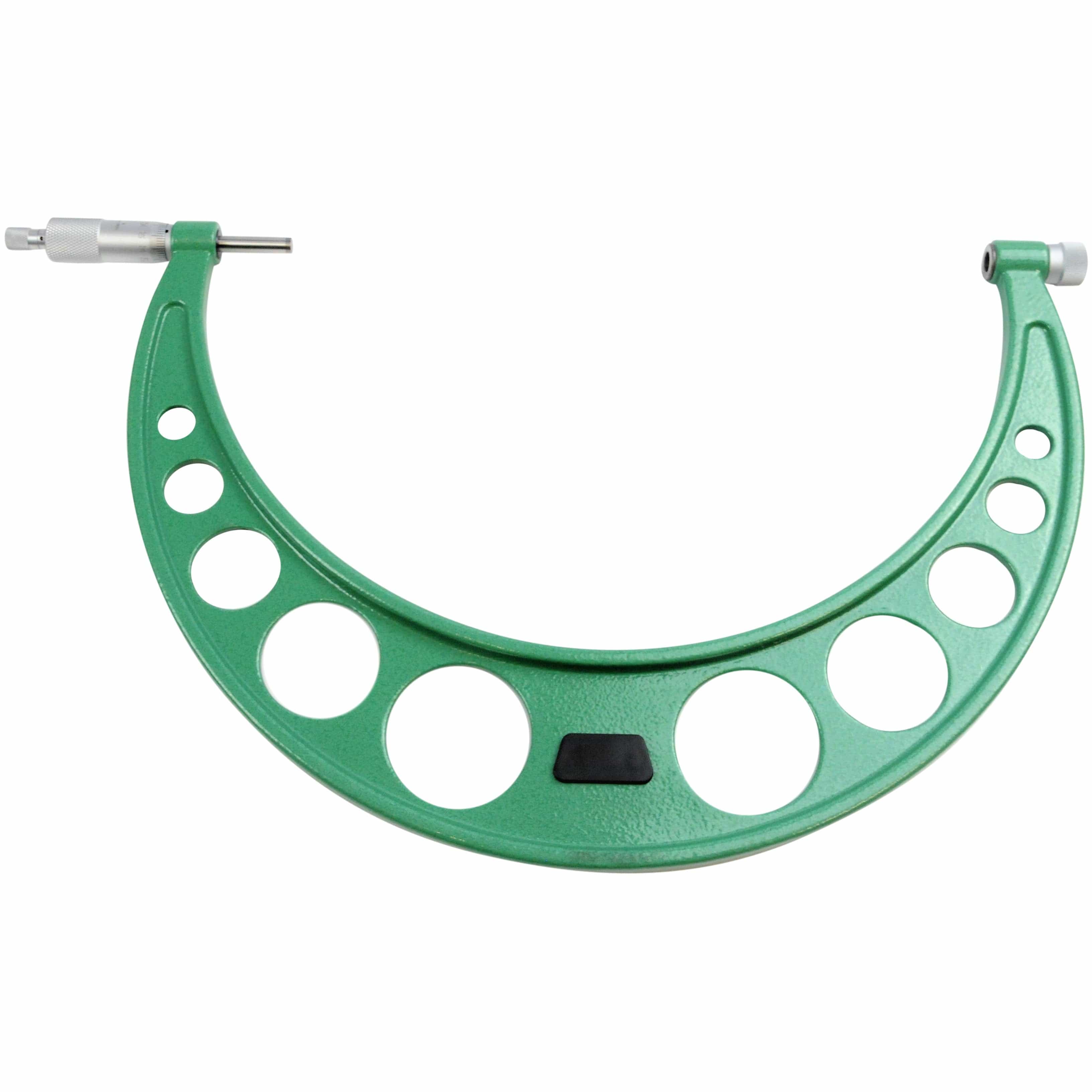

- Insize 3206-500 outside micrometer body (400–500mm range)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Well designed and built for durability, this Insize outside micrometer provides reliable precision for measuring large external dimensions. It is an essential measuring tool for users who require accurate, repeatable results across extended metric measuring ranges.
