Description

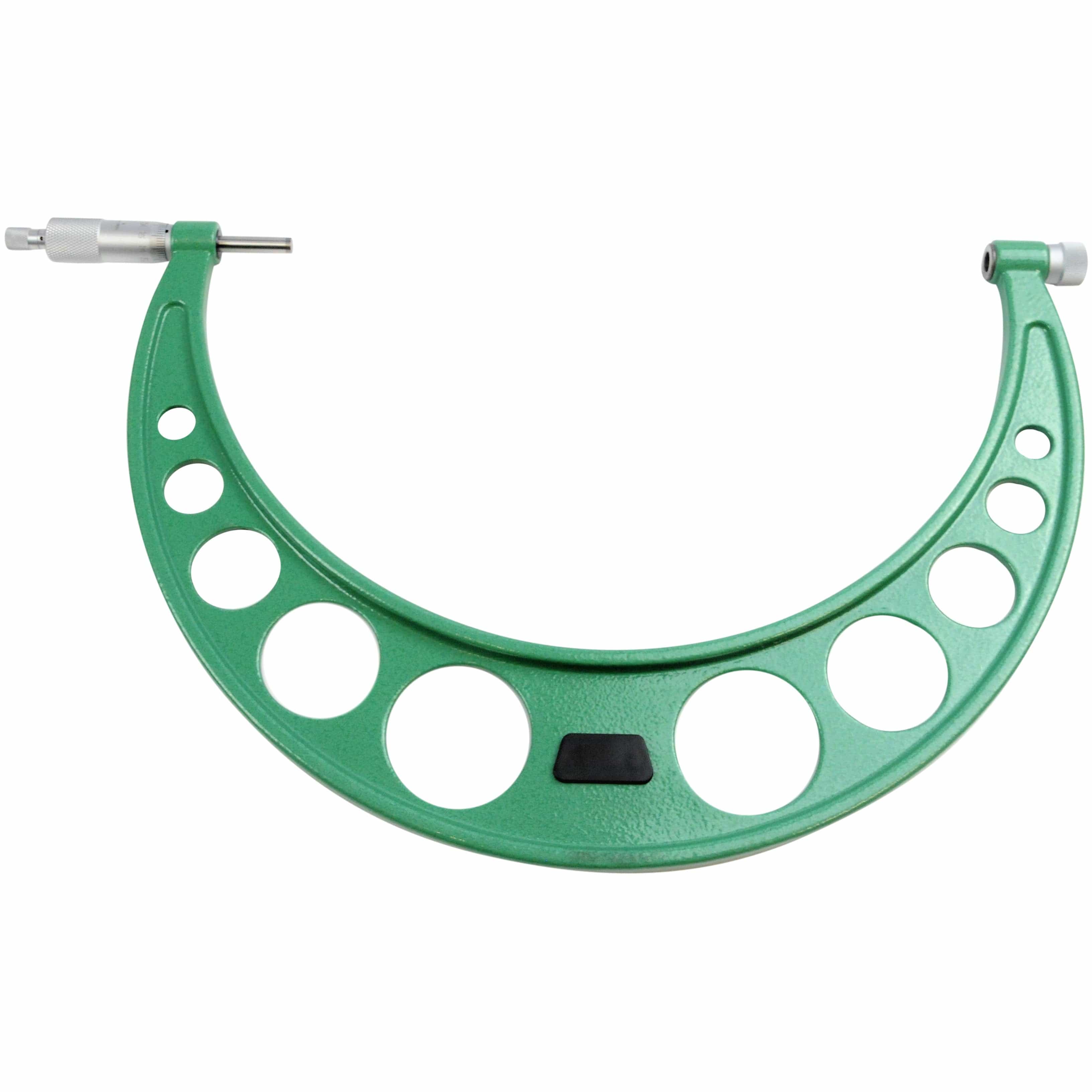

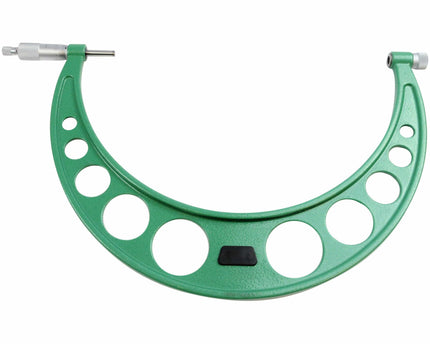

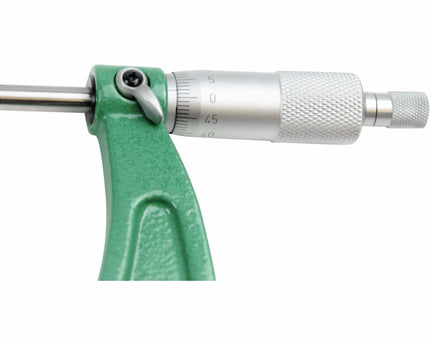

Insize 500–600mm Outside Micrometer
The Insize 500–600mm Outside Micrometer is a heavy-duty precision measuring instrument designed for accurate external measurements on large components. Featuring an interchangeable anvil system and carbide measuring faces, it provides reliable accuracy, repeatability, and durability for workshop, machining, and inspection environments.

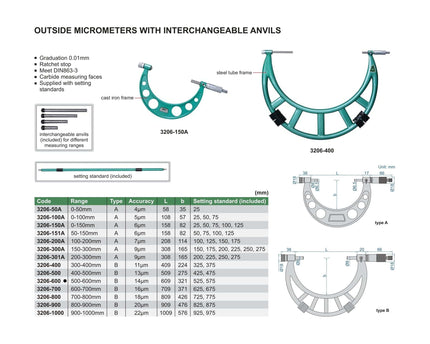

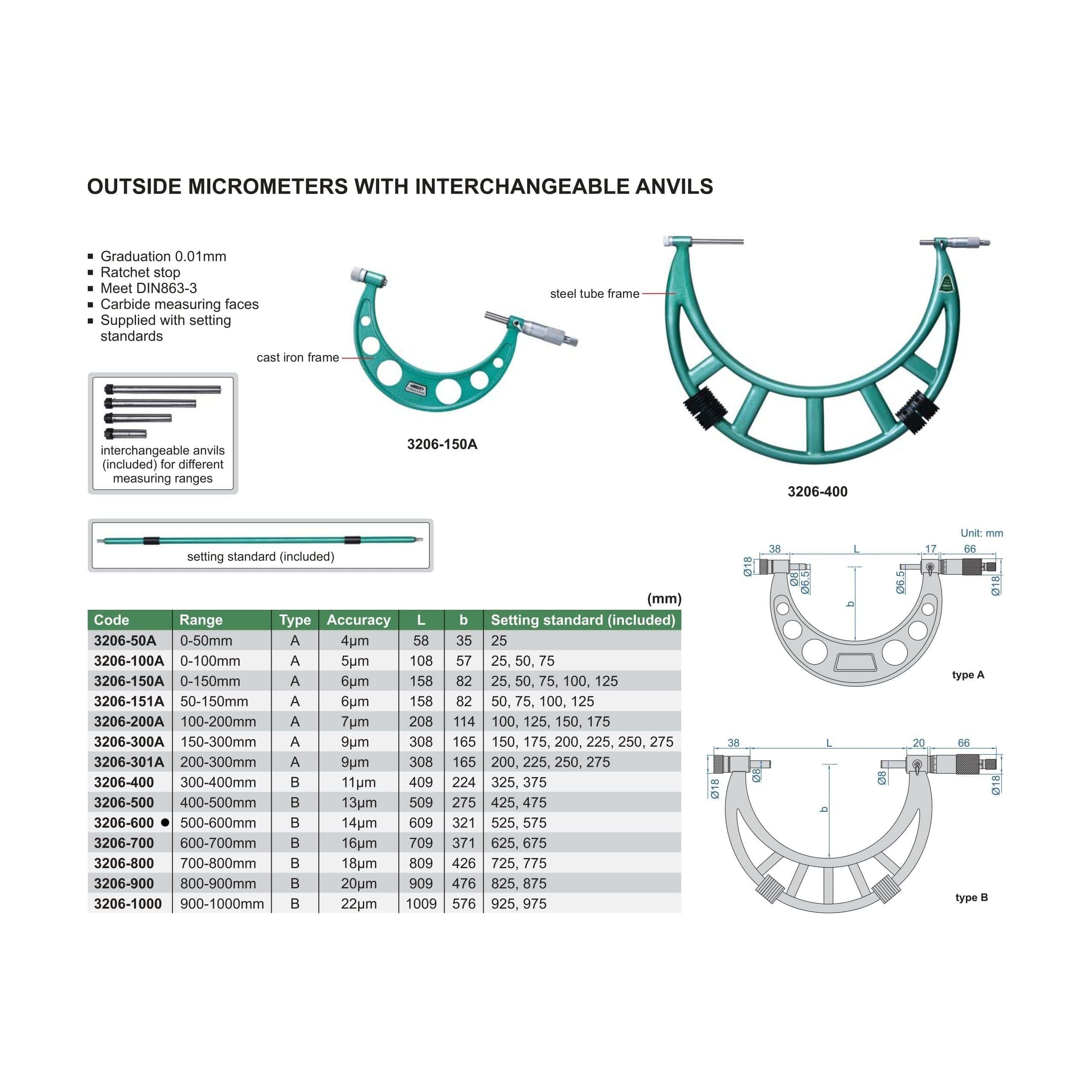

Specifications :
- Part No.: 3206-600
- Measuring range: 500–600mm
- Graduation: 0.01mm

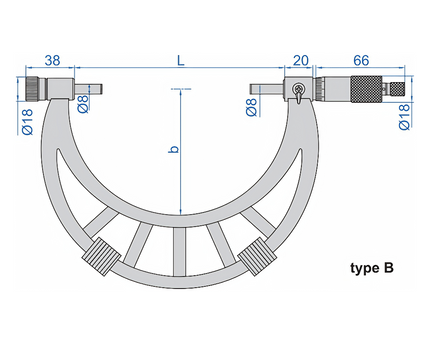

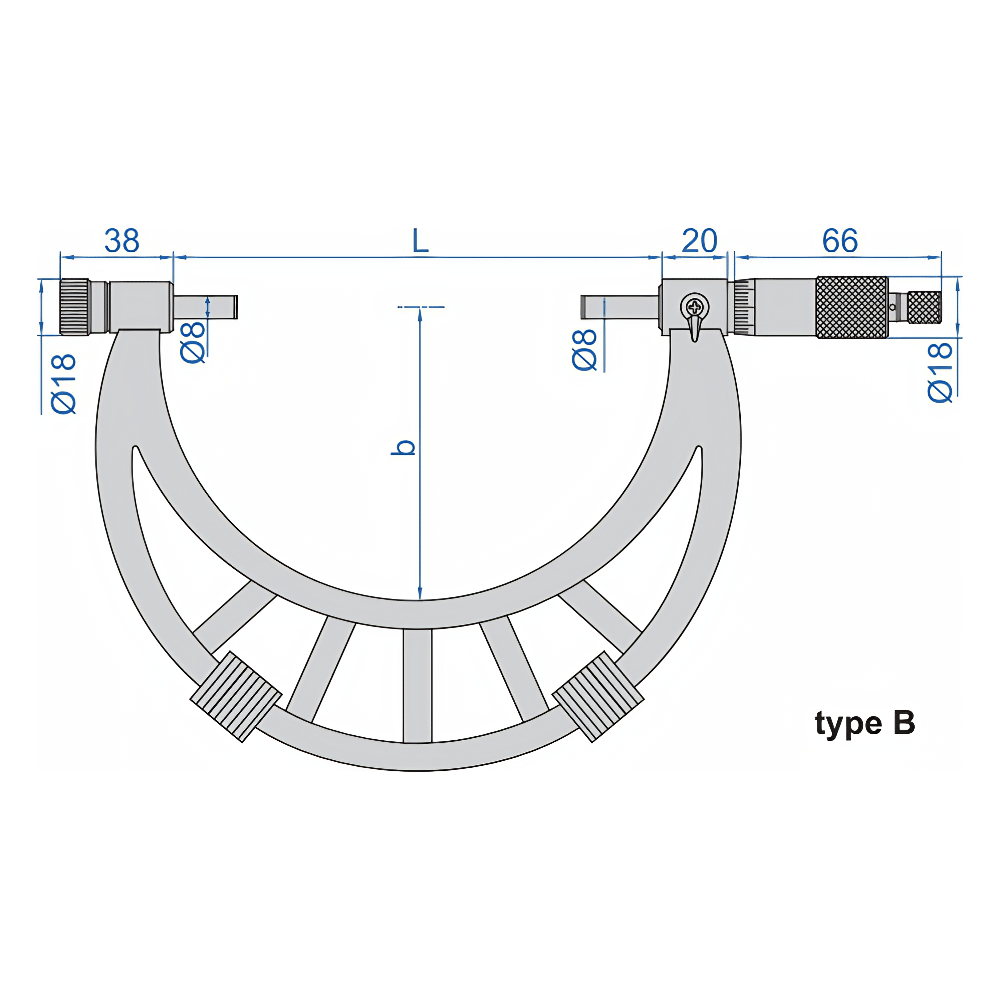

- Type: B
- Overall length (L): 609mm
- Frame depth (B): 321mm
- Interchangeable anvil system for extended measuring capability
- Setting standards included: 525mm, 575mm
- Carbide measuring faces for high wear resistance and long service life

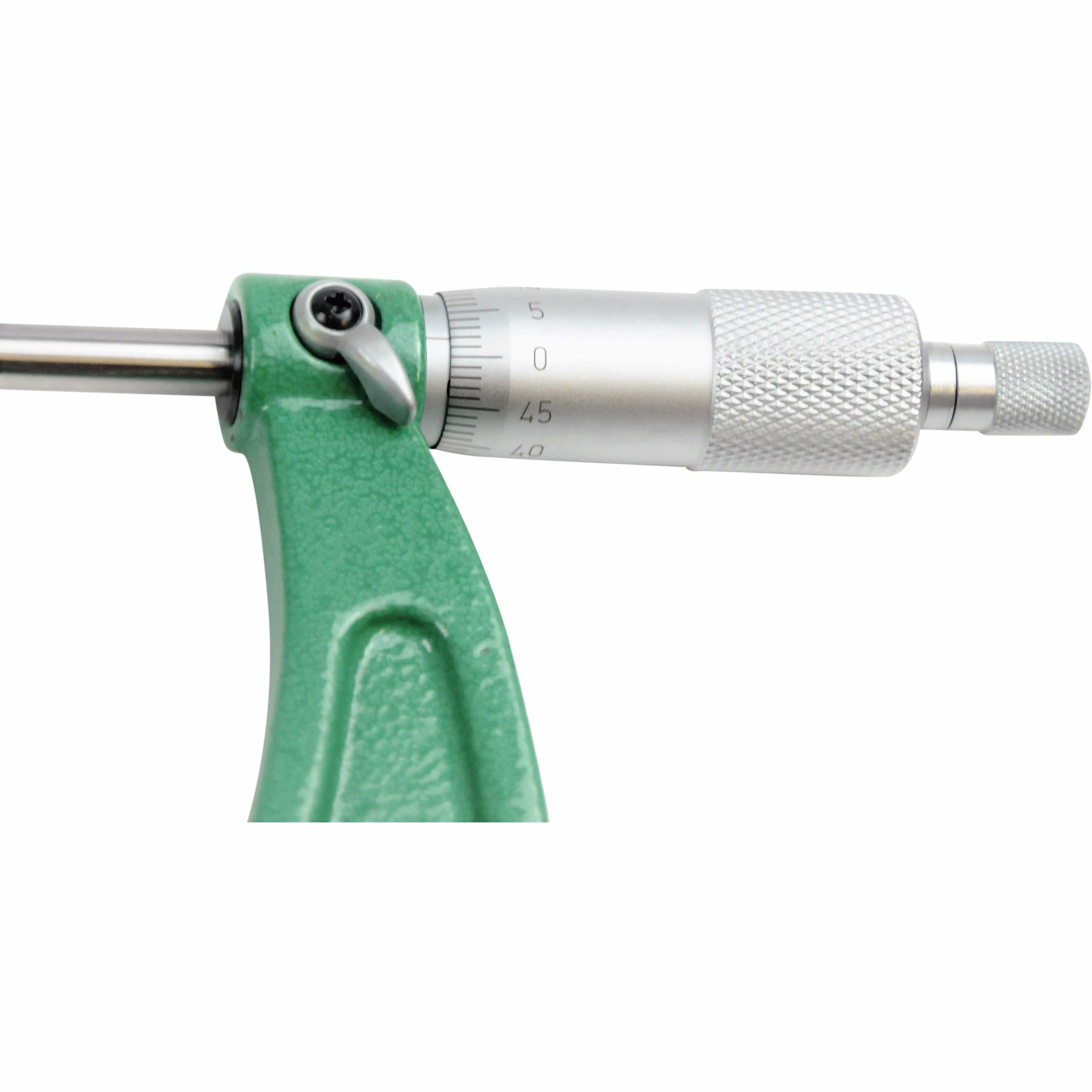

- Ratchet stop to ensure consistent and repeatable measuring pressure
- Metric reading

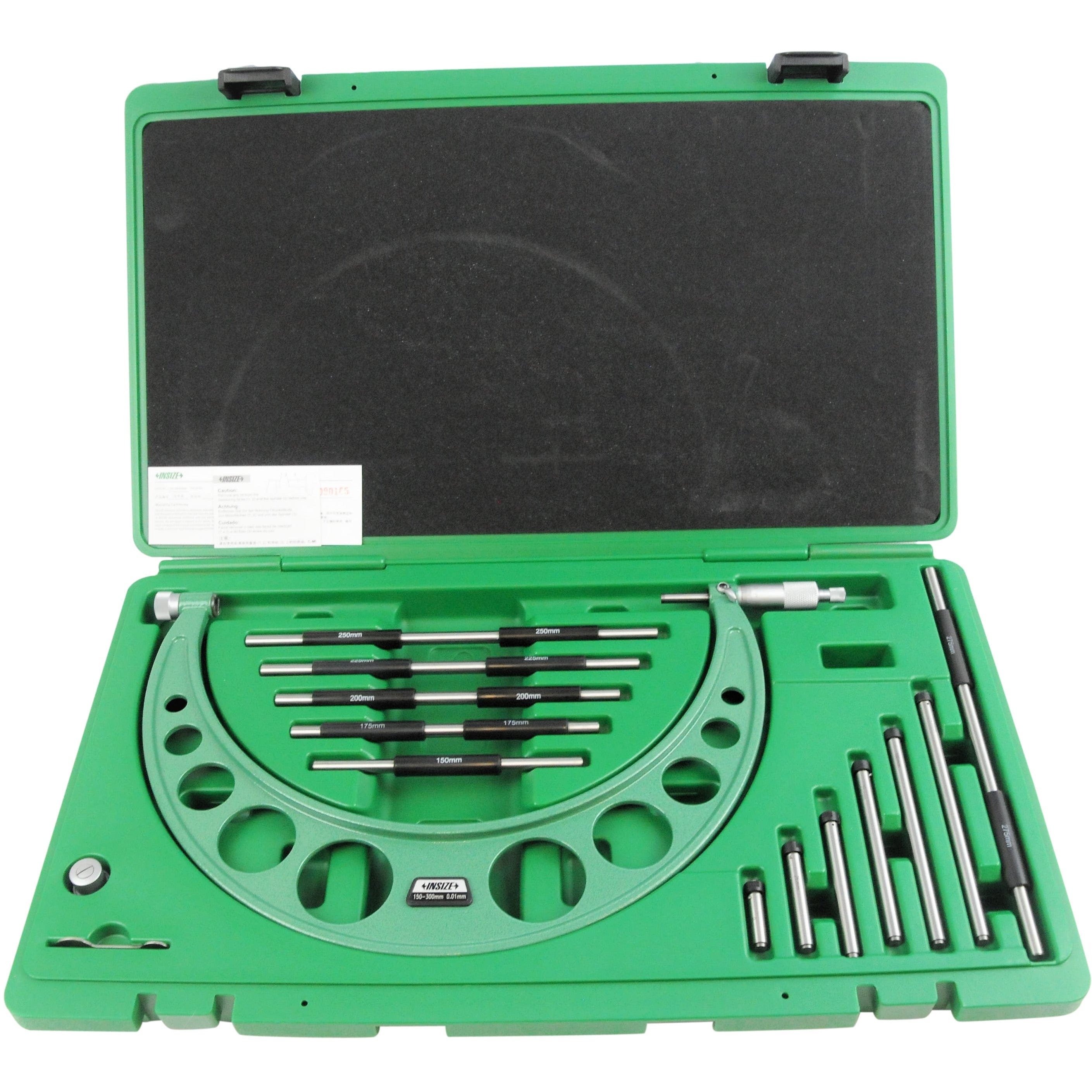

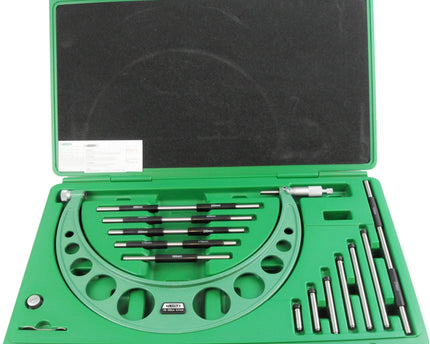

Includes

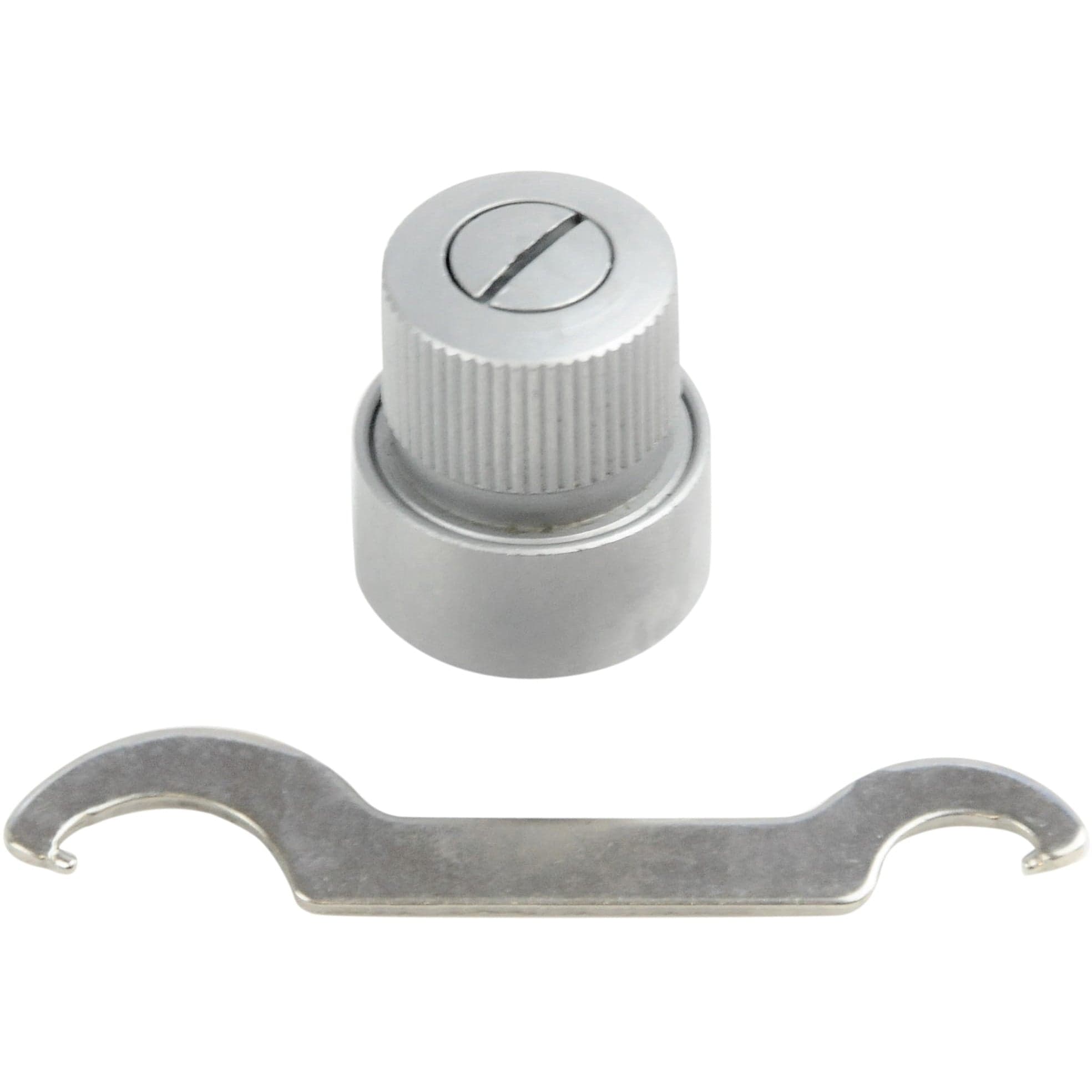

- Zero adjusting wrench
- Insize 3206-600 outside micrometer body (500–600mm range)
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Well designed and built for durability, this Insize outside micrometer delivers dependable precision for measuring large external dimensions. It is an essential measuring tool for applications where accuracy and consistency are critical.
