Description

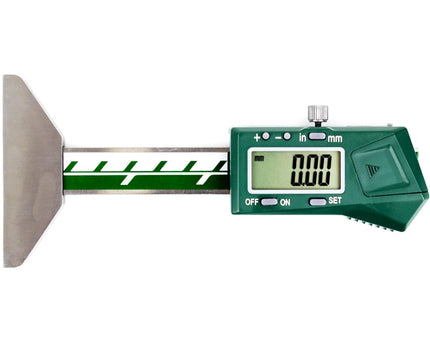

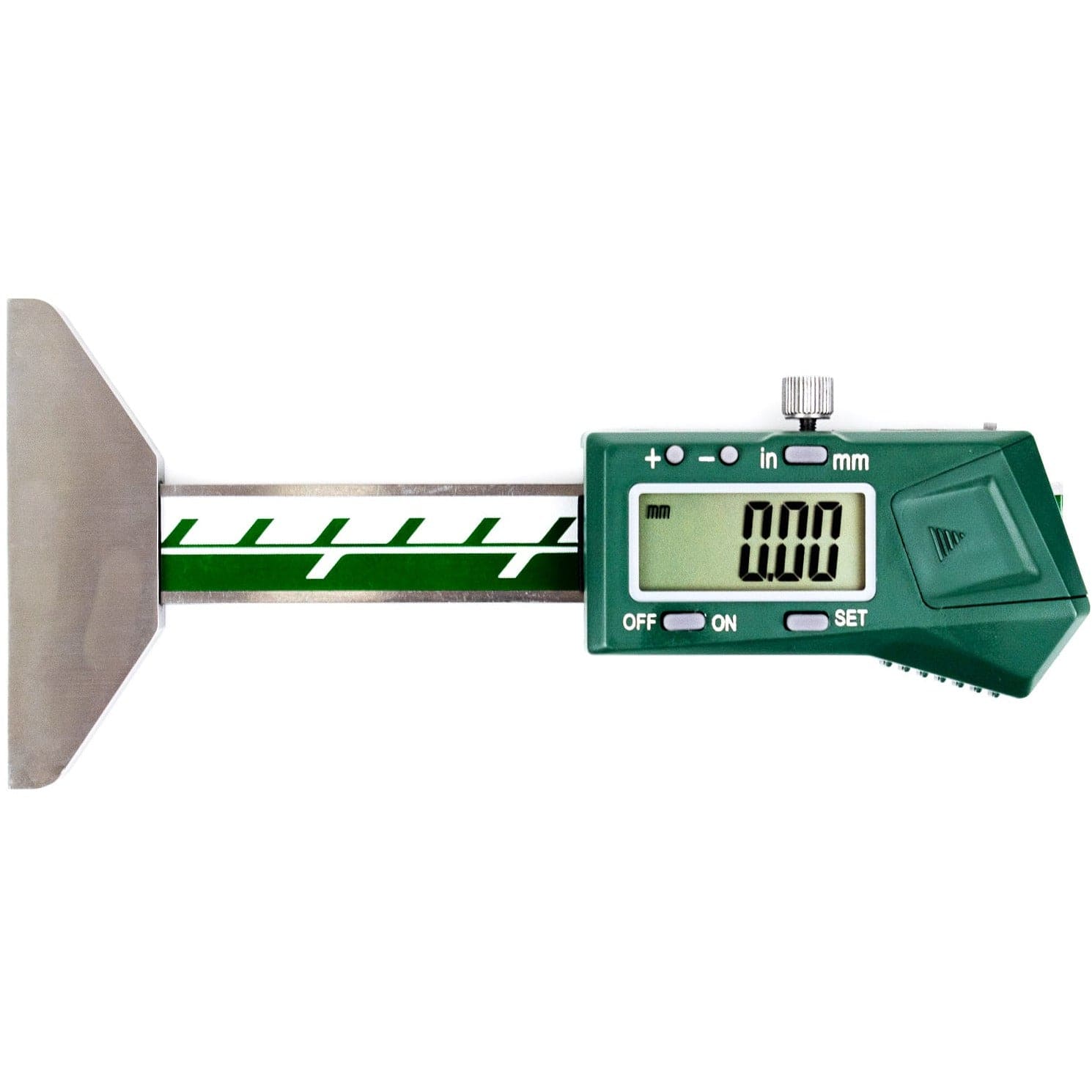

Insize Digital Depth Gauge
A precision digital depth gauge engineered for accurate measurement of grooves, recesses, blind holes, and small cavities. Constructed from durable stainless steel and equipped with a clear digital display, it provides reliable performance for machining, inspection, metalworking, and general workshop use.

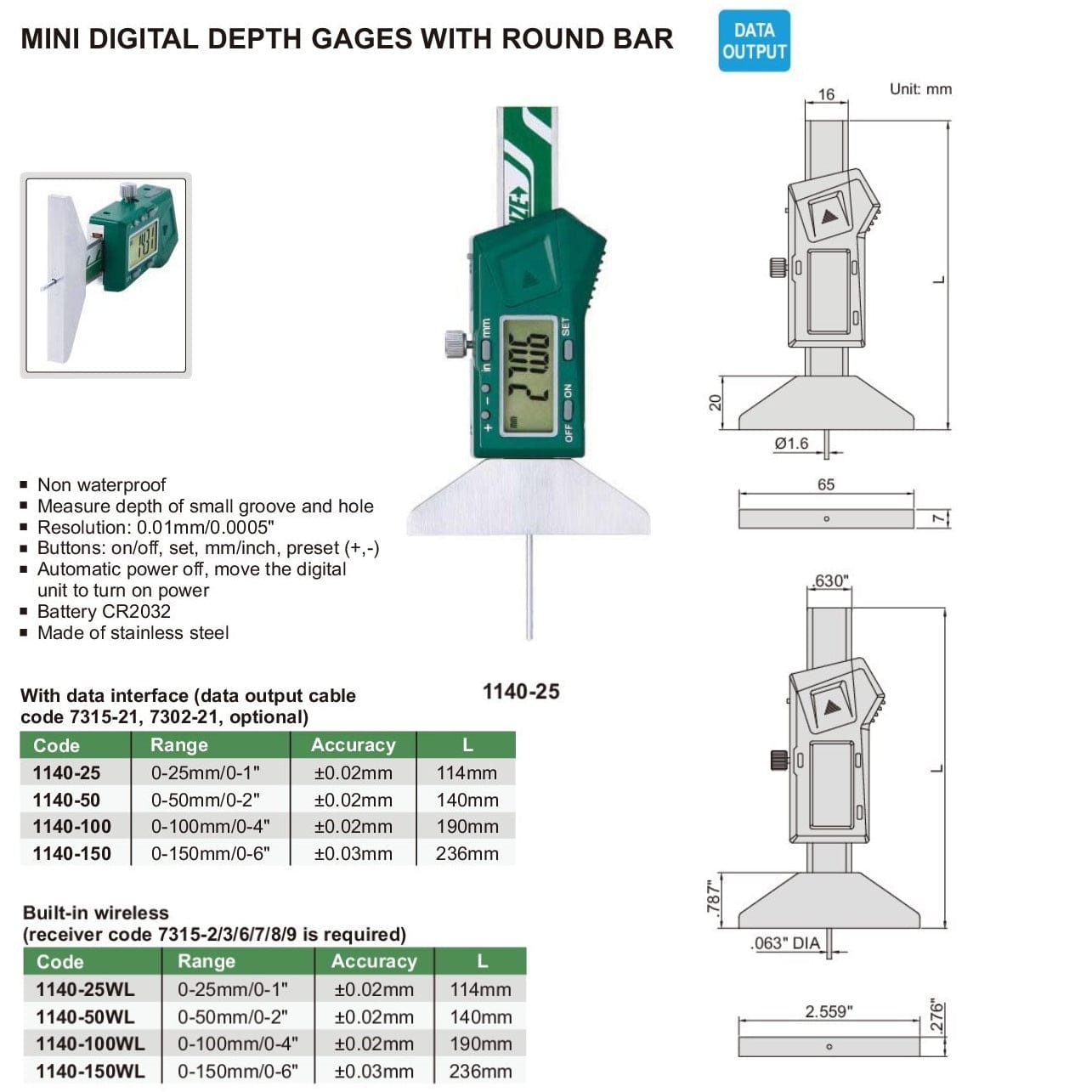

Key Features:
-
Part Number: 1140-50
-
Accuracy: ±0.02 mm
-
Resolution: 0.0005" / 0.01 mm
-
Range: 0–50 mm / 0–2"
-
Length: 140 mm
-
Measurement Function: Suitable for measuring the depth of small grooves and holes
-
Buttons: On/Off, Set, Inch/mm, Preset (+/-)
-
Automatic Power Control: Power turns on when the digital unit is moved
-
Battery: CR2032
-
Data Output: Yes
-
Material: Stainless steel
-
Optional Accessories: 7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A, 7305-A01/A02
Designed for accuracy, ease of use, and dependable performance, the Insize Digital Depth Gauge is an essential tool for precision depth measurement across a wide range of industrial and workshop applications.
