Description
Insize 32–36" Outside Micrometer
The Insize 32–36" Outside Micrometer is a robust, precision measuring instrument engineered for accurate external measurement of large components. Designed for industrial machining and inspection environments, it combines an interchangeable anvil system with a rigid frame construction to deliver dependable accuracy, repeatability, and long-term durability across extended measuring ranges.

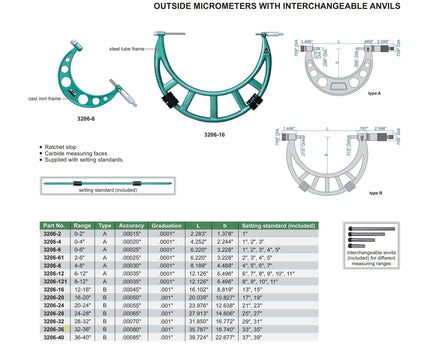

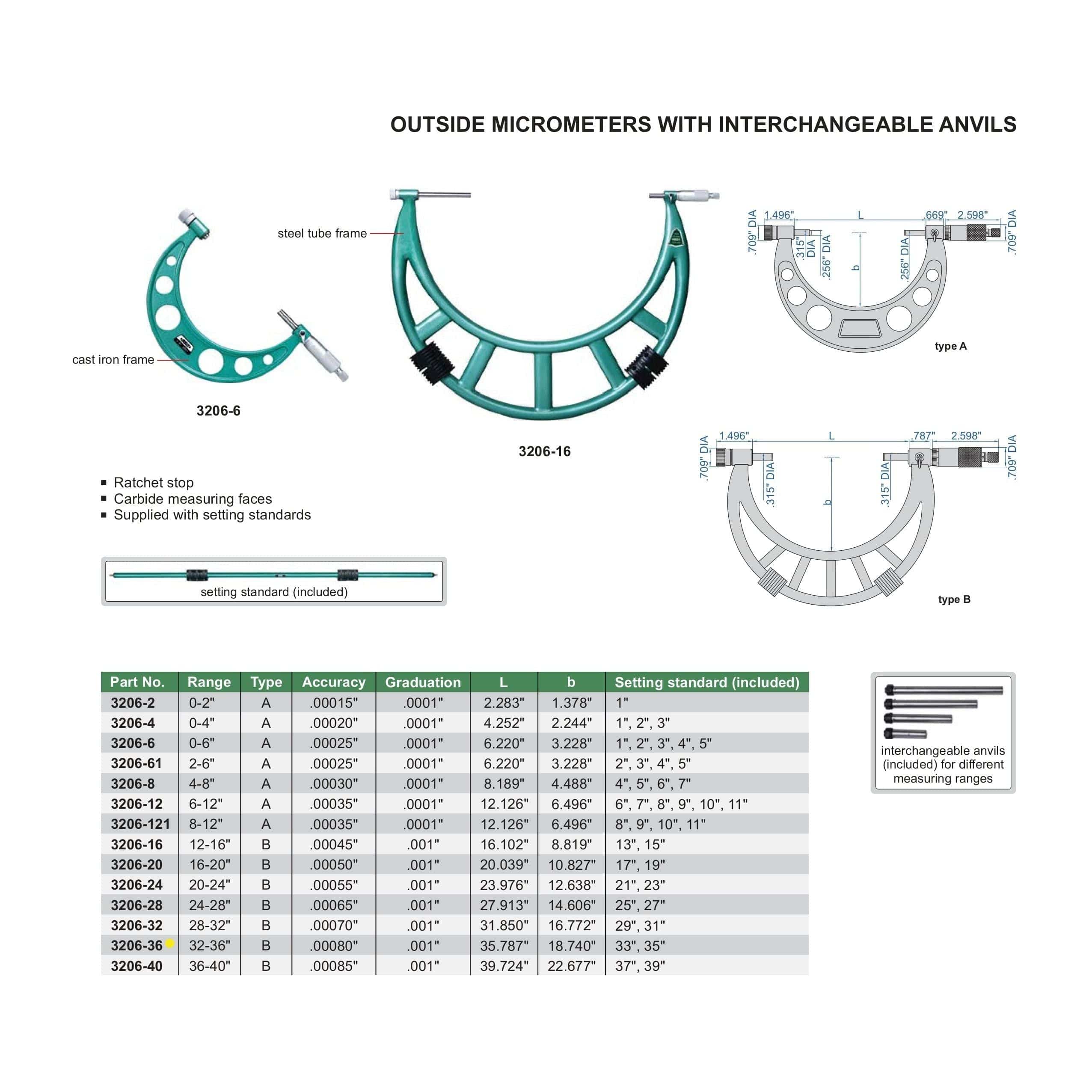

Specifications :
- Part No.: 3206-36
- Measuring range: 32–36"
- Graduation: 0.001"
- Accuracy: 0.00080"

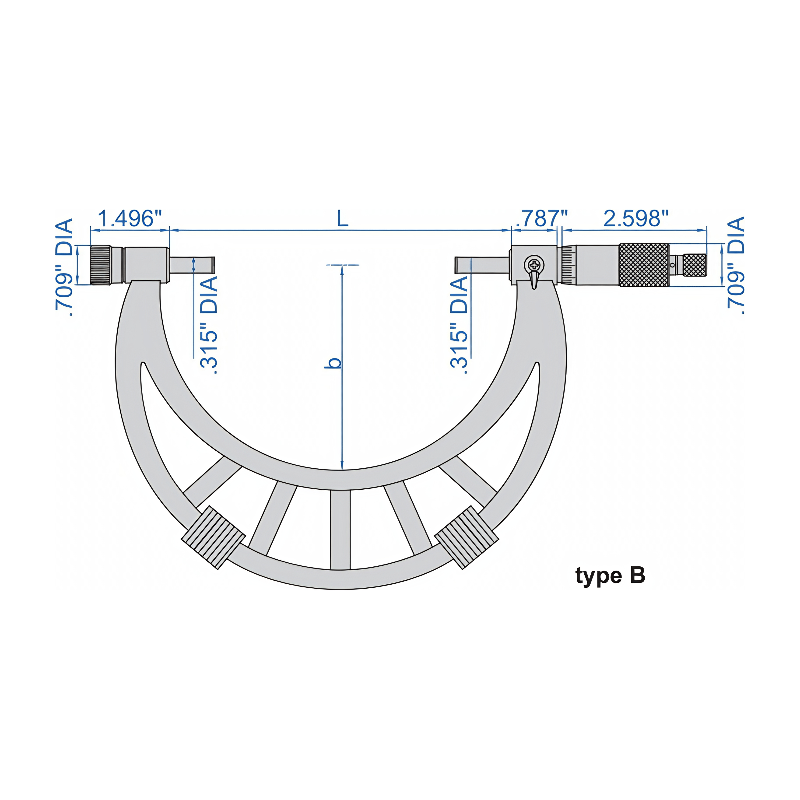

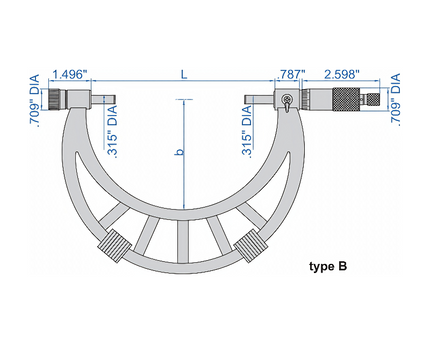

- Overall length (L): 35.787"
- Frame depth (B): 18.740"
- Type: B
- Interchangeable anvil system for multiple measuring ranges

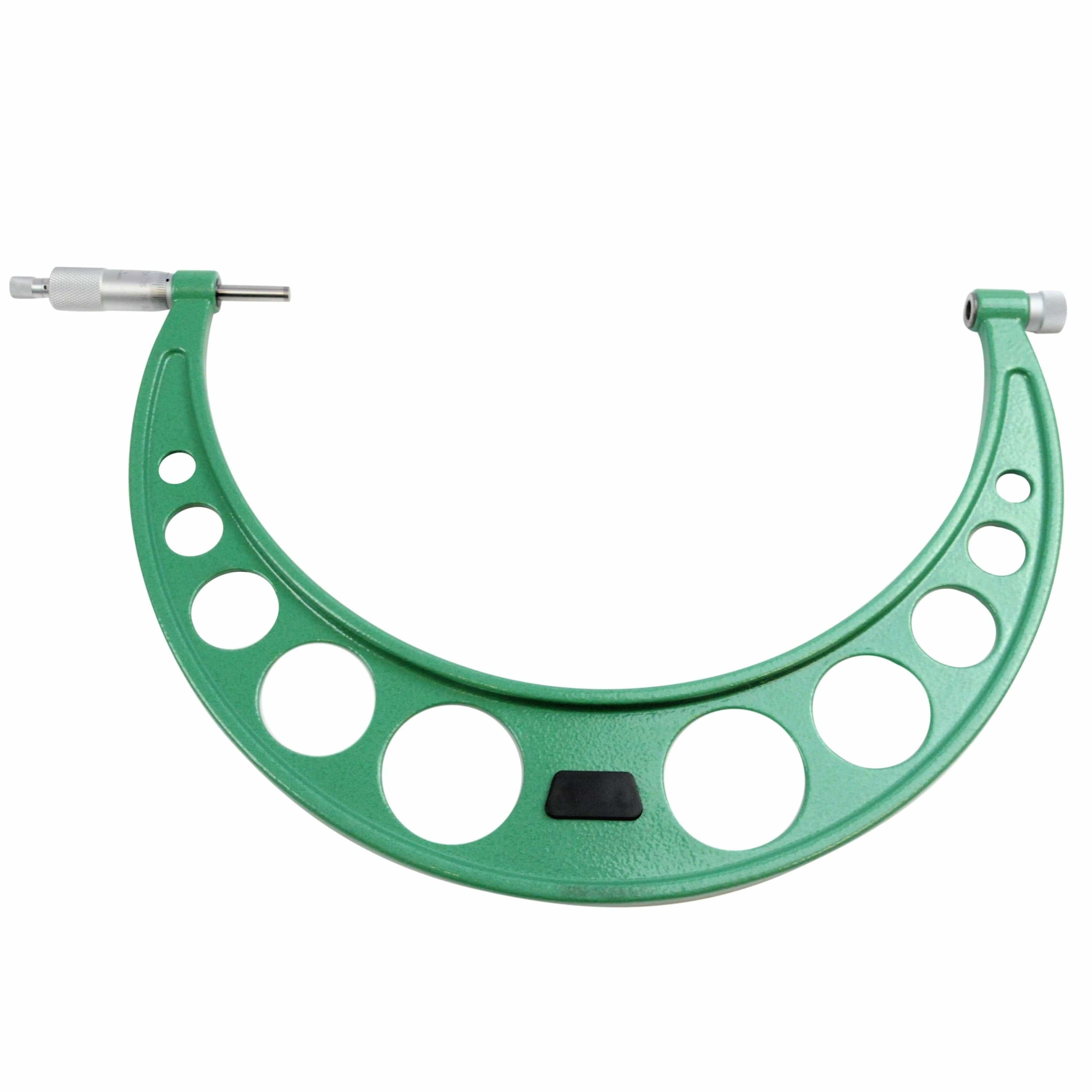

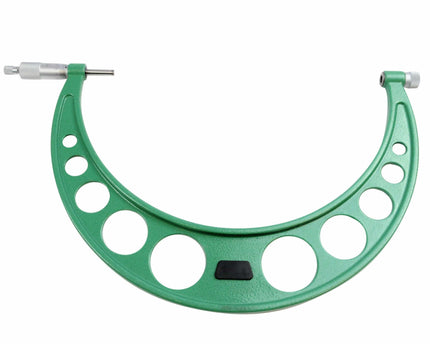

- Cast iron frame with steel tube construction for rigidity and stability

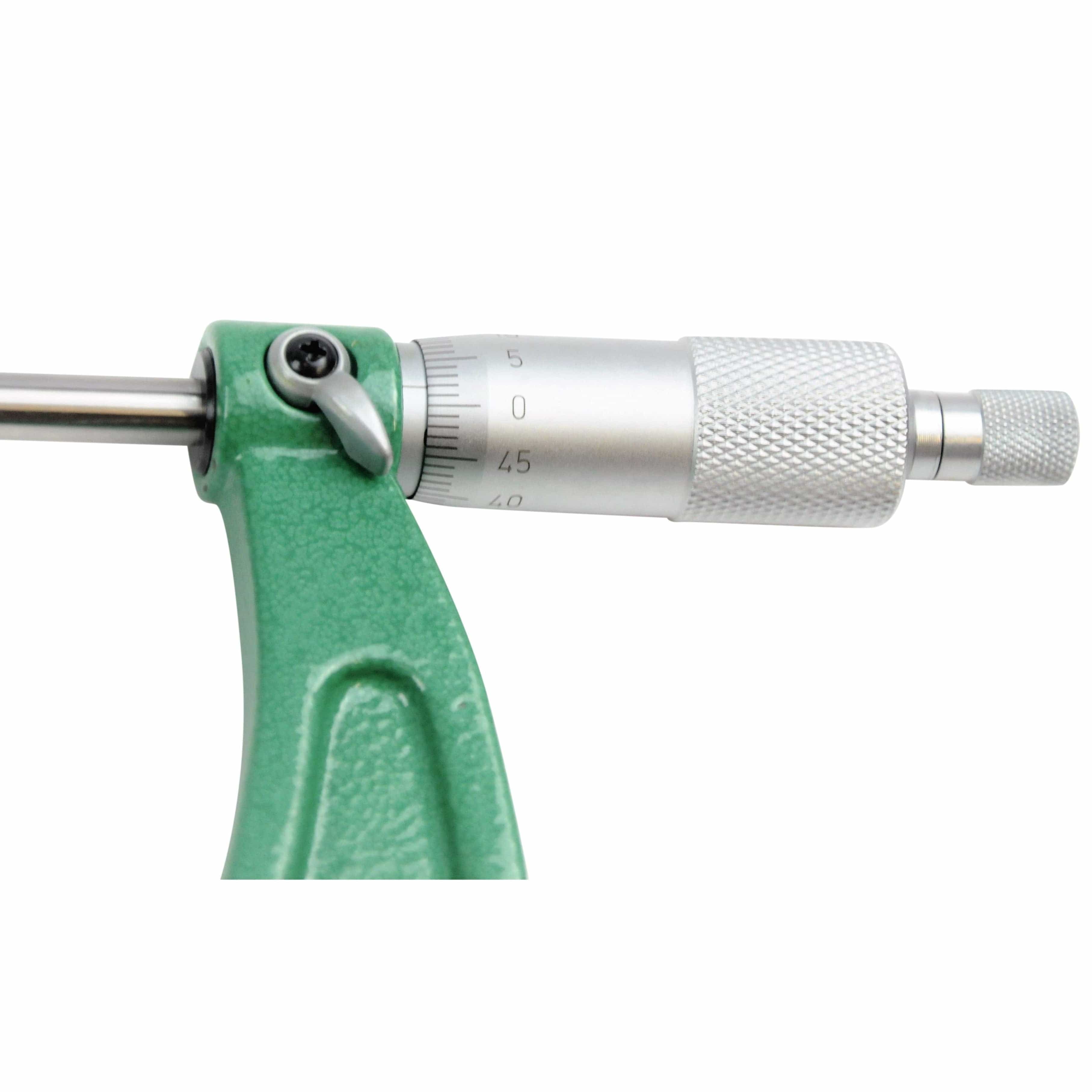

- Spindle thread hardened, ground, and lapped for smooth operation and high accuracy
- Carbide measuring faces for excellent wear resistance and extended service life

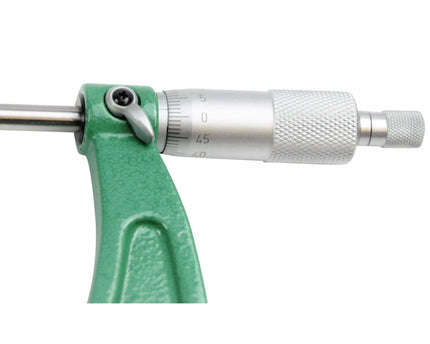

- Ratchet stop to ensure consistent measuring pressure
- Designed for imperial measurement applications

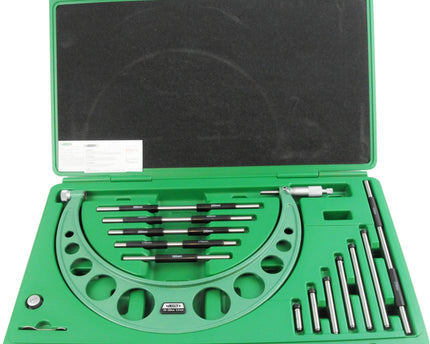

Includes

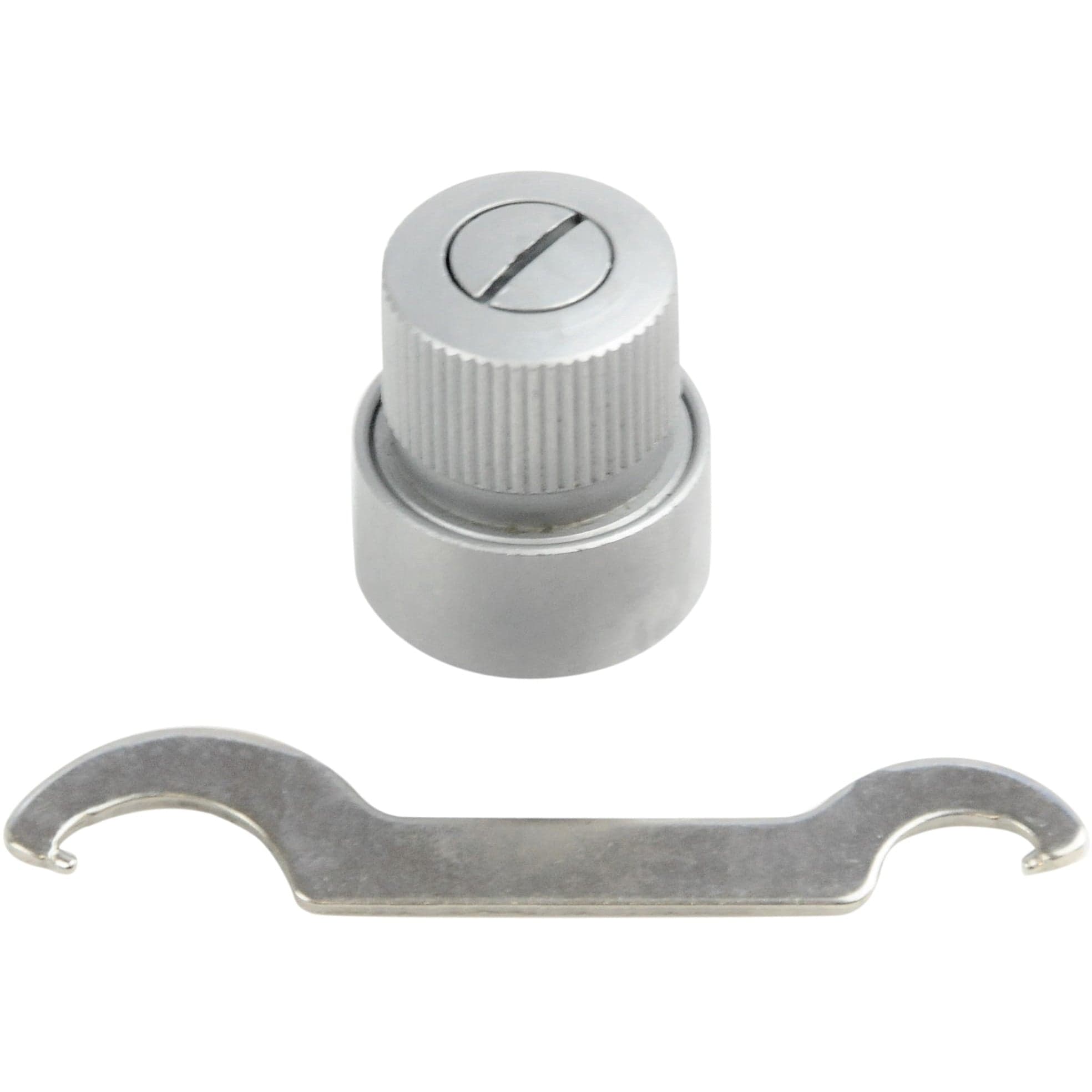

- Zero adjusting wrench
- Insize 3206-36 outside micrometer body (32–36" range)
- Setting standards: 33" and 35"
- Full set of calibration rods
- Full set of interchangeable anvils
- Custom-styled protective case
Built for demanding measurement tasks, the Insize 32–36" Outside Micrometer provides reliable precision for workshops, inspection departments, and manufacturing facilities requiring accurate measurement of large external dimensions. Its comprehensive accessory set and interchangeable anvils make it a versatile and dependable solution for heavy-duty measurement applications.
