Description

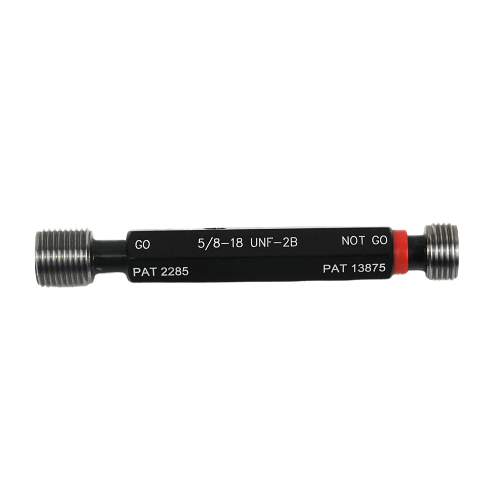

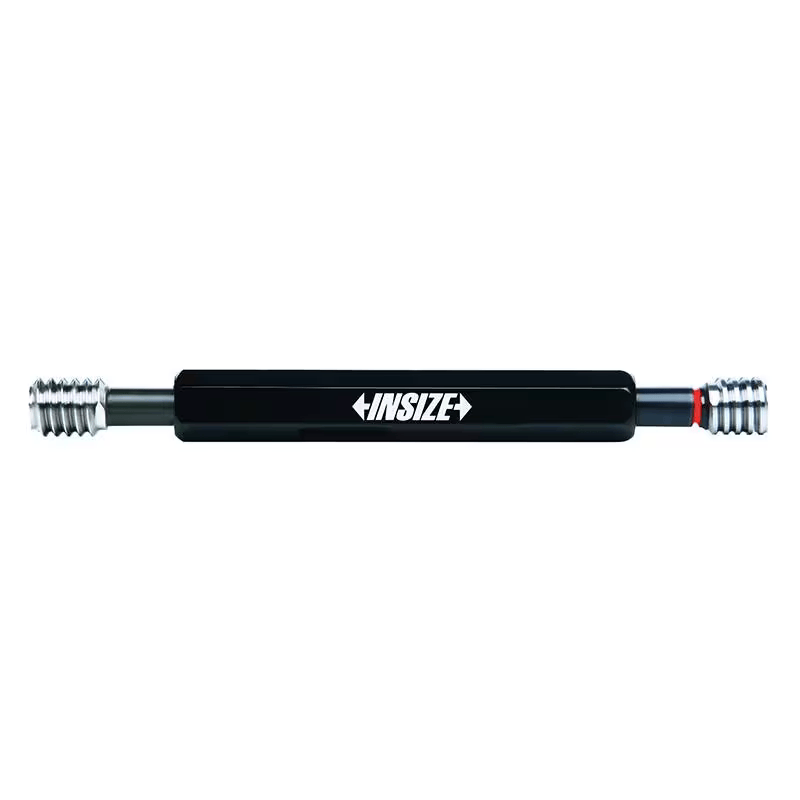

Insize Thread Plug Gage 5/8-18 UNF Class 2B Series 4643-5C2
The Insize 4643-5C2 Thread Plug Gage is engineered for precise inspection of 5/8-18 UNF internal threads, Class 2B. It conforms to ANSI B1.2 standards and comes with GO and NOGO members. Made of OHNS steel, hardened to HRC60–62, it ensures wear resistance and long service life. Supplied with a manufacturer's inspection certificate for compliance and traceability.
Specifications:
-
Part No: 4643-5C2
-
Thread Size: 5/8-18 UNF
-
Class: 2B
-
Type: Thread Plug Gage (GO & NOGO)
-
Standard: ANSI B1.2
-
Material: OHNS steel
-
Hardness: HRC60–62
-
Certificate: Manufacturer inspection certificate
Durable and accurate, the Insize 4643-5C2 is a dependable tool for precision thread inspection.
